Wireless Vehicle Detection

Gilbert® is the new generation of wireless vehicle detection, designed to reduce installation time and total ownership cost. Using a magnetic sensor, Gilbert detects vehicle presence/movement and sends the signal wirelessly to a receiver to activate your gate, barrier, or door based on your programmed configuration. Choose Surface for fast, obstruction-free installs on typical residential/commercial traffic areas, or Insert when you need a flush solution that minimises trip/impact risk in busy pedestrian or industrial environments.

Versions:

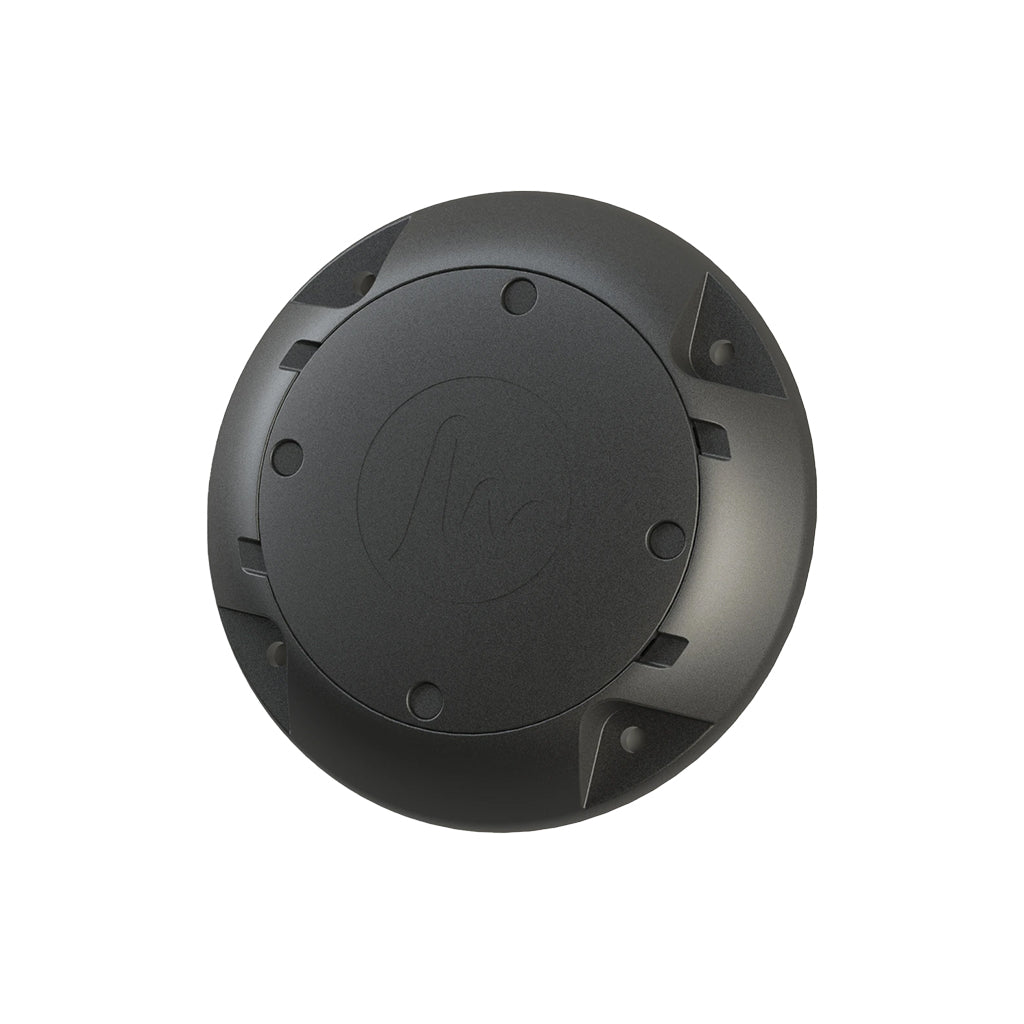

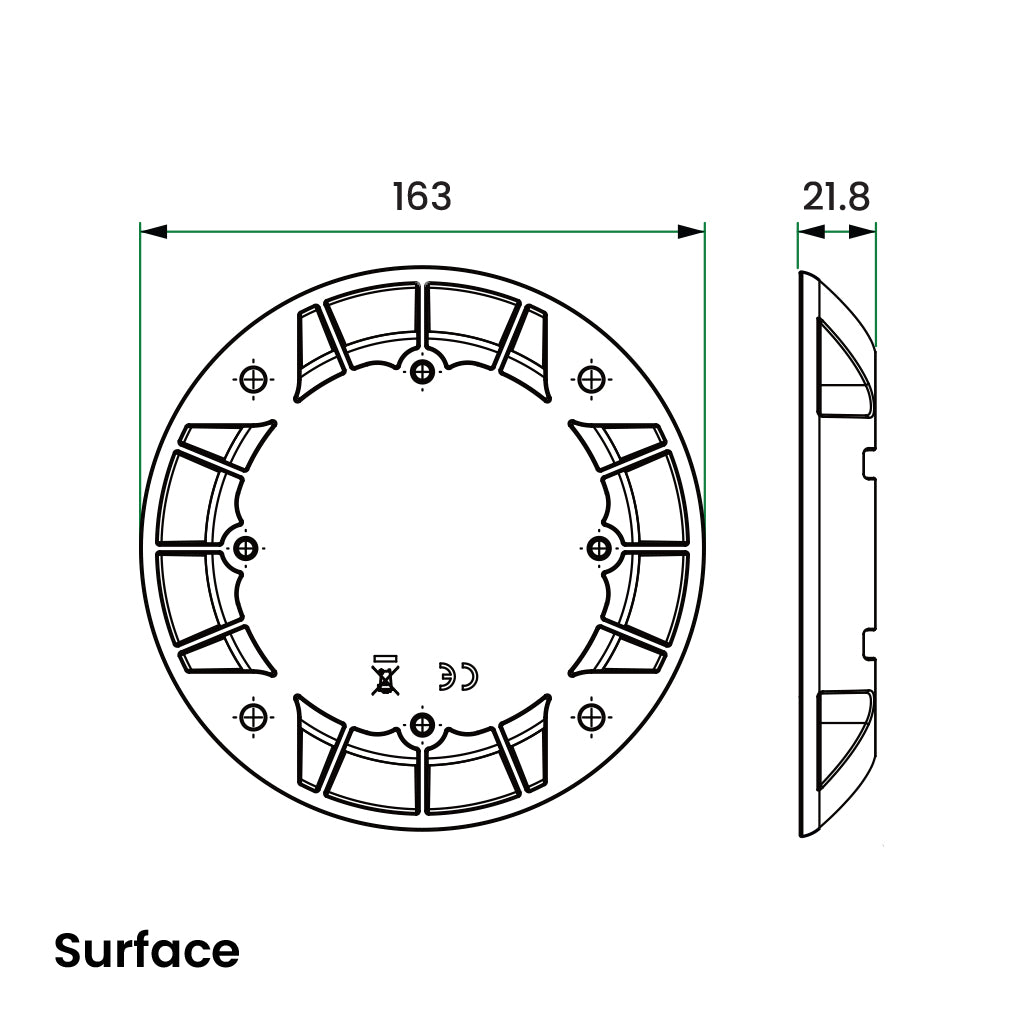

• Gilbert Surface
  Best for residential areas/buildings and commercial traffic zones where you want the simplest install and no risk of obstruction.

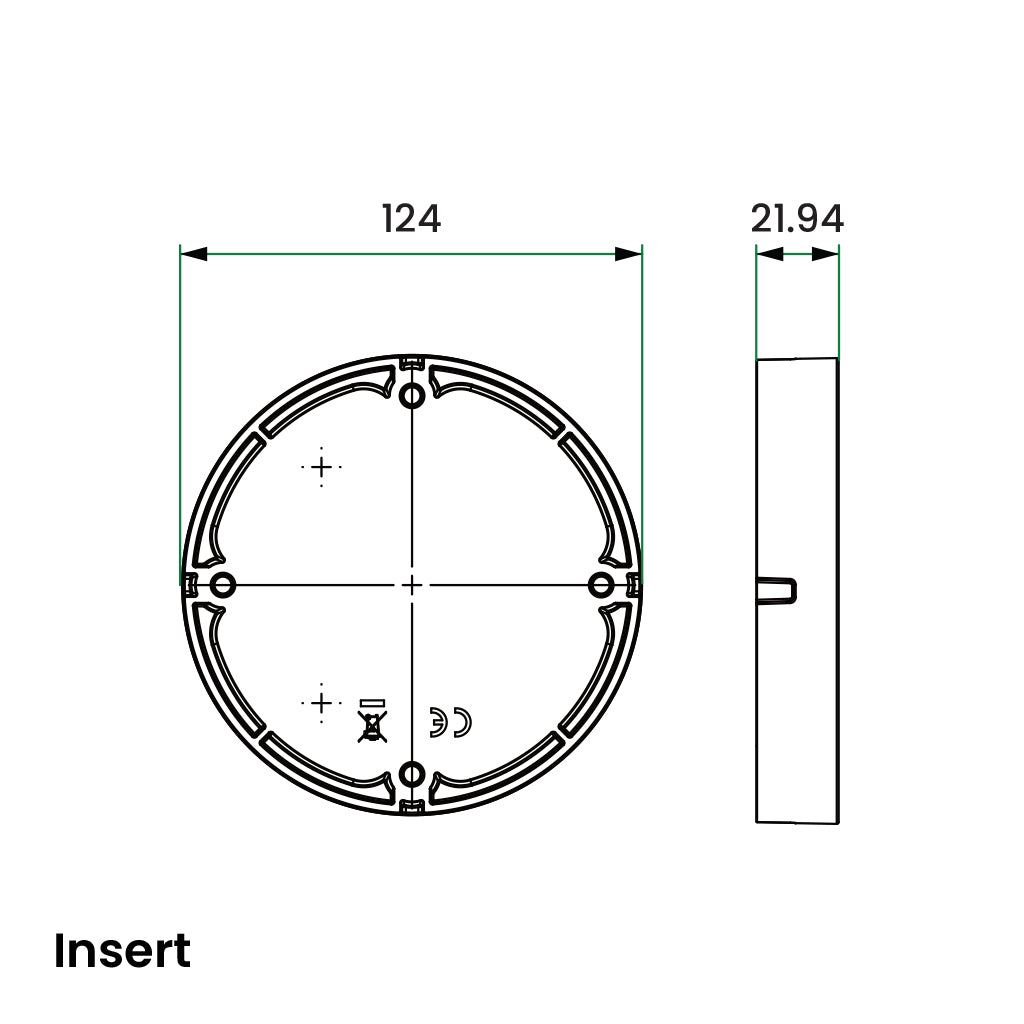

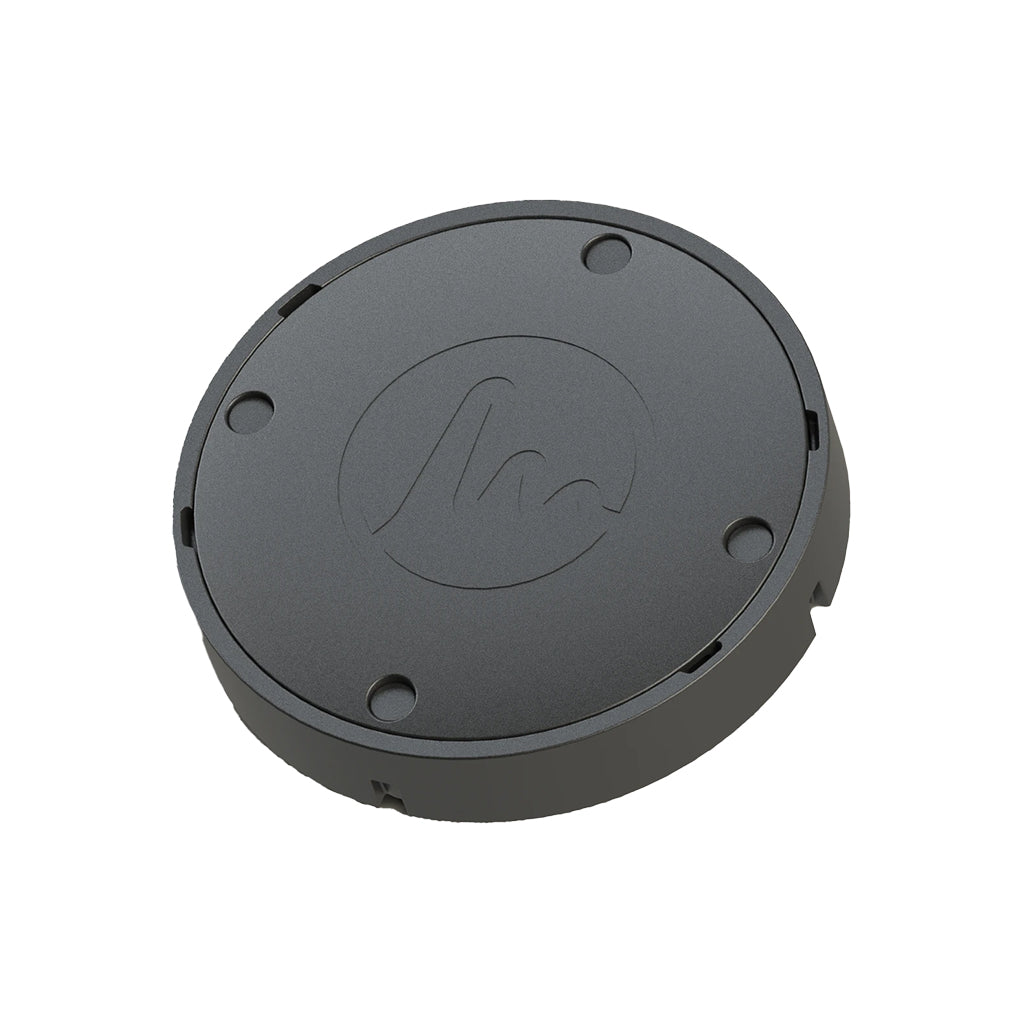

• Gilbert Insert
  A flush solution designed to eliminate potential obstruction for vehicles or pedestrians—ideal for parking lots, loading docks, and industrial facilities.

Specifications

• Power supply (detector/transmitter): 2 × 3.6V AA lithium

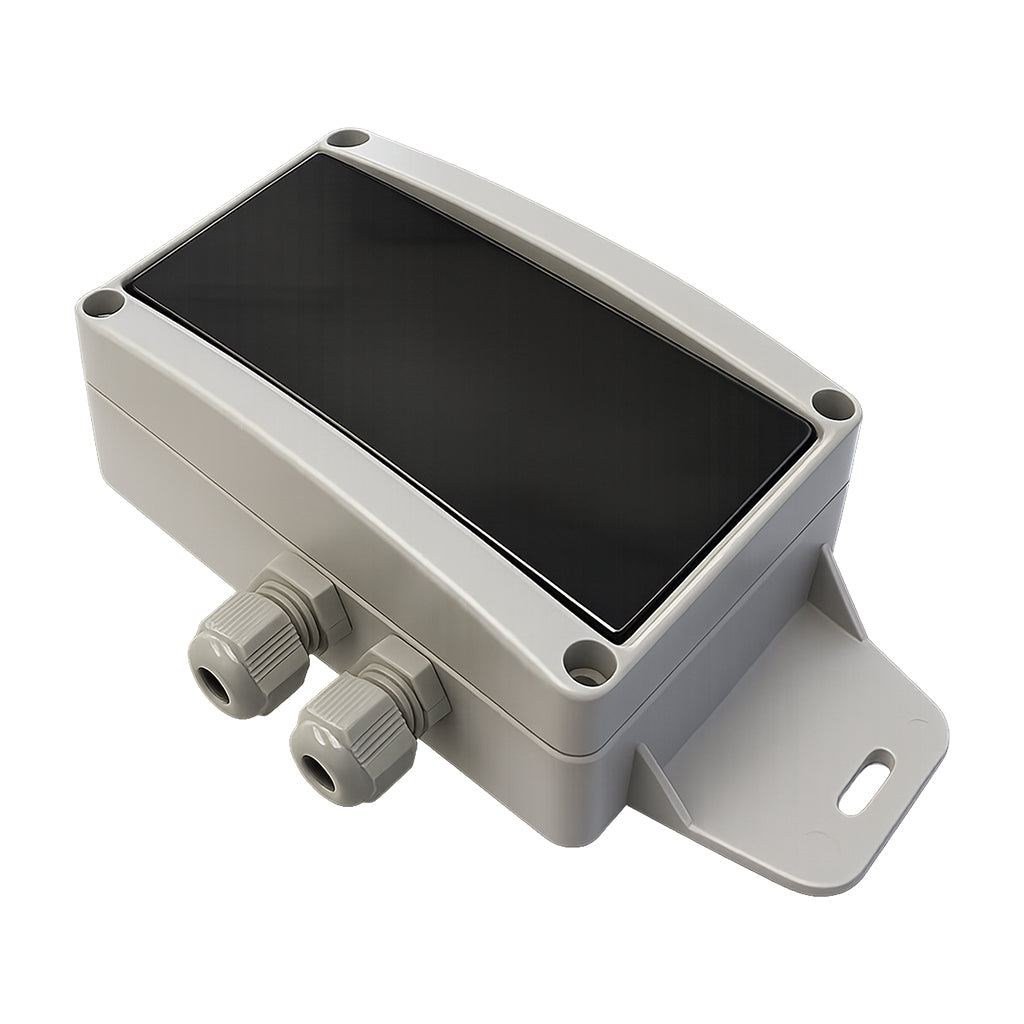

• Power supply (receiver): 12/24 VAC/DC (wired in door/gate system)
• Wireless distance (transmitter ↔ receiver): up to 50 m
• Vehicle detection range: 0.5 m
• Detectors per receiver/door: up to 7 devices
• Battery life: ~4 years
• Working temperature: -20°C to 85°C

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing our range.

• Download Gilbert Wireless Vehicle Detection Datasheet
