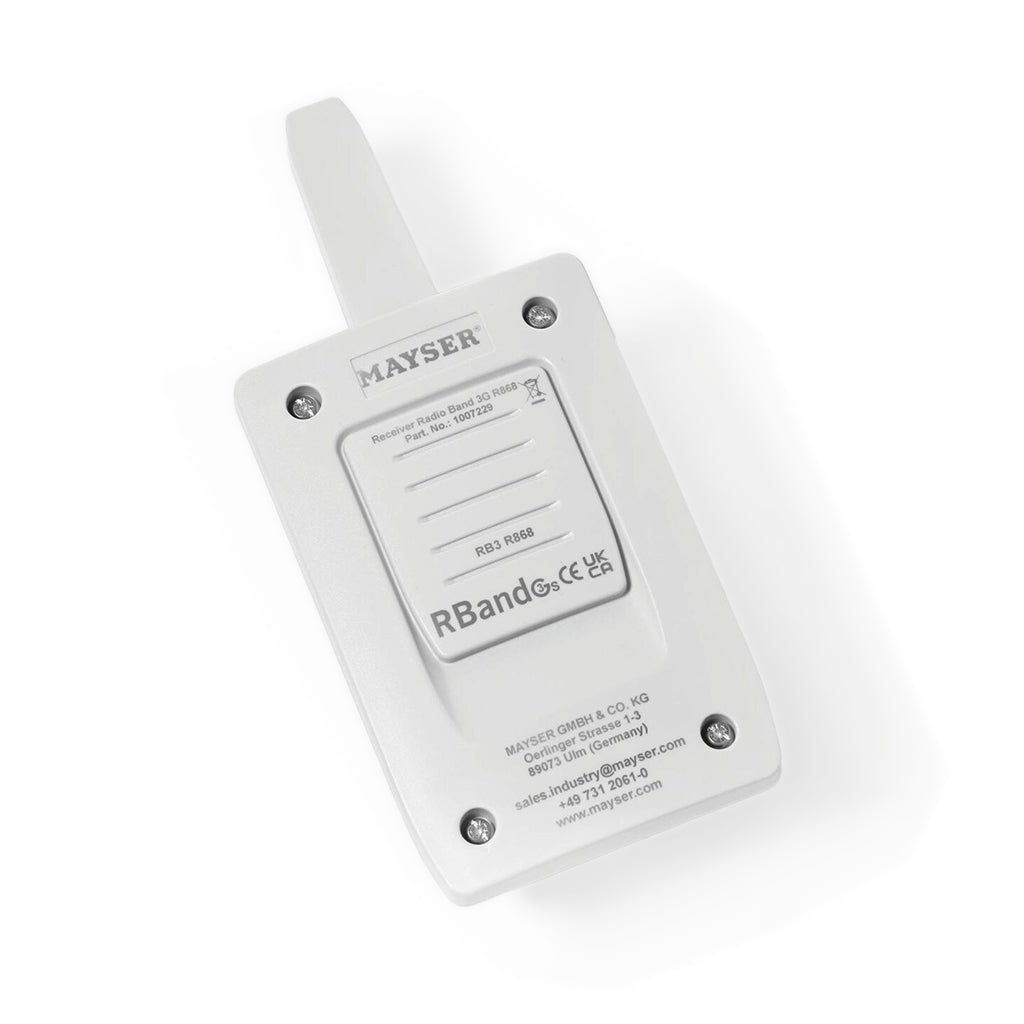

Safety Edge Receiver

The radio transmission system provides a functionally safe method for wirelessly transmitting switching signals from safety edges on doors and gates. Its high compatibility with standard motor control systems makes it universally adaptable and simple to retrofit, effectively replacing cable or transponder systems.

Protection for main and secondary closing edges on door and gate systems:

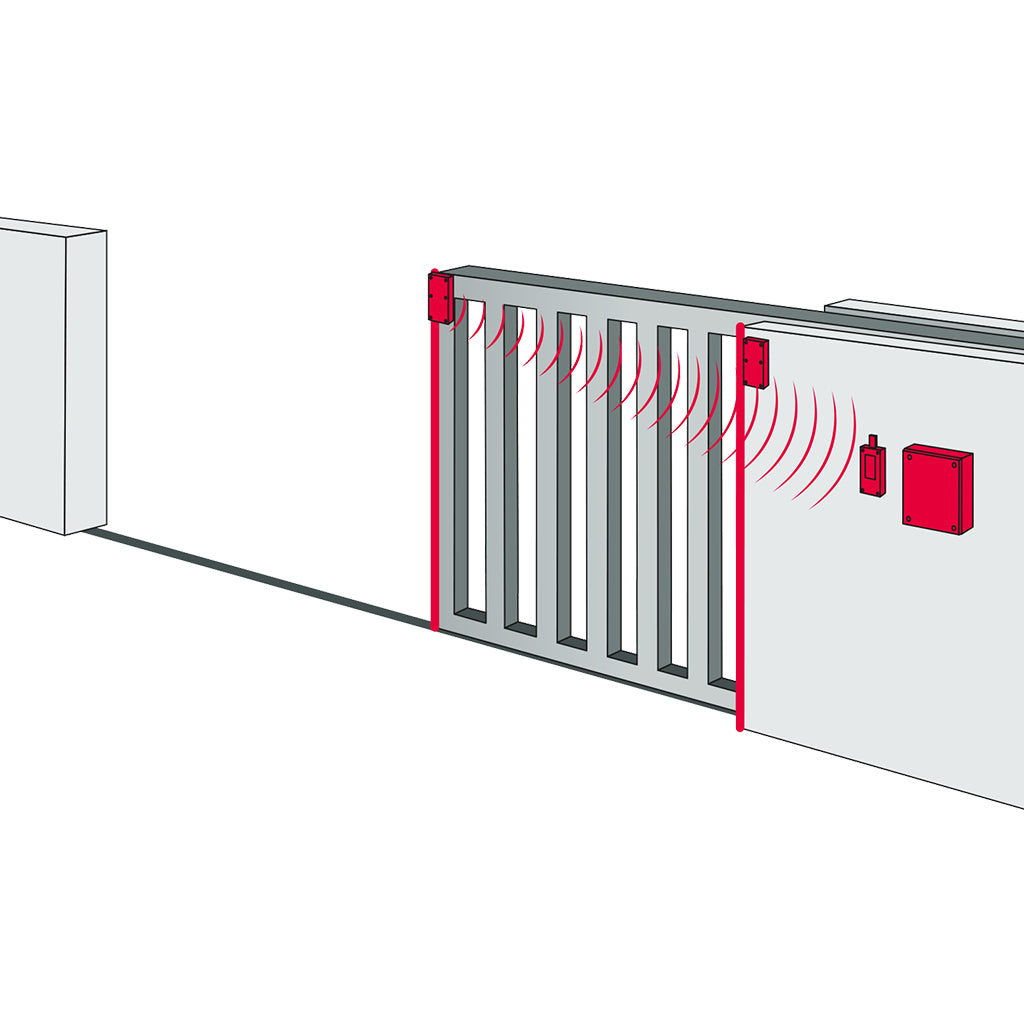

• Sliding gates

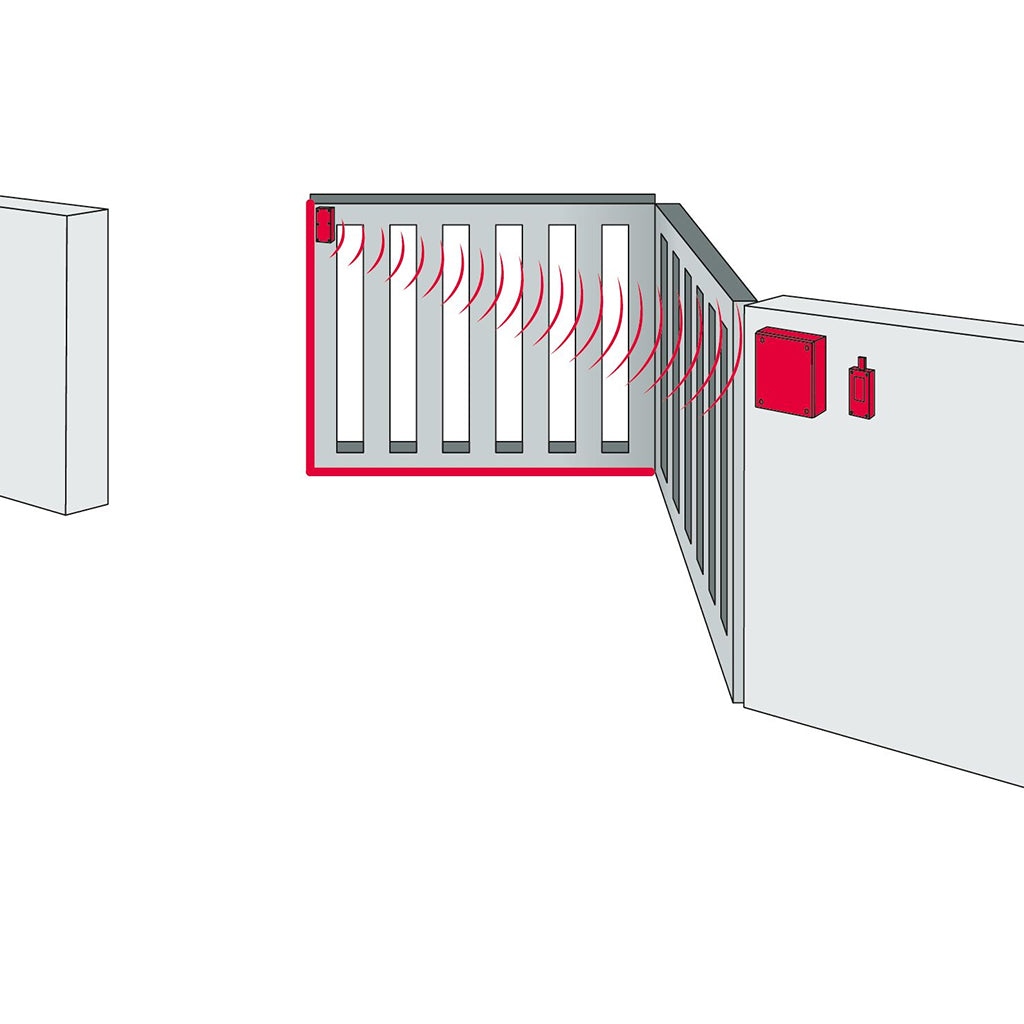

• Bi-fold gates
• High-speed doors

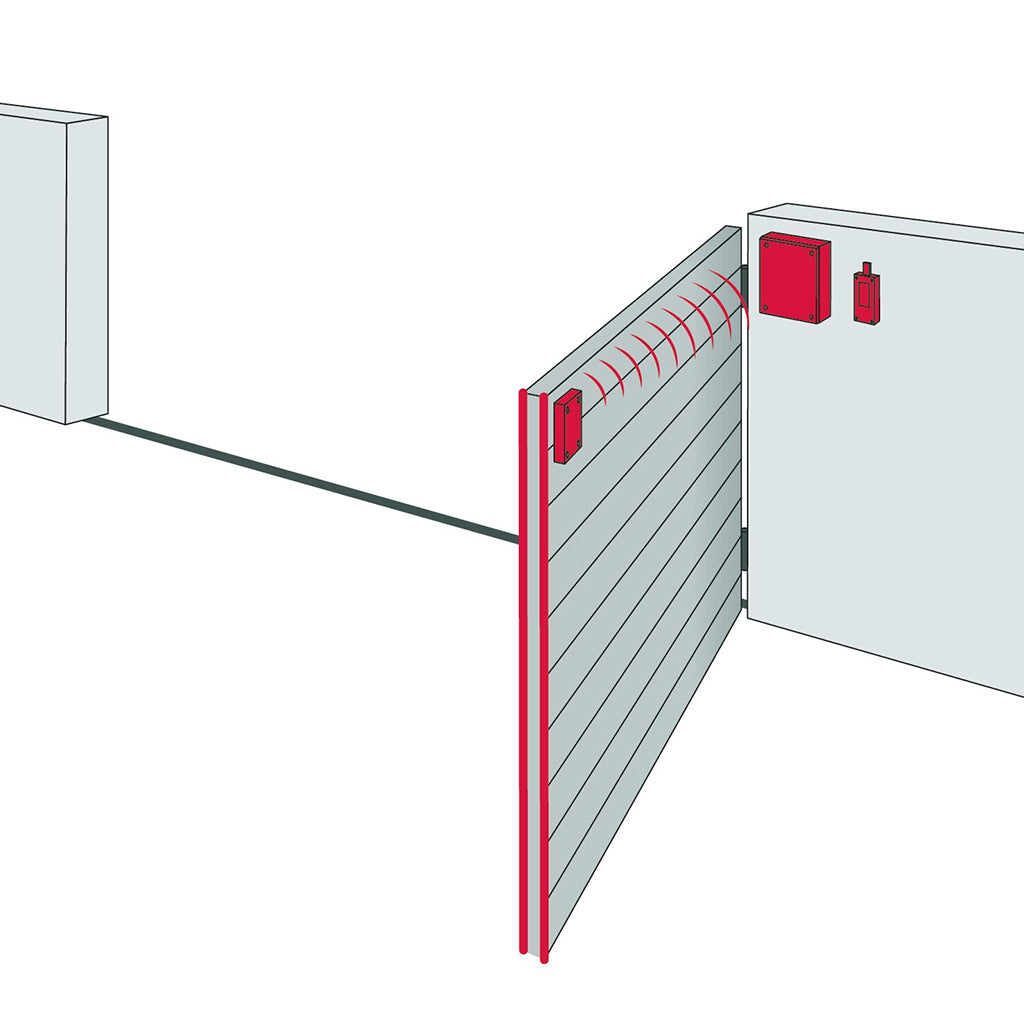

• Sectional doors
• Roller doors

• Capacity for six transmitters
• Transmission power 25 mW
• Operating temperature -20°C to +55°C
• 50 metres usable range, 100 metres nominal range (open field)
• Protection class IP65 (with cable screw connection)

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Mayser.

• Download Radio Transmission System Manual
• Download Mayser Brochure
• Download Certificate RB3 System
