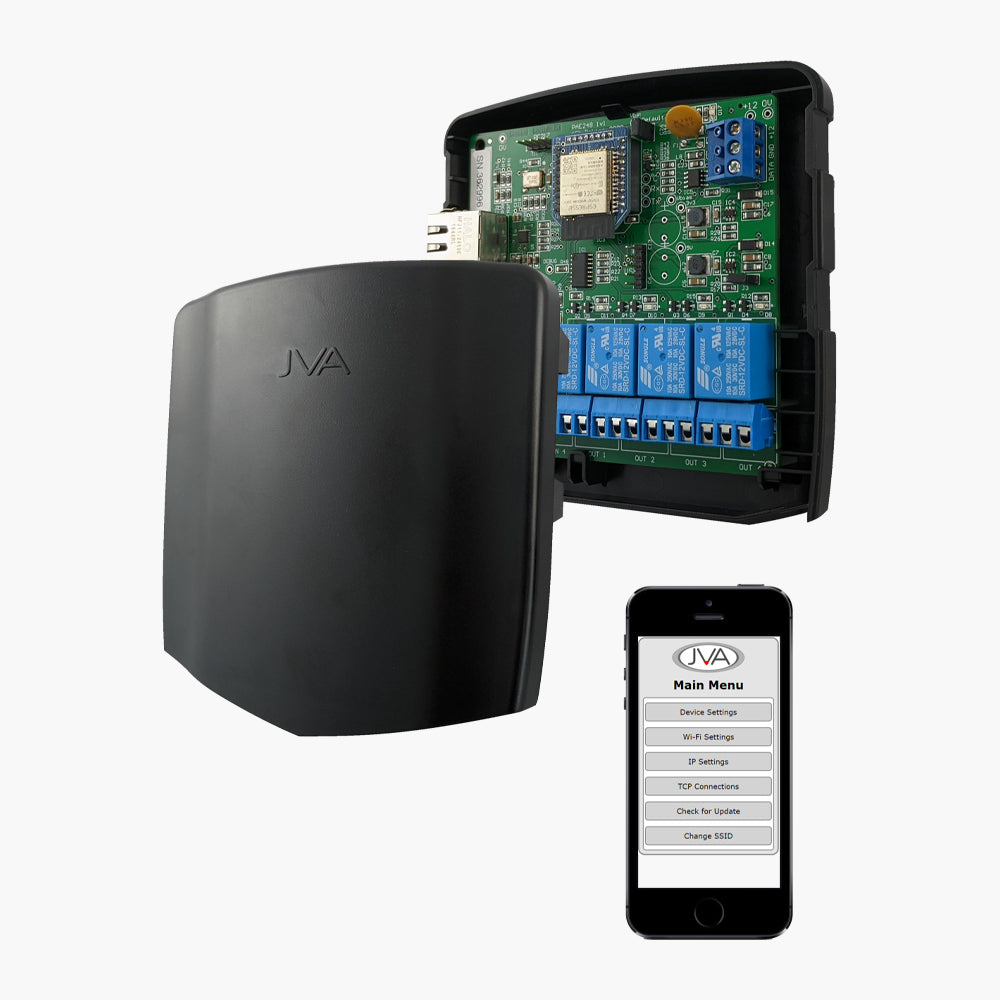

Wi-Fi General Purpose IO Board

The JVA Wi-Fi GPIO Board adds functionality to the JVA Perimeter Alarm System. It provides stand alone inputs and outputs to easily integrate external equipment into the Perimeter Patrol System. The inputs can monitor either Digital or Analogue devices such as temperature sensors, pressure sensors and water level indicators, while the outputs can be used to turn on security lighting, sirens or water pumps. Finally, the GPIO board can be configured JVA Virtual Keypad™ to provide a combination of Perimeter Patrol Outputs and Energiser Expansion Outputs on the one board for greater flexibility.

The Wi-Fi GPIO board also provides Ethernet or Wi-Fi connectivity between Perimeter Patrol and up-to 14 Z-Series Energizers or Monitors.

Features:

• Four configurable inputs (2 optional 0-10Vdc analog)
• Four configurable 10-Amp relays
• Simple integration into Perimeter Patrol
• Configuration through a Wi-Fi enabled smart device
• Software updates (requires internet connection)
• Pluggable connectors make wiring easy
