Volta Code Lock

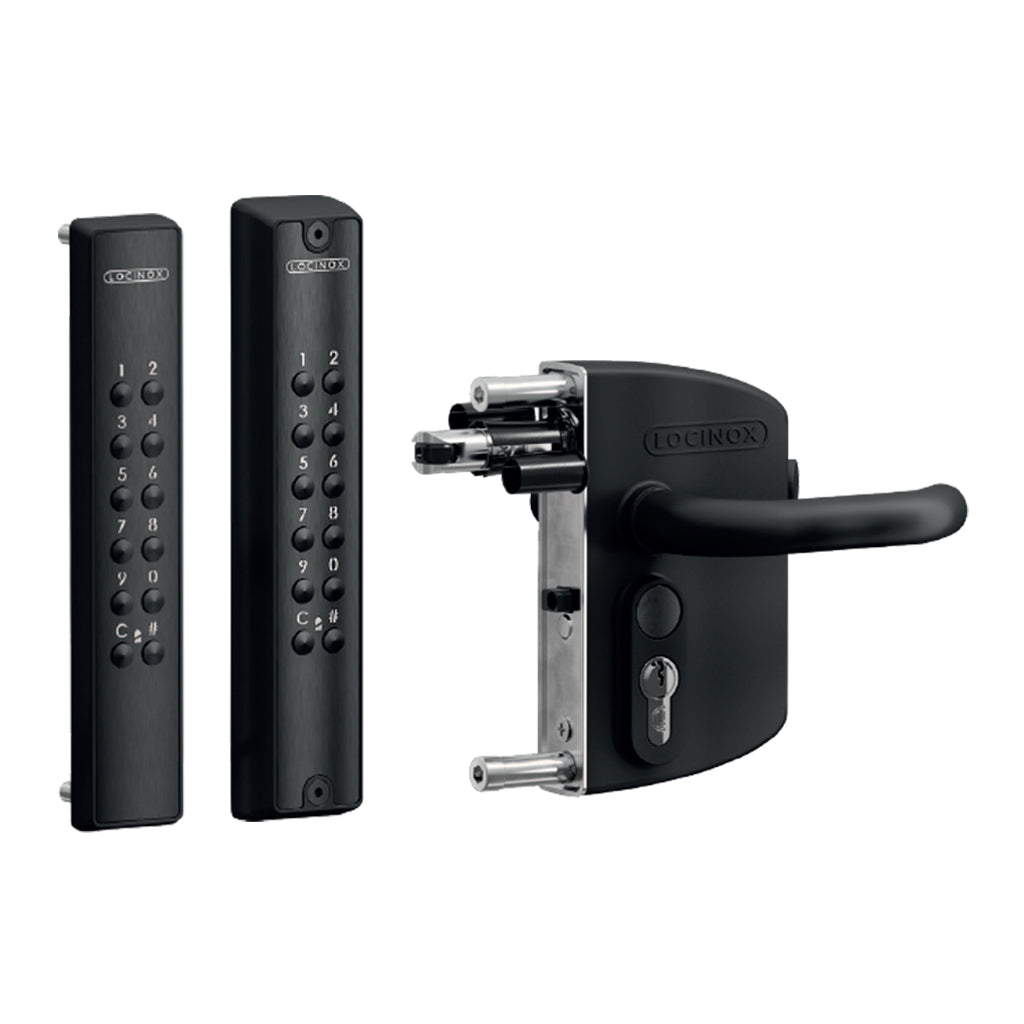

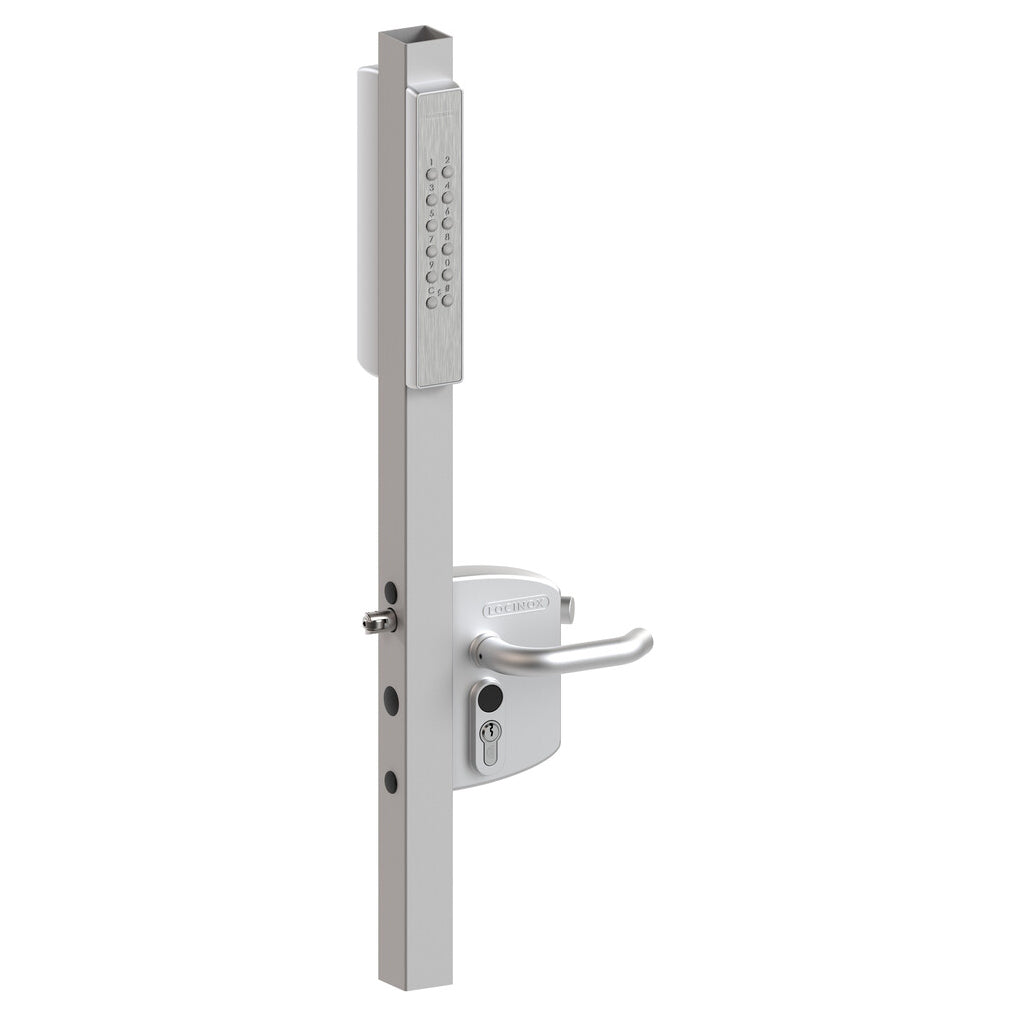

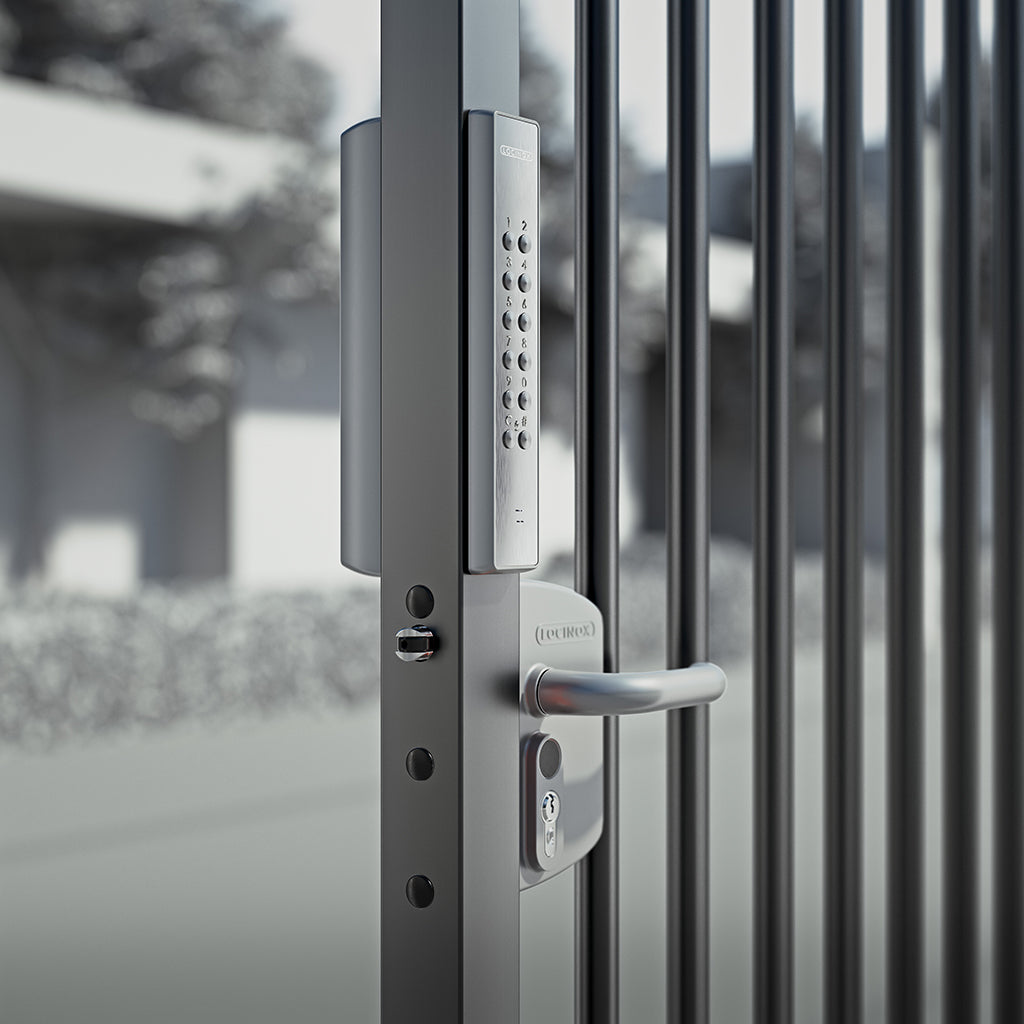

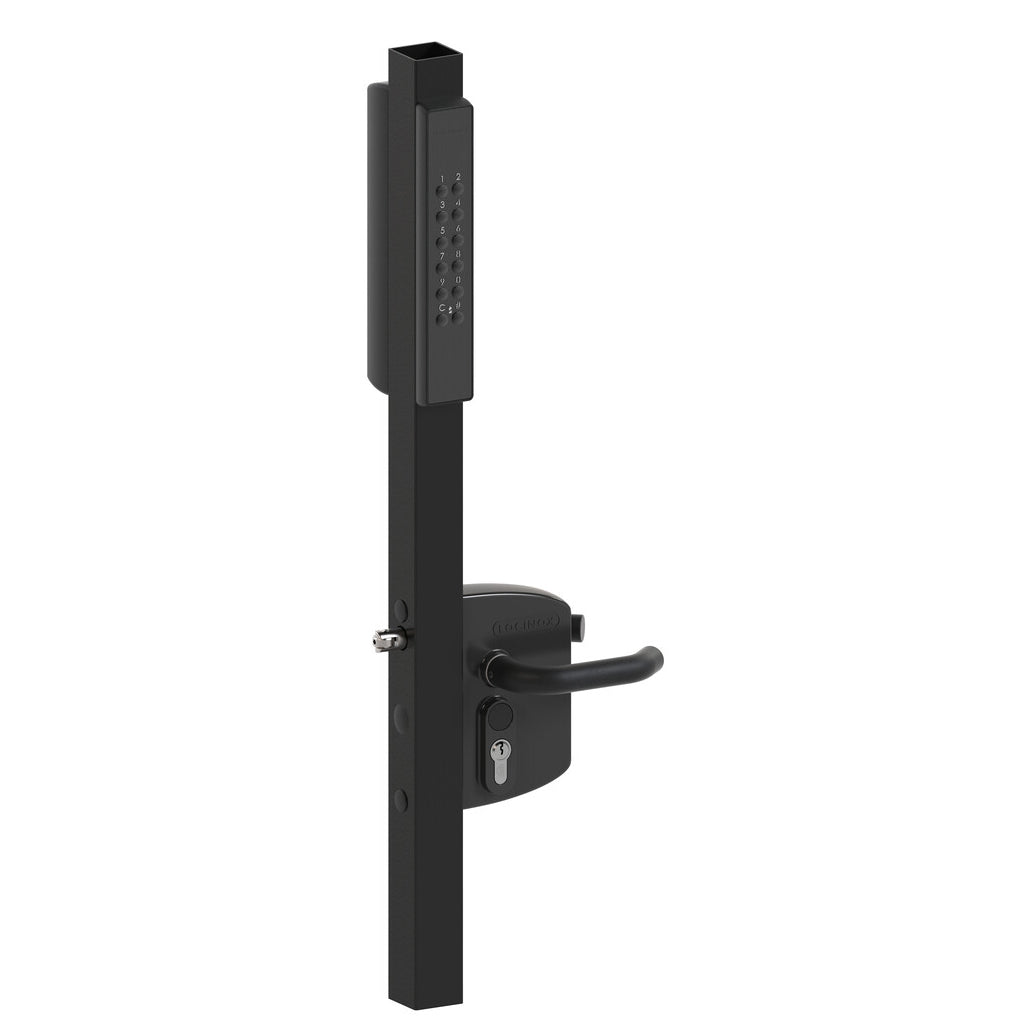

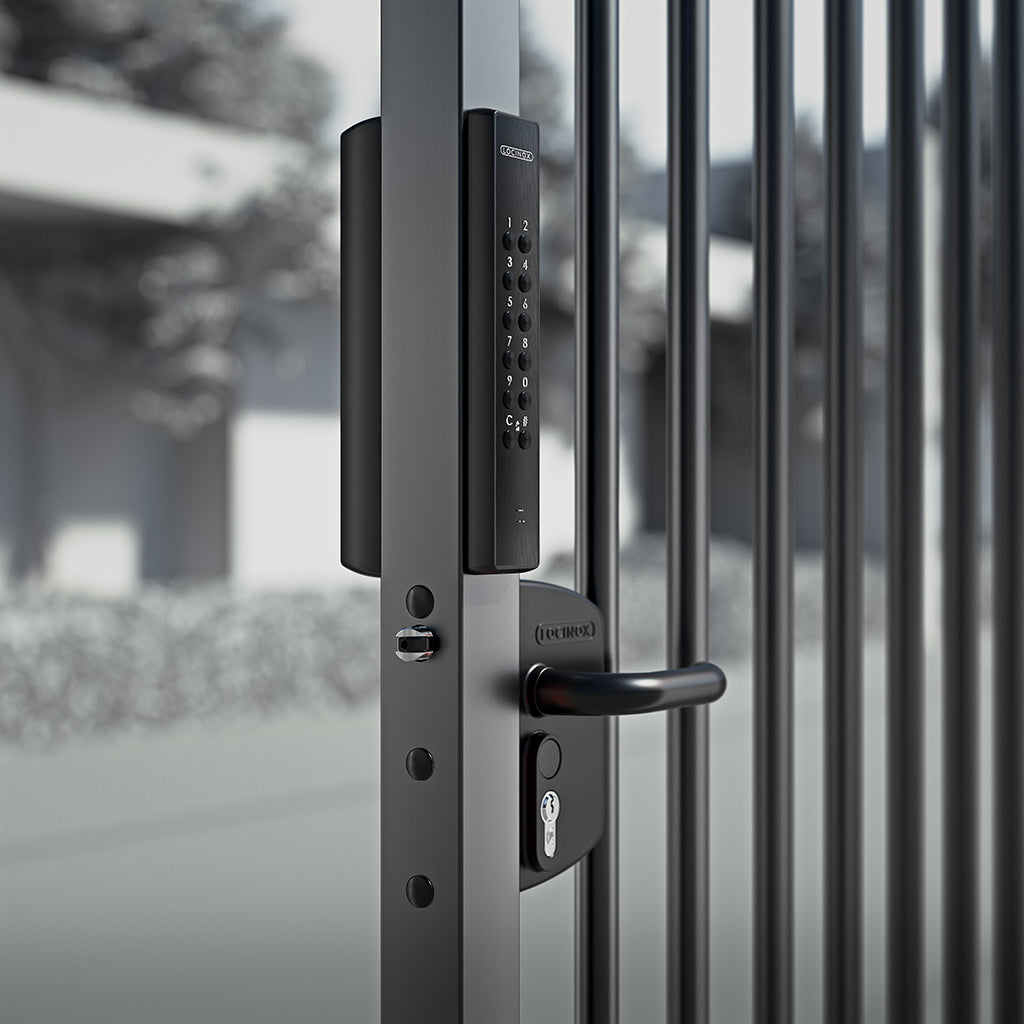

With VOLTA, you can easily add access control to your gate. This solution combines a surface-mounted lock with a separate keypad, connected through the gate profile. The lock seamlessly fits into the modular Locinox hole pattern. You have the option to select, modify, or delete up to 100 PIN codes. Thanks to an energy-efficient battery set, which lasts for up to 150,000 open and close cycles in all weather conditions, there is no need for an external power supply. Available in two configurations: double with two keypads or single with one keypad and a free exit.

Specifications:

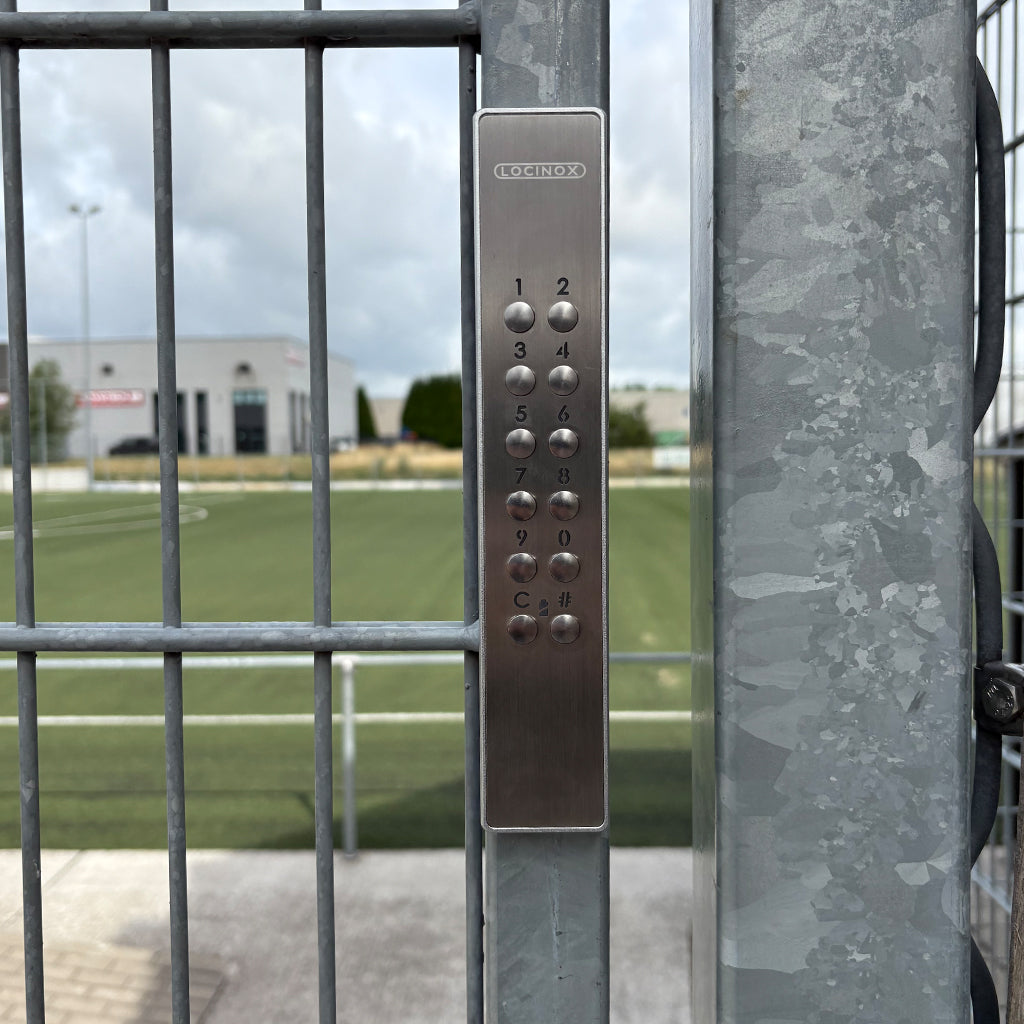

• Weatherproof and LED-illuminated electronic code keypad

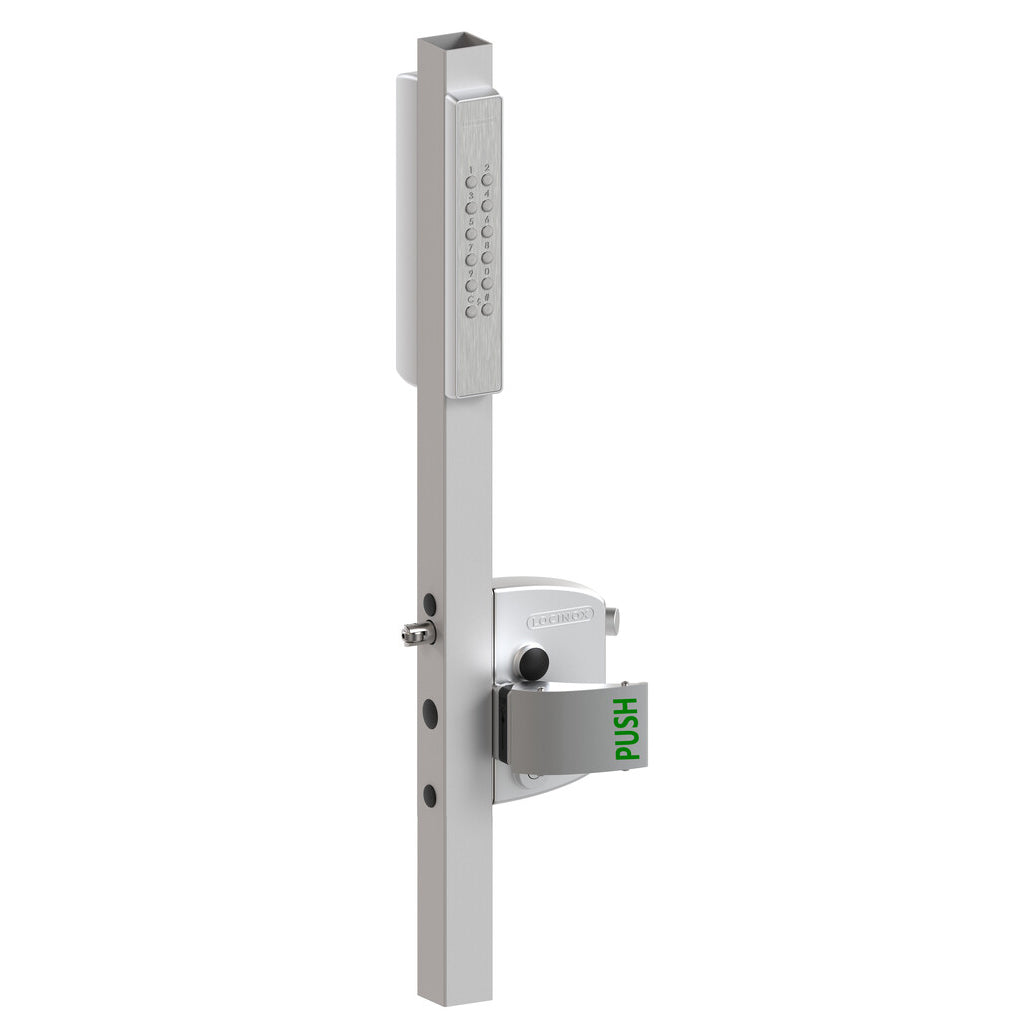

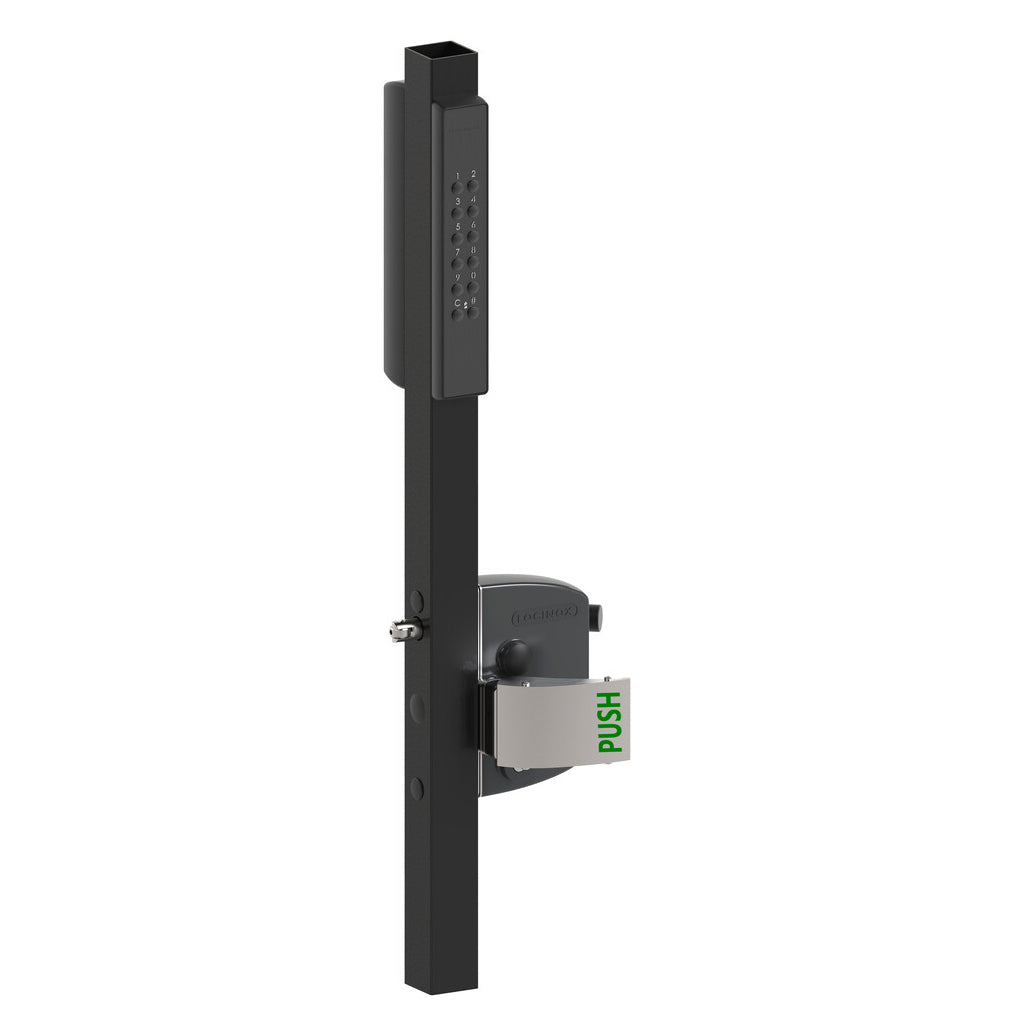

• Double-sided or single-sided keypad (free exit) with a separate battery
• Energy efficient, with up to 150,000 open/close cycles on the same set of batteries
• IP56
• Easy programming of up to 100 user codes
• Codes are sequence protected
• Supports codes for permanently open and free exit
• Extremely strong and vandal-proof design

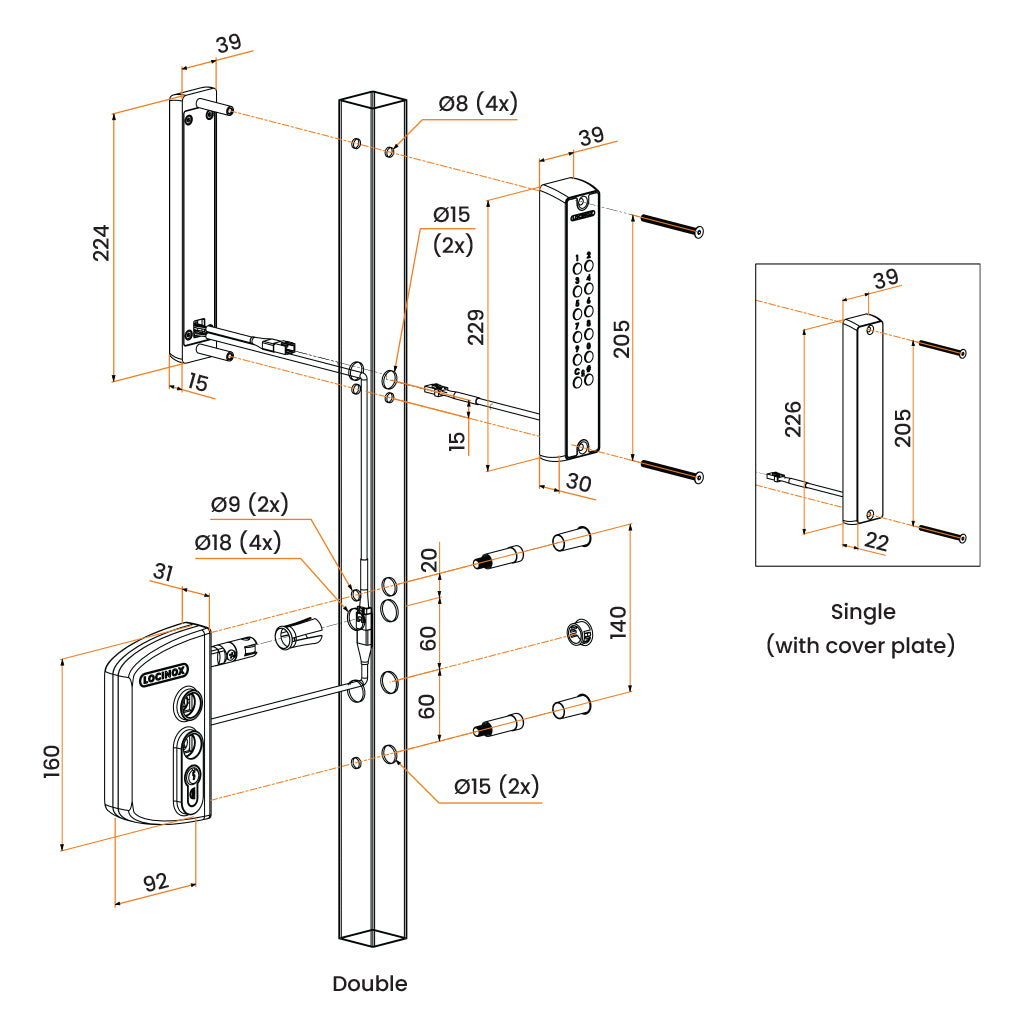

• For 40-80 mm gate profiles
• Aluminium keypad: black powder-coated or silver anodised
• Lock box in various colours
• ISO 9227 KTL / E-coated lock box withstands 1000 hours of salt spray test

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Locinox Hardware.

• Download Installation Guide
• Download Product Sheet
