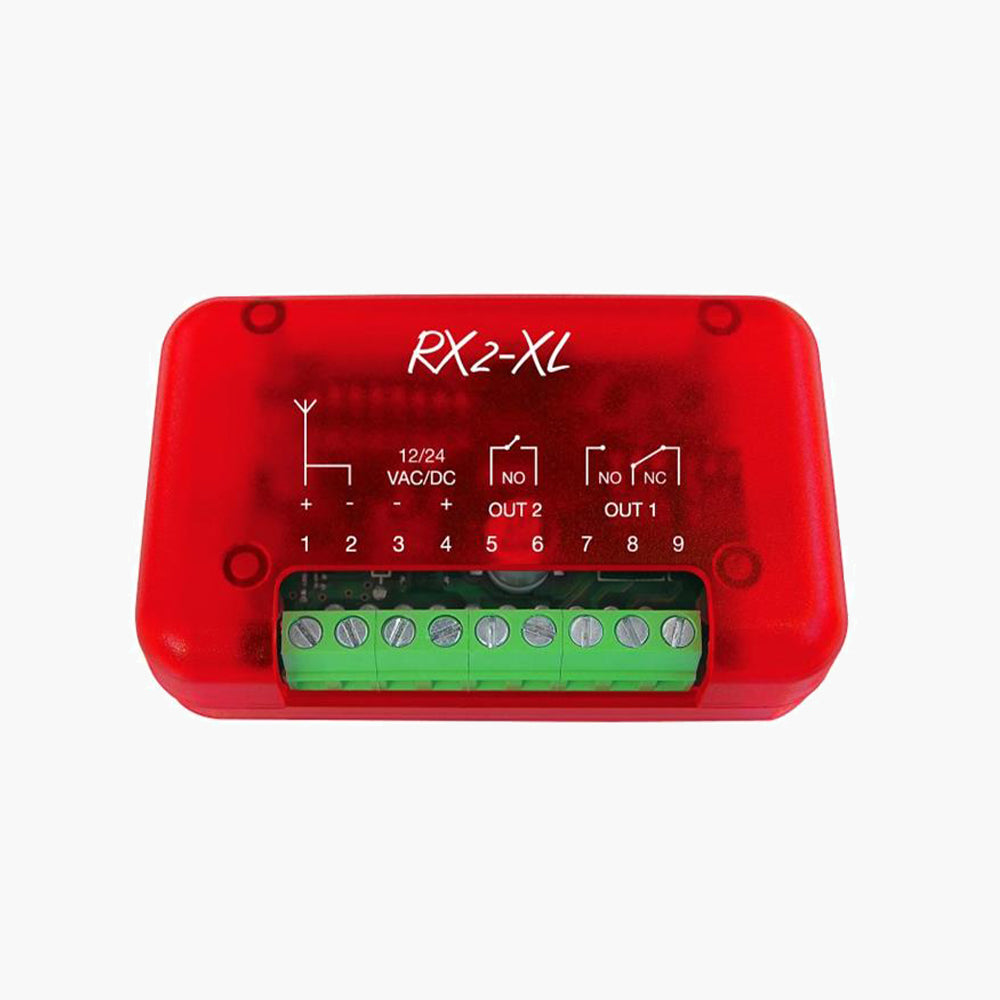

Universal Receiver 433.92 MHz

The RX2-XL is a two channels receiver with self-learning. It manages standard codes from 12 up to 80 bits, with Rolling HCS or Eb Rolling. With a 8 ways dip-switch you can activate or deactivate different functions: rolling code HCS or EB, timing outputs from 0,8 up 0,3 sec, bistable functions.

The receiver can manage up to 190 rolling code remote controls up to 4 buttons each remote control and up to 190 standard codes, one button each remote control. It is compatible with the most major fix code remote controls on the market.

Specifications:

• Frequency: 433.92 MHz
• Code Type: Fix/Rolling Code
• Memory Capacity: 190 codes
• Impedance: 52 ohm
• Power Supply: 12-36vac/dc
• Consumption: 10/30-50mA
• Relay contact NO: max 1mA

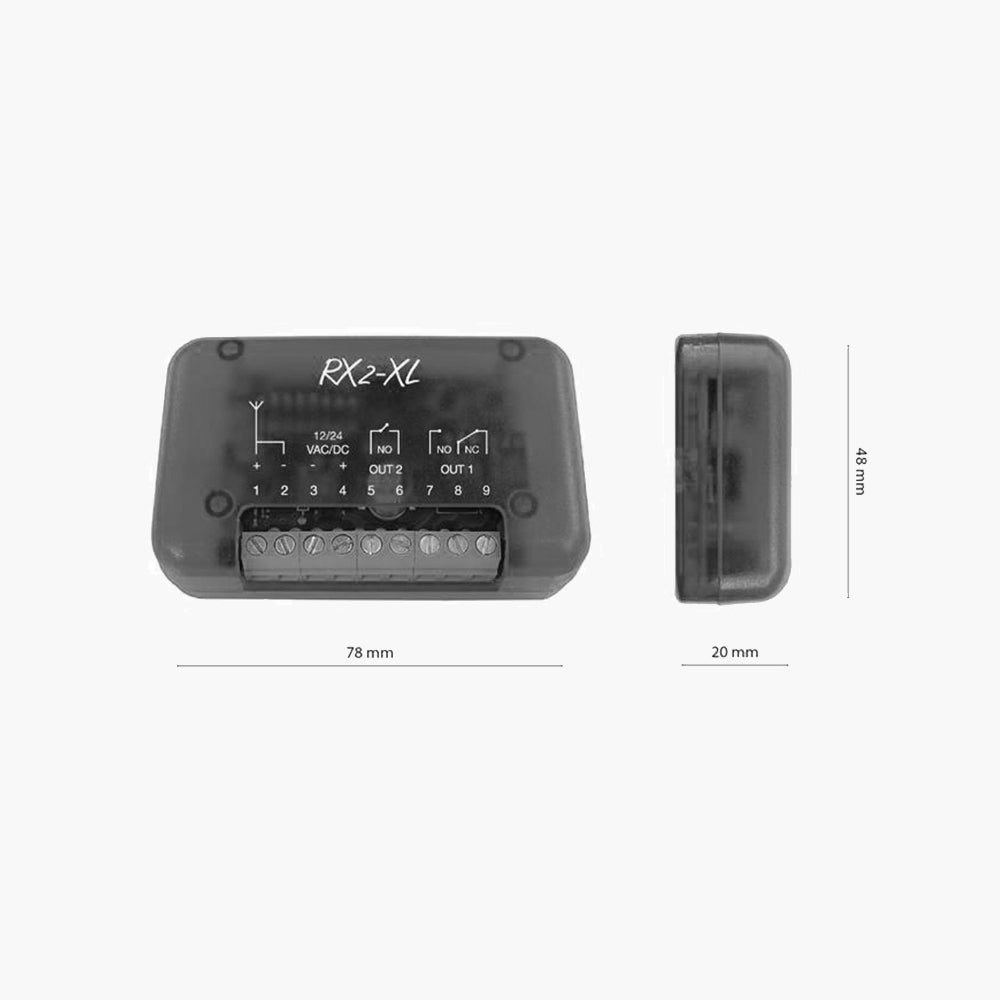

• Dimensions (mm) : 78x48x20
