ULK 1400, 100% Duty Cycle

Name: ULK 1400, 100% Duty Cycle
Brand: Roger Automation
SKU: UL-1200-HS
Availability: InStock

Brand:

Roger Automation

Product Type:

Barrier Arms

Brushless electromechanical sectional door operator with 1400N thrust, 100% duty cycle, and built-in B70 digital controller. Ideal for intensive residential and commercial use.

Model:

High Speed Heavy Duty

Variant

Contact for Pricing

More information

Extended Description

Roger Technology ULK 1400
Sectional Door Operator — Brushless, 100% Duty Cycle

The ULK 1400 is a high-performance electromechanical operator from Roger Technology, designed for sectional doors in demanding residential, commercial, and industrial applications. Featuring a low-voltage brushless motor and built-in B70/1THP digital controller, the ULK 1400 delivers reliable, intensive-use performance straight out of the box.

Features + Applications

Key Features

Brushless low-voltage electromechanical motor for quiet, efficient operation
100% duty cycle — suitable for intensive and continuous use
1400N starting force and thrust
Built-in digital controller B70/1THP with 2-channel radio receiver
Digital magnetic encoder (SENSORED, 4096 PPR) for precise positioning
Irreversible reductor — door stays locked when operator is at rest
Compatible with UL series guides
Operating temperature range: -20°C to +55°C

Tech Specifications

Specifications

UL-1200-HS

Variant SKU: UL-1200-HS
Starting Force: 1200N
Thrust: 1200N
Opening Speed: 9.96m/min
Stand-by Consumption: ≤ 0.5W

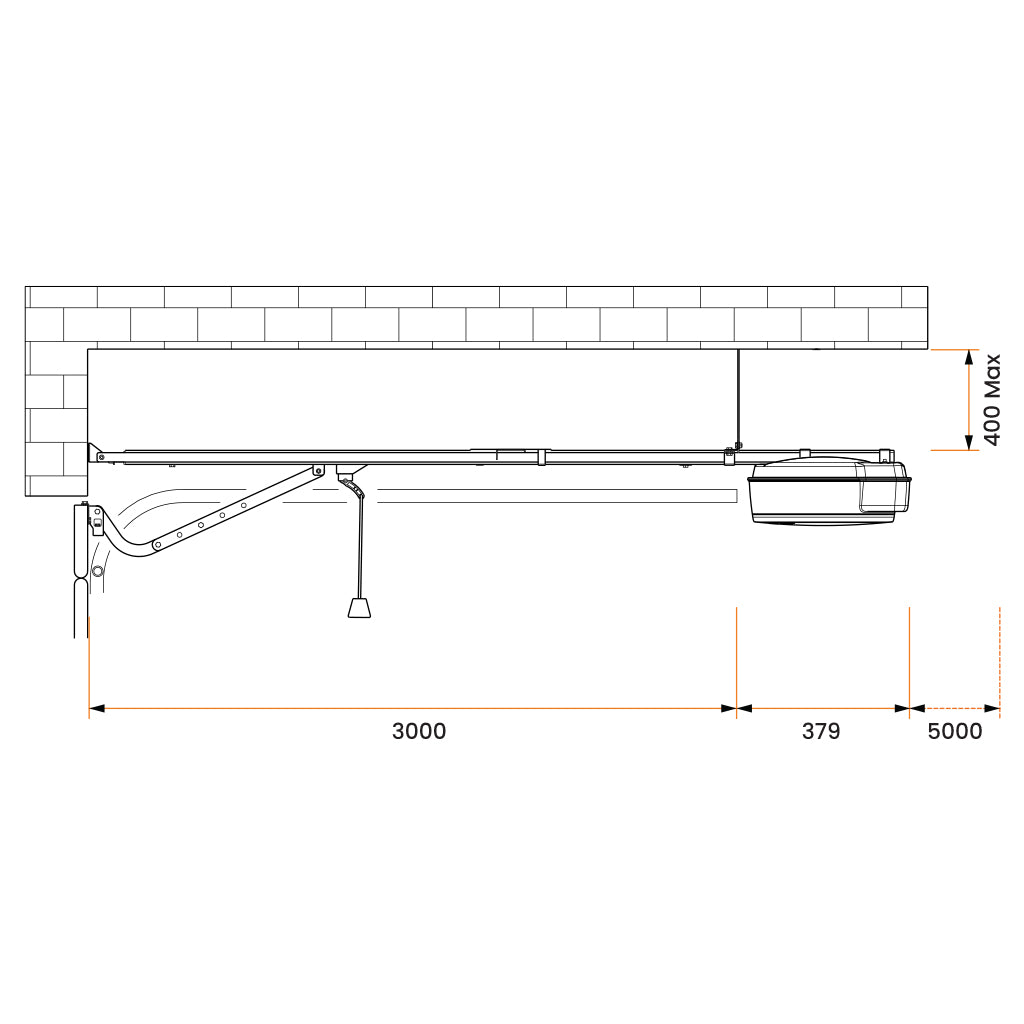

Max Stroke Length: 5m
Max Door Weight: 120kg
Power Line Supply: 230V AC – 50Hz
Motor Supply Voltage: 36V AC
Duty Cycle: 100% Intensive Use
Encoder: Digital magnetic encoder SENSORED, 4096 PPR
Control Board: B70/1THP
Protection Level: IP40
Reductor Type: Irreversible
Operating Temperature: -20°C to +55°C

UL-1400

Variant SKU: UL-1400
Starting Force: 1400N
Thrust: 1400N
Opening Speed: 2.5m/min
Stand-by Consumption: ≤ 0.5W
Max Stroke Length: 5m
Max Door Weight: 120kg
Power Line Supply: 230V AC – 50Hz
Motor Supply Voltage: 36V AC
Duty Cycle: 100% Intensive Use
Encoder: Digital magnetic encoder SENSORED, 4096 PPR
Control Board: B70/1THP
Protection Level: IP40
Reductor Type: Irreversible
Operating Temperature: -20°C to +55°C

Documents

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Roger Automation.
