Roger Tower 110 Pro Industrial Gate Operator >2000kg

Roger Tower TW110 Sliding Gate Operator

It has a compact 36v brushless motor that is capable of 100% duty cycle and has the smoothest torque application in the market. Motor options:

1. 1000kg at 25m/min,
2. 1500kg at 21m/min
3. 2000kg at 12m/min.

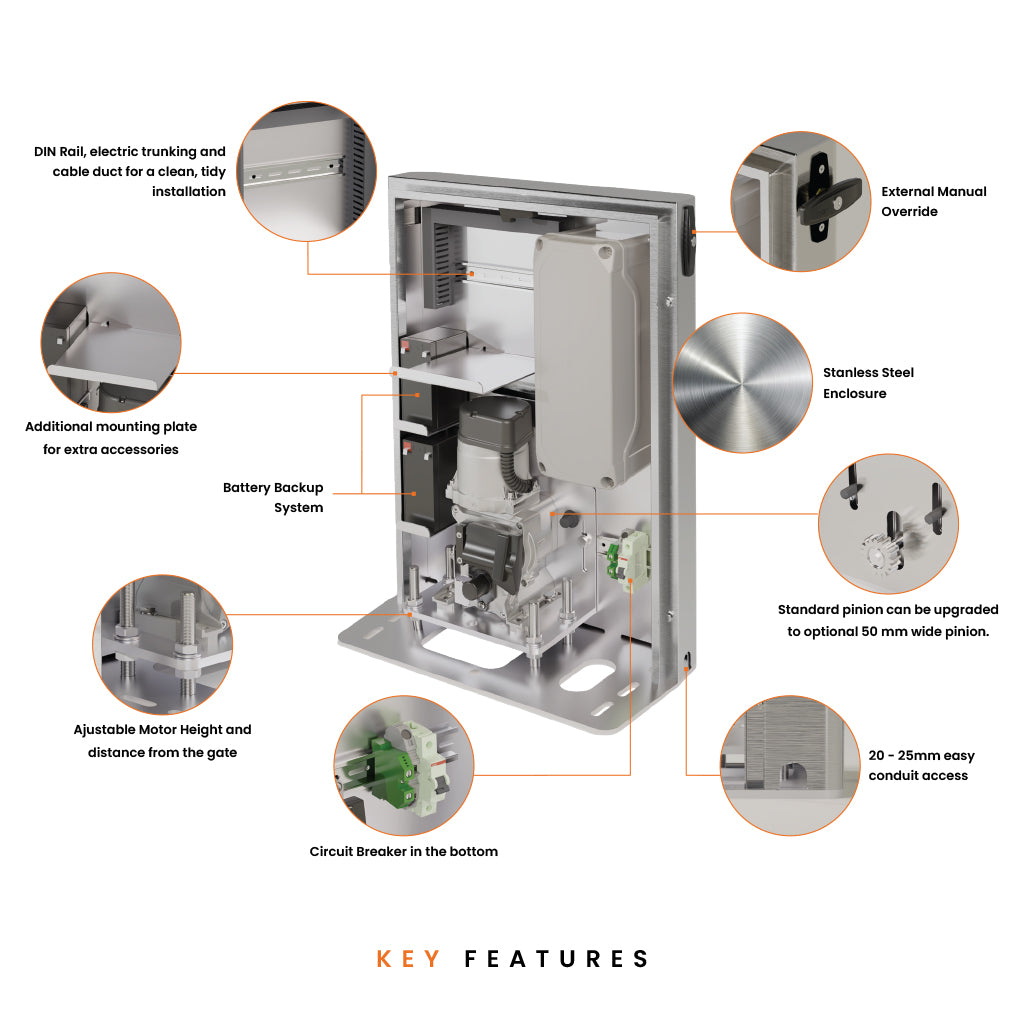

The Pro cabinet features

1. Brushed SS or powder coated Alu options

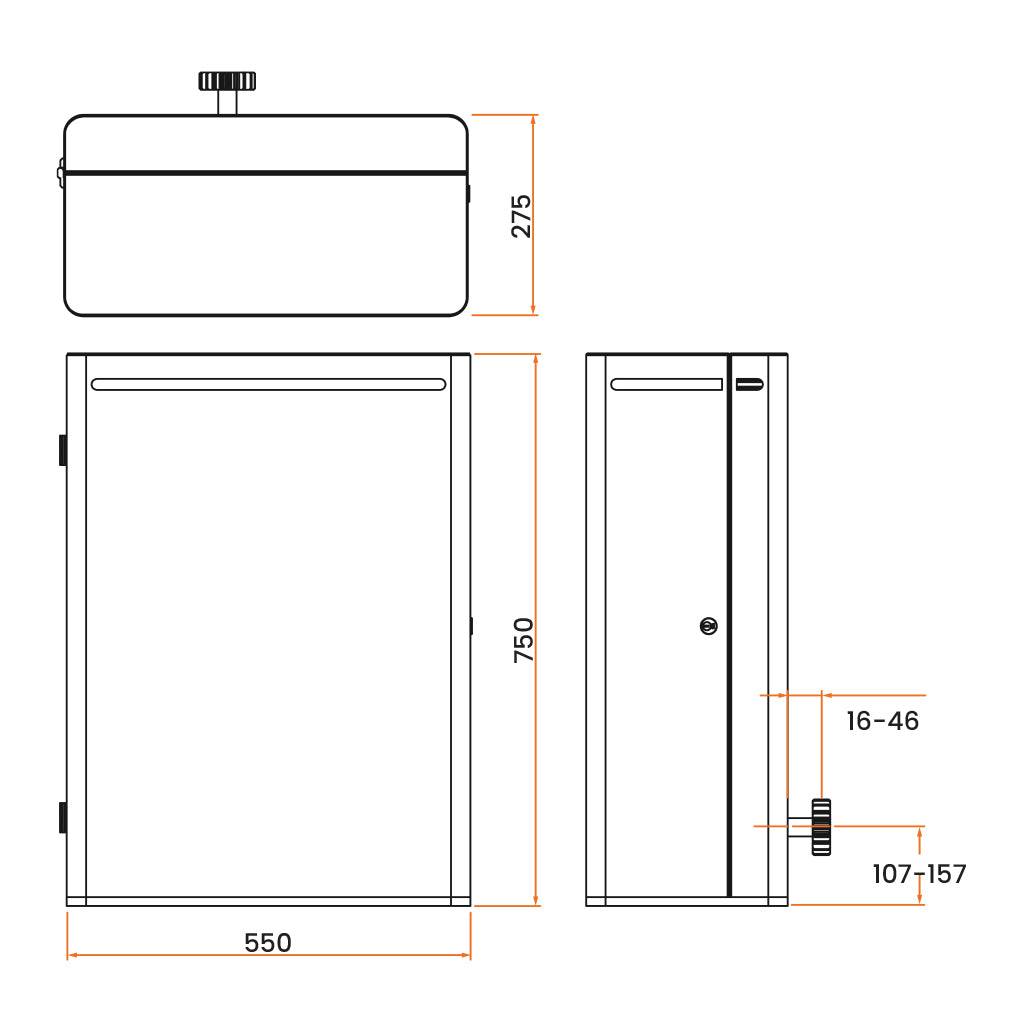

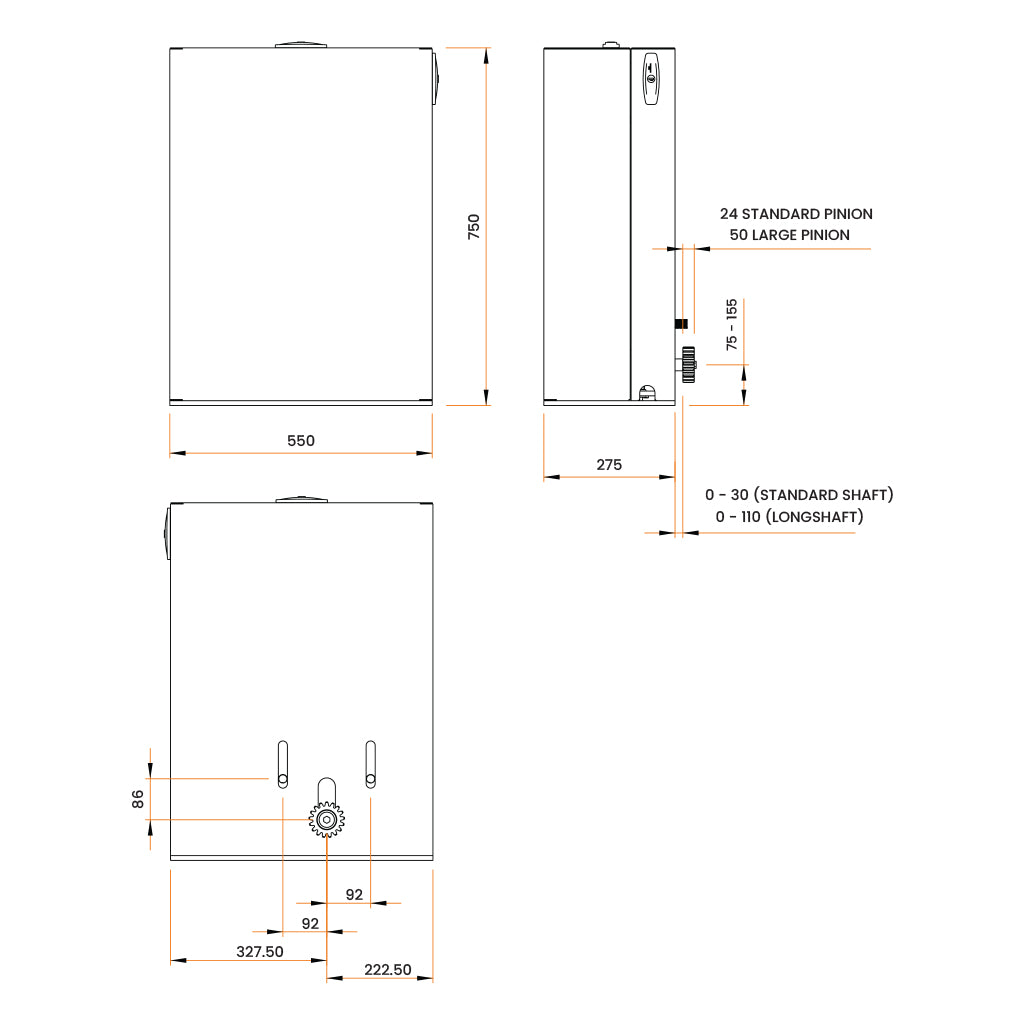

2. Two height options for the pinion
3. Lockable front cover

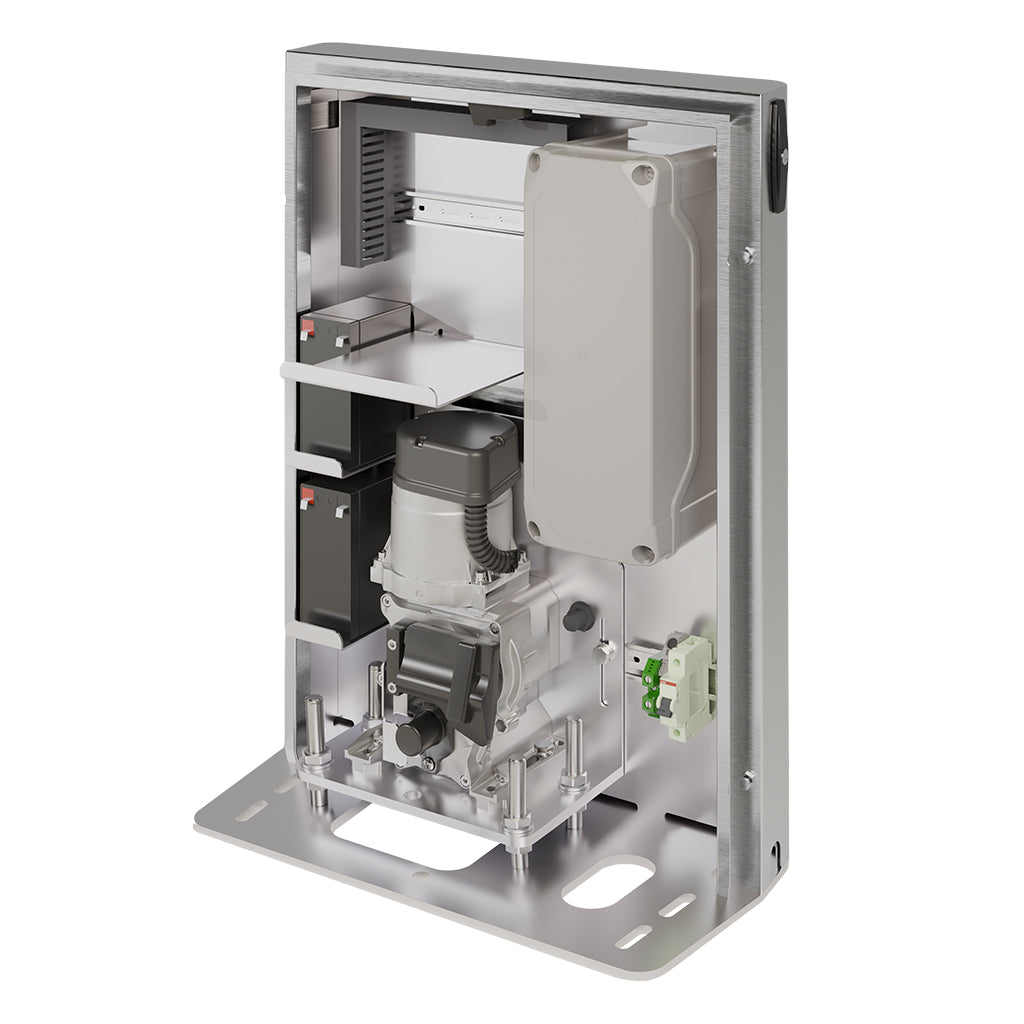

4. Built in shelf for battery backup
5. Dedicated accessory shelf w/ DIN rail mounting
6. Easy access control board at the top of the cabinet

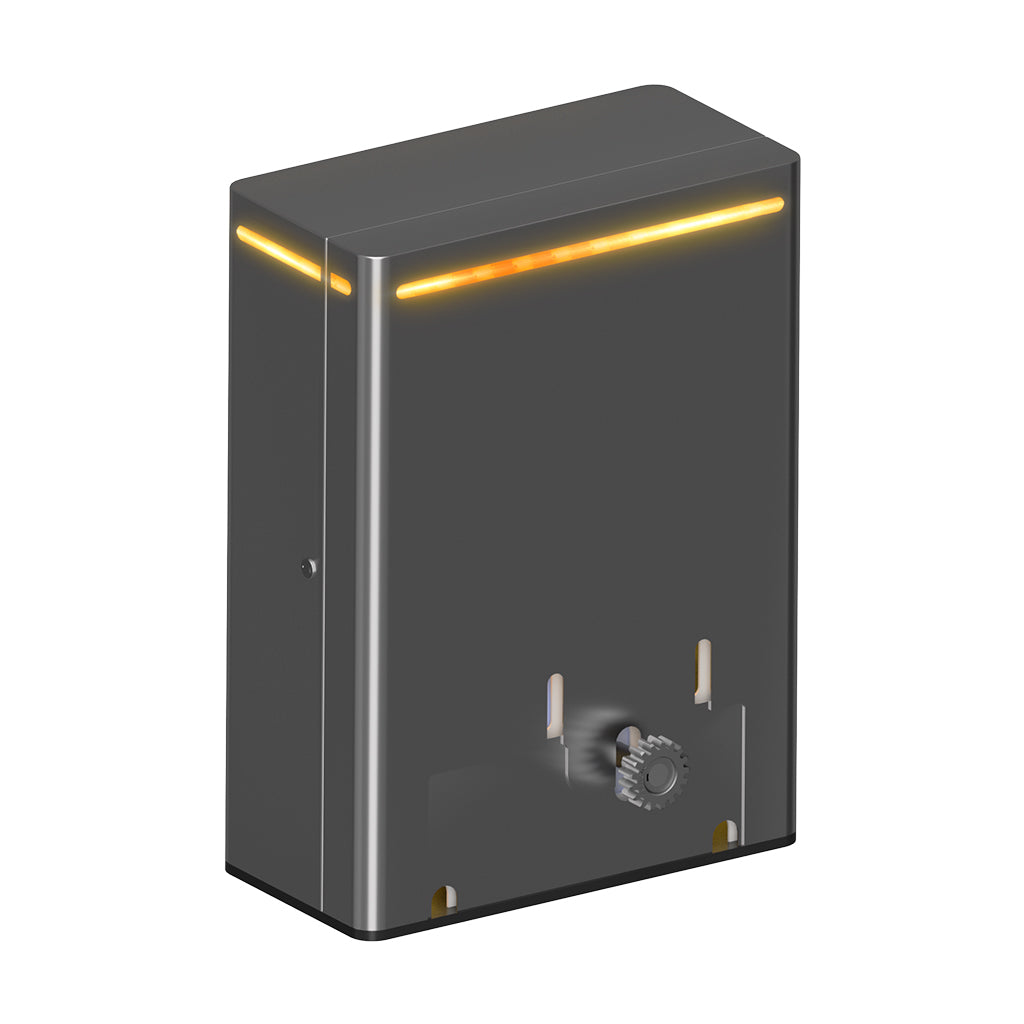

7. LED lighting in the cast aluminium cover
8. Easy and accessible cable entry and internal cable management

Specifications

• Input Power - 230V AC
• Motor Power - 240W, 36V brushless
• Magnetic Limits are not necessary (optional)
• Control Board - B70-1THP

Power Options

• Mains - the most reliable option if it is possible to get 230v out to the gate.
• Battery Backup inside the cabinet
• External Transformer - put a transformer inside the house or garage and run low-voltage AC out to the gate using a garden light cable.
• Solar - Brushless Automation is very energy efficient and suits solar power. The specification of your panel(s) and batteries depends on your application and we will help you select the right solar solution.

Why Choose Roger?

High torque to weight ratio – these low voltage motors can now be applied to applications that were once only served by larger 230v / 415v motors.

Increased efficiency – Significantly reduced losses due to the motor construction. The omission of brushes and the fact that the motor windings are supported by the motor housing, any heat generated is cooled by conduction resulting in ultra-low power consumption and a super-intensive duty cycle.

Longer lifetime, increased reliability and reduced noise – This is achieved due to the elimination of brush or commutator erosion, ionizing sparks and the overall reduction of electromagnetic interference.

Higher speeds – Brushless motors are capable of higher speeds without the loss of torque. Brushed motors develop maximum torque when stationary, linearly decreasing as velocity increases.

Superior control & motor positioning – Utilising the pulses from the undriven coils within the brushless motor and the technology incorporated in the controller the motor is capable of achieving precise control and positioning. One obvious advantage to this is significantly reduced stresses to the motor and gearbox resulting in the overall longevity, sustainability and reliability of the unit.

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Roger Automation.

• Download Feature and Benefits
• Download Operator Manual
• Download Operator Brochure
• Download Control Board Manual
• Download Remotes Manual
• Download Remote Brochure
• Download Receiver Manual
