TonkaTrak Track

TonkaTrak is all about engineered extrusions and precision hardware that can be seamlessly integrated creating easy-to-install gates.

Popular profiles like louvre, slat and tongue and groove can be used in a way that allows the frame to simply flow around the infill to achieve what could only be described as minimalist deigns. Get us to custom fabricate one for you in our Auckland workshop or we can supply the components for you to build into your own designs.

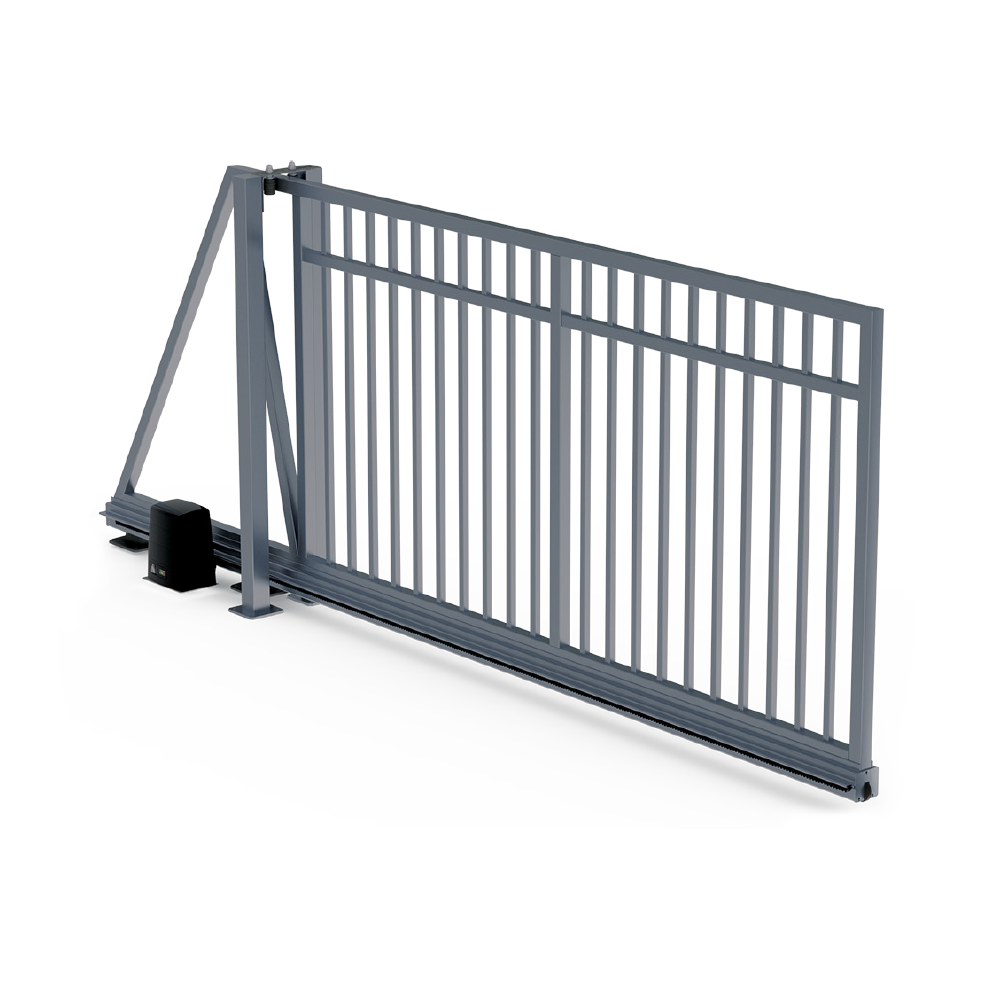

Tonkatrak is a lightweight aluminium cantilever system. The gate is made like a standard sliding gate and simply stitch-welded into the monorail track. It has amazing benefits compared to a regular sliding gate and none of the drawbacks of a steel cantilever. Download the technical guide here.

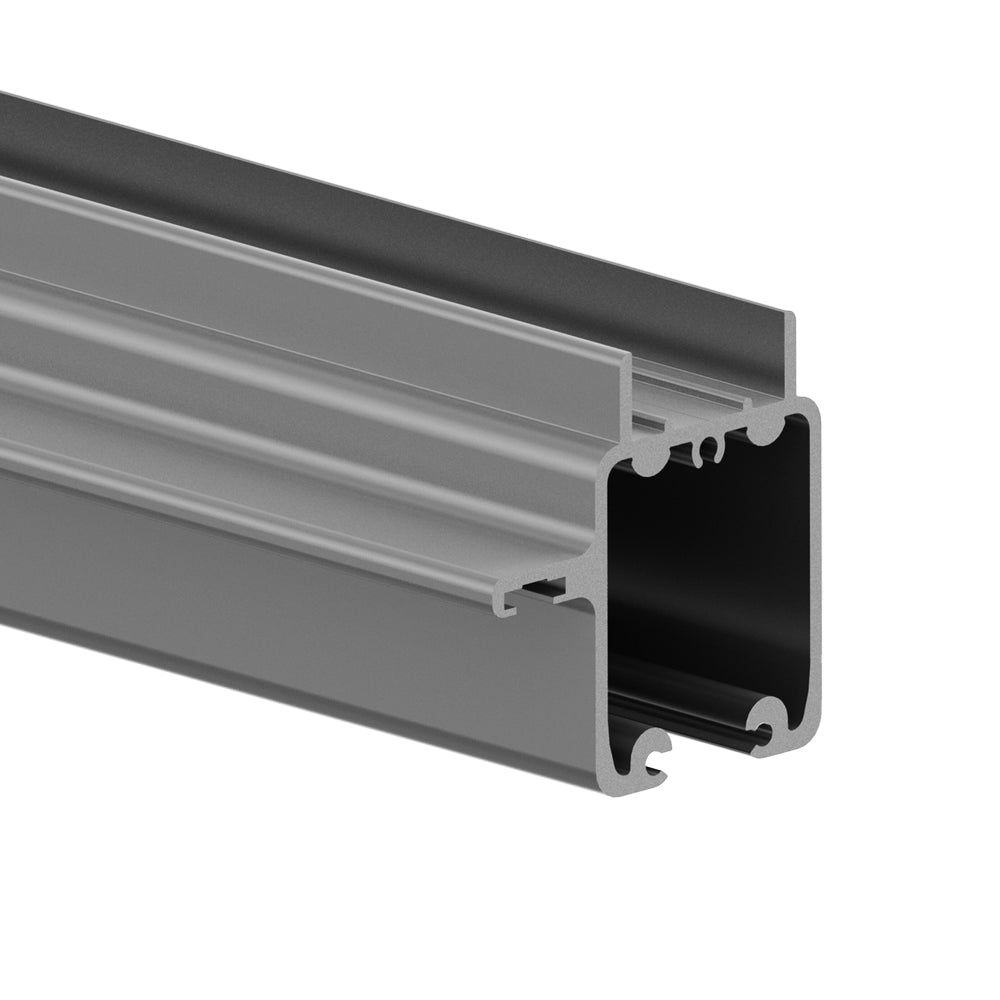

Each Tonka hardware kit is supplied with joining pins for joining 2 lengths of monorail for longer gates.

Features:

• Kits for both 50mm & 65mm gate frames
• A lightweight gate means it can be mounted on a concrete slab 300mm deep
• No need for a concreted track strip along the fence line
• No rusty track across your driveway
• Quick install and easy compared to steel cantilever

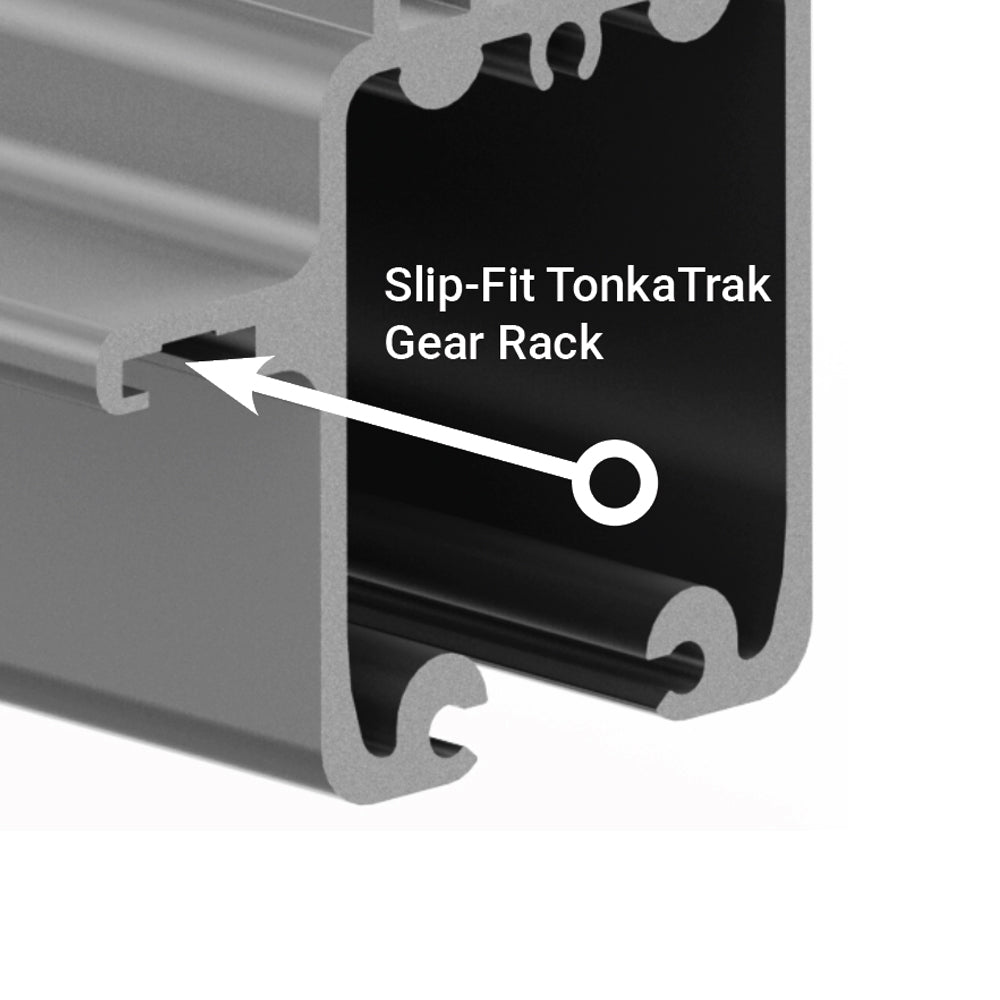

Note: TonkaTrak Gear Rack and Track are ordered separately from the kit.

Download the technical guide here.
