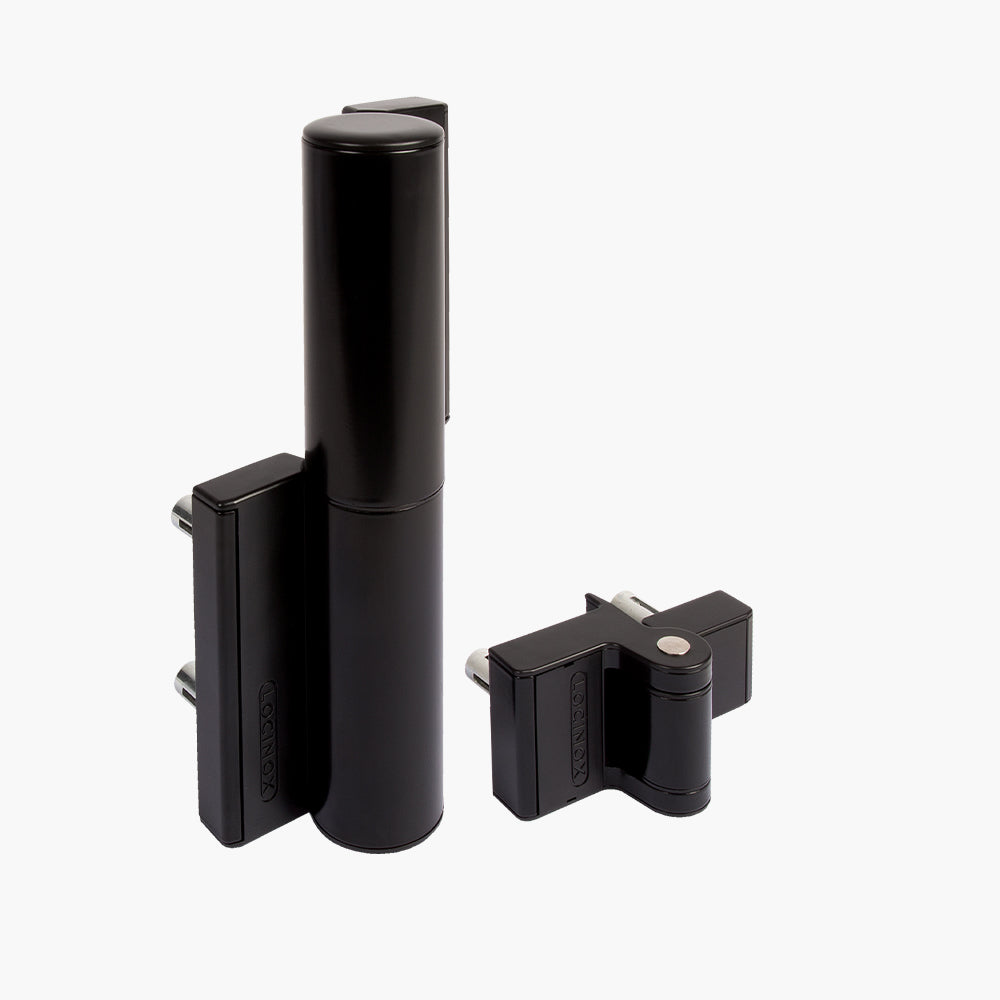

Tiger Self-Closing Hinge

The Tiger hinge offers a 180° self-closing that allows for precise speed adjustments and a controlled final snap closure.

Encased in a powder-coated aluminium housing and equipped with advanced high-tech components, it operates flawlessly in all weather conditions. Rated to Pedestrian gates up to 75g and 1.1m. Available only in black.

180° self-closing hydraulic hinge with precise adjustments on speed and final snap. The aluminium powder coated housing and unique high-tech components allow the Tiger to function perfectly in any weather situation. We highly recommend the Tigerdrill for an even more efficient installation. The passive bottom Puma hinge is included.

Specifications:

• Automatic 180° closure with adjustable closing speed and final snap
• Rated to 75kg
• Aesthetic design
• Powder-coated aluminium housing
• Closing speed unaffected by humidity and temperature changes
• For left and right turning gates
• Fast and easy fixing with Quick-Fix
• 15 mm horizontal adjustability
• 20 mm vertical adjustability
• Easy to open: Max. 14 Nm
• Hinge gap adj. from 10 to 25 mm

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing.

• Download Installation Guide
• Download Architect & Engineering Specs
