Simple clean lines and lightweight construction make The Orbison the most economical choice for residential applications.

Type:

Swing Slide Cantilever Pedestrian

Movement:

Automated Manual

Variant

Contact for Pricing

More information

Extended Description

Simple clean lines and lightweight construction make The Orbison the most economical choice for residential applications. The design is Pool safety compliant at 1.2m high and Balustrade compliant at 1.0m and 1.2m when installed at 1.2 post centres.

Orbison Panels come satin black powder-coated as standard and can be supplied with matching posts - all ex-stock. Pedestrian gates are ex-stock too but your driveway gates will be made to the size of your driveway in our fabrication department. Typical lead times are 1-2 weeks.

Features + Applications

Features

Lasts longer than timber
No warping or fading
Smooth finish and clean minimalist look

Applications

Residential driveway gate
Pool gate at 1.2m high.

Gate Specifications

Gates are made to order in our Silverdale factory. The table below shows our standard sizes. Larger sizes require an engineered solution and may require extra strengthening in the frame, special hinges or wheels etc. Please call us to work through your requirements.

Type	Opening Width	Frame Details

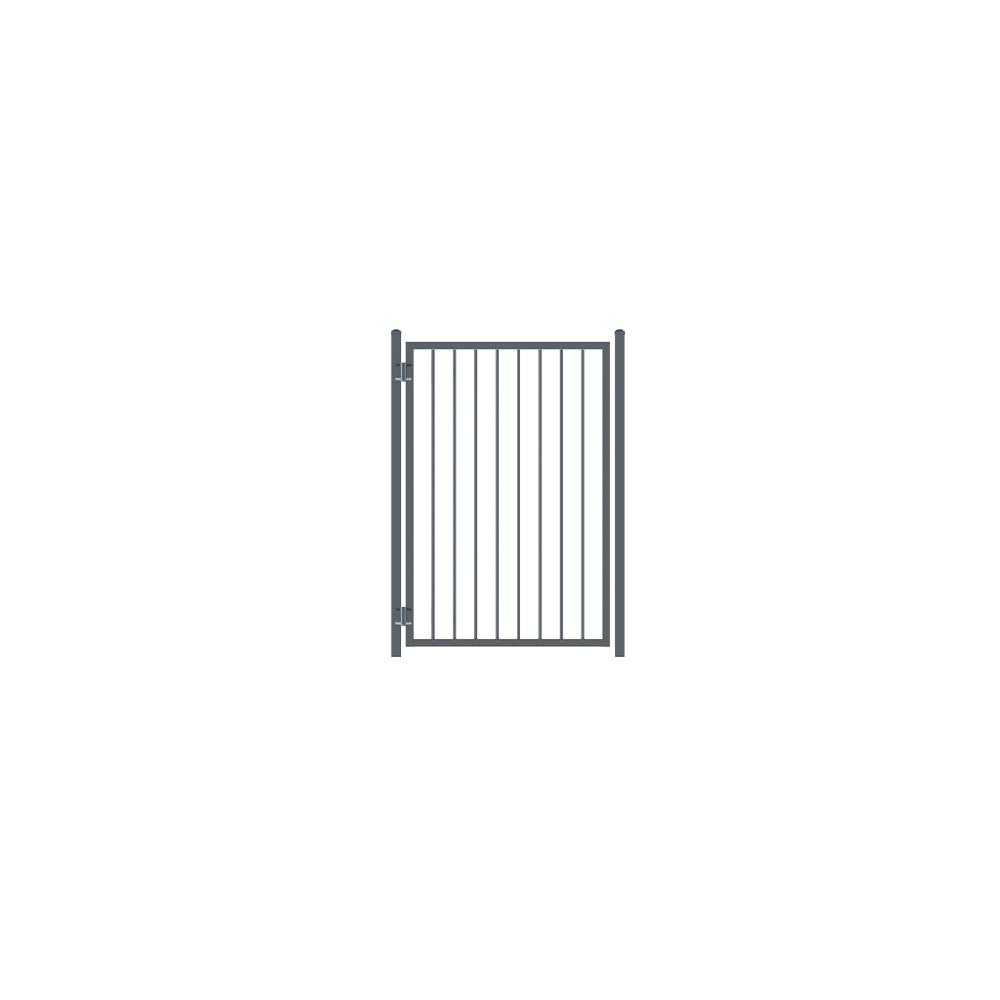

Pedestrian	1m opening	Aluminium 40x40mm frame with 19mm round pickets

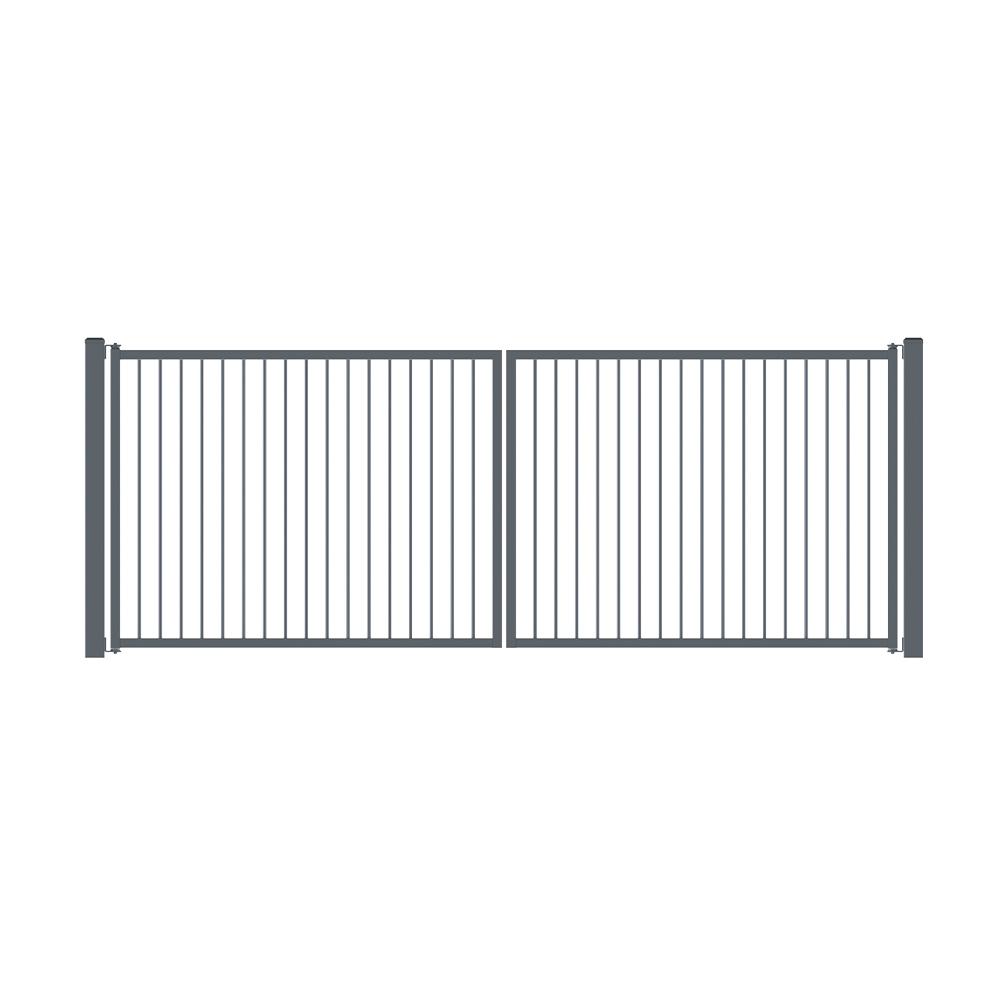

Swing	Up to 4m single swing, 8m double	Aluminium 50x50mm frame with 19mm round pickets

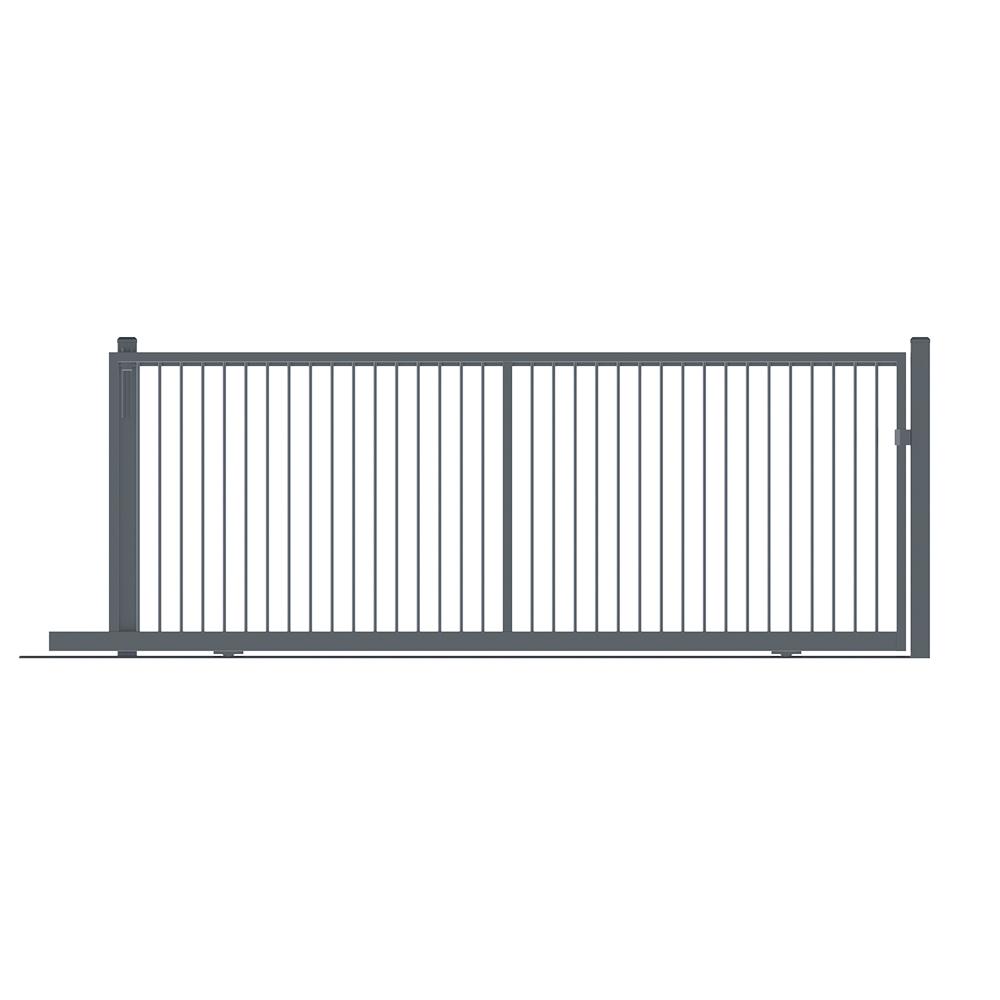

Sliding	Up to 6m	Aluminium 100x50mm bottom rail and 50x50mm sides and top with 19mm round pickets

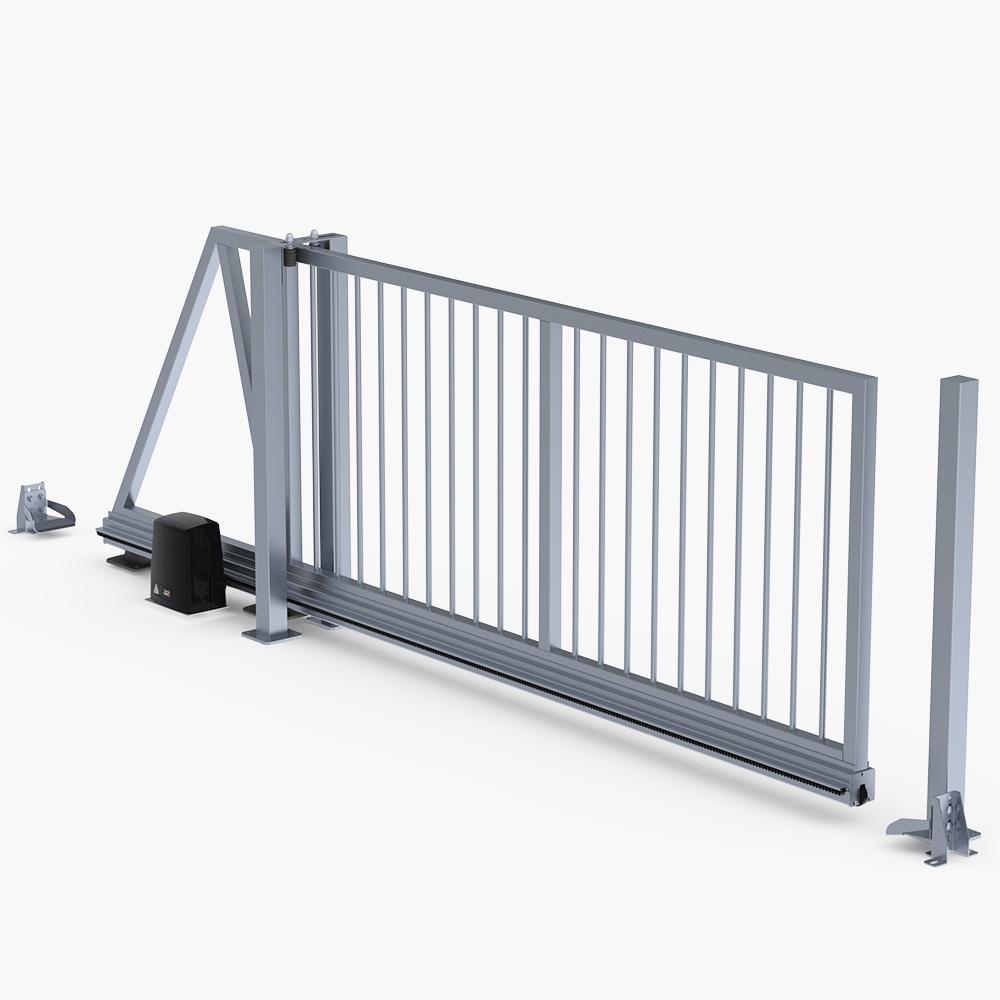

Cantilever	Up to 6m	Aluminium 50x100mm bottom rail and 50x50mm sides and top with 19mm round pickets

Orbison Gate

POA
