Finns Gate
Brand:
Edgesmith
Product Type:
Architectural Aluminium Gate
A modern architectural styled panel with striking vertical pickets closely spaced to accentuate the vertical lines of the house.
Extended Description
Features + Applications
Gate Specifications
Gates are made to order in our Silverdale factory. The table below shows our standard sizes. Larger sizes require an engineered solution and may require extra strengthening in the frame, special hinges or wheels etc. Please call us to work through your requirements.
Type | Opening Width | Frame Details |
---|---|---|

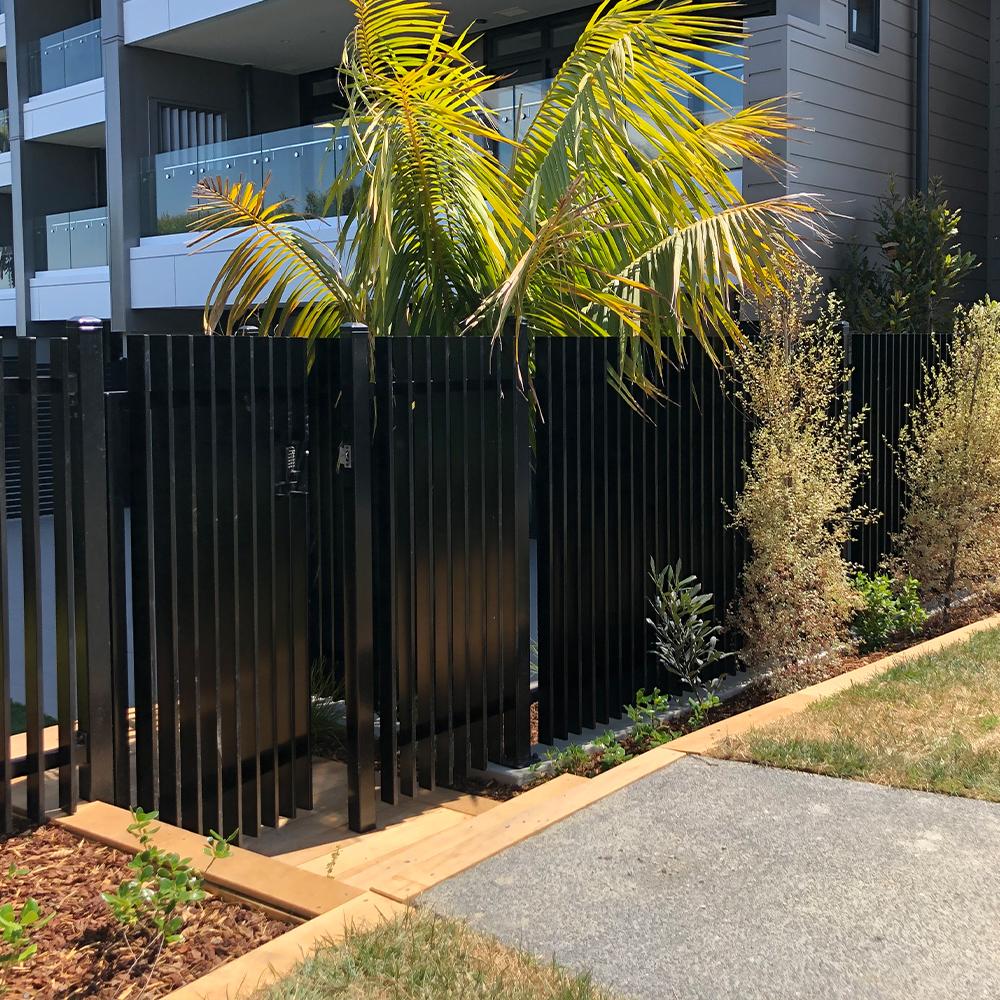

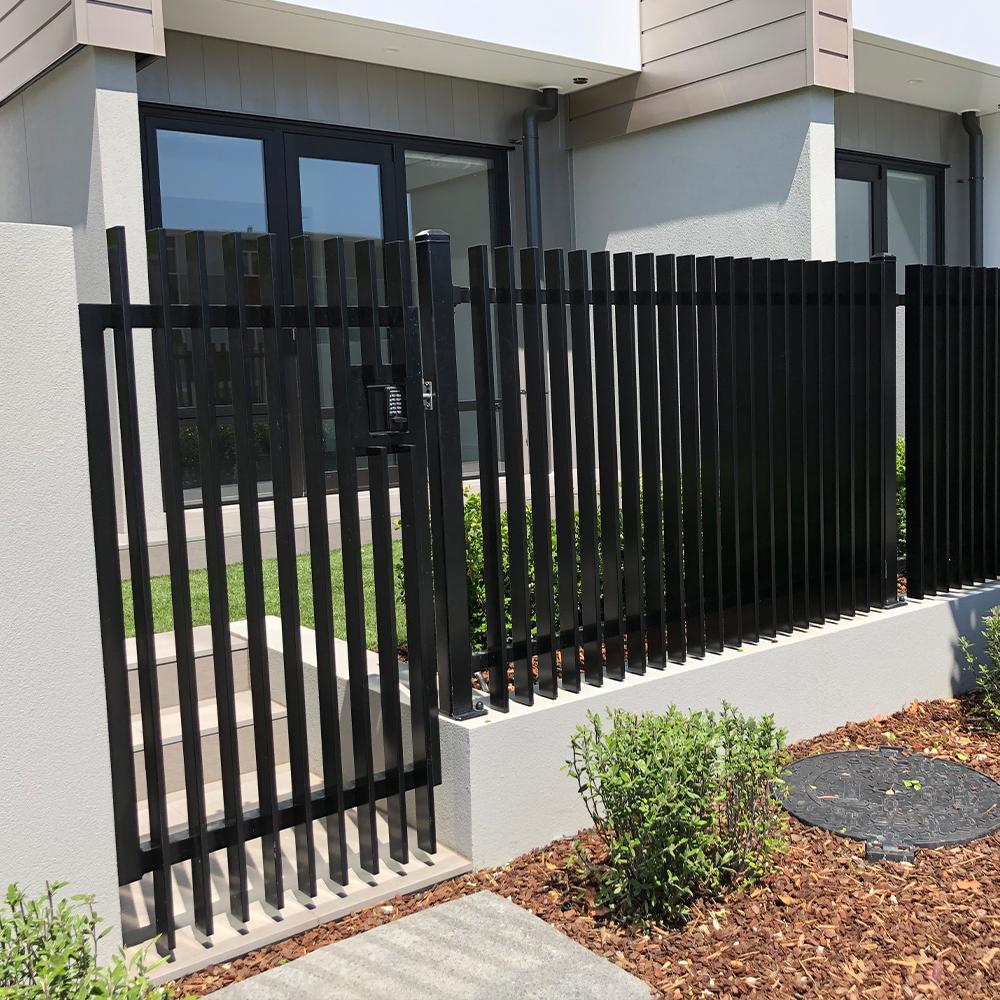

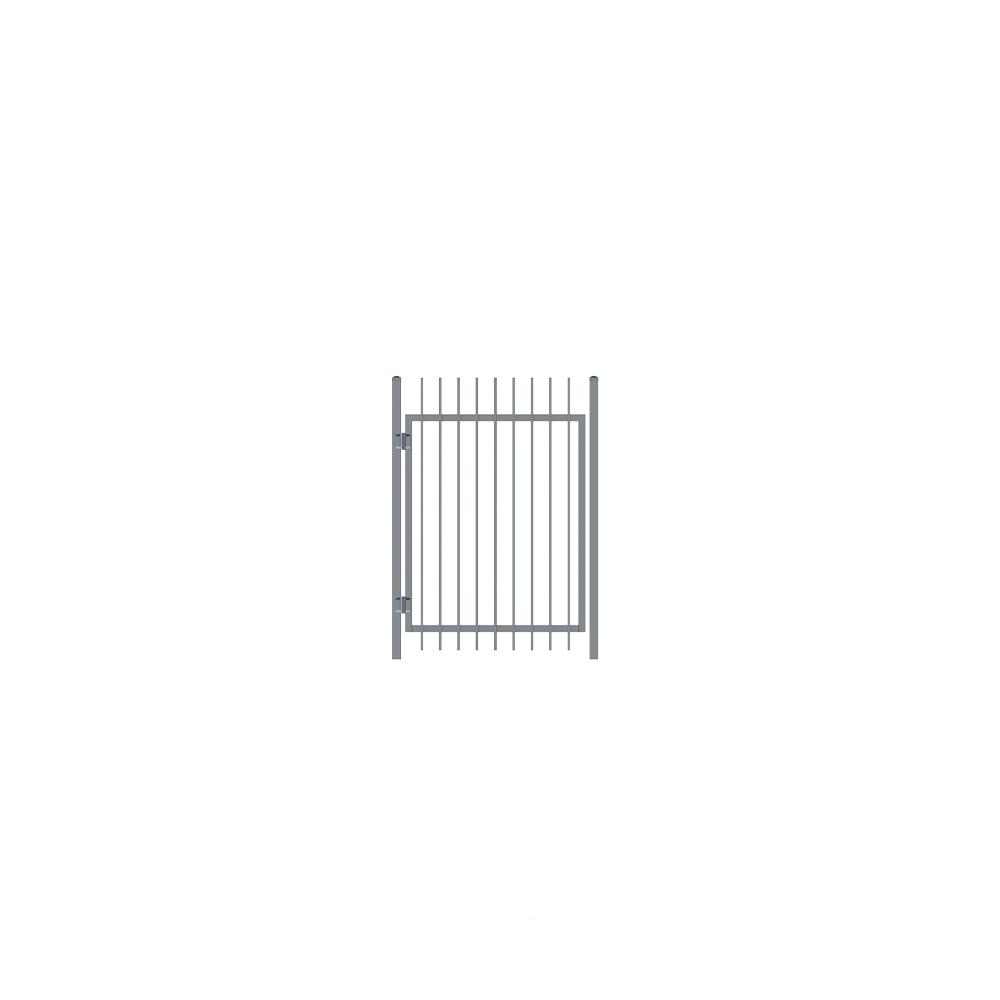

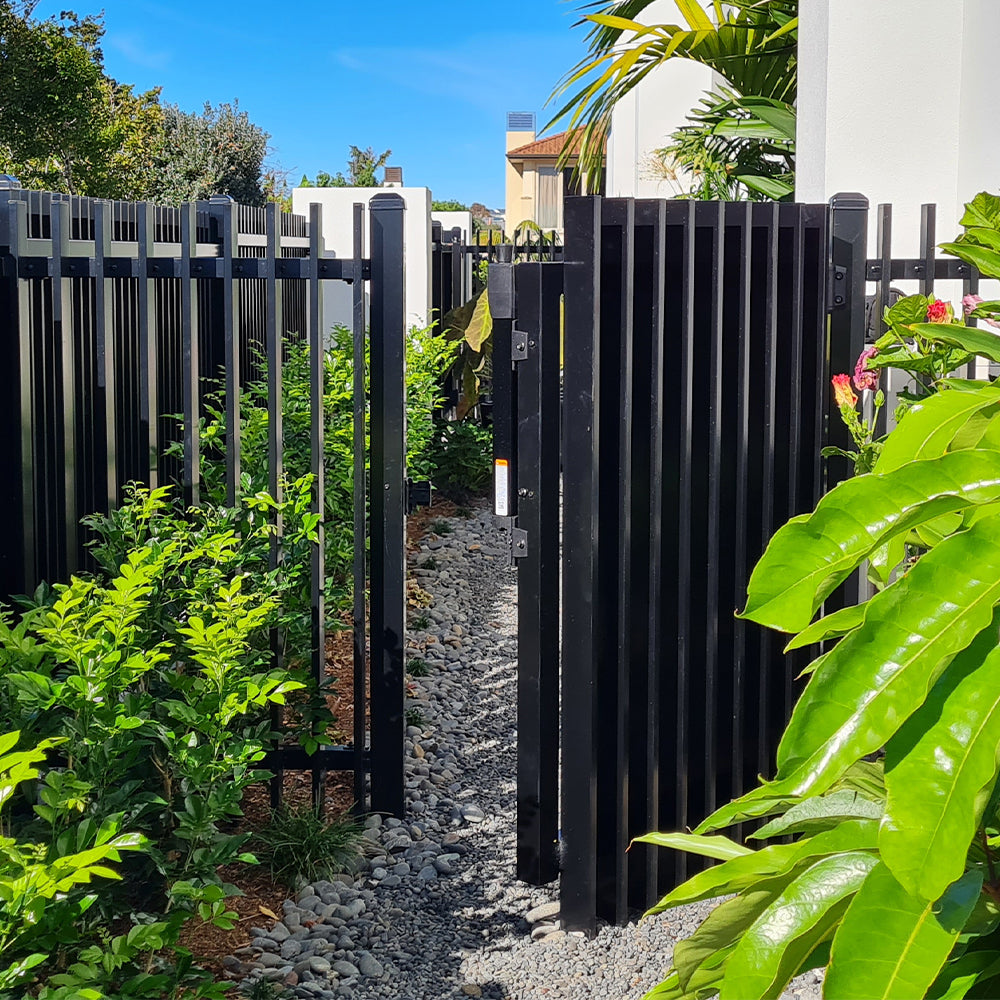

Pedestrian | 1.2m opening | Aluminium 40x40mm frame with 65x16mm rectangular pickets at 65mm spacings |

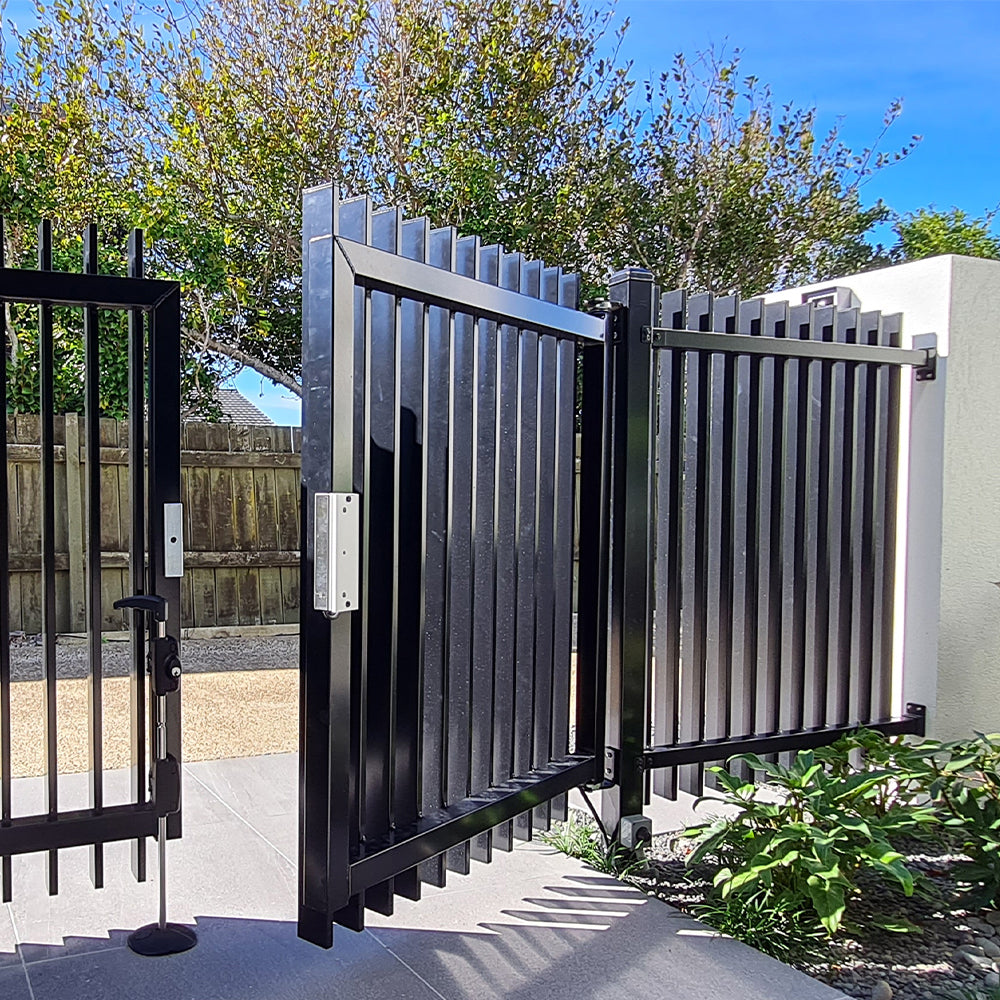

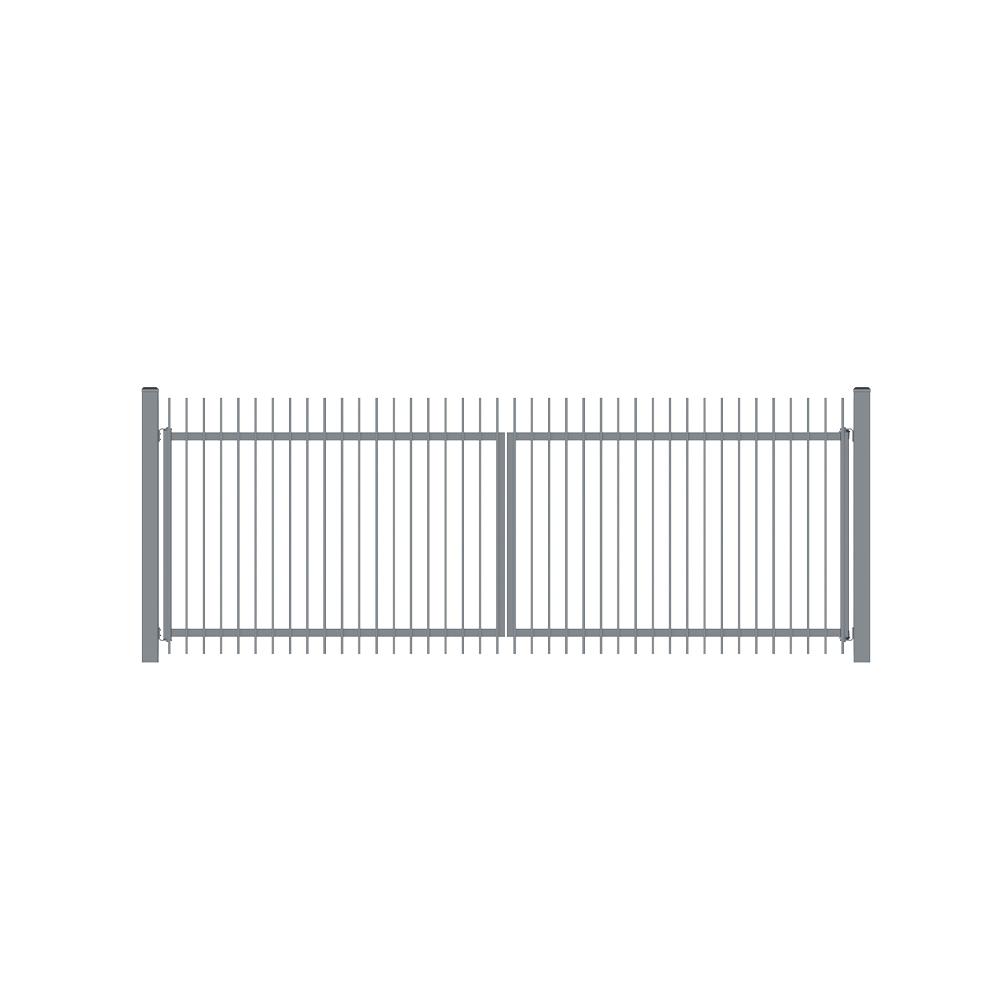

Swing | Up to 4m single swing, 8m double | Aluminium 50x50mm frame with 65x16mm rectangular pickets at 65mm spacings |

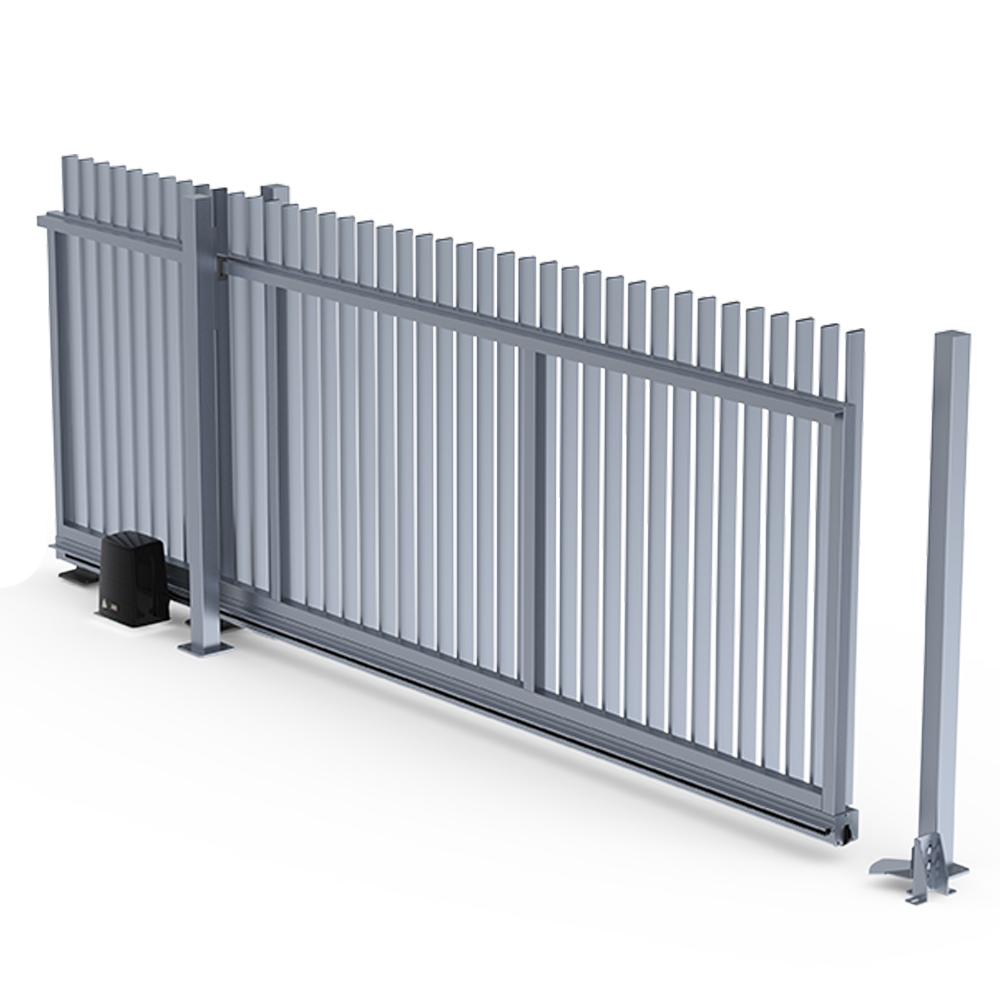

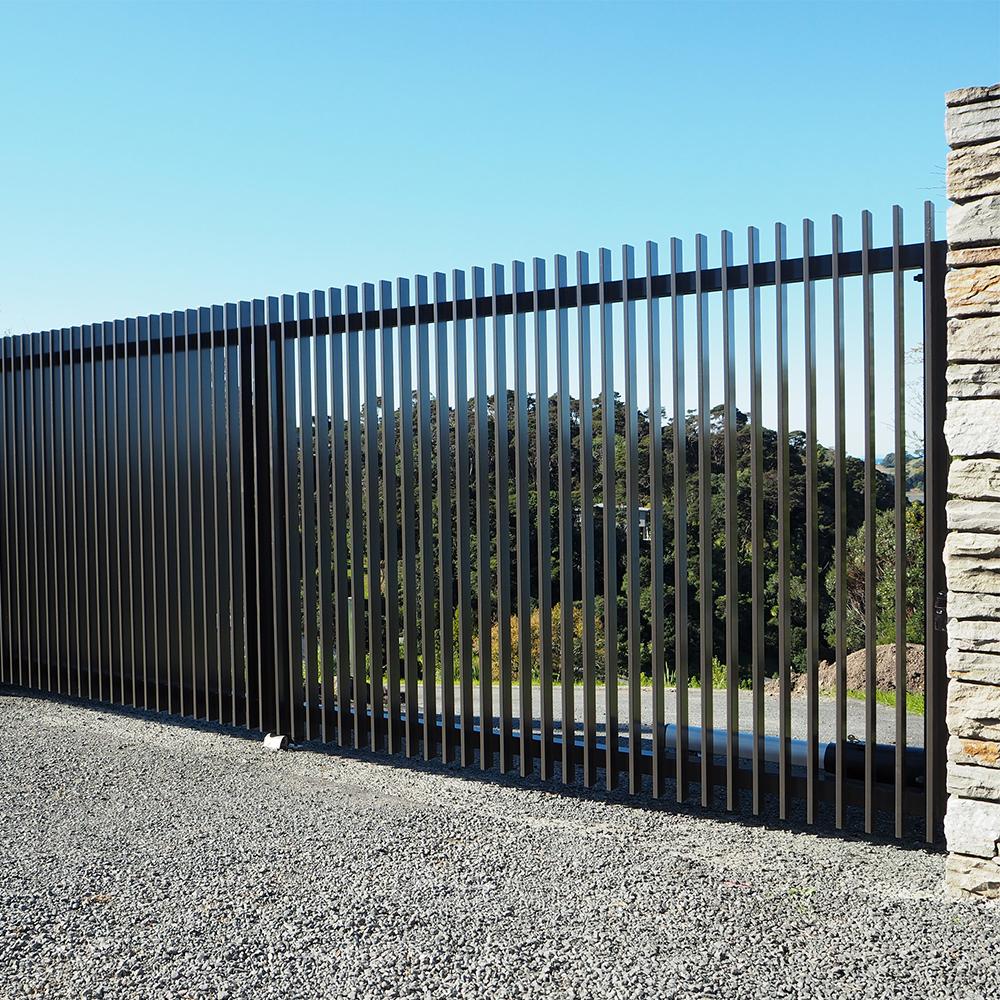

Sliding | Up to 6m | Aluminium 75x100mm bottom rail and 75x75mm sides and top with 65x16mm rectangular pickets at 65mm spacings |
Cantilever | Up to 5m | Aluminium 50x100mm bottom rail and 50x50mm sides and top with 65x16mm rectangular pickets at 65mm spacings |
