The Chiefs Gate

POA


Brand: Edgesmith
SKU:
Product Type: Hot Dip Galv Steel Gate

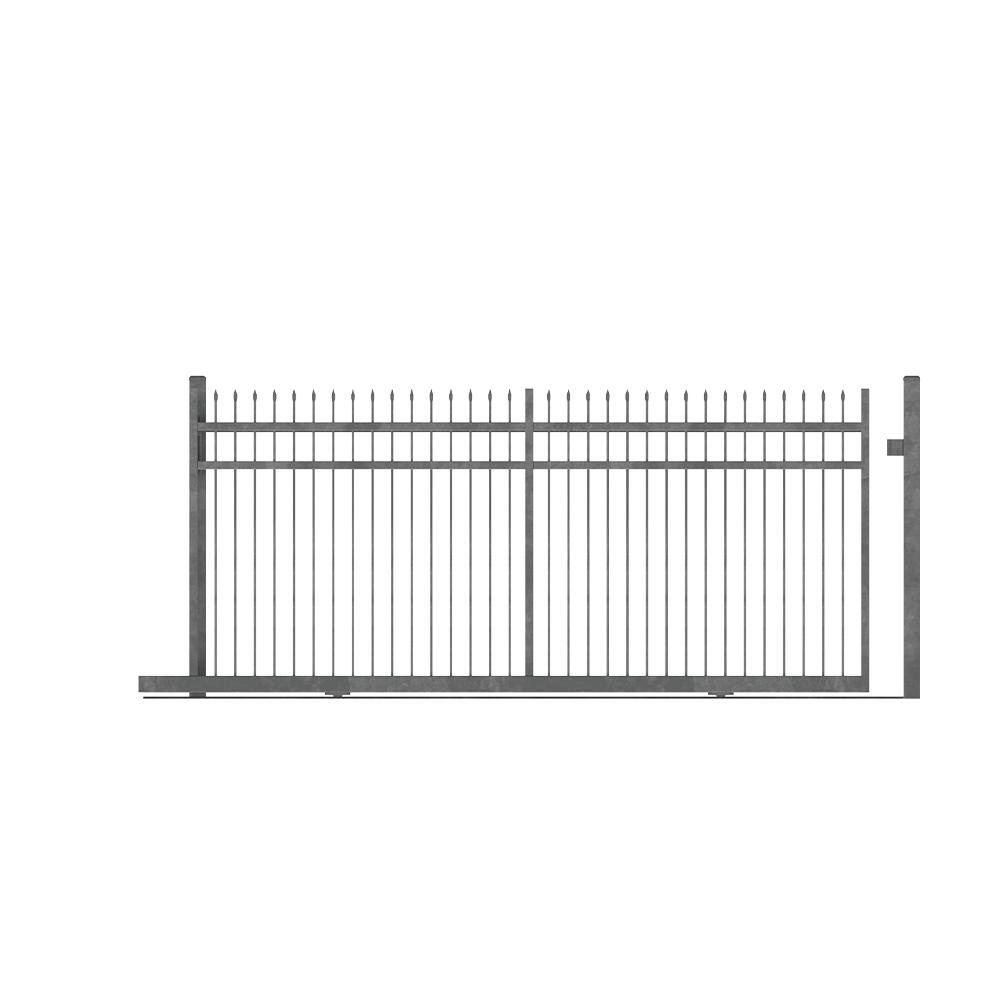

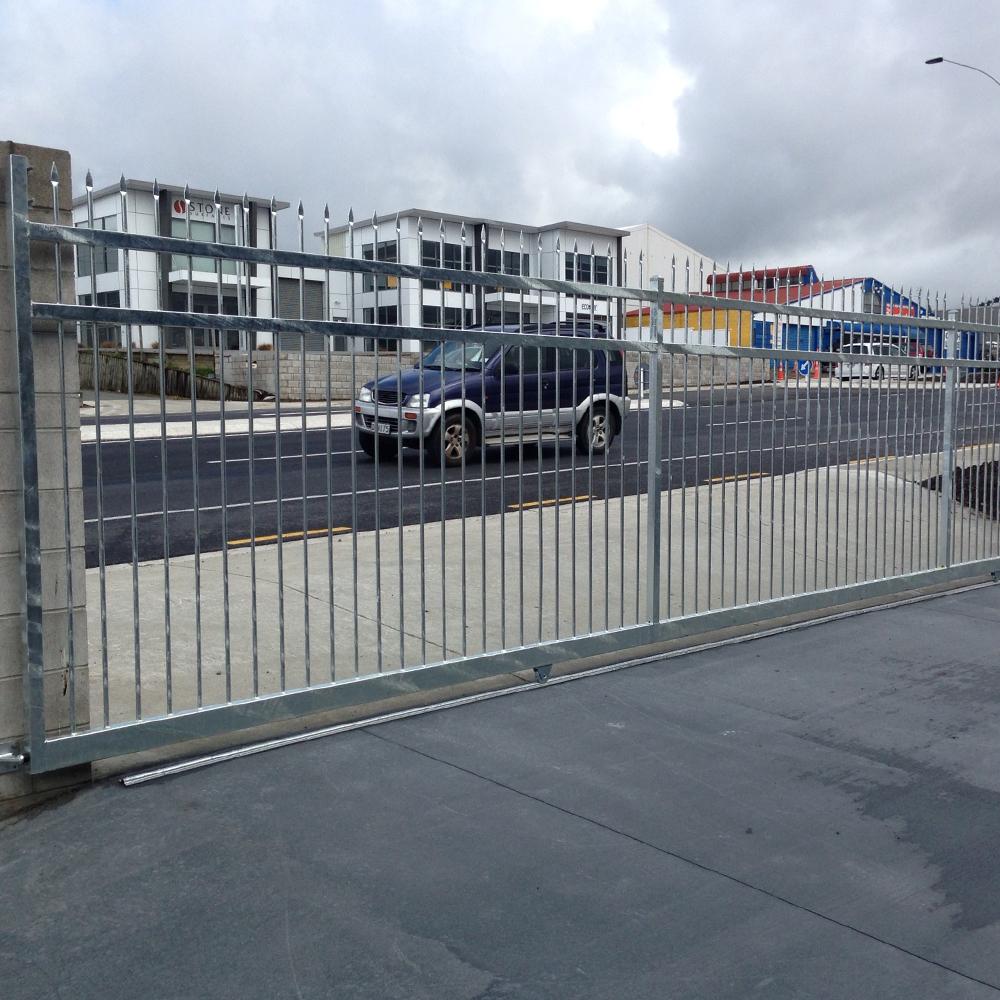

The durability and strength of hot dip galvanised tubular steel with the option of sharp spike top rods make The Chiefs range ideal for industrial and commercial security applications. The rough finish of a hot dip galvanised gate make it more suited to industrial applications.

Pedestrian gates are ex-stock too but your driveway gates will be made to the size of your driveway in our fabrication department. Typical lead times are 2-3 weeks.

Features:

  1. Hot Dip Galvanised to ANS
  2. Pool Fence Compliant
  3. Balustrade Compliant

Applications:

  1. Security gates with spike top
  2. School gates with flat top
  3. Pedestrian gates for access to services

[custom tab]

Gates are made to order in our Silverdale factory. The table below shows our standard sizes. Larger sizes require an engineered solution and may require extra strengthening in the frame, special hinges or wheels etc. Please call us to work through your requirements.

Download PDF Product Guide


Type Opening Width Frame Details

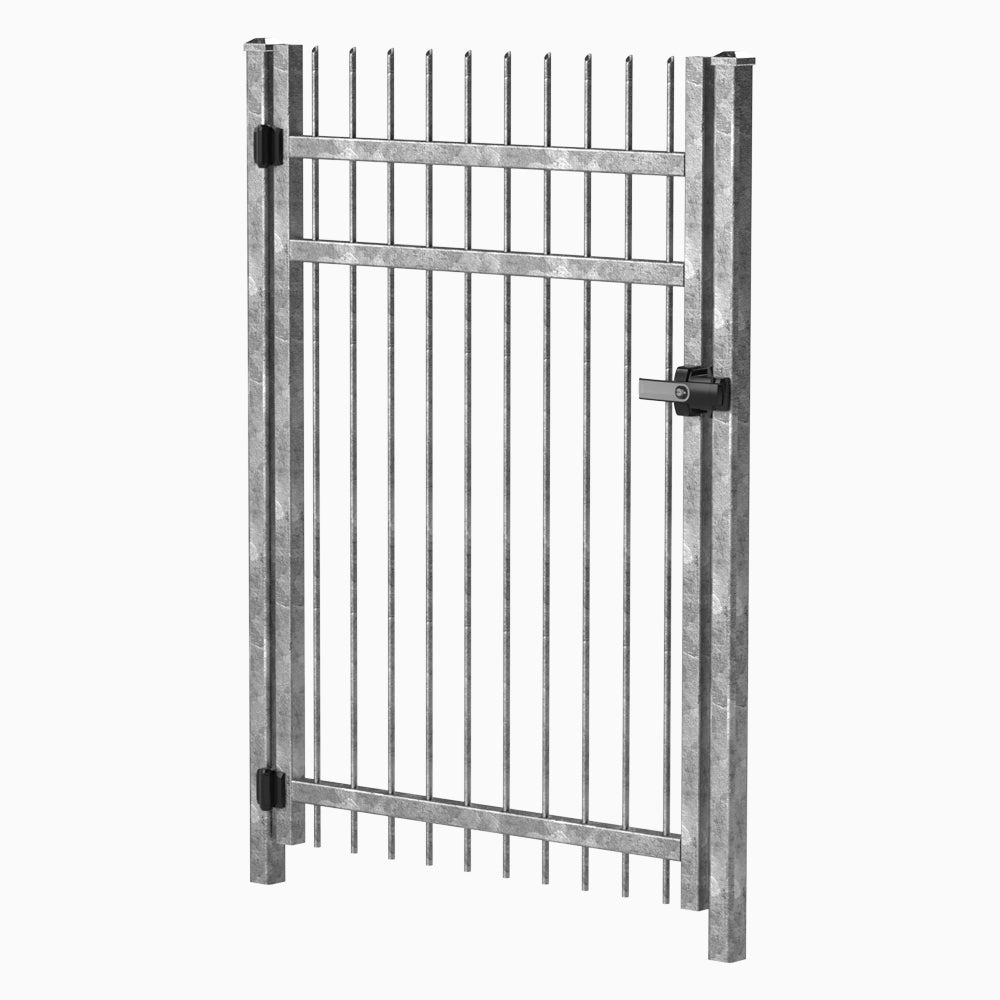

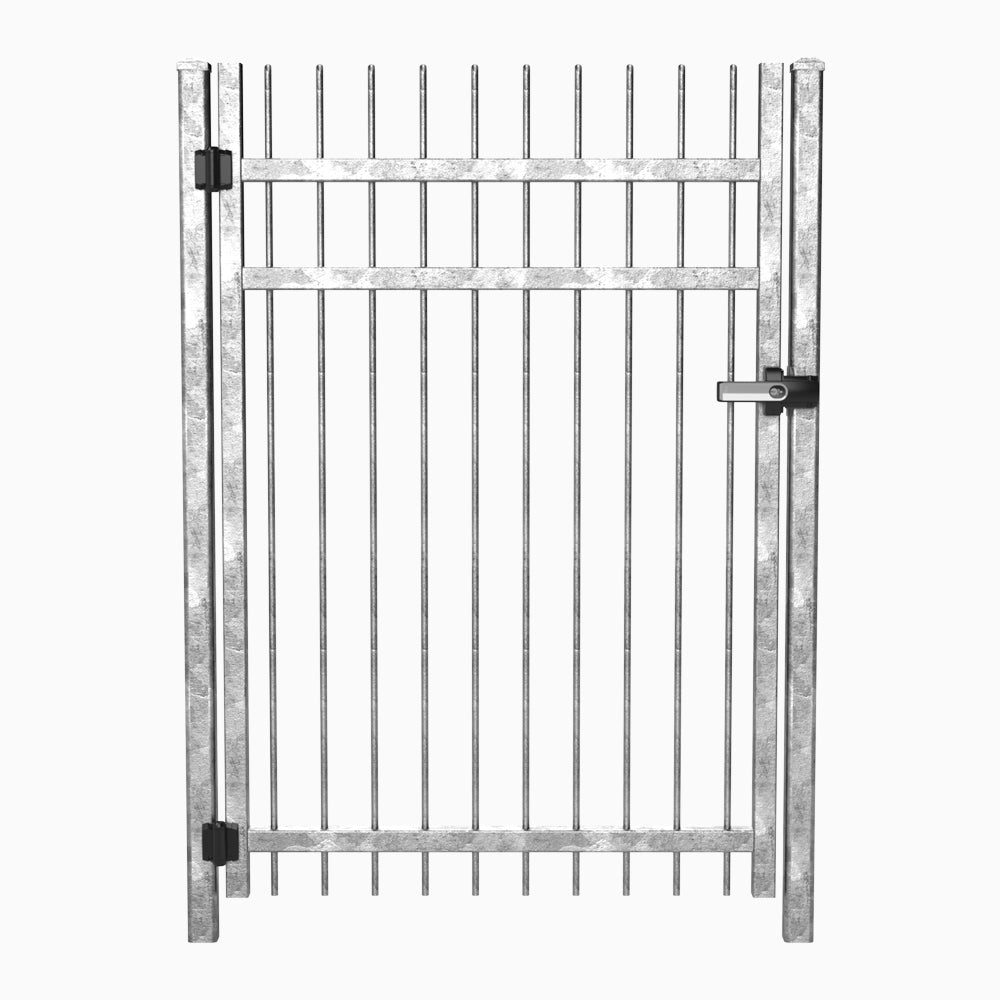

Pedestrian 1m opening Hot dip galvanised steel 40x40mm frame with 16mm round pickets

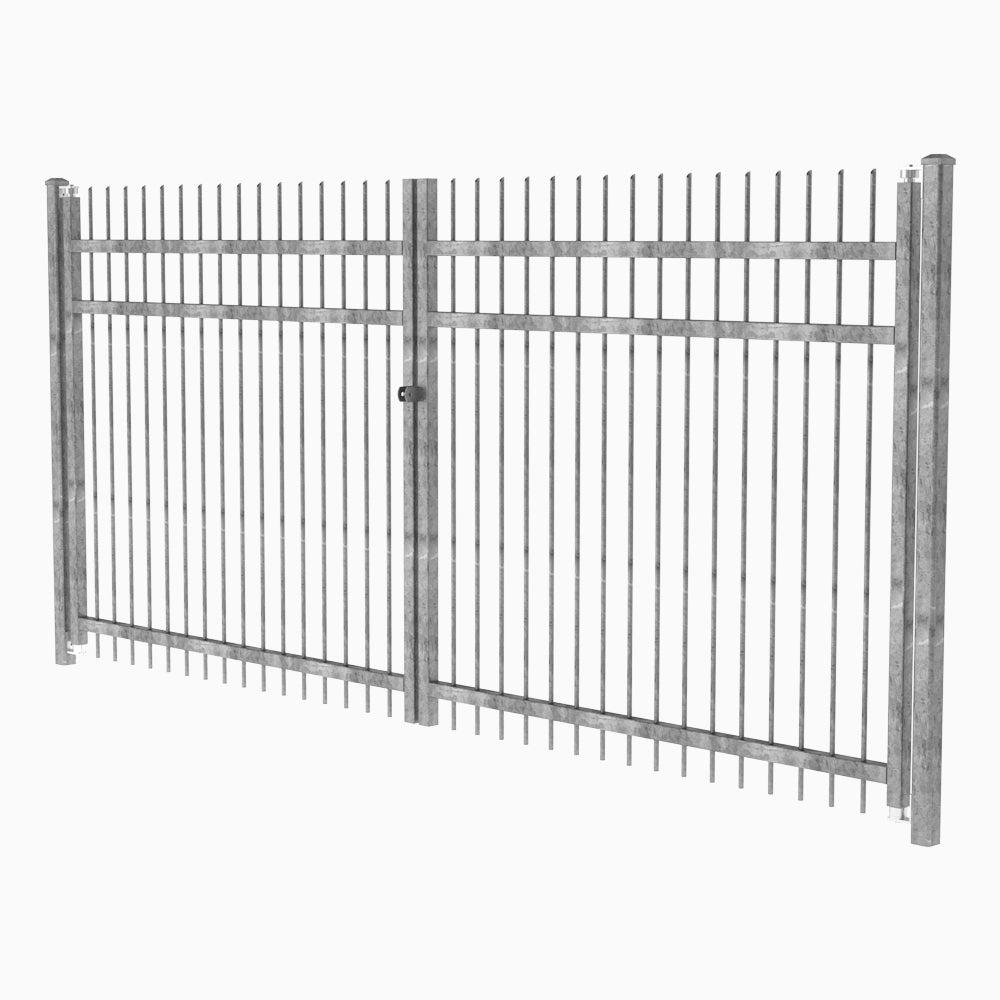

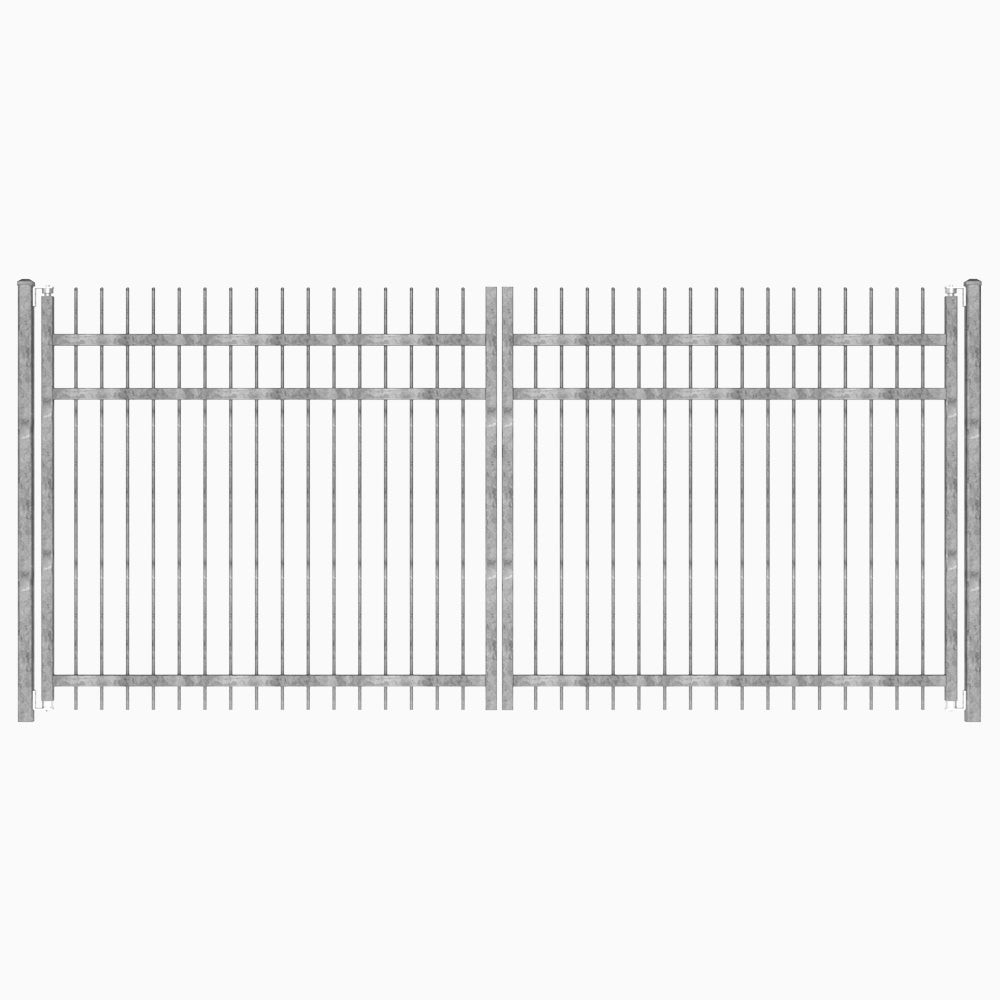

Swing Up to 5m single swing, 10m double Hot dip galvanised steel 50x50mm frame with 16mm round pickets

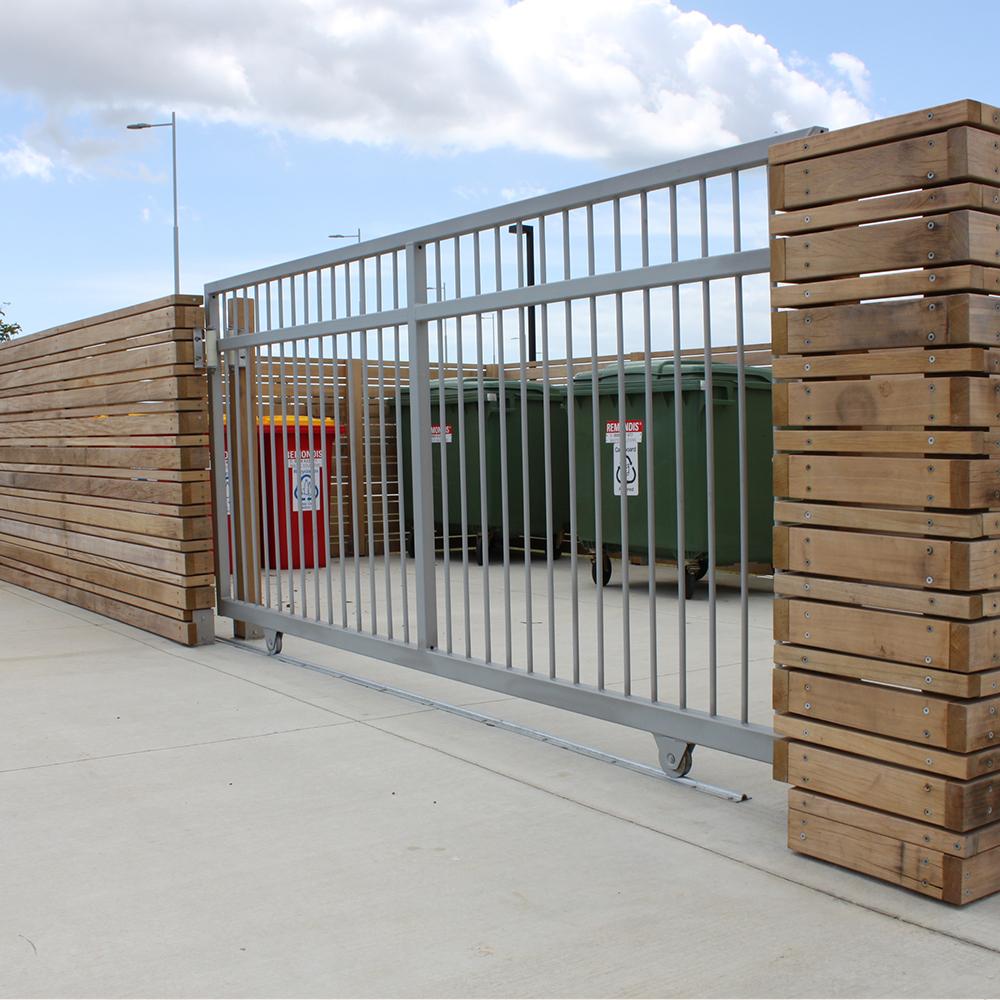

Sliding Up to 7.5m Hot dip galvanised steel 100x50mm bottom rail and 50x50mm sides and top with 16mm round pickets
Sliding 7.5m to 12m Hot dip galvanised steel 75x125mm bottom rail and 75x75mm sides and top with 16mm round pickets

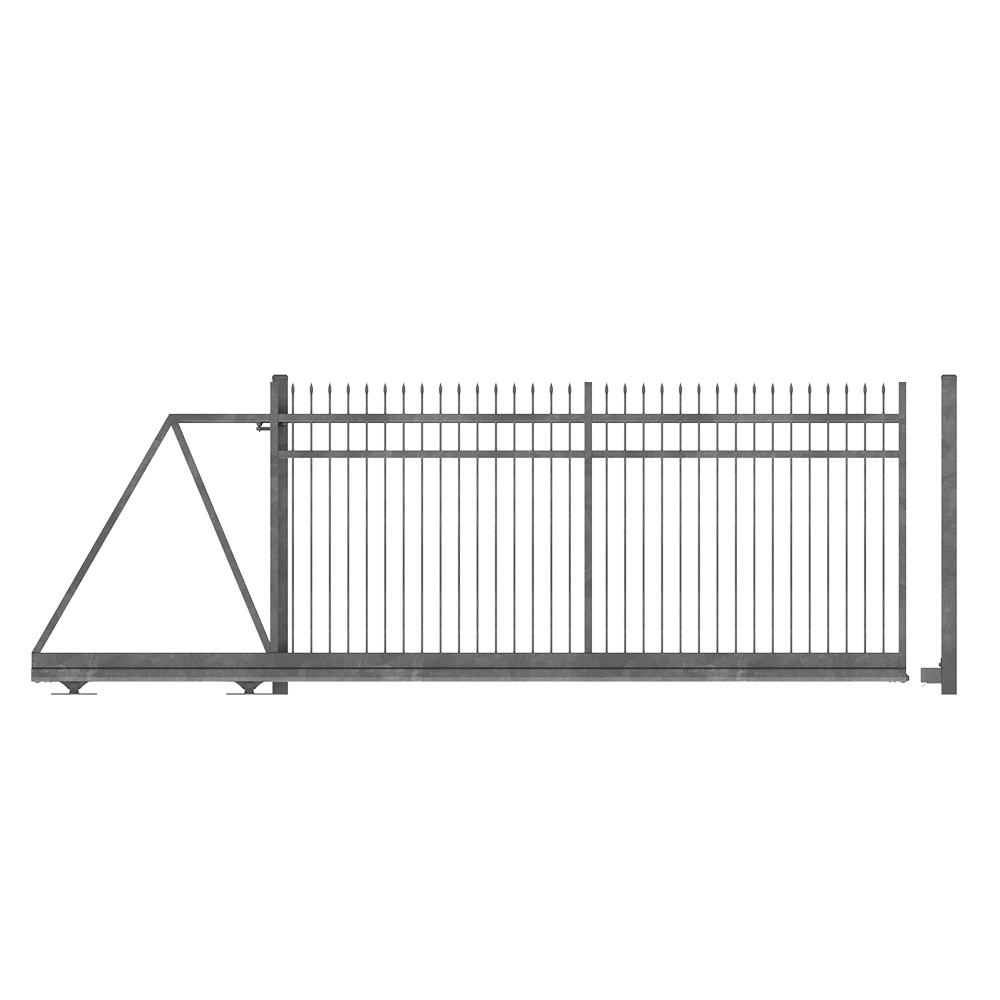

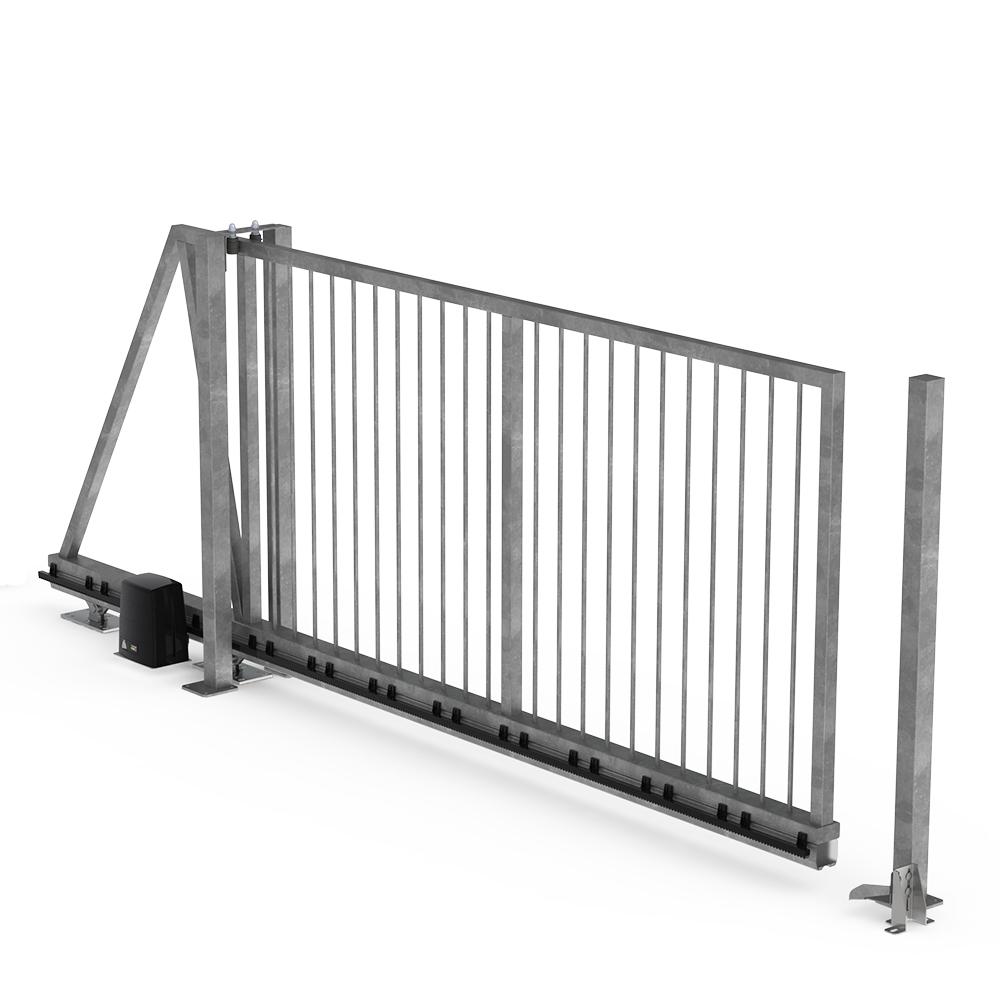

Cantilever Up to 8m Hot dip galvanised steel 75x125mm bottom rail and 75x75mm sides and top with 16mm round pickets
Cantilever 8m to 12m Hot dip galvanised steel 150x100mm bottom rail and 100x100mm sides and top with 16mm round pickets
[/custom tab]
