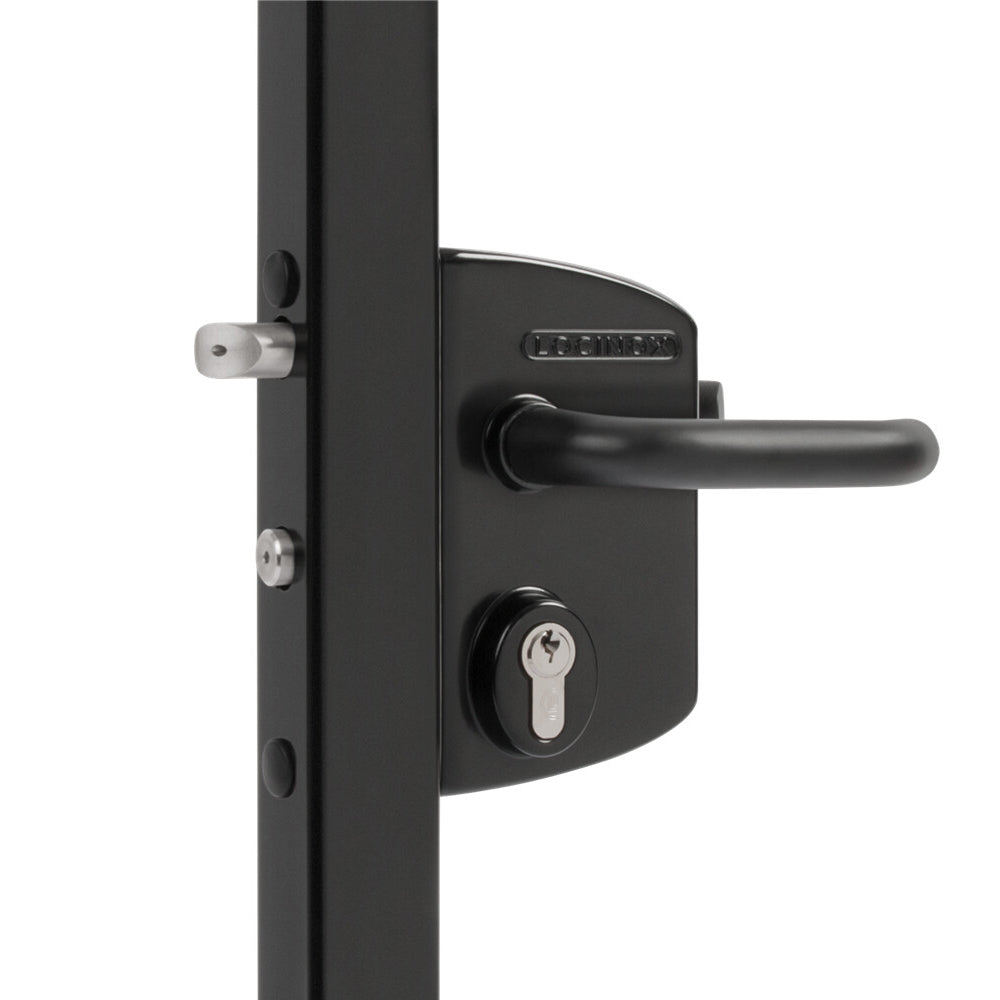

Surface Mount Lock

High quality gate lock with aluminium housing and stainless steel mechanism. We advise this lock as a standard for all your industrial gates. The 20 mm continuous adjustability of the bolts allows a perfect latching / locking of the mechanism. A solid stainless steel deadbolt with a 23 mm throw guarantees a secure locking. Standard supplied with anodized aluminium handle pair. For a fast and highly precise installation, we recommend using the Drill-Fix drilling jig.

Specifications:

• E-coated lock box withstands 1000 hours of salt spray test
• Easy left or right changing of the self-latching dead bolt
• 23 mm throw of the dead bolt, in 1 turn of the key
• Key-operated self-latching bolt
• 4-hole fixing with two hexagon socket head screws

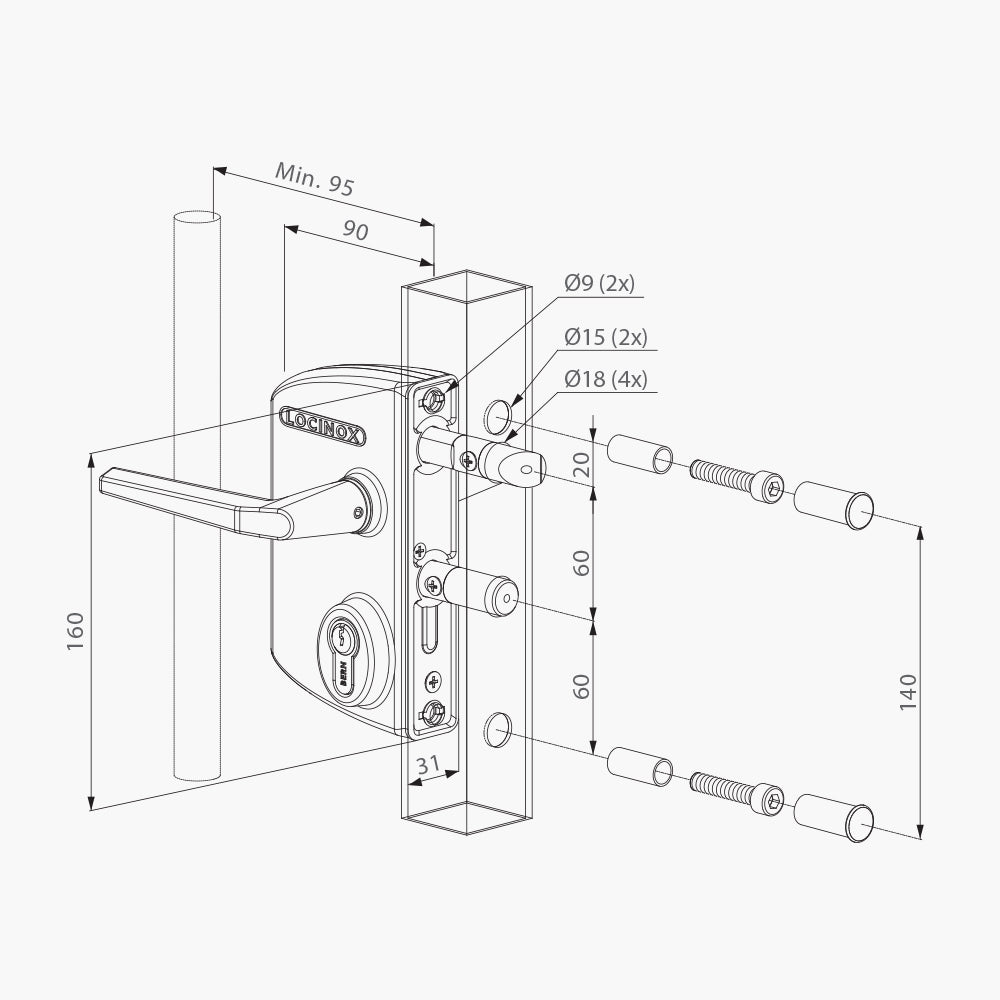

• 60 mm center distance of the bolts
• Continuous adjustment of the dead bolt up to 20 mm without dismounting the lock box
• Stainless steel mechanism

Edgesmith's  technical support provides you with the support you need to have confidence when specifying or installing.

• Download Installation Guide
