Swing Gate Keep for Insert Locks

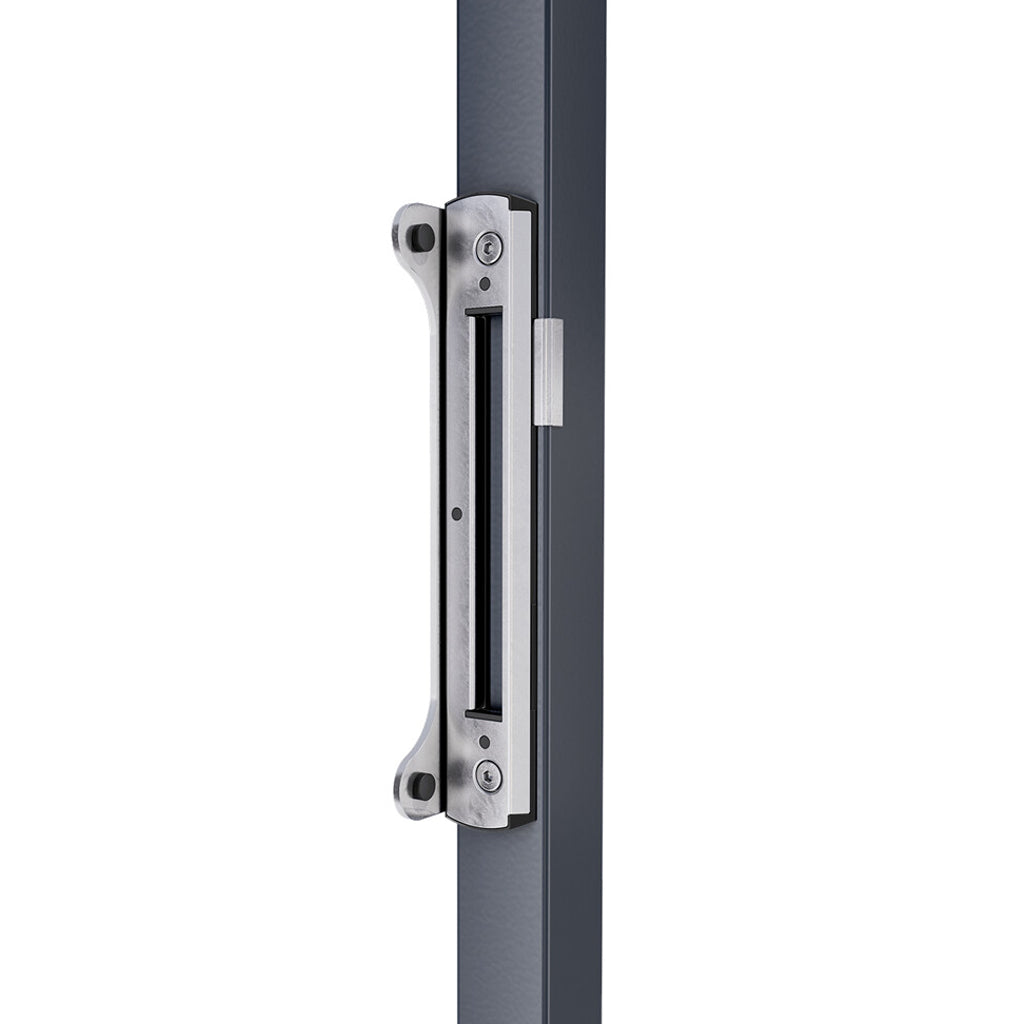

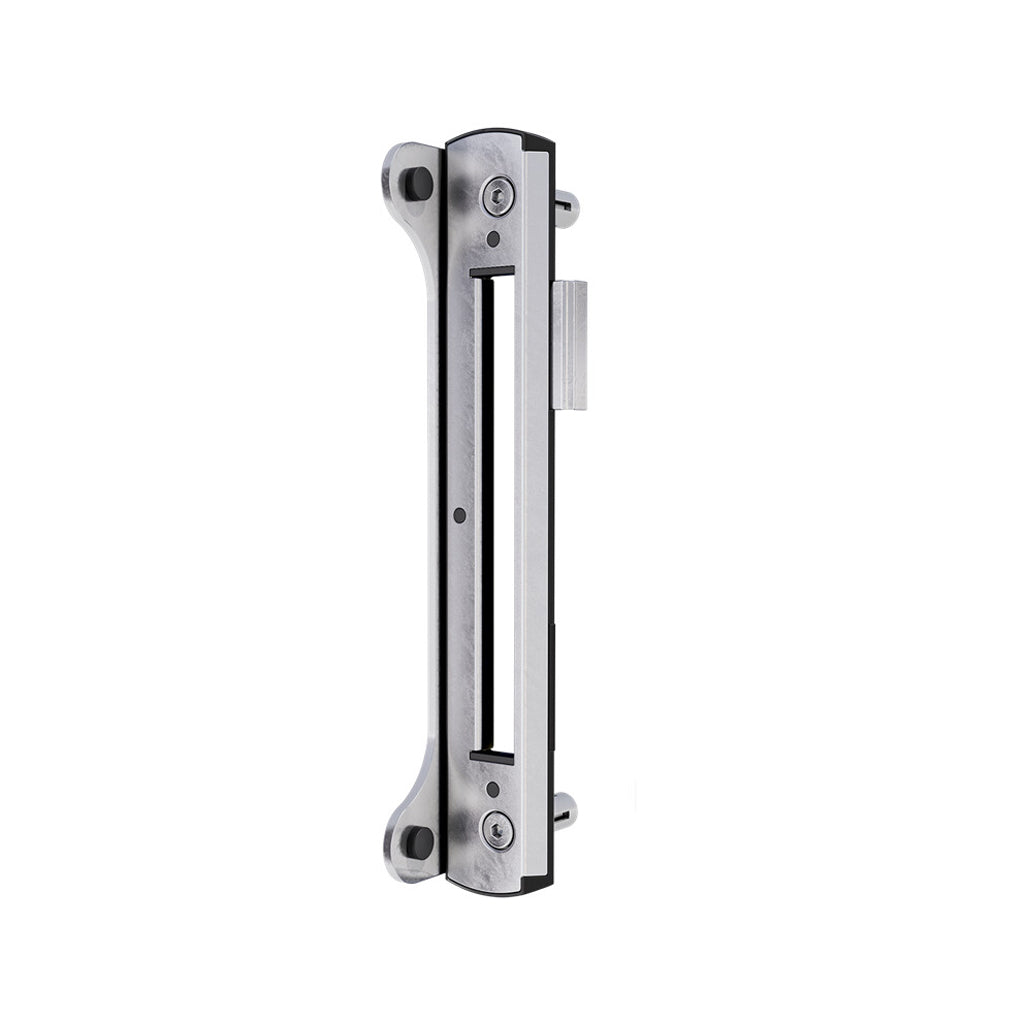

Aesthetical surface mounted keep. Specially designed for our complete range of surface mounted swing gate locks. The limited 8 mm visible thickness ensures a discreet look. A highly efficient assembly with minimal gate preparations is guaranteed, while the unique Quick-Fix ensures a fast and strong fixation on the gate. This unique keep in combination with the gate lock ensures a strong gate anchoring.

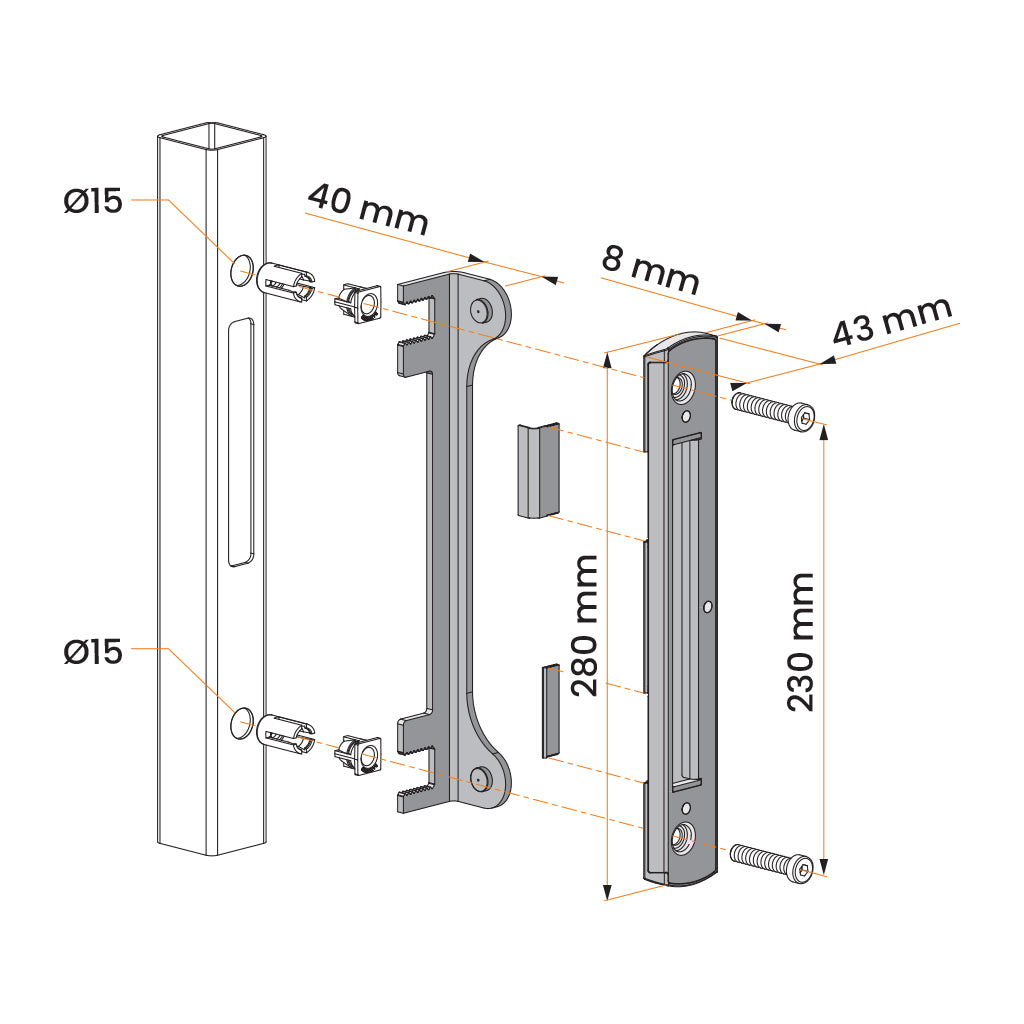

Specifications

• Stainless steel keep for square profiles as of 40 mm
• Compatible with our complete range of surface-mounted swing gate locks
• Extruded stop plate in aluminium with rubber strip for long-term use
• Including innovative Quick-Fix fixations and self-drilling screws
• Easy left or right changing
• Elegant design: visible thickness of 8 mm
• Adjustable stop plate for 40 mm to 60 mm gate frames
• Adjustable guide to avoid damage of day bolt to post

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Locinox Hardware.

• Download Installation Guide
