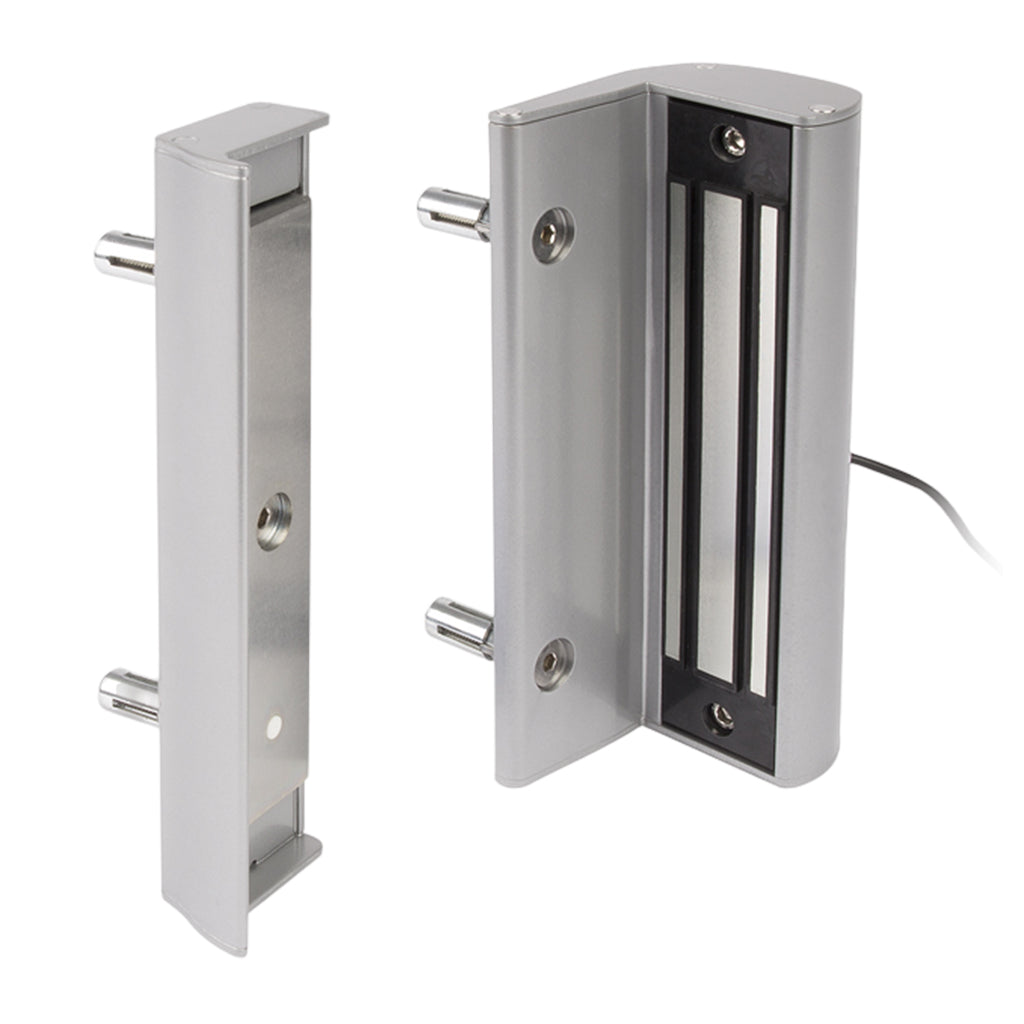

Surface Mounted Mag Lock

Created for pedestrian or single swing gates where power is not available at the receiving post. The MAGMAG3000 is a high-performance, screw-on electromagnetic lock designed specifically for outdoor gate and access control applications. It's built for trade installers who value quick, clean, no-weld mounting and long-term durability in harsh weather. IP68-rated engineered specifically for extreme outdoor conditions, fully weatherproof and dust-proof.

Watch the installation and demo videos below.

Specifications:

• 500h salt spray resistant! SGS certified (ISO 9227)
• Special two-layer protective coating developed for outdoor use
• SGS Certified
• Powder-coated aluminium housing
• Anti-residual magnetism kick-off system
• The raised edge on the magnet housing makes it impossible to put a crowbar between the magnet and the armature plate
• Fail open
• Fast and easy fixing by means of 5 holes with Quick-Fix
• Current MAGMAG3000: 500 mA / 12 V or 250 mA / 24 V
• Voltage: 12V / 24V DC
• MAG3000: Minimal pulling force: 3000N (300 kg)
• Guaranteed holding force tested on every magnetic lock
• IP68 rated - Extremely resistant to water and dust

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Locinox Hardware.

• Download Installation Guide
