Sliding Gate Mag Lock

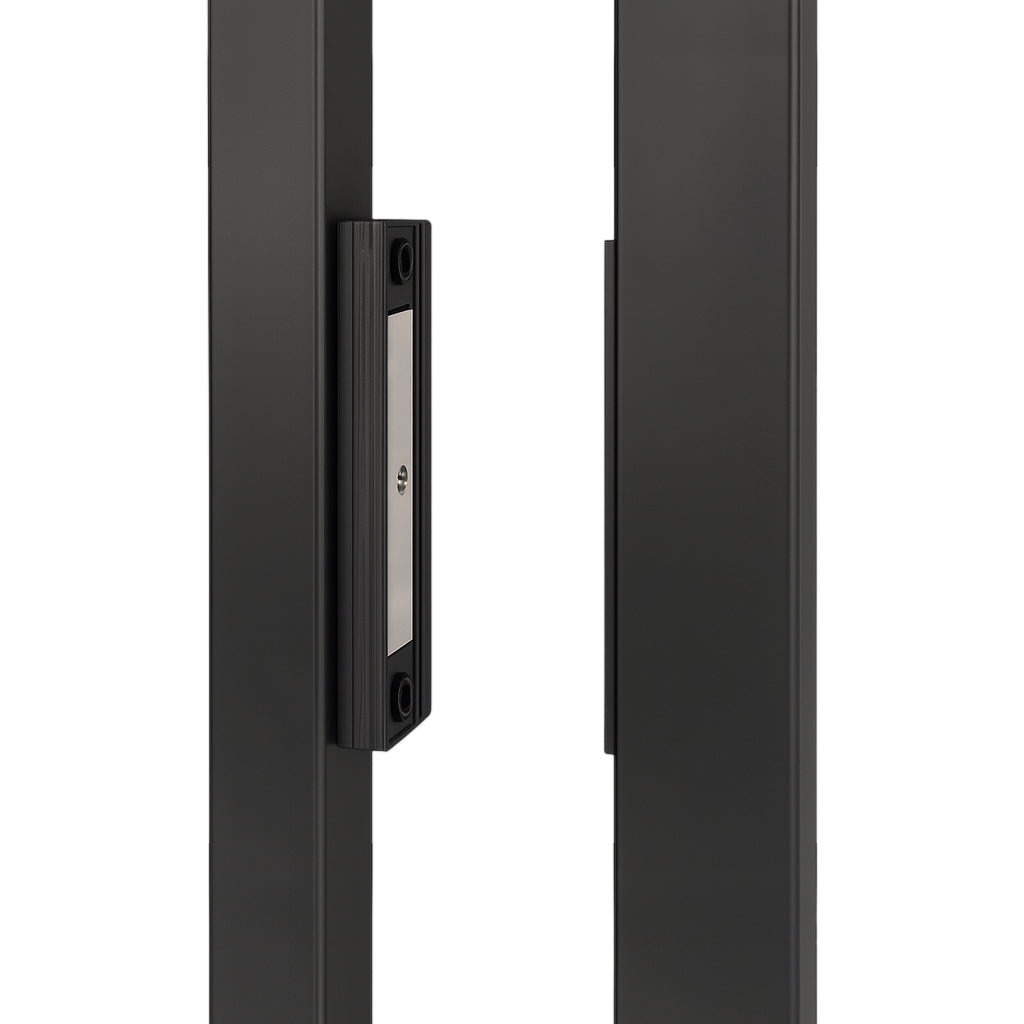

One of the few true mag-lock solutions available for this application. It mounts discreetly and securely (typically into the gate post or frame), providing reliable, high-security locking without visible protrusions that could interfere with the gate's smooth operation or aesthetics.

Ideal for trade installers securing residential, commercial, or industrial sliding gates in exposed outdoor environments, where a clean look and robust weather resistance are essential.

The S-MAG rounds out the Locinox MagLock family by delivering the same trusted reliability, quick-install benefits, and exceptional outdoor toughness, now optimised specifically for sliding gate security where few alternatives exist. Great for projects prioritizing discretion, durability, and ease of installation.

Specifications:

• Guaranteed holding force tested on every magnetic lock
• 500h salt spray resistant! SGS certified (ISO 9227)
• Special two-layer protective coating developed for outdoor use
• Anti-residual magnetism kick-off system
• Minimal pulling force: 2500N (250 kg)
• Current: 460mA / 12V or 230mA / 24V
• Voltage: 12V / 24V DC
• IP68 rated - Extremely resistant to water and dust

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Locinox Hardware.

• Download Installation Guide
