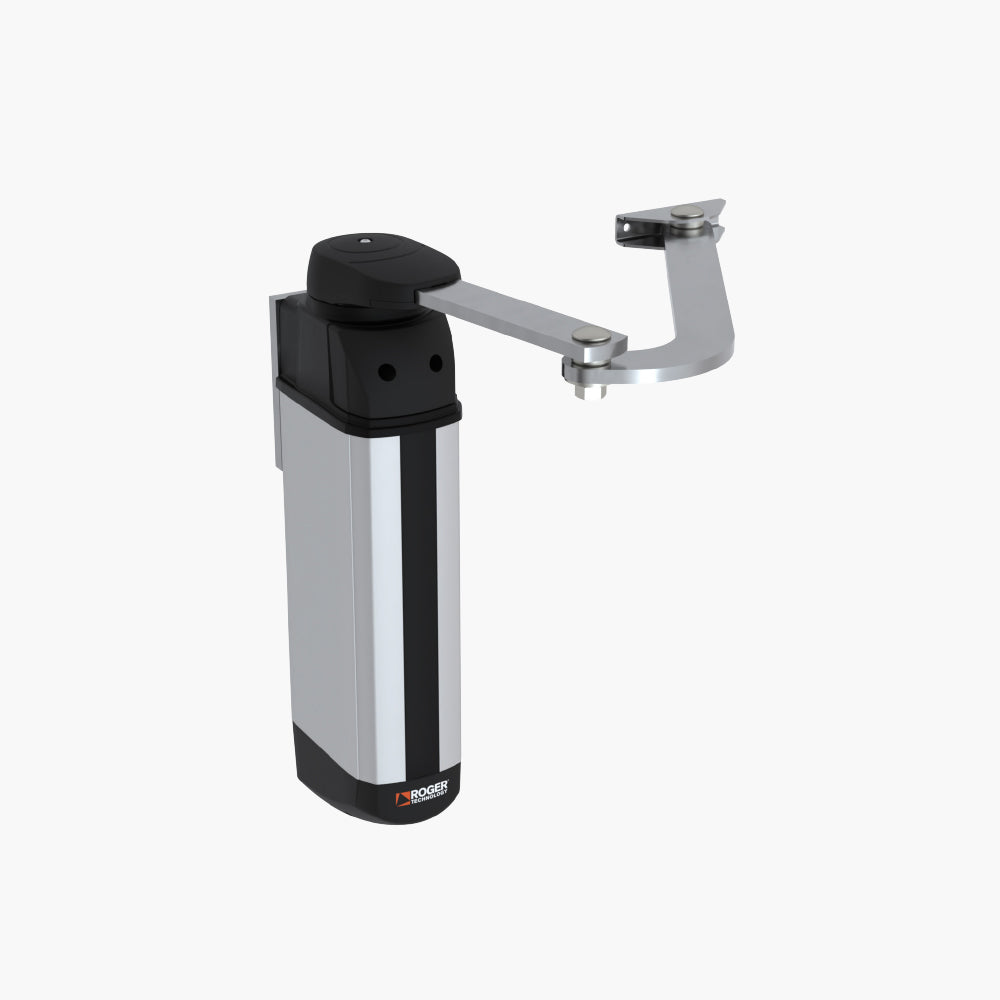

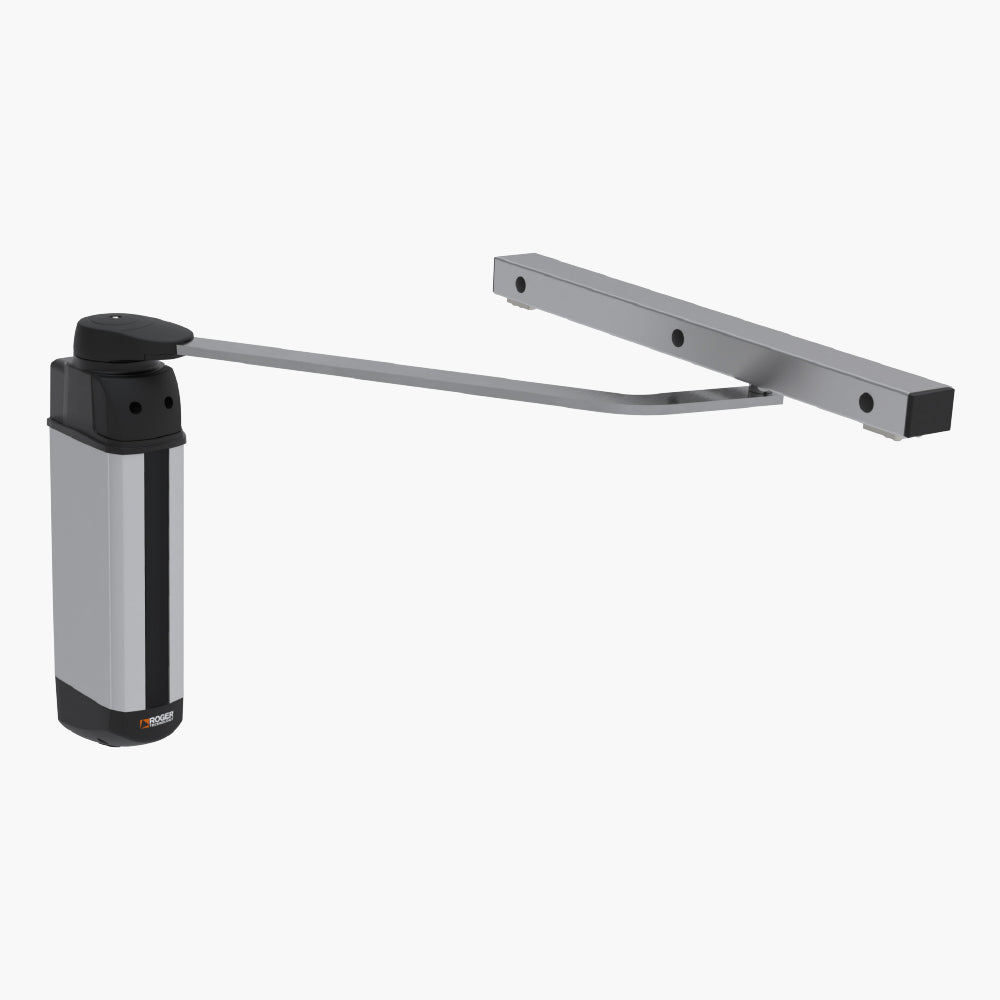

Sled Pedestrian Gate, 100% Duty Cycle

Roger's Sled can be used with gates up to 150kg or 1.8m per leaf. The powerful 36V AC brushless motors are capable of opening times as low as 10 seconds with a complete 100% duty cycle. An operator without compromise.

BRUSHLESS IPU TECHNOLOGY low voltage electromechanical gear motor for intensive use, reversible, on-board power inverter with integrated digital encoder, ideal for leaves up to 1.8 m, without arms

Specifications:

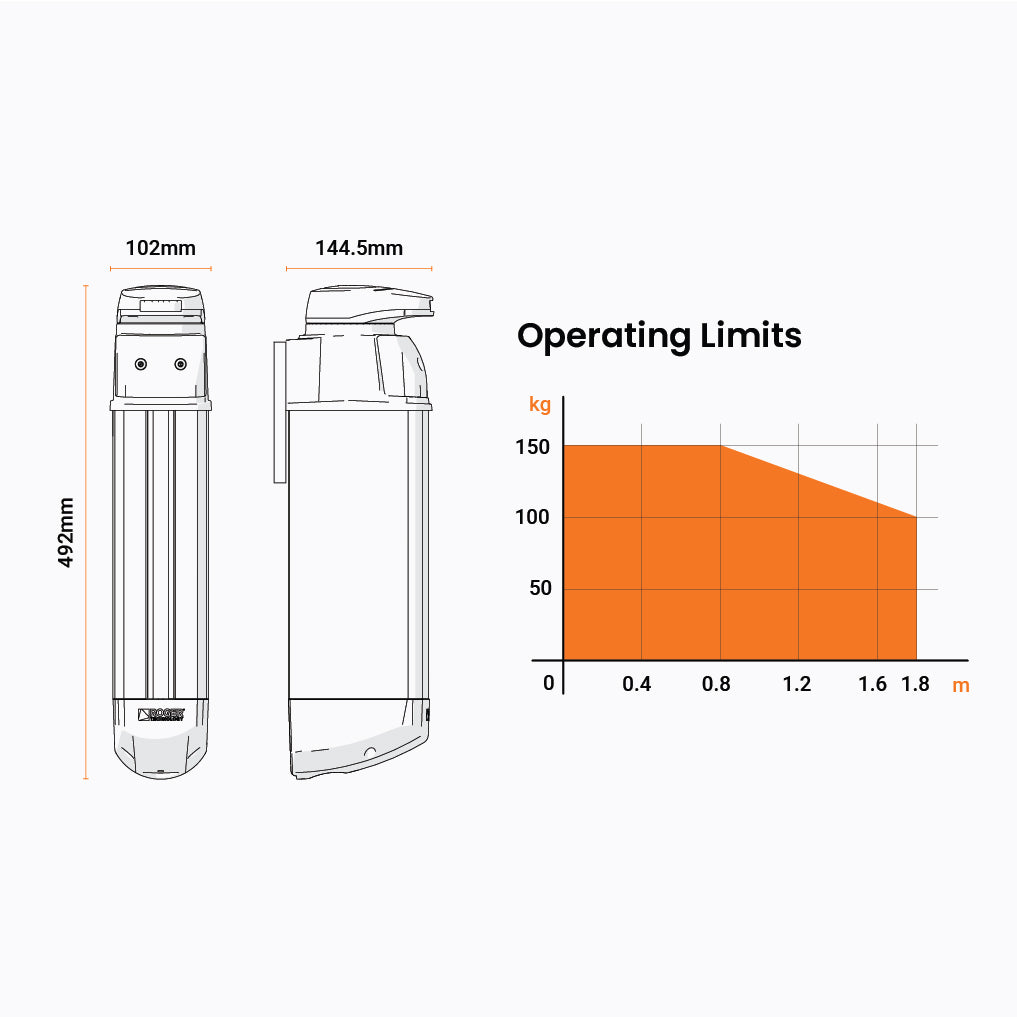

• Max Gate Size - up to 1.8m or 150kg per leaf (see table)
• Input Power - 36V DC
• Motor Power - 200W, 36V AC brushless
• Max Torque- 170 Nm
• Speed - 0.6 - 6.6 sec to 90 deg
• End Stops - inbuilt mechanical stops in open and closed positions
• Control Board - 70/IPU36/BOX - F70/IPU36/BOX/SL

Power Options:

• Mains - the most reliable option if it is possible to get 230v out to the gate.
• External Transformer - put a transformer inside the house or garage and run low-voltage AC out to the gate using a garden light cable.
• Solar - Roger Automation is very energy efficient and suits solar power. The specification of your panel(s) and batteries depends on your application and we will help you select the right solar solution.
• Read more about power options on our Learning Page.

The Roger Automation range of brushless gate operators offers huge advantages over traditional brushed motors.

• High torque to weight ratio – these low voltage motors can now be applied to applications that were once only served by larger 230v / 415v motors.
• Increased efficiency – Significantly reduced losses due to the motor construction. The omission of brushes and the fact that the motor windings are supported by the motor housing, any heat generated is cooled by conduction resulting in ultra low power consumption and a super-intensive duty cycle.
• Longer lifetime, increased reliability and reduced noise – This is achieved due to the elimination of brush or commutator erosion, ionizing sparks and the overall reduction of electromagnetic interference.
• Higher speeds – Brushless motors are capable of higher speeds without the loss of torque. Brushed motors develop maximum torque when stationary, linearly decreasing as velocity increases.
• Superior control & motor positioning – Utilising the pulses from the undriven coils within the brushless motor and the technology incorporated in the controller the motor is capable of achieving precise control and positioning. One obvious advantage to this is significantly reduced stresses to the motor and gearbox resulting in the overall longevity, sustainability and reliability of the unit.
