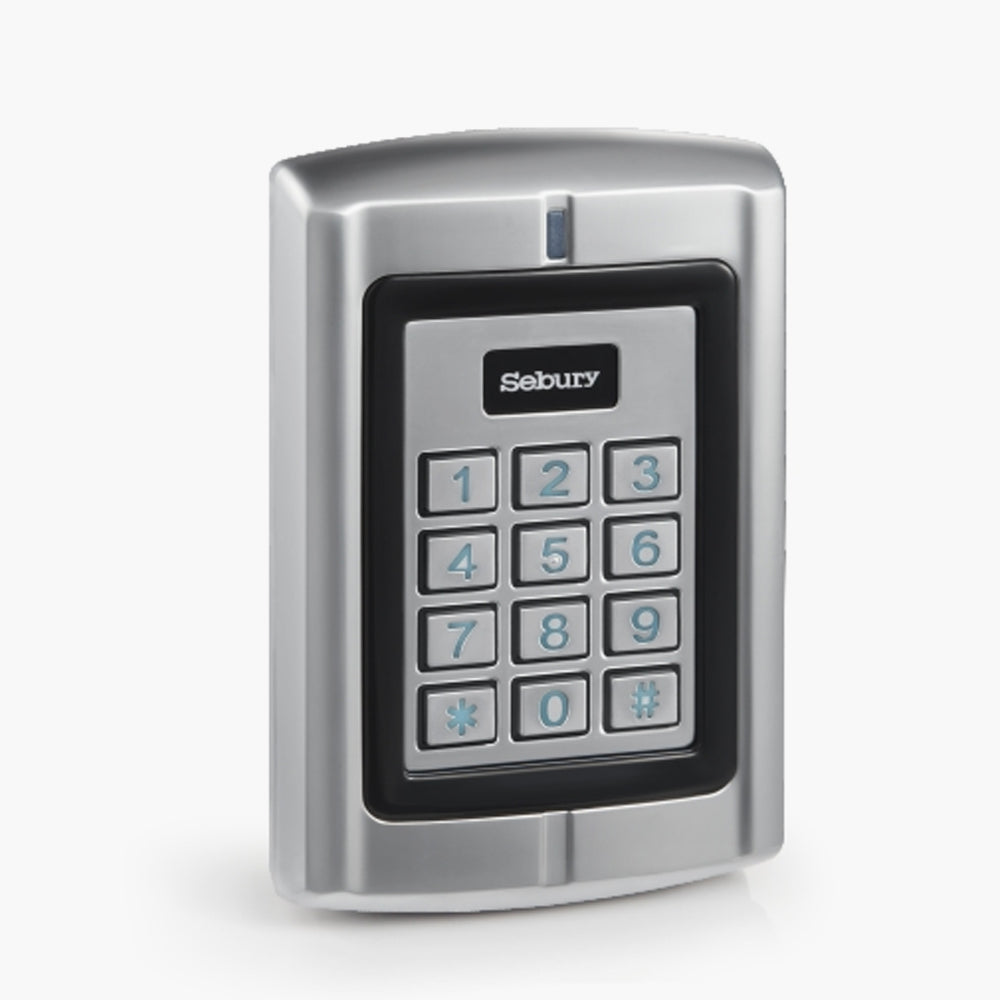

Sebury W3-A Keypad

$182.00
Sebury
W3-A-SV
Automation Accessories
The Sebury W3-A Keypad is ideal for access control of gates and doors. It is anti-vandal, waterproof and supports PIN, Card or PIN+Card. Wiegand 26 output & input make it can be used as controller and slave reader. Features Metal structure, anti-vandal, more secure, waterproof design Backlight keypad, convenient for...
$182.00

The Sebury W3-A Keypad is ideal for access control of gates and doors. It is anti-vandal, waterproof and supports PIN, Card or PIN+Card. Wiegand 26 output & input make it can be used as controller and slave reader.

Features

  • Metal structure, anti-vandal, more secure, waterproof design
  • Backlight keypad, convenient for operating in night.
  • Support 3 Modes Access: Card, PIN, Card+PIN.
  • Two relay option
  • Pulse mode, toggle mode
  • Supports door bell connection
  • Very low power consumption ( ≤35mA), long service life and stable performance.
  • Wiegand 26 input & output, can work as Wiegand reader/Controller.
  • Protective Properties: IP65 fully-potted. with anti-disassemble, alarm function, anti-static interference 15KV.

Specifications

  • Operating Voltage: 12-18V AC/12-24V DC
  • Card Type 125KHz EM
  • PIN length 4 digits
  • Up to 12000 Users
  • Adjustable Door Relay Time: 1~99s
  • Static Current: ≤35mA
  • Communication interface: Wiegand 26 bit
  • Card Read Rang: 3-6cm> Reader Induction Time: ≤0.1s
  • Operating Temperature: -40℃~60℃
  • Operating Humidity: 0-95%
  • Lock Output Load: 1A
  • Alarm Output Load: 3A
  • Antistatic: 15KV
  • IP Grade: IP65
  • Wiring Length: 90-100cm
