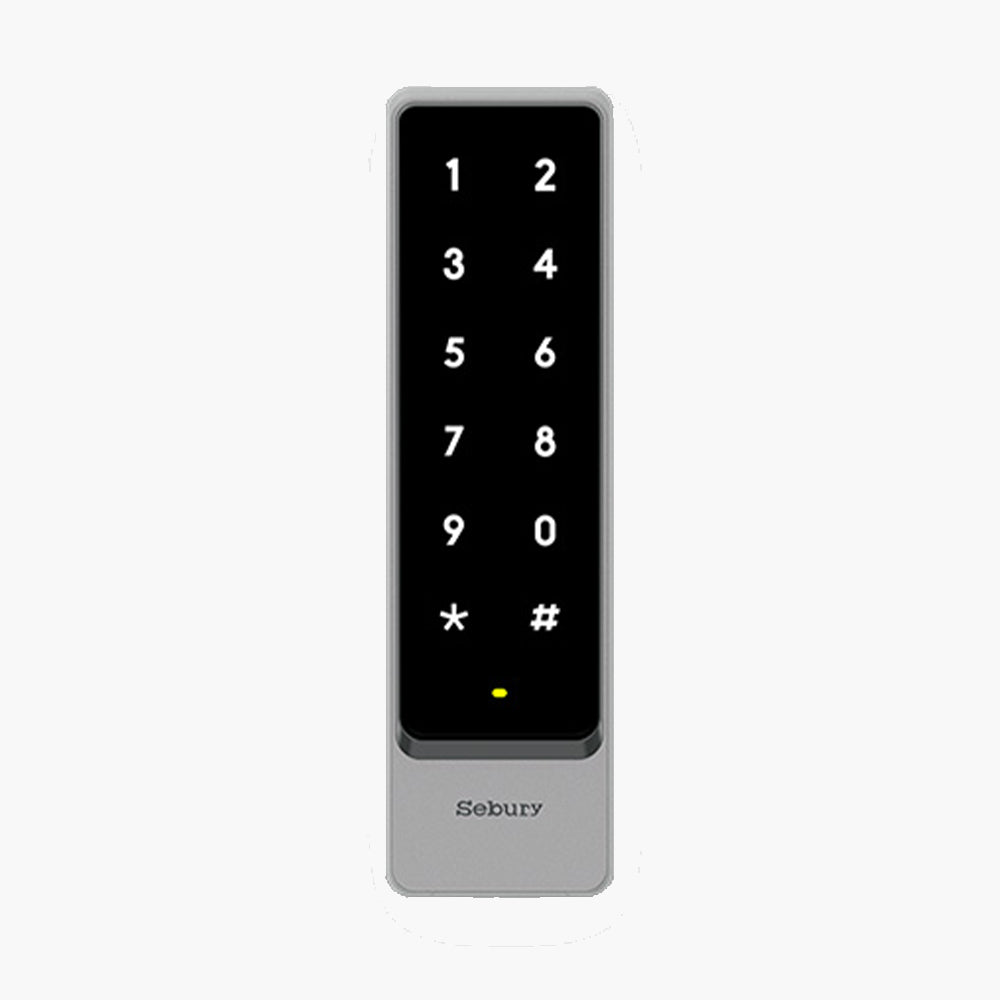

The Sebury Glass Slimline Touch Keypad is ideal for access control of gates and doors. It is anti-vandal, waterproof and supports PIN, Card or PIN+Card. Wiegand 26 output & input make it can be used as controller and slave reader.
- Metal structure, high strength wear-resistant reinforced glass panel, capacitive touch keypad.
- 125KHz and 13.56MHz dual-band antenna, support EM/HID/MF/NFC cards.
- Standalone mode, anti-pass back mode: wiegand input, external card reader can be connected.
- The backlight can be set to normal ON, normal OFF or automatic mode.
- Reader mode: wiegand output, LED and Buzzer control input.
- Fully potted process, IP68.
- Material: Zinc Alloy+ Reinforced Glass
- Input Voltage: DC12~24V
- Idle Current: ≤50mA
- Card Reading Type:125KHz: EM/HID 13.56MHz: MF/CPU/NFC (ISO14443A)
- Reading Card Distance: 125KHz: ≤5cm 13.56MHz: ≤2cm
- Output Format: Card: wiegand 26-37 bit (HID card output wiegand 26-37 automatically.) Keypad: 4 bit, 8 bit, virtual card number
- Working Temperature:-20~60° C
- Working Humidity:0~95% (no condensation)

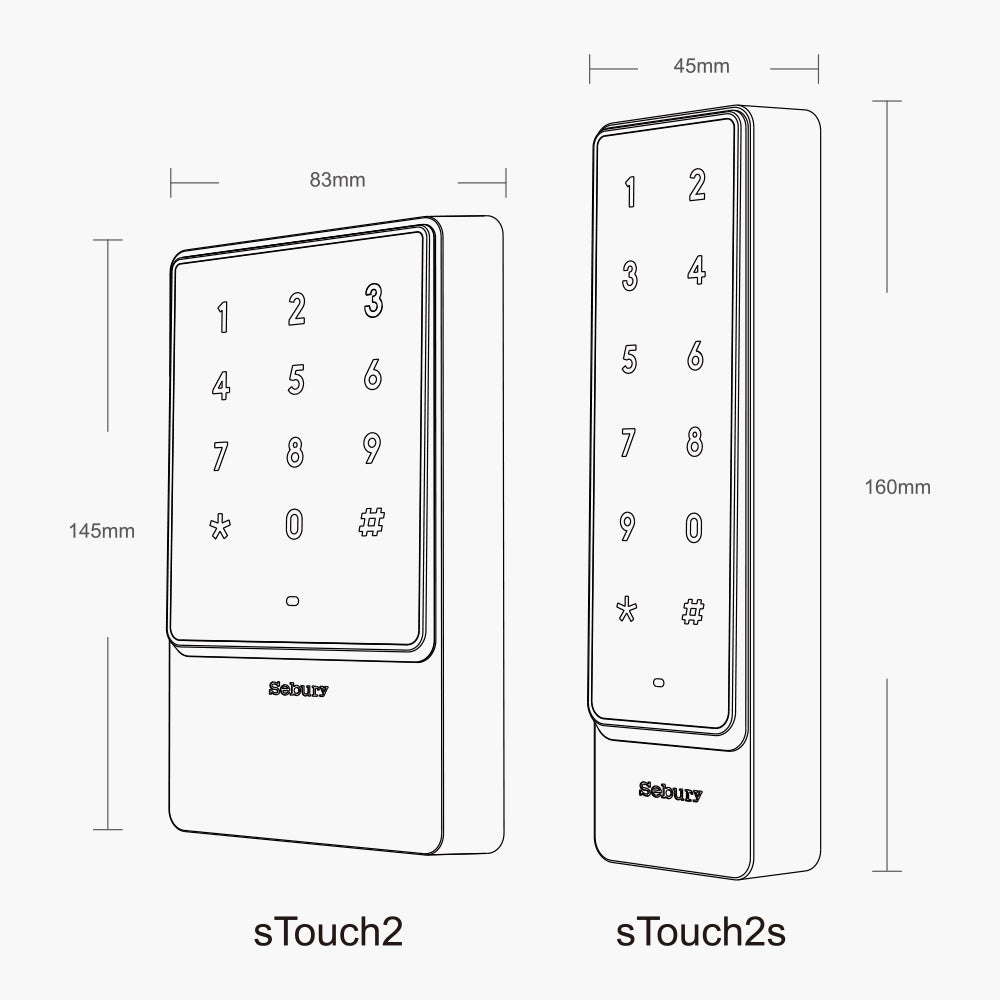

- Product Dimension:160 x 45 x 26mm
