Rising Gate Hinge

$331.00
Lynx
RH-RHS
Swing Gate Hardware
Lynx Rising Driveway Gate Hinges allow your gate to swing upward on a sloping driveway. They are designed for steel or aluminium gates up to 120kg per leaf. The bottom bracket is adjustable allowing for slopes of up to 10 deg. The hinges make use of a stainless steel ball...
Handing *
$331.00

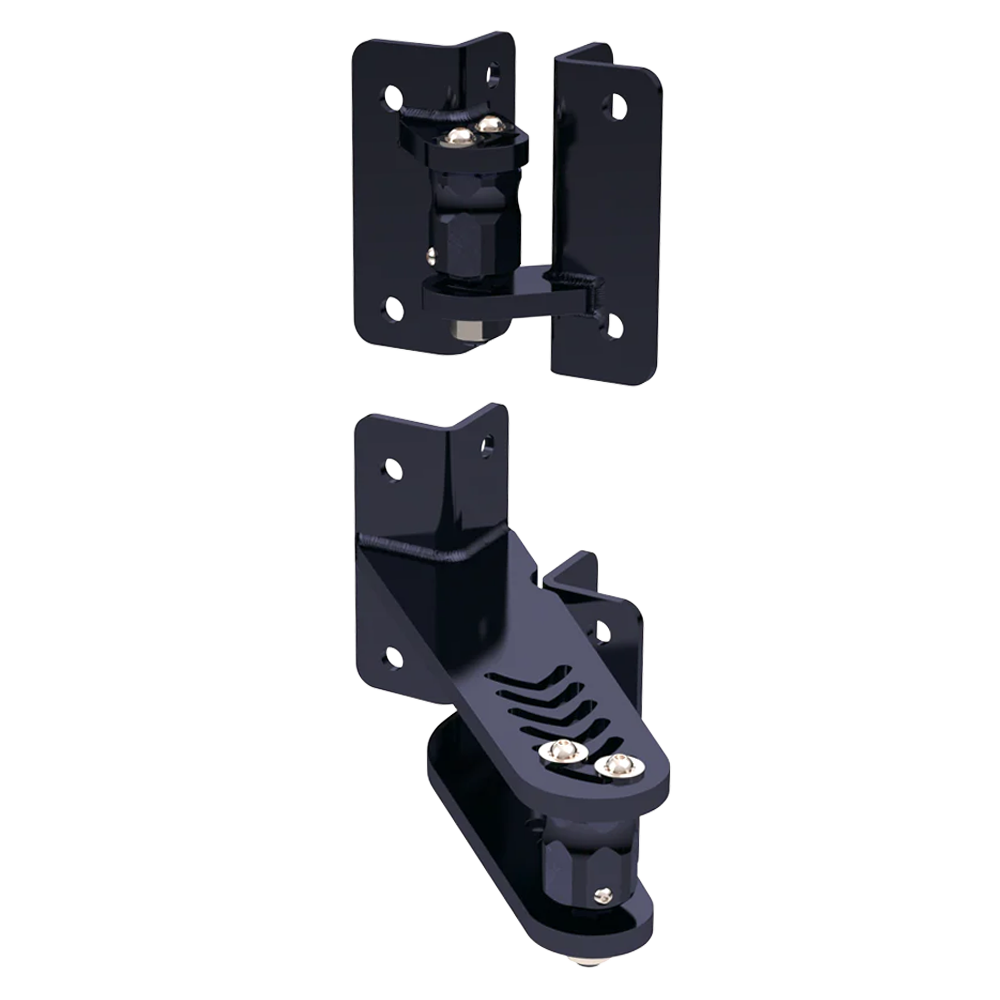

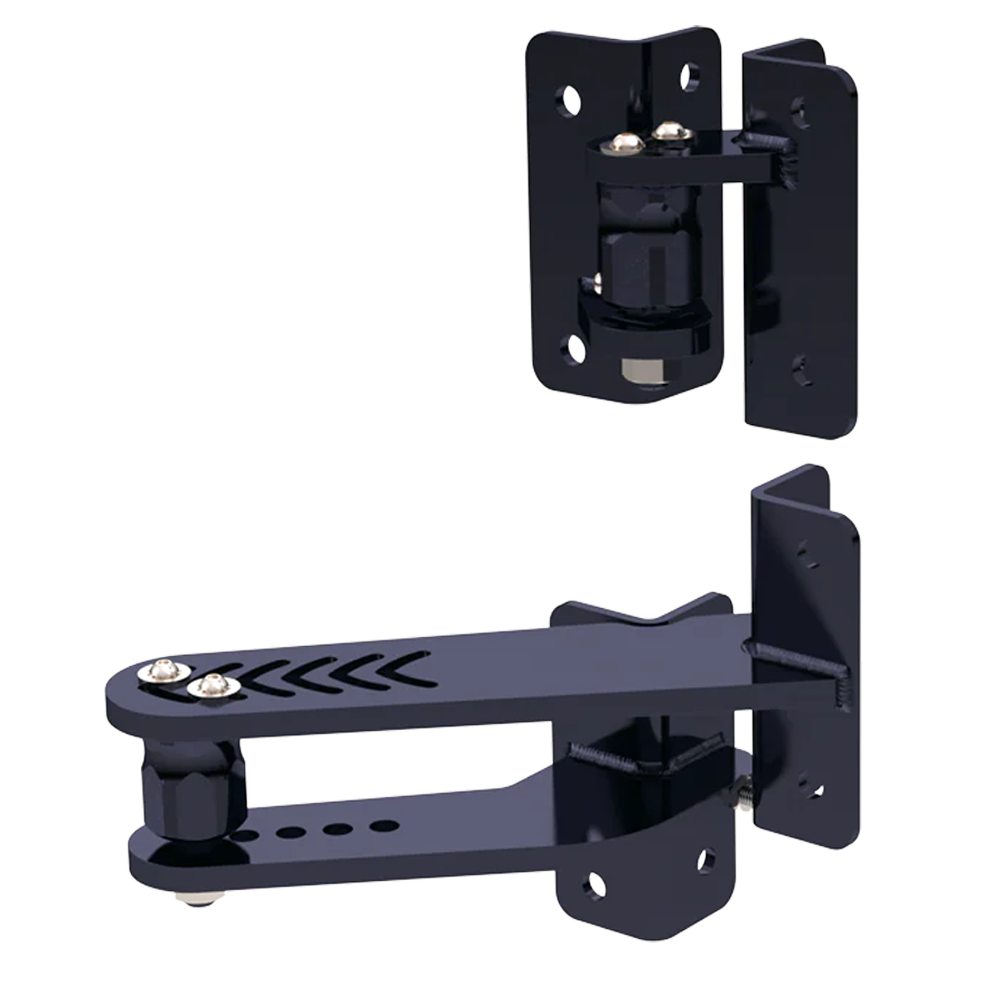

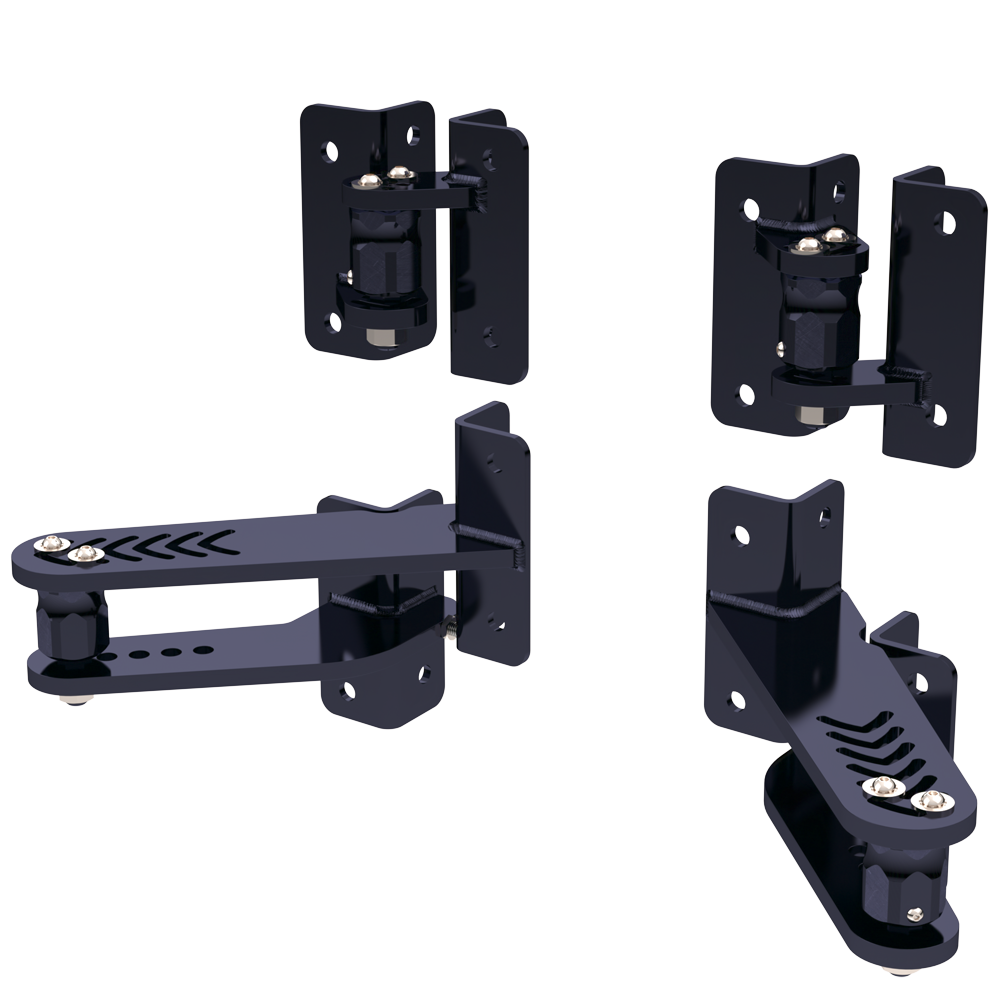

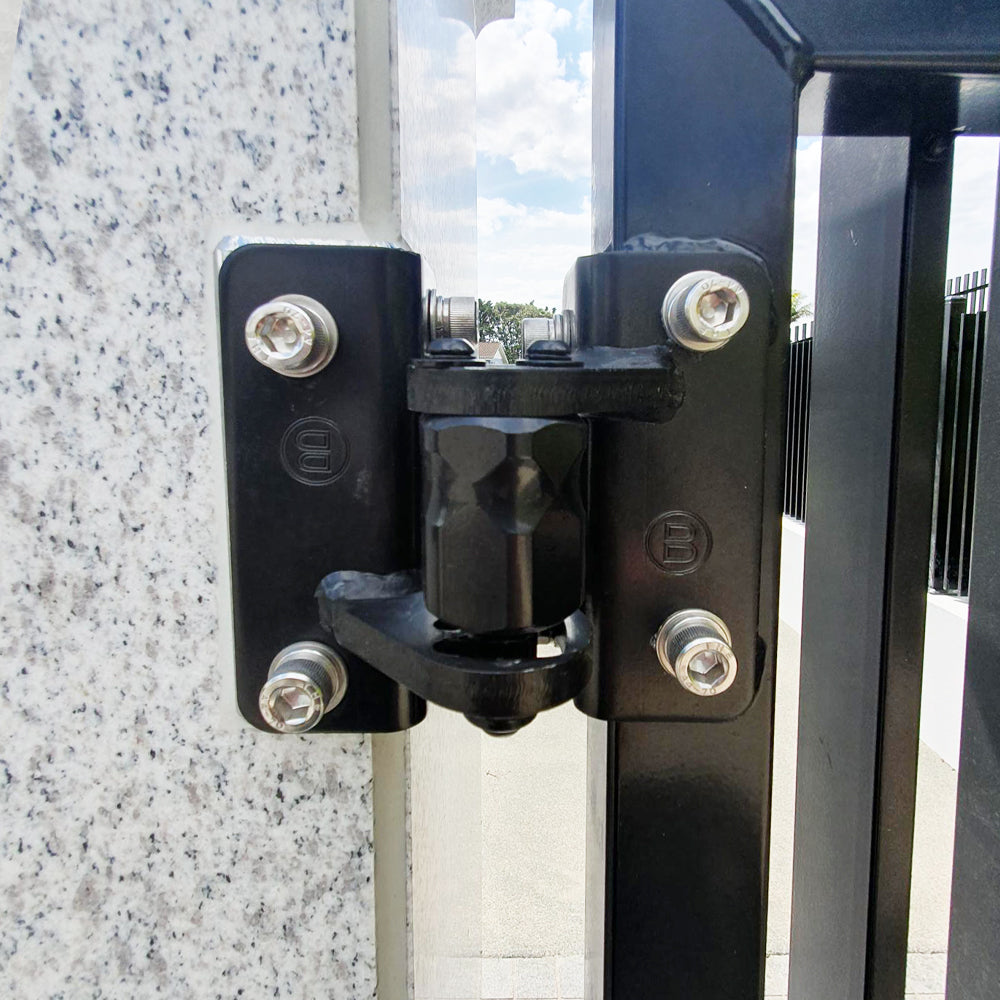

Lynx Rising Driveway Gate Hinges allow your gate to swing upward on a sloping driveway. They are designed for steel or aluminium gates up to 120kg per leaf. The bottom bracket is adjustable allowing for slopes of up to 10 deg. The hinges make use of a stainless steel ball and socket that has a clever anti-theft mechanism built-in.

  • Rated to 120kg per leaf

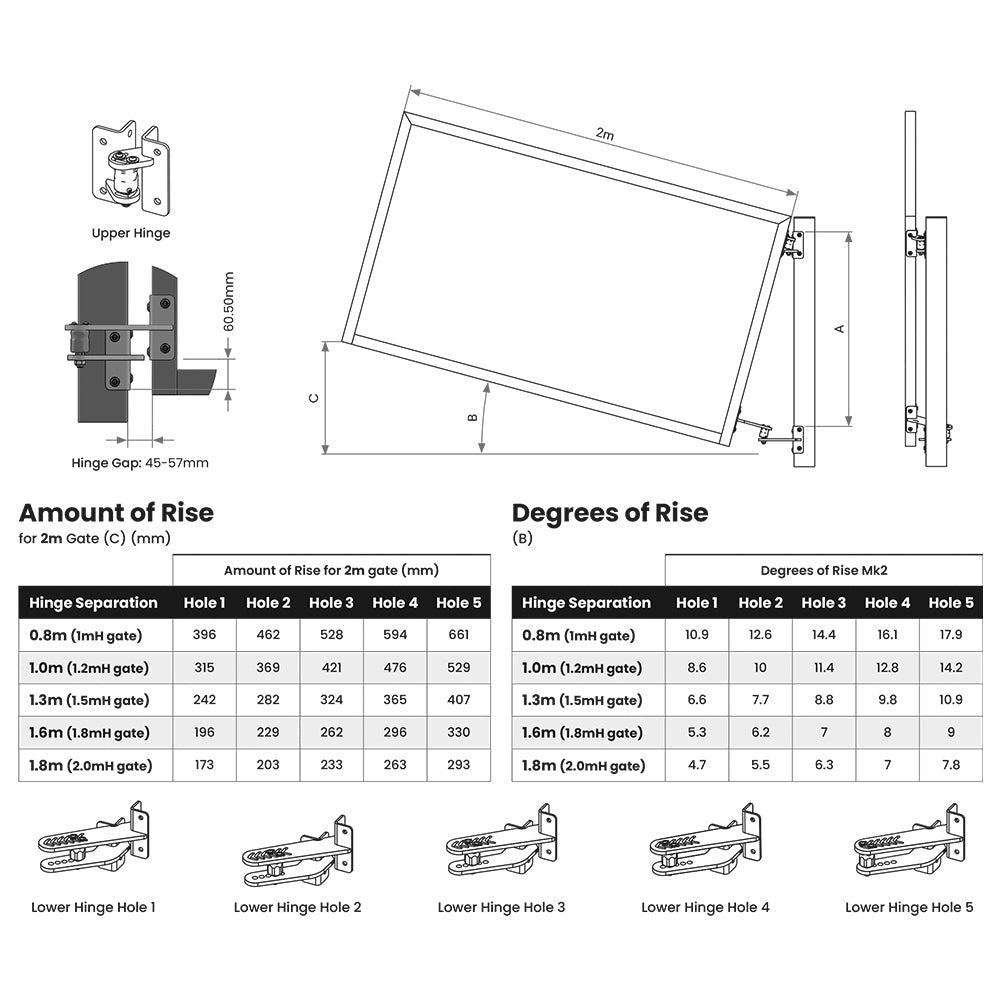

  • Slopes of up to 10 deg (depending on gate height - see table)
  • Handing is as seen from the street side of the gate.

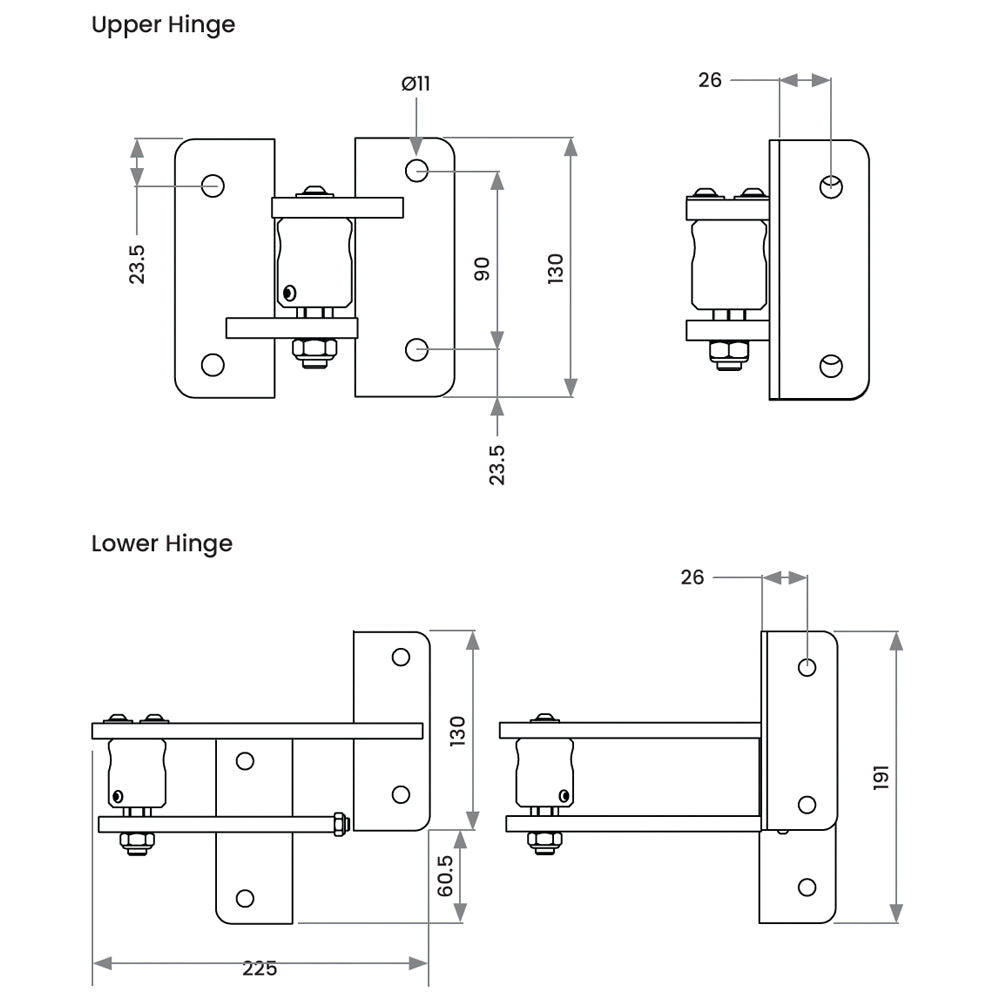

  • Hinge gap of 40mm

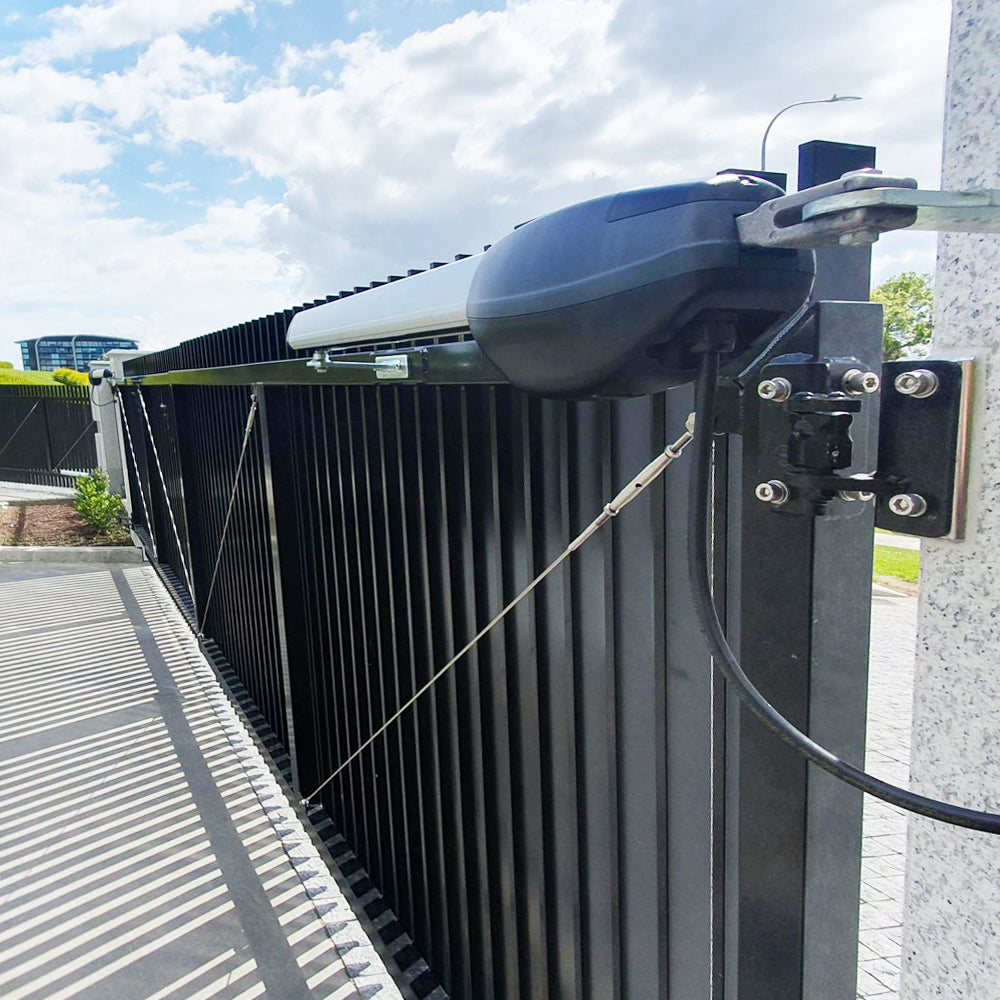

  • Only for automated gates
  • Note - Gate safety needs to be considered with rising hinge gates. If the gate is released from the automation it will fall under gravity. NEVER key release the gate motor when the gate is open without propping it so that it cannot fall.
