Panic Exit Bar

Name: Panic Exit Bar
Brand: Locinox
SKU: PUSHBAR-H
Availability: InStock

$550.16

Brand:

Locinox

SKU:

PUSHBAR-H

Product Type:

Swing Gate Hardware

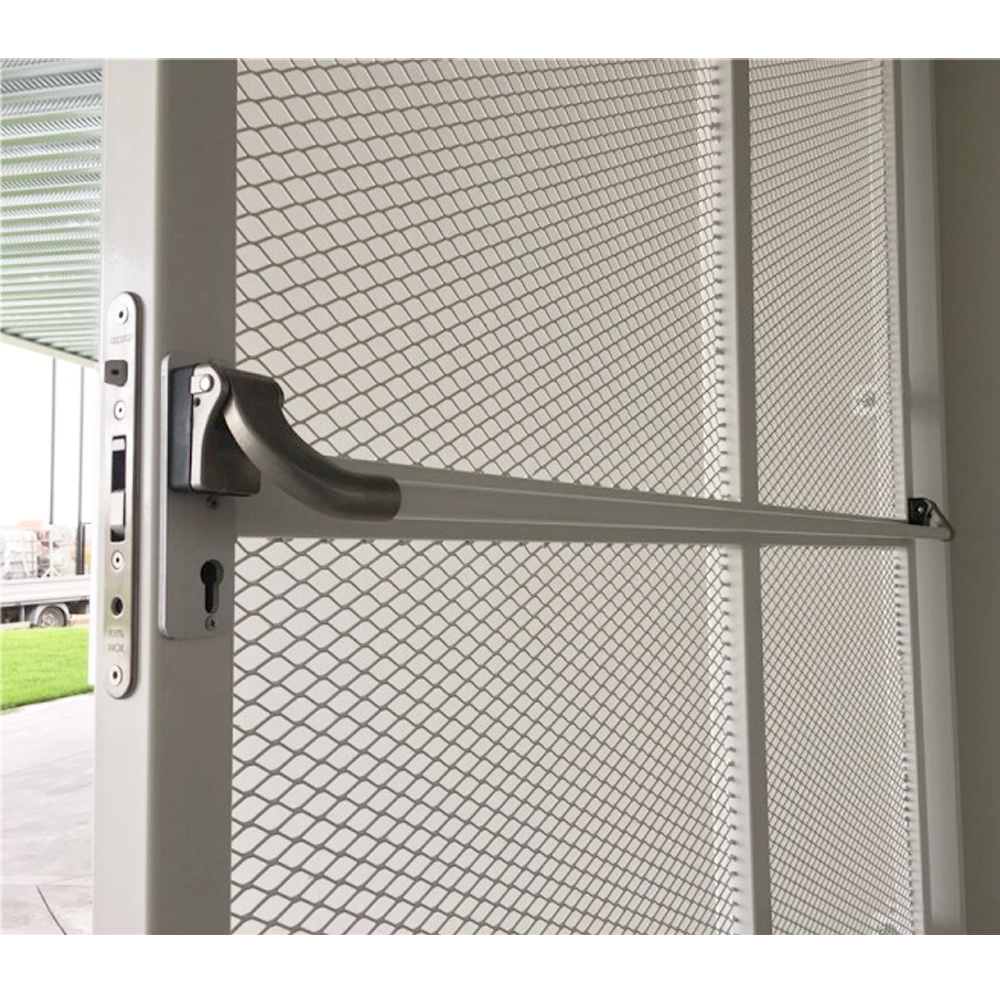

Push bar for an easy opening and a free exit of a gate by a simple push.

Version:

For Insert Locks suits Sixtylock For Surface Mounted Locks

Variant

More information

Extended Description

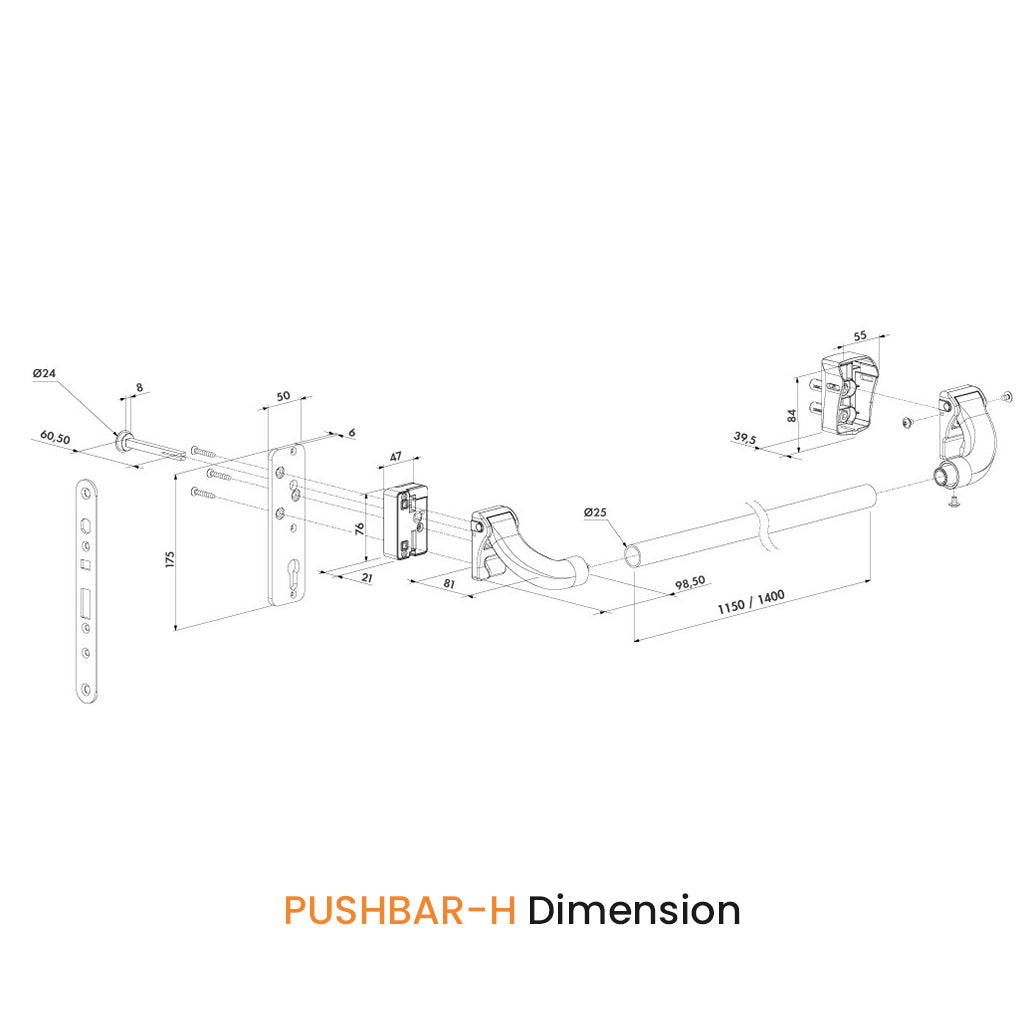

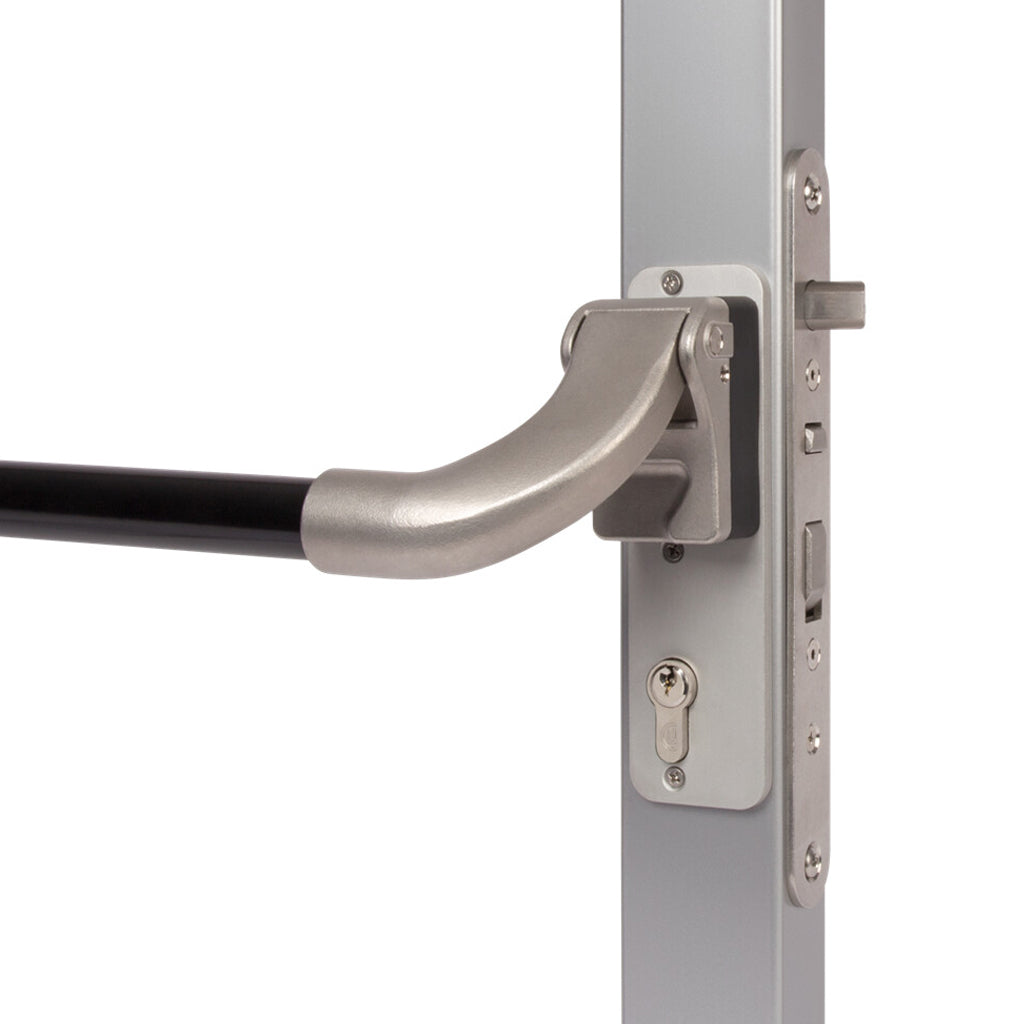

PUSHBAR-H

Push bar for an easy opening and a free exit of a gate by a simple push. The aluminium PUSHBAR replaces the standard handle, operates the daybolt and can quickly be installed on new or existing Locinox hybrid insert locks. The PUSHBAR is available in a long version (1400 mm). The push bar can however be perfectly shortened to fit any gate.

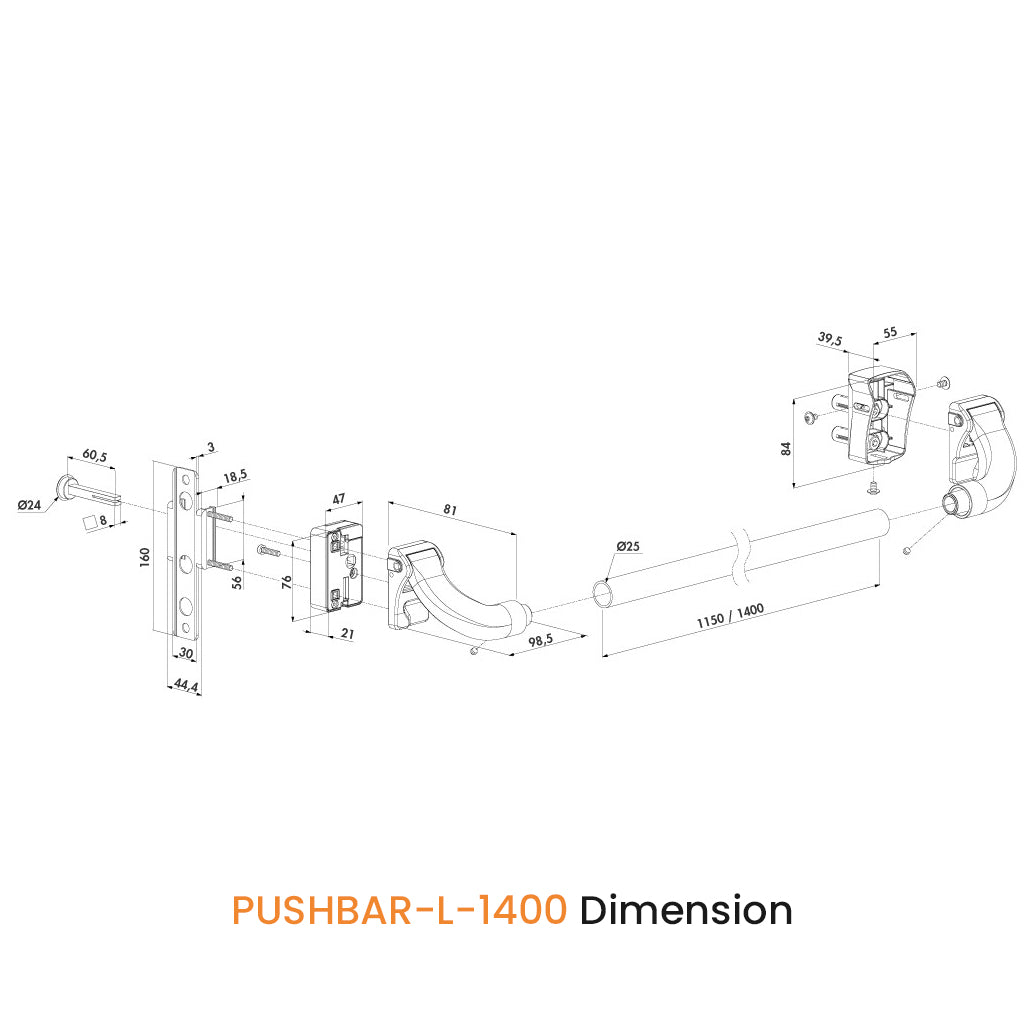

PUSHBAR-L-1400

Push bar for an easy opening of a gate by a simple push. The aluminium PUSHBAR replaces the standard handle, operates the daybolt and can quickly be installed on new or existing Locinox surface mounted gate locks (LA, LP and LF chassis). The PUSHBAR is available in a long version (1400 mm). The push bar can however be perfectly shortened to fit any gate.

Tech Specifications

PUSHBAR-H Specifications

Black powder-coated aluminium push bar with stainless steel mechanism
Only compatible with H-Metal, H-Wood and Sixtylock
Easy & fast mounting: Quick-Fix
For left and right turning gates
Blinded 8 mm follower included
Possible to combine with half handle sets with 8 mm follower

PUSHBAR-L Specifications

Black powder-coated aluminium push bar with stainless steel mechanism
For left and right turning gates
Easy to install on the gate with Quick-Fix
Blinded 8 mm follower included
Possible to combine with half handle sets with 8 mm follower

Documents

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Locinox Hardware.
