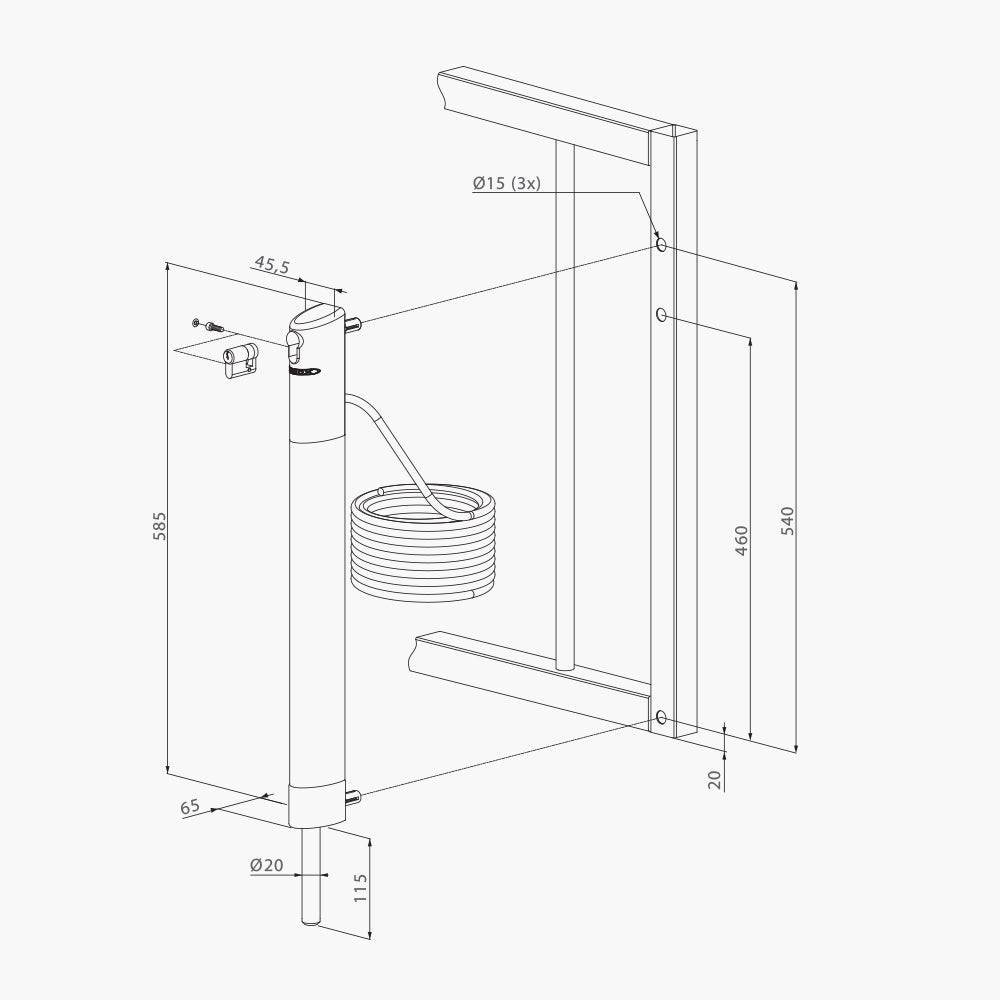

Motorised Electrical Drop Bolt - Dimensions | Edgesmith

Motorised Electrical Drop Bolt | Edgesmith

Motorised Drop Bolt

Name: Motorised Drop Bolt
Brand: Locinox
SKU: ELECTRADROP-R-BLK
Availability: InStock

$1,700.40

Brand:

Locinox

SKU:

ELECTRADROP-R-BLK

Product Type:

Swing Gate Hardware

Electradrop 24V Drop Bolt for securely locking automated swing gates.

Version:

Fail Open Fail Closed

Colour:

Black

Variant

More information

Extended Description

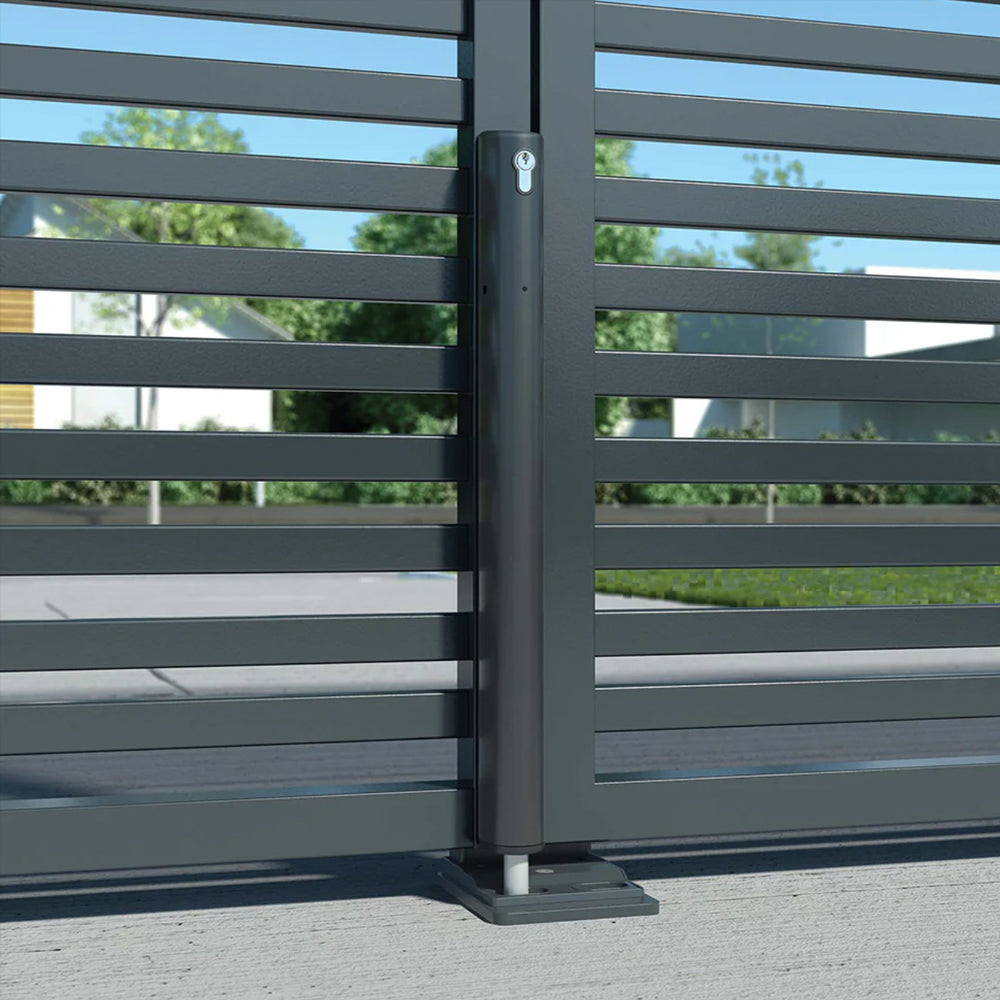

Electric 24V drop bolt with 115 mm throw for safe locking of automated swing gates. By securing your gate with an Electradrop you take the load off the electric gate motors and extend the life of your gate and automation.

Tech Specifications

Specifications:

Fail Open variant (R) has batteries to open the lock in the event of power failure.
Vandal-proof, powder coated aluminium housing
To be connected to the warning light on automated gates (min 3 sec prewarning signal) or directly on the gate automation
Automatic detection and memorisation of the continuous or pulse signal
Mechanical release possible (by key) in case of emergency
Fitted with relay for drop bolt detection
Obstacle detection with automatic stop of the drop bolt in case of a pressure exceeding 18 kg
Throw: 115 mm
Drop bolt diameter: 20 mm
For gate profiles: 40 mm or more
Consumption: 25 W / Standby: 0,2 W
5 m cable included
Included: 3012-37-STD cylinder
To connect to a Locinox DC-POWER-24V-60W power supply
