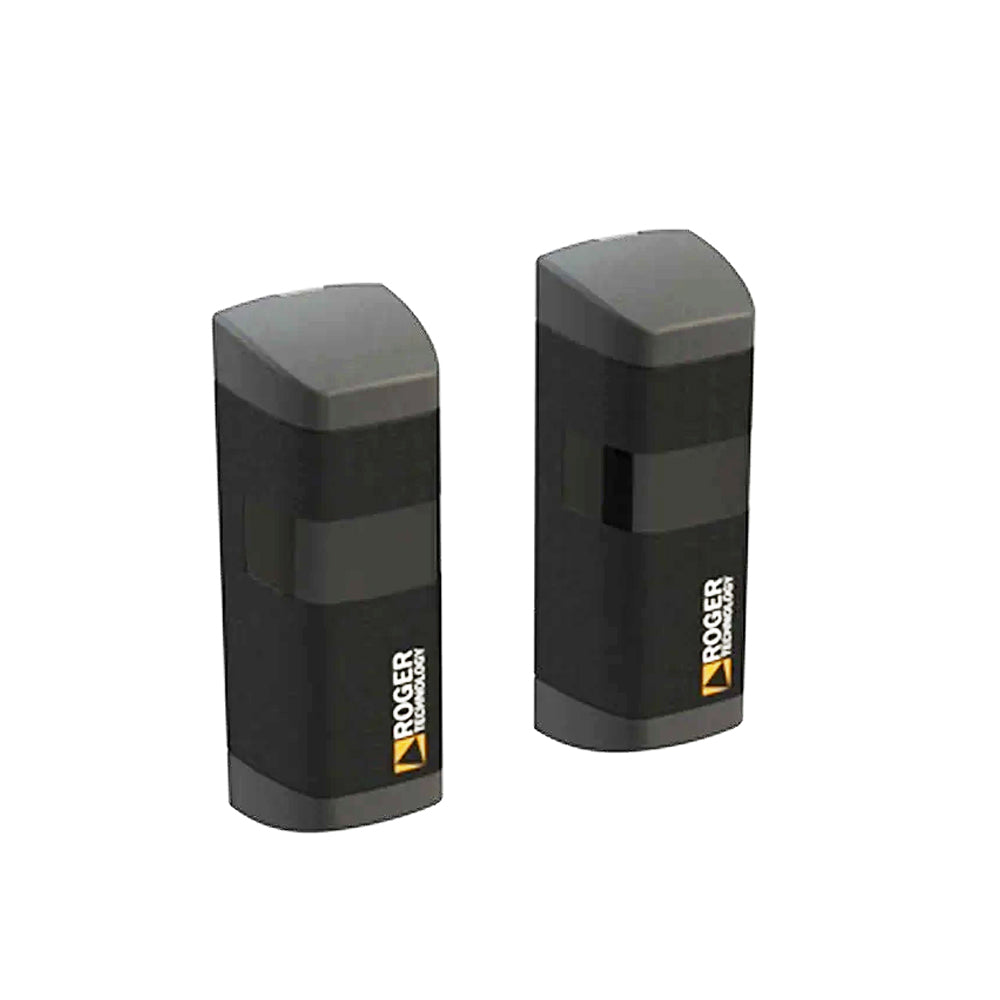

M90 Hardwired Photocells

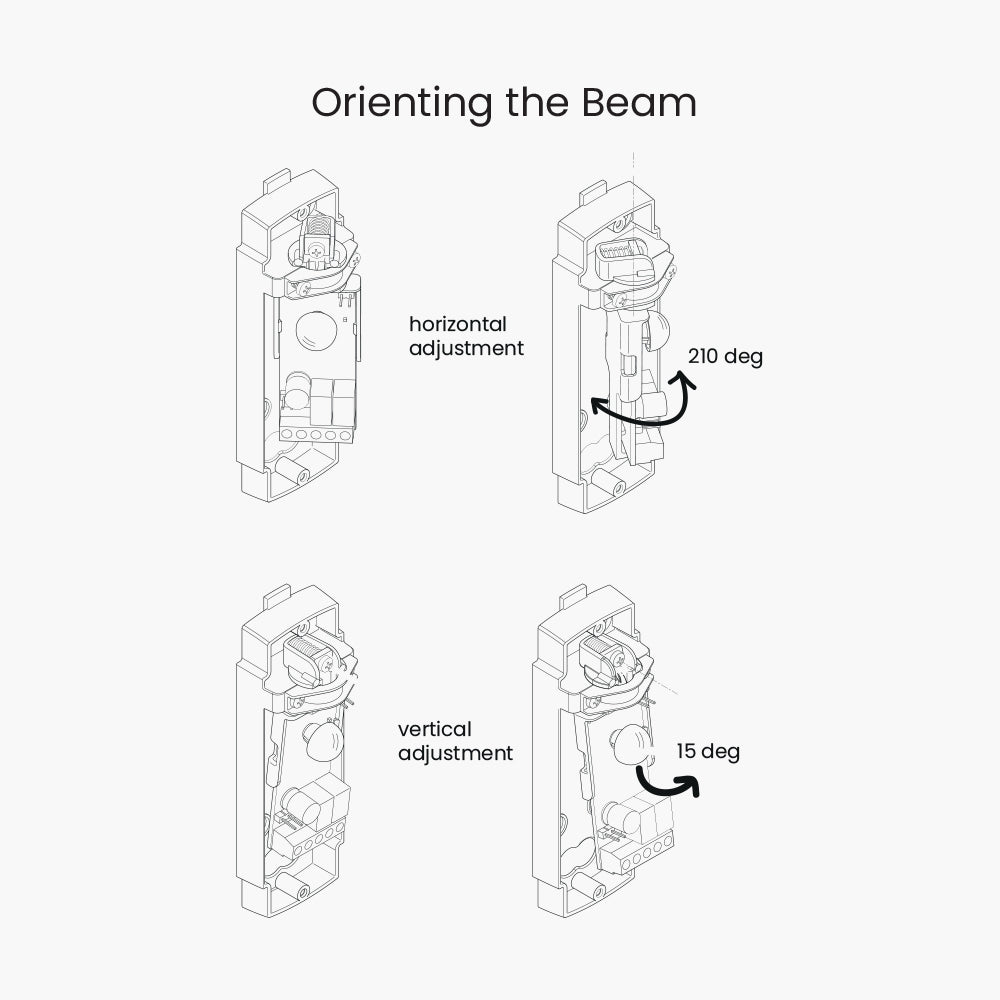

Roger M90 safety photocells prevent the gate from closing on a car. They are adjustable 15 degrees vertically (so you can mount them the same height off the ground on a sloping driveway) and 270 deg horizontally so you can mount them to the front of the guide post without needing a bracket. They are very convenient and discrete.

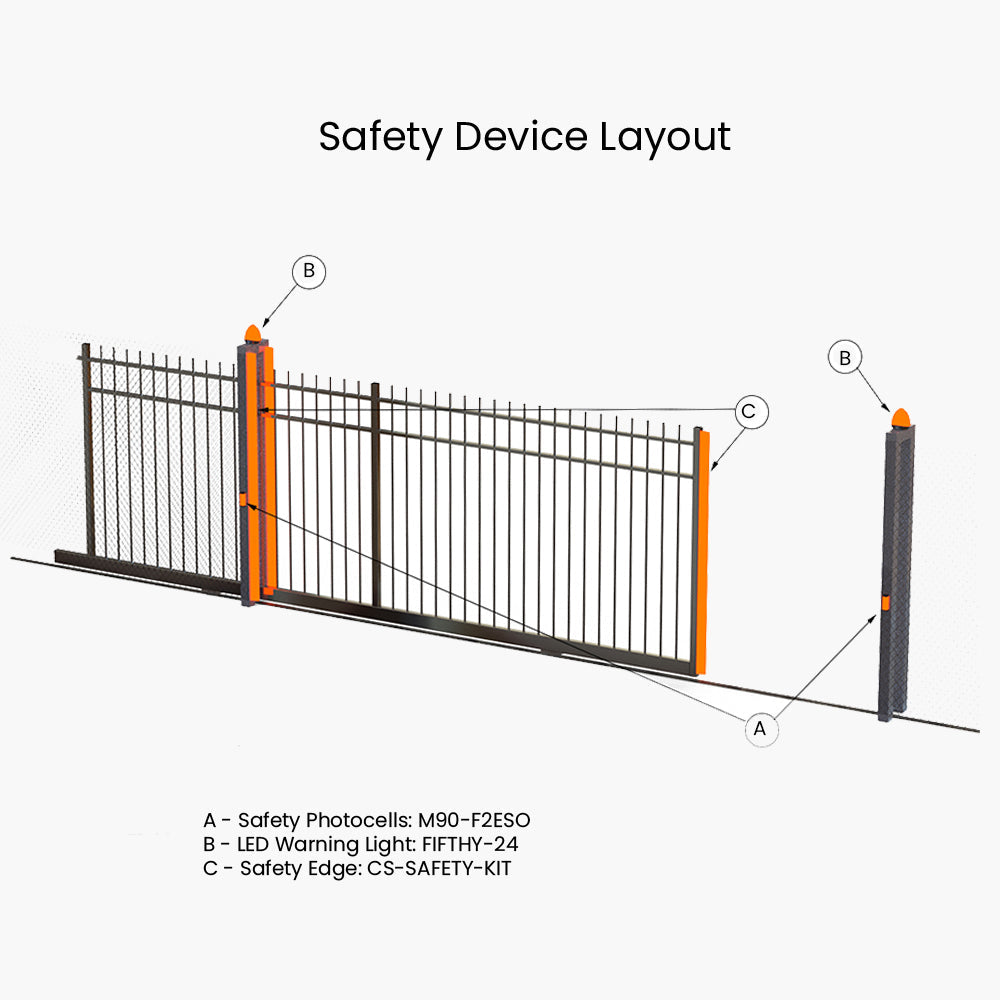

For a full safety configuration see the schematic in the images. Flashing lights warn of impending gate movement and a safety edge on entrapment points is the best practice for public parks and schools or if the homeowner is concerned with their children playing on their automated gate.

Specifications

• Standard power: 12/24V AC 50Hz - 12/24V DC
• Absorption: TX=19mA, RX=20mA
• Operating temperature: -20+55°C
• Protection level: IP55
• Maximum distance in open field: 10 - 15 m
• Maximum number of photocells synchronized: 2
• Orientation angle: 210 ° horizontal - 15 ° vertical
• Relay contacts max current, voltage: 0,5A RX, 30V

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Roger Automation.

• Download Quick Start Guide
