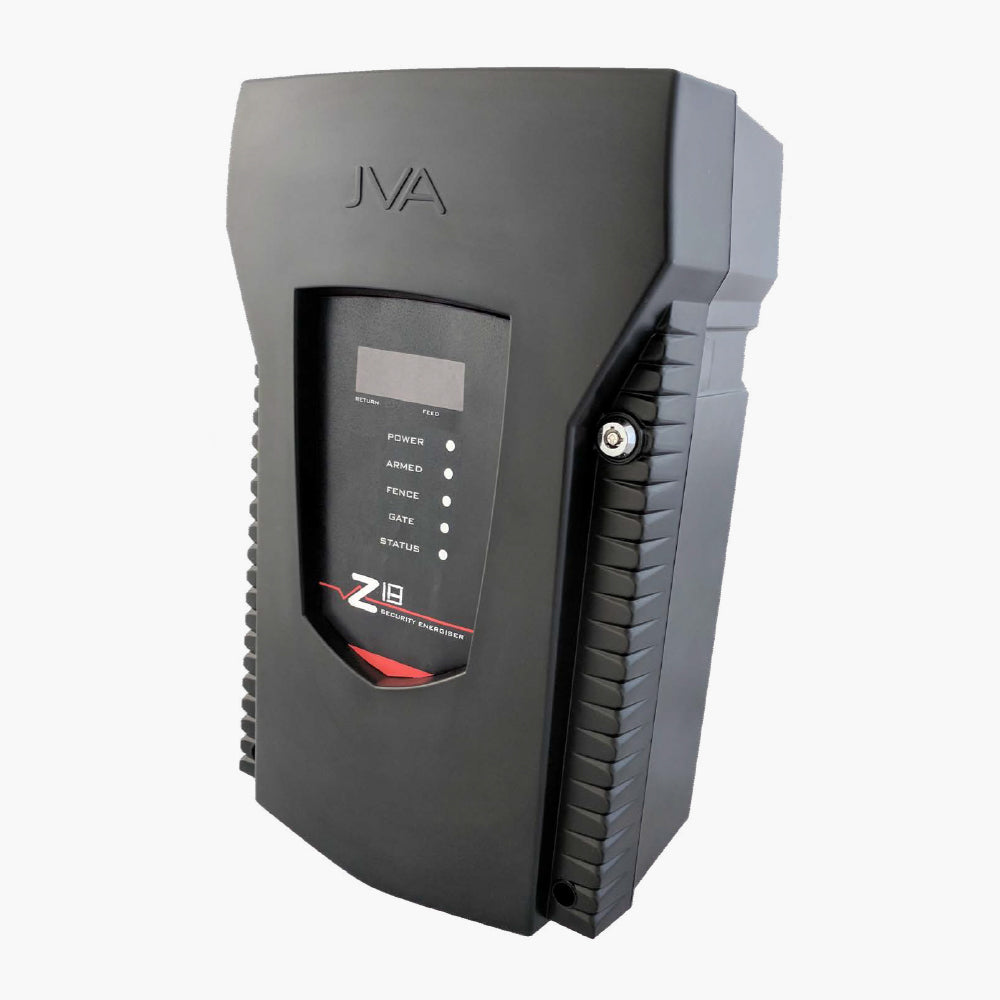

JVA Z18 Electric Security Energizer

The JVA Z18R is an 8 Joule, single zone security electric fence energizer purpose-built for control and monitoring of perimeter security electric fences. It can meet all of the requirements from basic residential to fully integrated high-profile installations. The Z18 can be programmed and controlled using the LCD keypad. It can also be networked with other Z Range Energizers to form a pulse-synchronized group for larger sites that require multiple zones.

Specifications

• 8 Joule energy output.
• High and low power modes
• Tested and approved to AS/NZS60335.2.76
• Built-in charger and space for a 12V 7.2aH backup battery
• Supports Bi-Polar or conventional fence wiring
• Alarms on fence short or open circuit
• Control and programming via LCD Keypad
• A large number of programmable options
• Monitor via PC (using Perimeter Patrol software)
• 2 control inputs
• 2 switched 12V DC outputs (Siren and Strobe)

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Automation.

• Download Z18 Installation Guide
• Download Z18 Product Sheet
