JVA VM2 Security Vibration Monitor

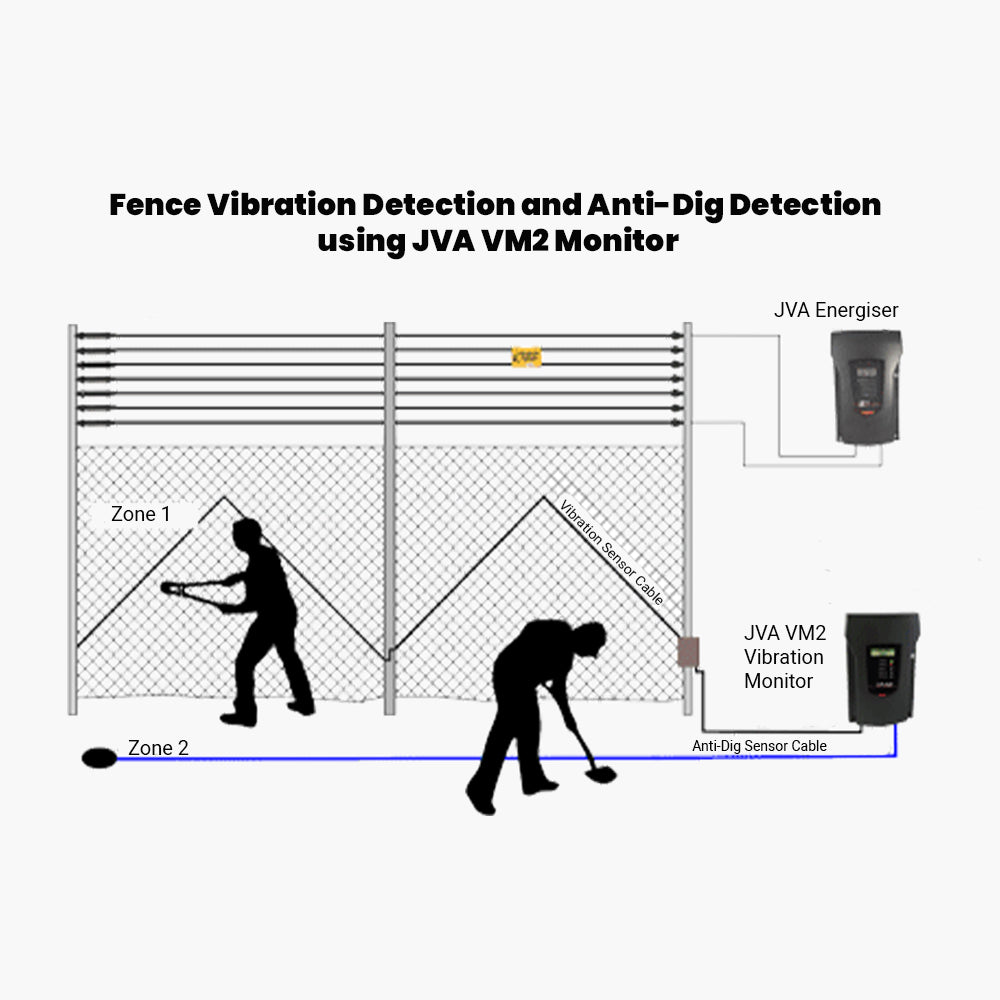

The JVA VM2 is a Perimeter Intrusion Detection System utilizing Microphonic Cable. The VM2 (PTE0342) is designed to monitor one or two zones of Microphonic (acoustic) cable to enable the detection of an attempted breach of a perimeter by detection of the noise and vibrations created by unauthorized access or vandalism. The monitoring cables may be buried to detect digging, attached to a fence or placed inside a wall, roof or floor etc. to detect illegal activity. The VM2,coupled with correctly installed cable creates fully monitored, zoned intrusion detection system. The VM2 has adjustable threshold and time parameters to allow the installer to tune the system to differentiate between an intrusion attempt and normal environmental sounds or vibrations. The VM2 complements JVA’s range of security electric fence energizers and monitors. The VM2is also compatible with the JVA Z-Series accessories and software solutions. The VM2 comes with an inbuilt Wi-Fi Webserver which creates a professional Virtual Keypad ™ for setup and control. A well as providing the features of a wired keypad, the Virtual Keypad ™ is equivalent to both a user and an installer App, however it does not require any App to be downloaded.

Features:

• As standard each unit can monitor 2 by 300m zones.
• Cable termination at required length is done on site .
• Joining kit is available for repairs
• Vibration sensing cable sold separately in 300m rolls
• RG59 cable used as under gate cable
• The unit is very customizable/programmable to site conditions
• Can be used with standard keypad
• Battery backup included
• System is expandable (can link units to provide more zones )
• Can be used to monitor panel fences and mesh fences
• Detection of digging under the fence possible with underground cable.
