Intralec Electric Strike

Name: Intralec Electric Strike
Brand: Locinox
Price: 410.95 NZD
Availability: InStock

$410.95

Brand:

Locinox

SKU:

Product Type:

Swing Gate Hardware

Intralec electric gate strike for 40-50mm posts.

Version:

Fail Open Fail Close

Strike Plate:

No Keep With Keep

Post Size:

40mm Post 50mm Post

Variant

More information

Extended Description

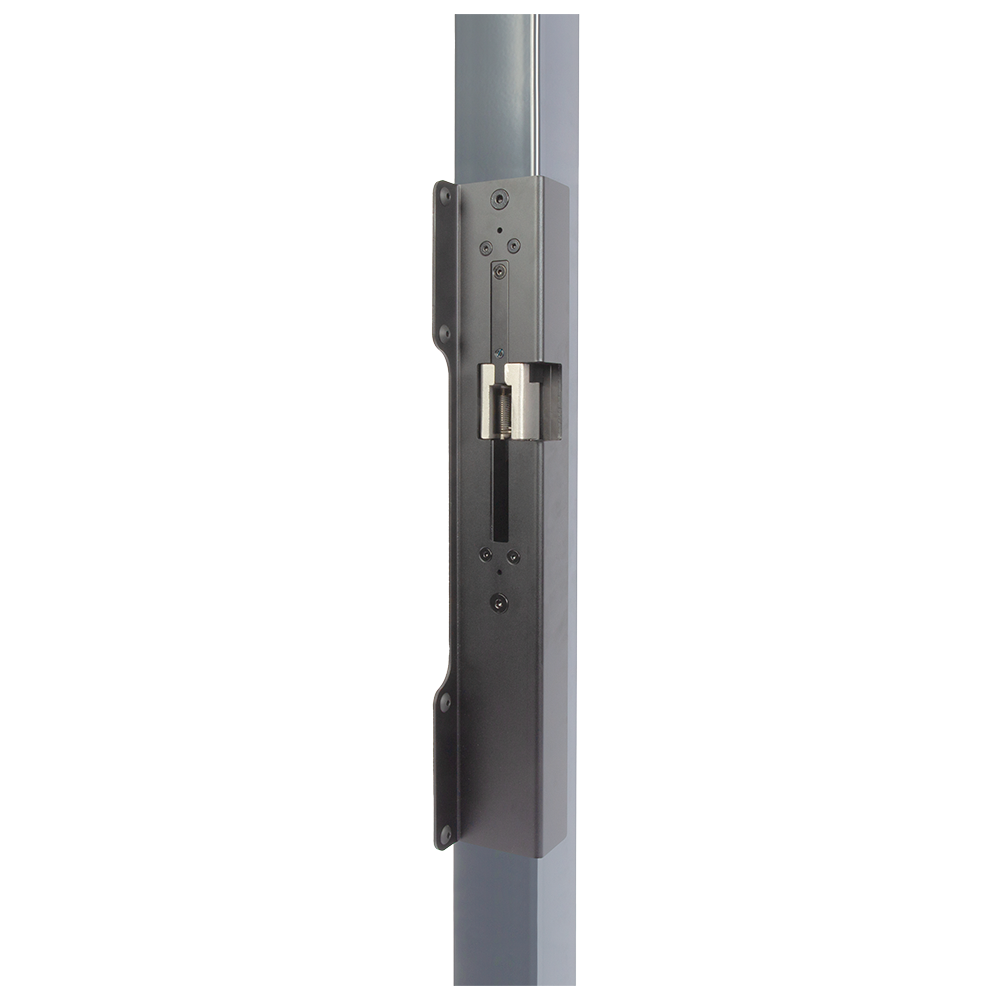

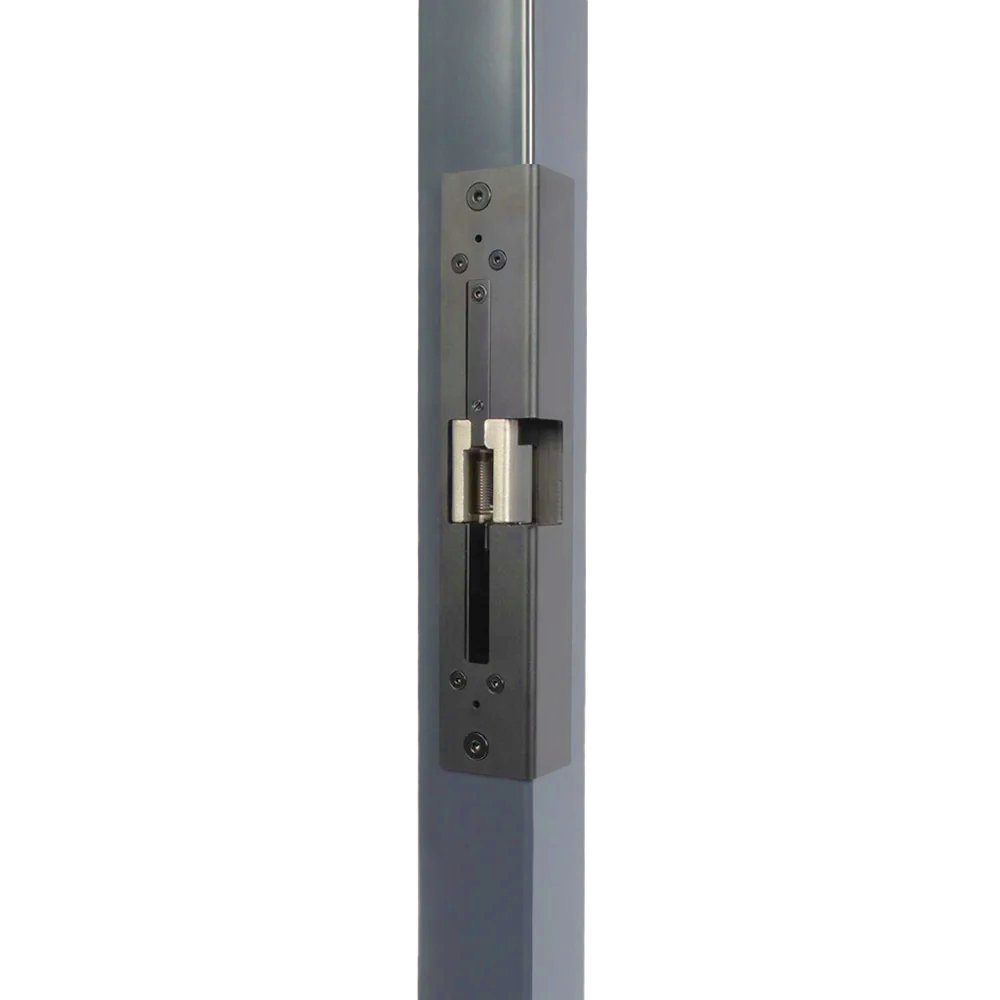

Intralec is an electric striker that fits inside
the gate post. Intralec comes in both Fail Open and Fail Close models.

Installation is a breeze with the patented Click-It system. Choose Intralec without a keep or with an integrated keep. It also allows for mechanical override of the electric striker.

Tech Specifications

Specifications

Tested up to 500.000 movements
Fast and easy fixing with Click-it
Resistance to pressure on the latch bolt: 300 kg
Deep closure of 17,5 mm of the latch bolt
Easy left or right changing
Corrosion-resistant: black anodized aluminium housing
Available for profiles with 40 mm and 50 mm depth
Voltage: 12V-24V AC/DC
Consumption: 10W / 12V - 0.8A / 24V - 0.4A

Documents

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Locinox Hardware.

Download Installation Guide
