Insert Lock Handles

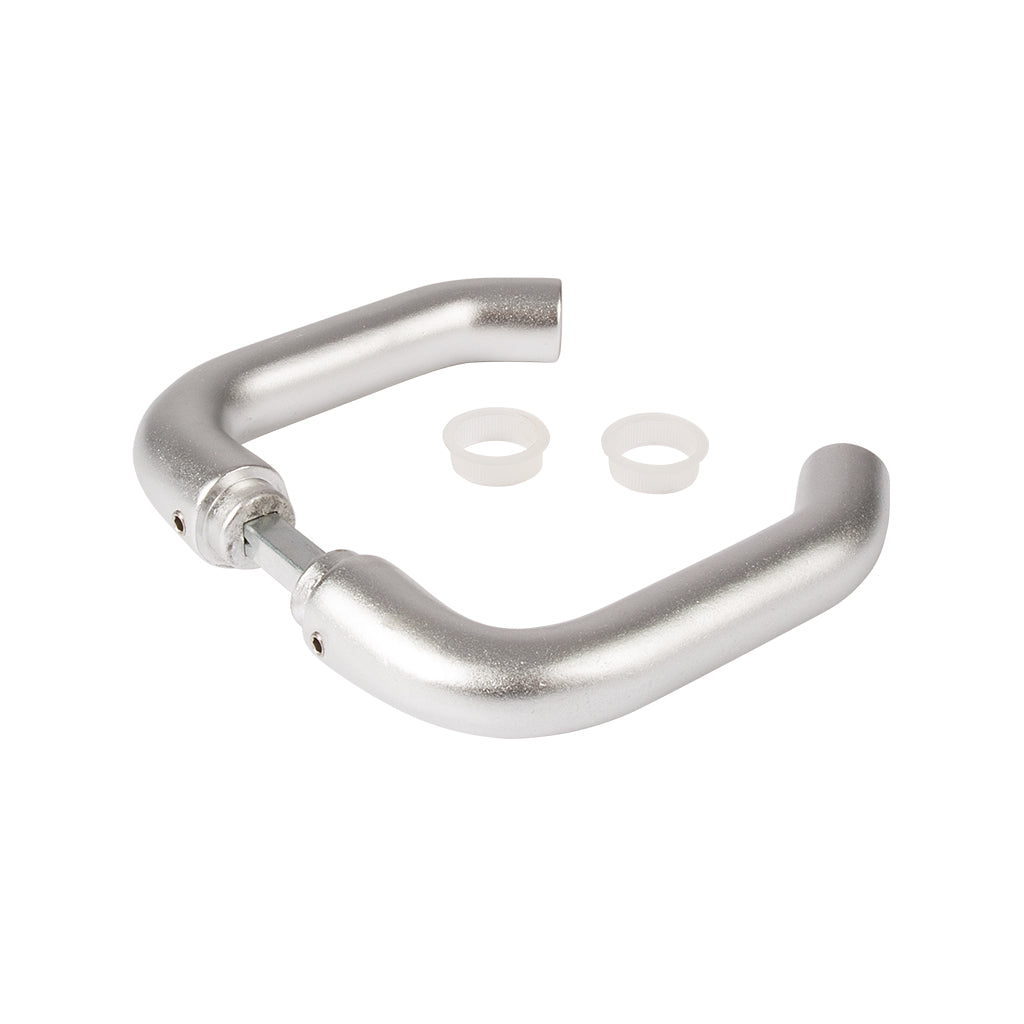

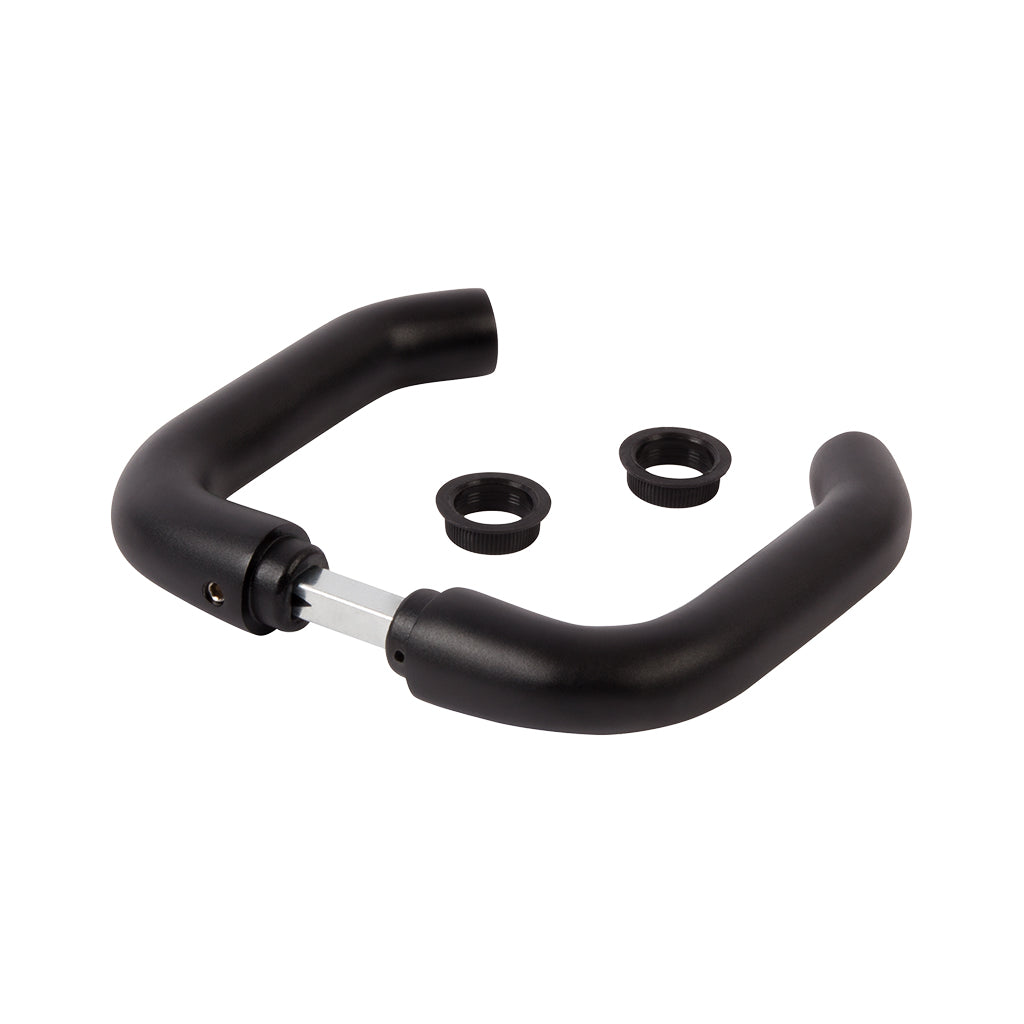

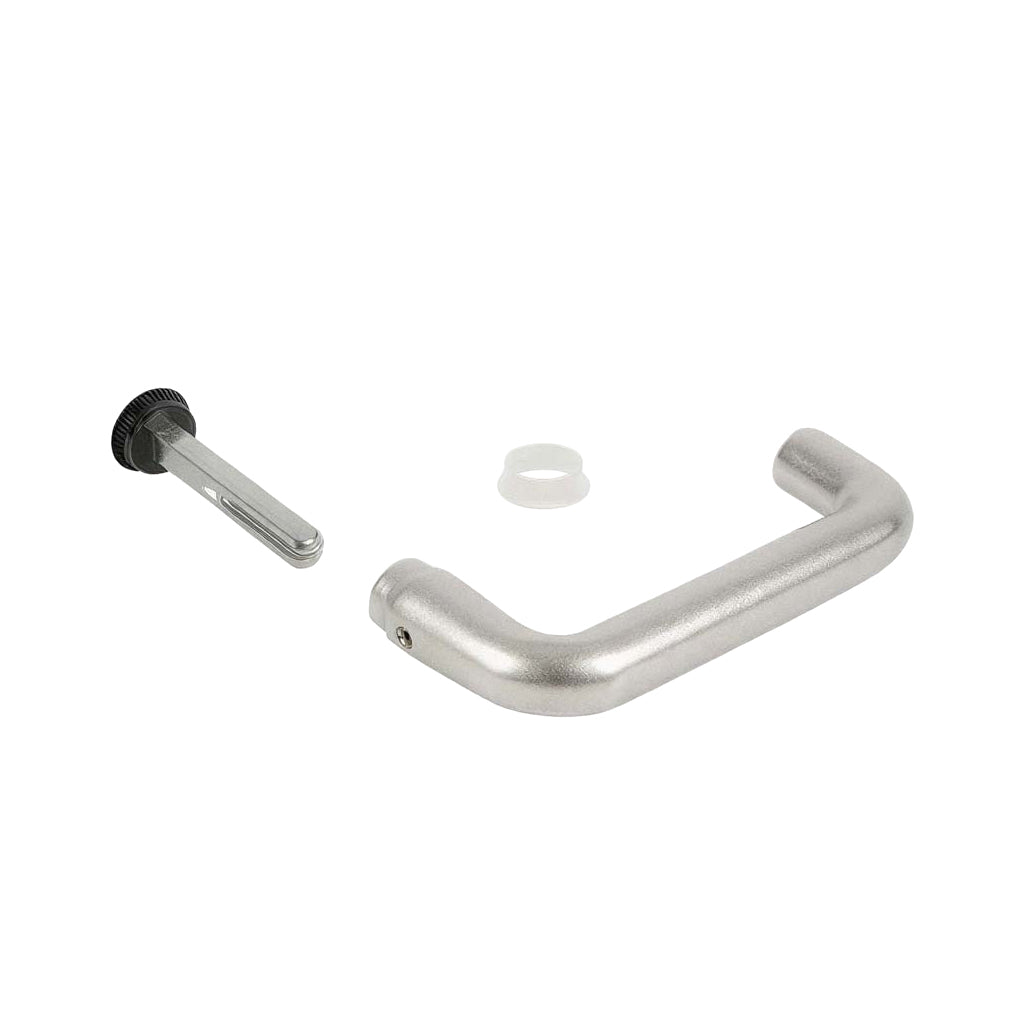

3006D-H - Handle set in silver anodised aluminium with 120 mm crank pin for use with Locinox insert locks.

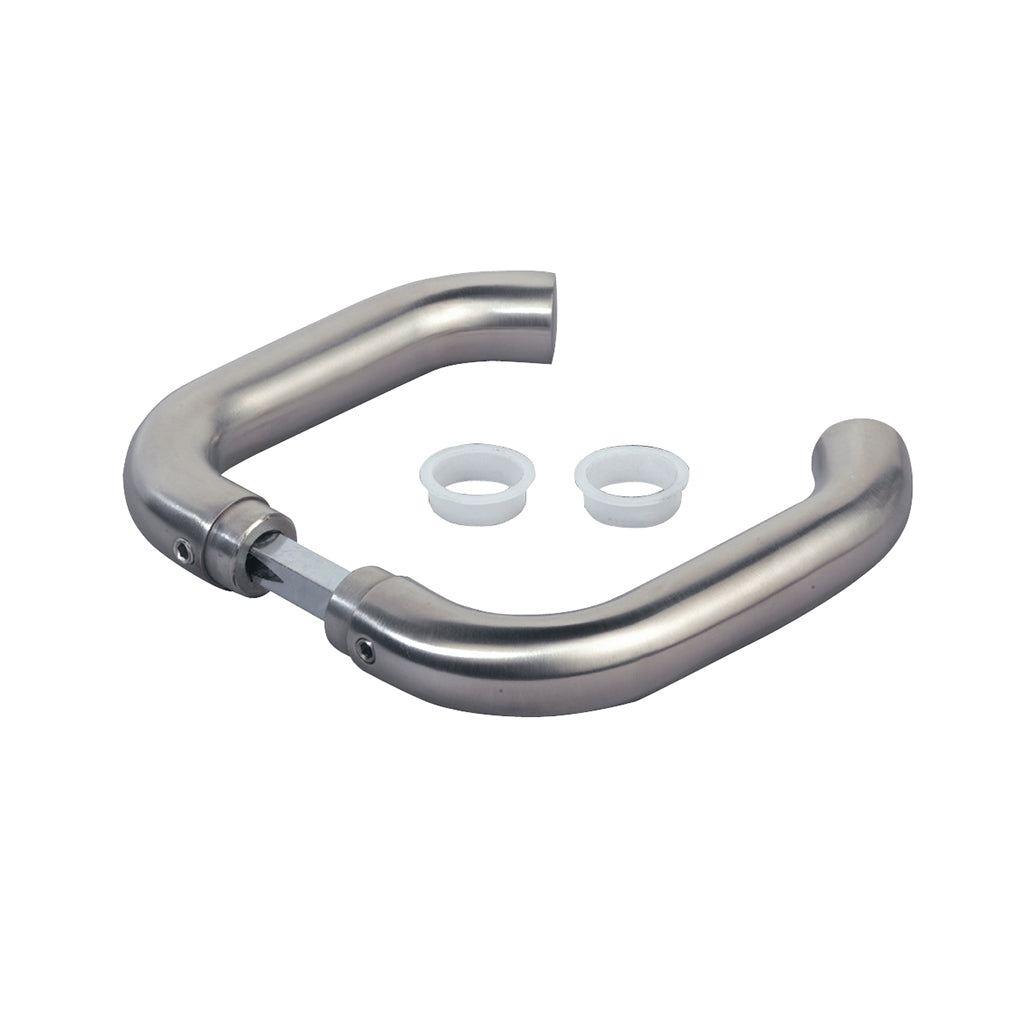

3006I-H - Handle pair in stainless-steel with square 120 mm spindle for Locinox Insert locks.

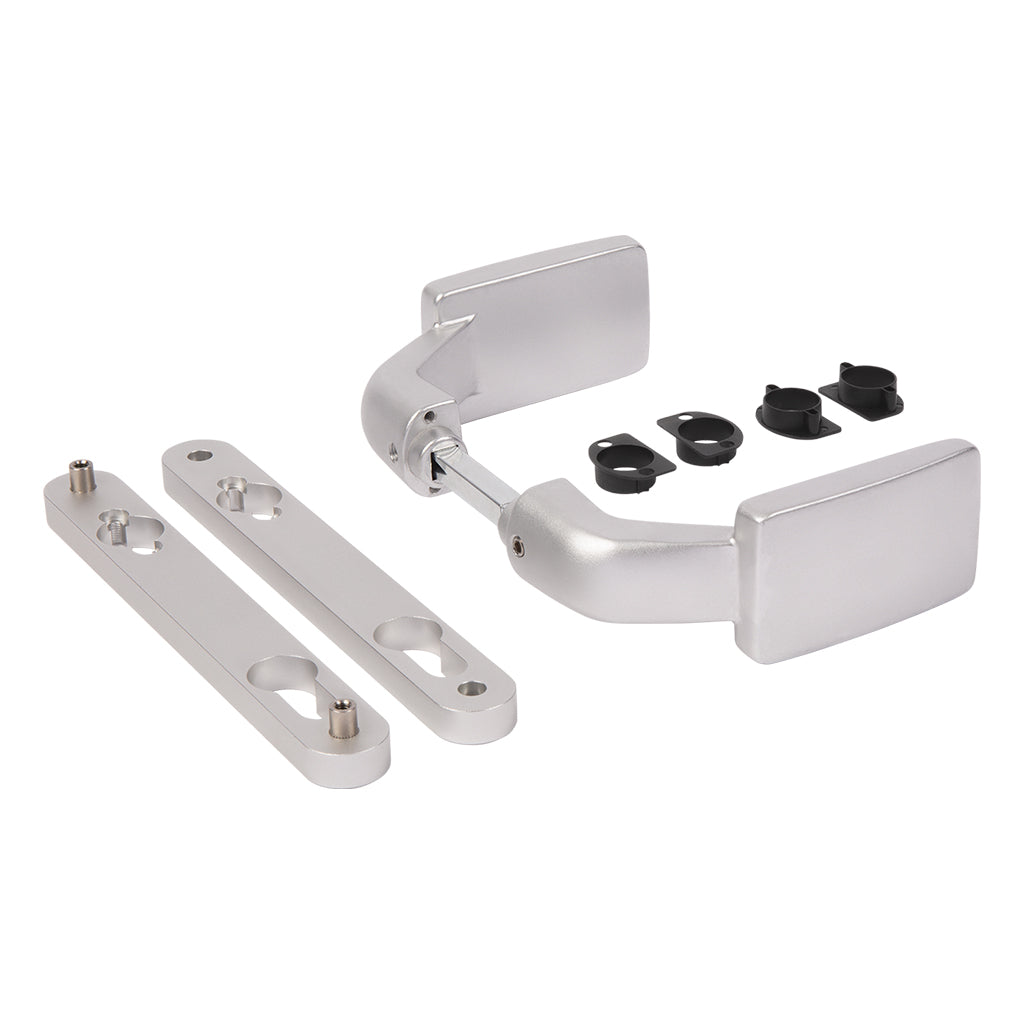

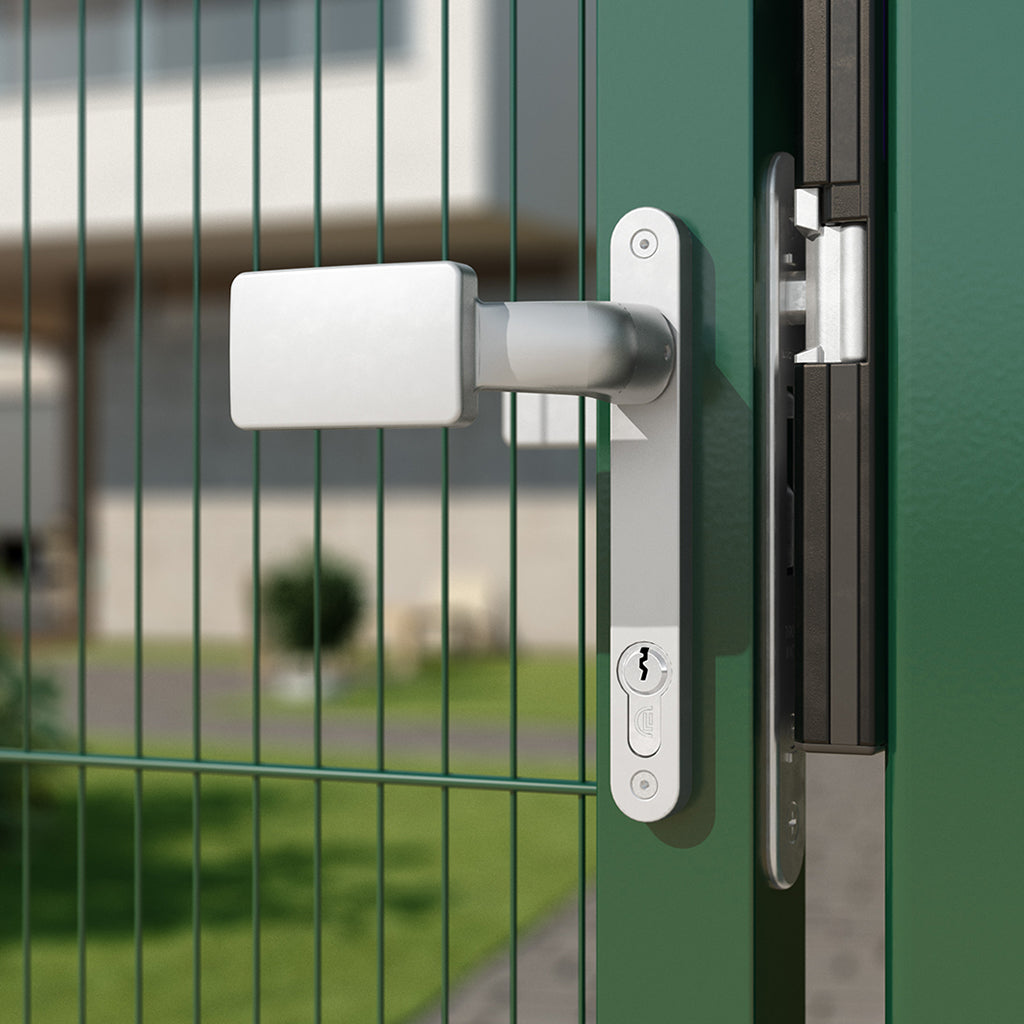

3006FIX - Anodised aluminium handle pair and cover. Allows: both sides rotating, one side fixed or both sides fixed. Compatible with the Fortylock, Fiftylock, Sixtylock Insert Locks.

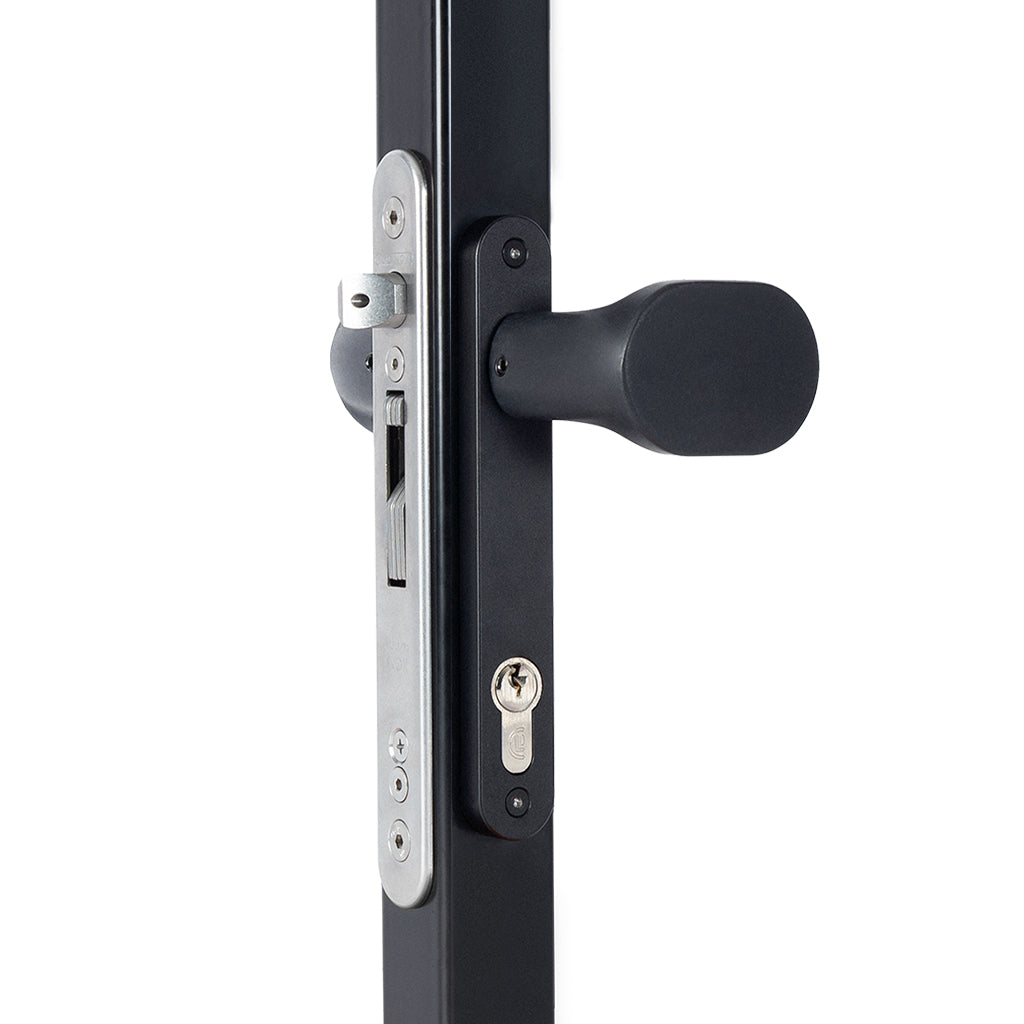

3006PAD - Handle set with rounded corners in anodised aluminium. Allows: both sides rotate, one side rotate, one side fixed or both sides fixed.

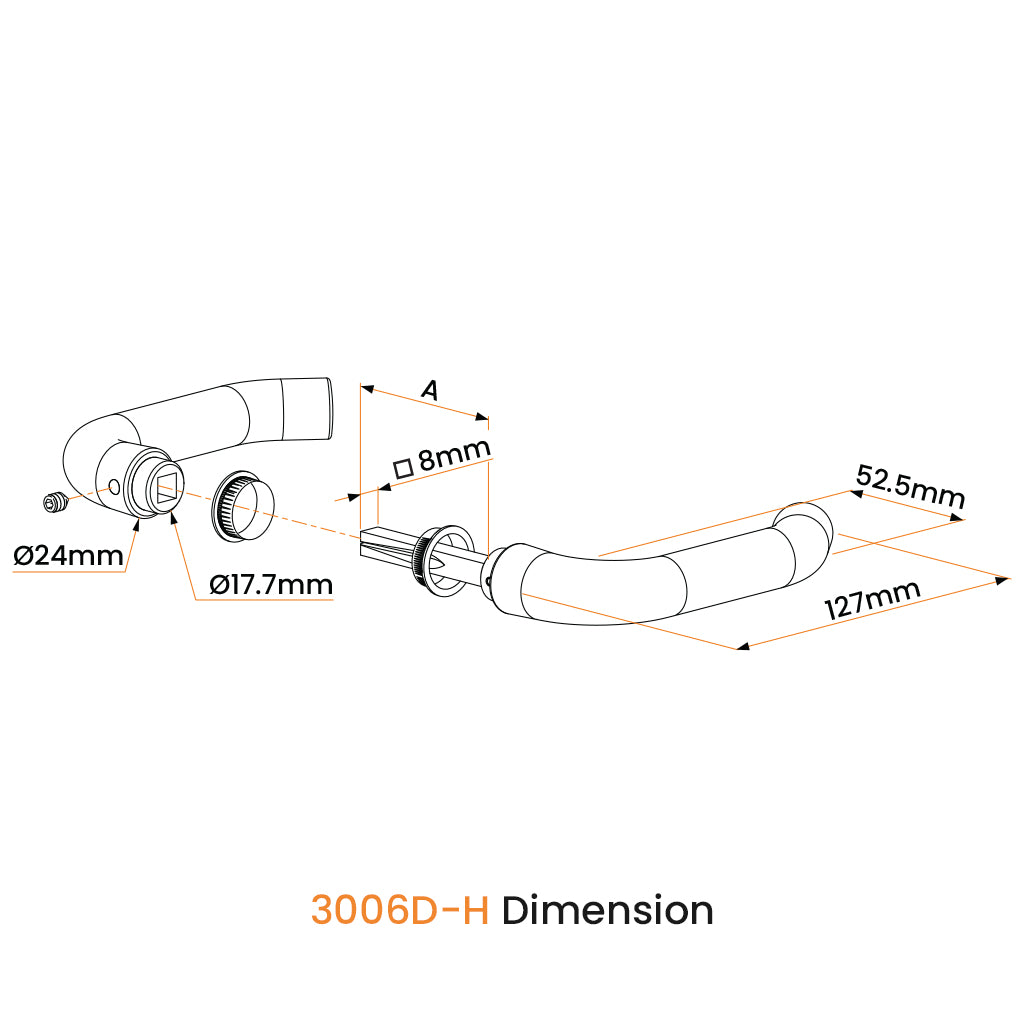

3006D-H Specifications

• Square 8 mm follower

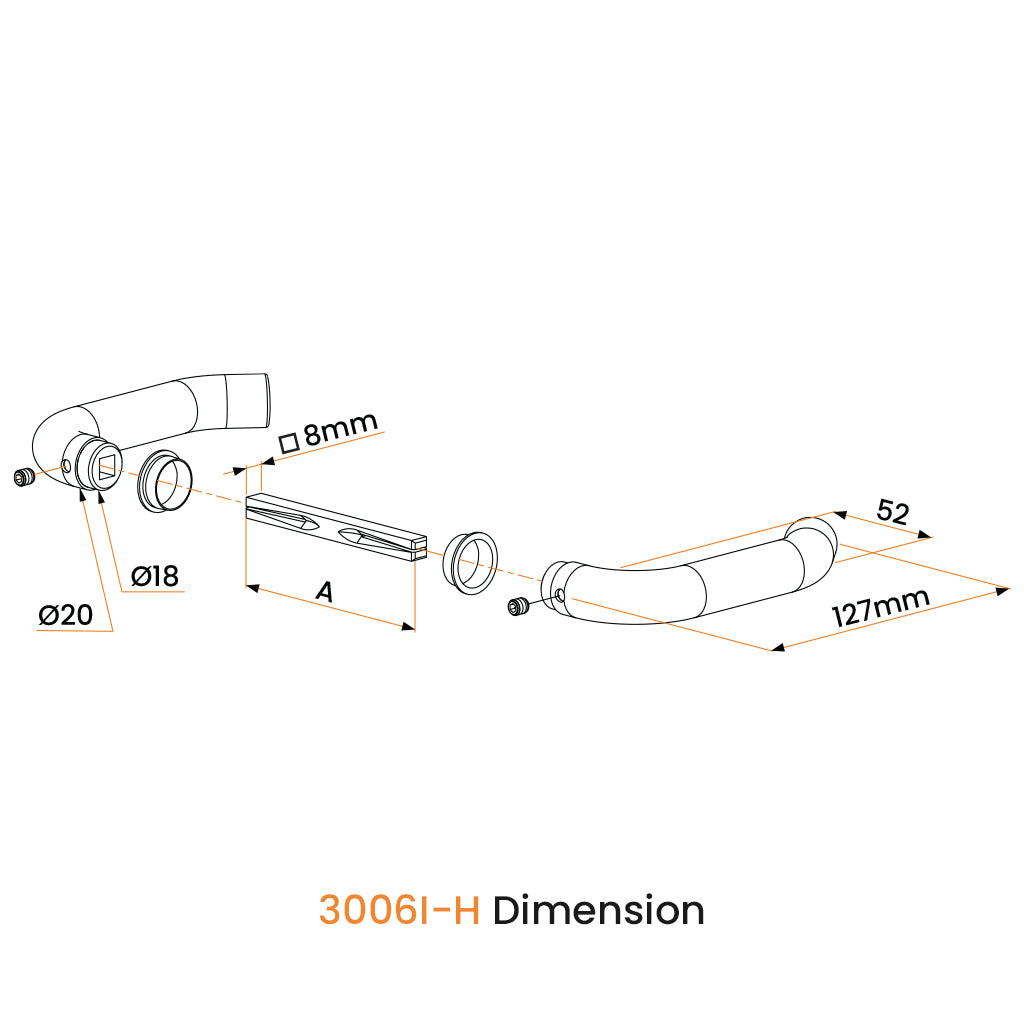

3006I-H Specifications

• Handle pair made of stainless steel
• Square 8 mm follower

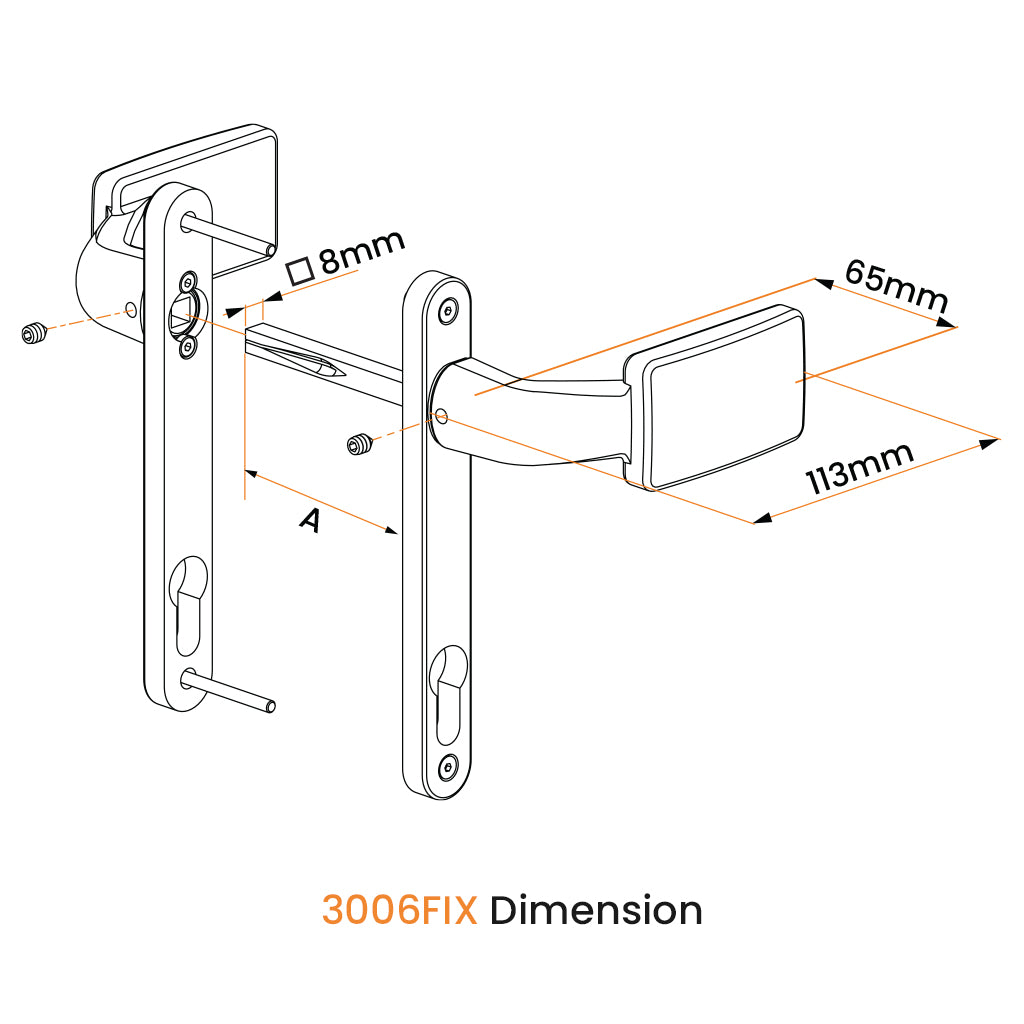

3006FIX Specifications

• Square 8 mm follower
• The centre distance between the cylinder and the handle: 92 mm
• Including fixation bolts for profiles from 37 mm to 65 mm

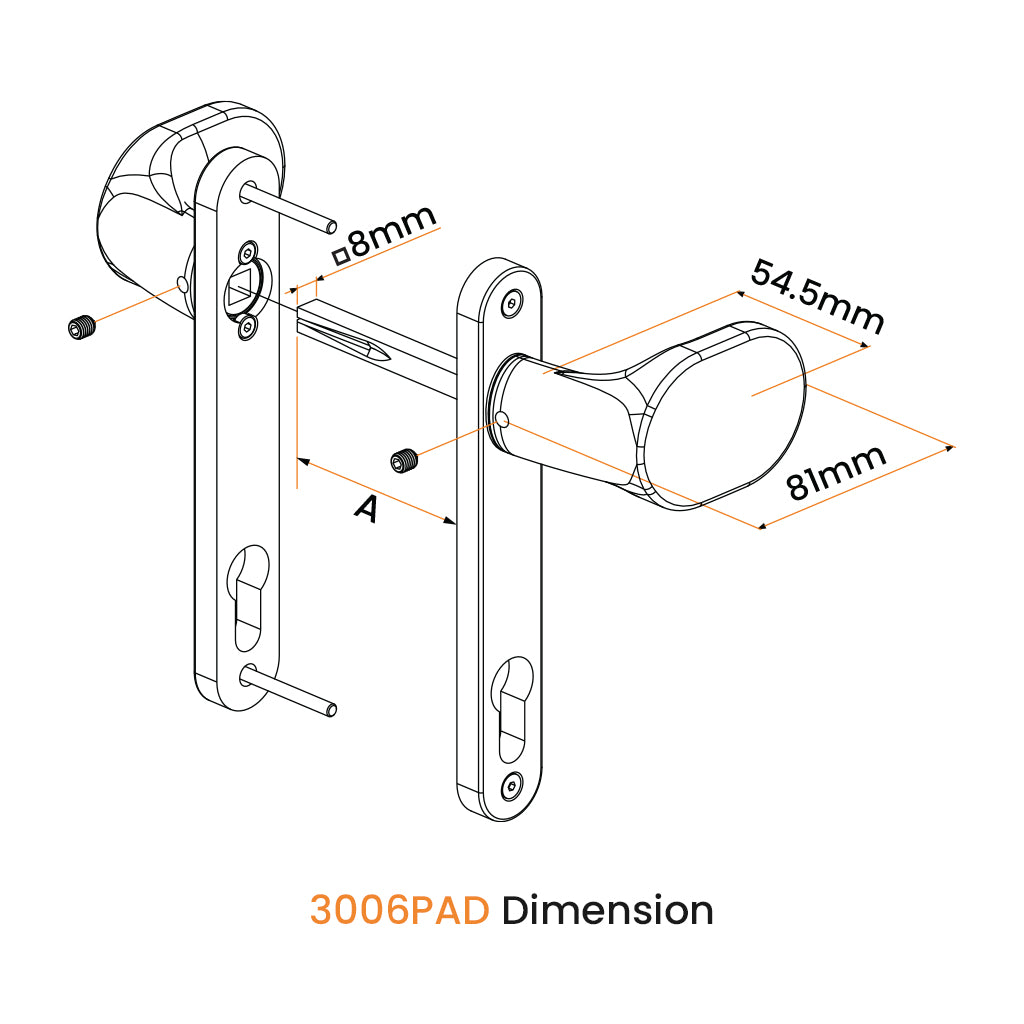

3006PAD Specifications

• Square 8 mm follower
• Centre distance: cylinder <=> handle hole = 92 mm
• Includes mounting bolts for profiles from 37 mm to 65 mm
• Anodized aluminium
• Compatible with Fortylock, Fiftylock, Sixtylock & Eightylock

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Locinox Hardware.

• Download 3006 Installation Guide
