GSM Gate Controller

A GSM gate controller lets you program phone numbers into the gate and allows a phone call from that number to open the gate. Just tell SIRI to 'call gate' as you drive up to it. The simplest and effective form of access control for multi-user sites like schools, businesses and multi-dwelling residential. No need to manage tags, swipe cards or pin codes - just manage the authorised phone numbers.

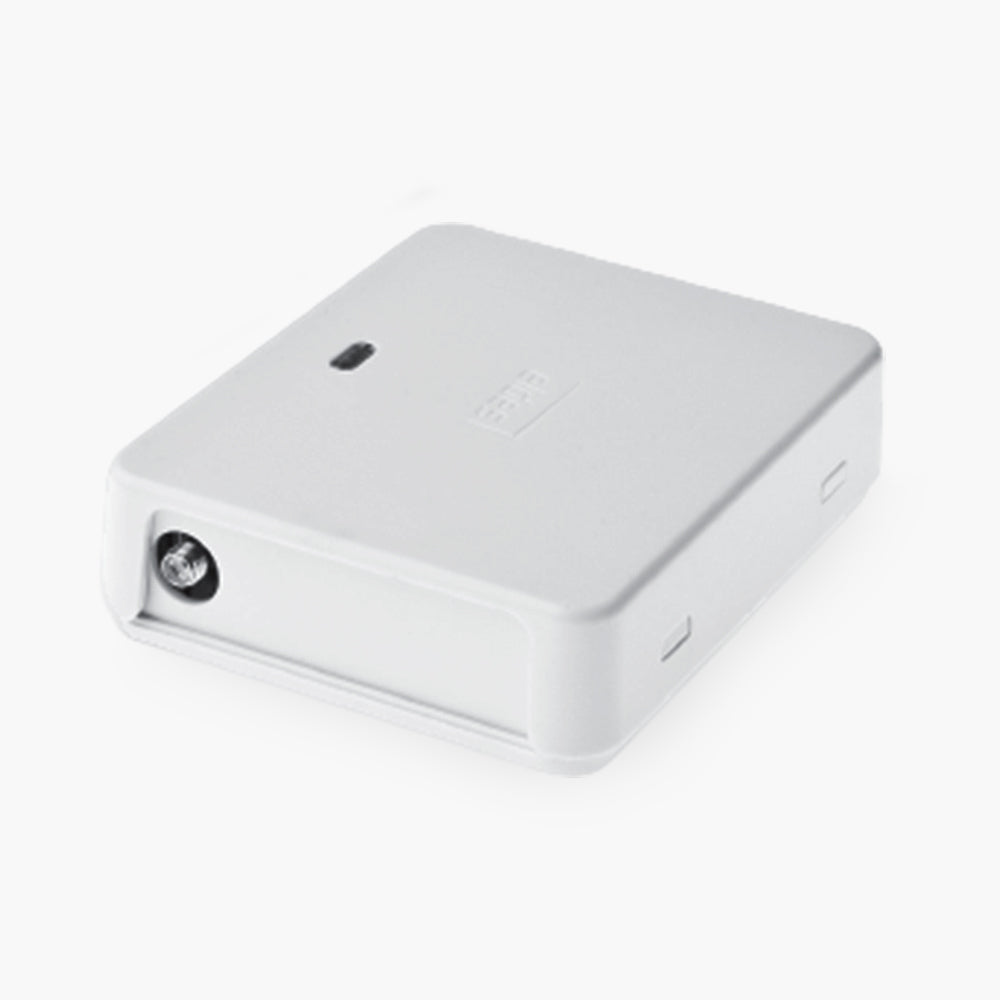

ESIM420 is designed for simple parking lot control of residential houses or gate control of private houses. ESIM420 allows to create up to 2000 unique users, which is enough for huge object service with just one gate controller! Area’s entry and exit may authorized either by a single phone call or by an individual schedule, and restricted according to a number of phone calls  or a specified deadline.

Specifications

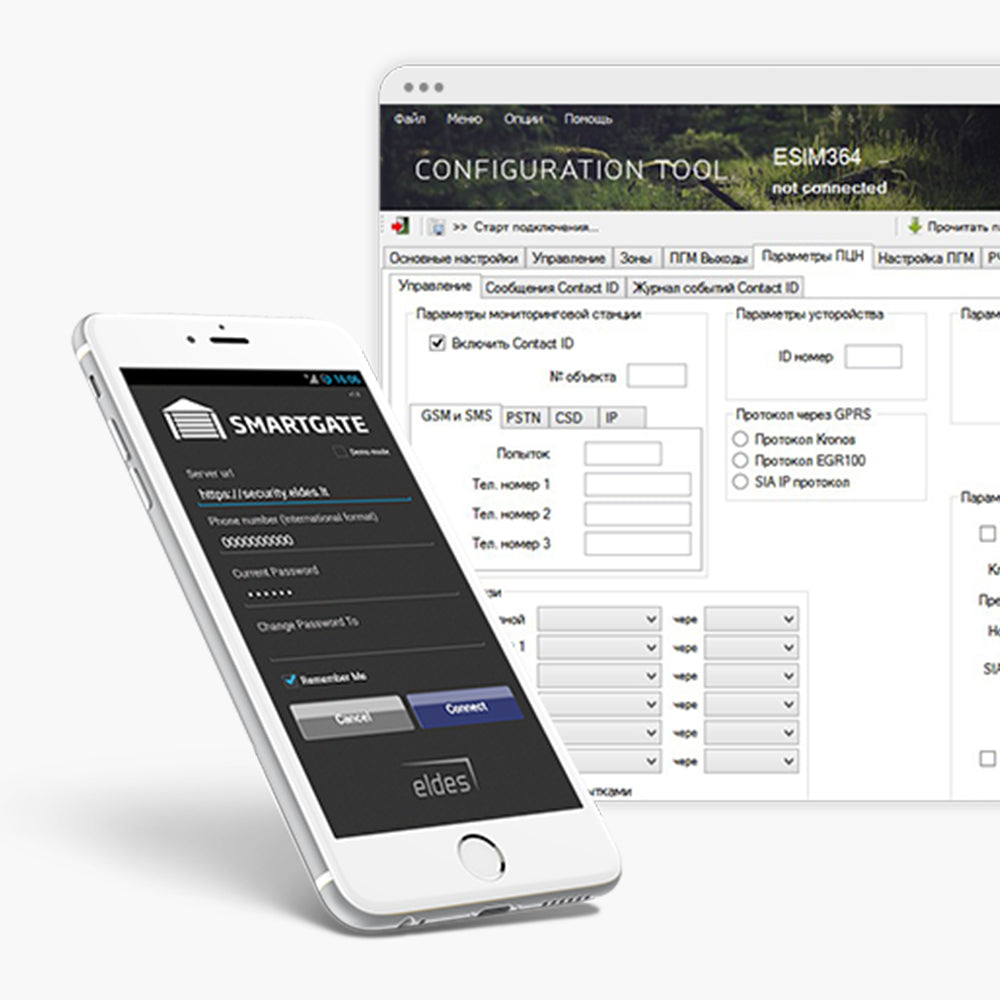

• Configuration web: gates.eldeasalarms.com, app: ELDES Utility, SMS
• Administrators: up to 5
• Users: up to 2000
• Power supply: 10-24V 50Hz/ 60Hz ~ 500mA max / 10-24V 500mA max
• SIM card type: Nano-SIM
• Current consumption in idle state w/o external
  devices connected:
  up to 50mA
• Connectivity: Frequency bands: LTE-FDD: B1/3/5/7/8/20/28; LTE-TDD: B38/40/41; GSM:
  B2/3/5/8
• Number of inputs: 3
• Number of outputs: 2
• Output type: Relay
• Maximum commuting output values: 24V 50Hz/ 60Hz ~ 0,5A / 24V 1A
• Event LOG: up to 1000 events
• Dimensions: 87×107×29 mm
• Operating temperature range: -20…+55 °C
• Humidity: 0-90% RH @ 0… +40°C (0-90% RH @ +32… +104°F) (non-condensing)

Edgesmith’s technical support gives you the confidence you need when specifying or installing Automation Accessories.

• Download GSM Gate Controller Installation Guide
• Download GSM Gate Controller Data Sheet
