Grande, 1500kg, 100% Duty Cycle

Roger Technology brushless operators undeniably stand as the industry's pinnacle. Roger's brushless innovation has sparked a revolution within the automation sector, and its unmistakable Italian design and manufacturing heritage ensure unrivalled quality and style.

Why opt for brushless technology? It boasts unparalleled power, unwavering reliability, and an exceptionally low energy footprint.

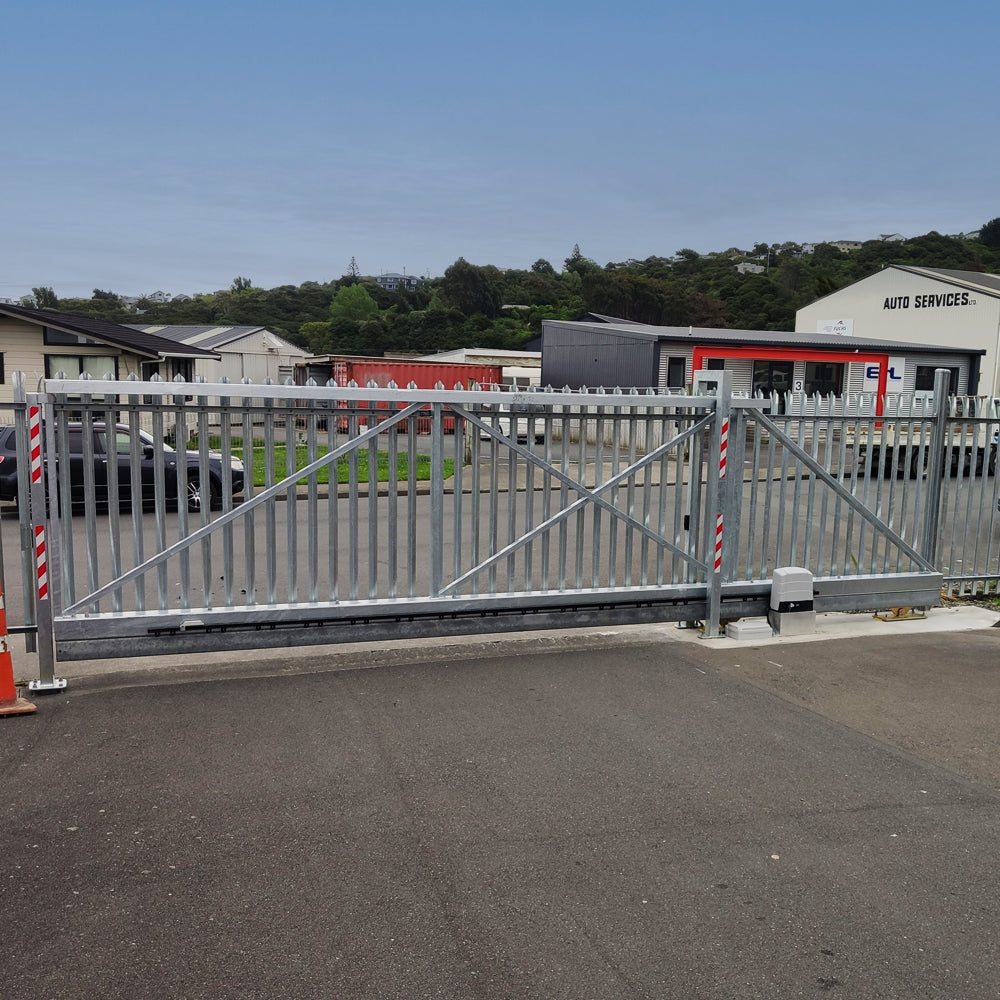

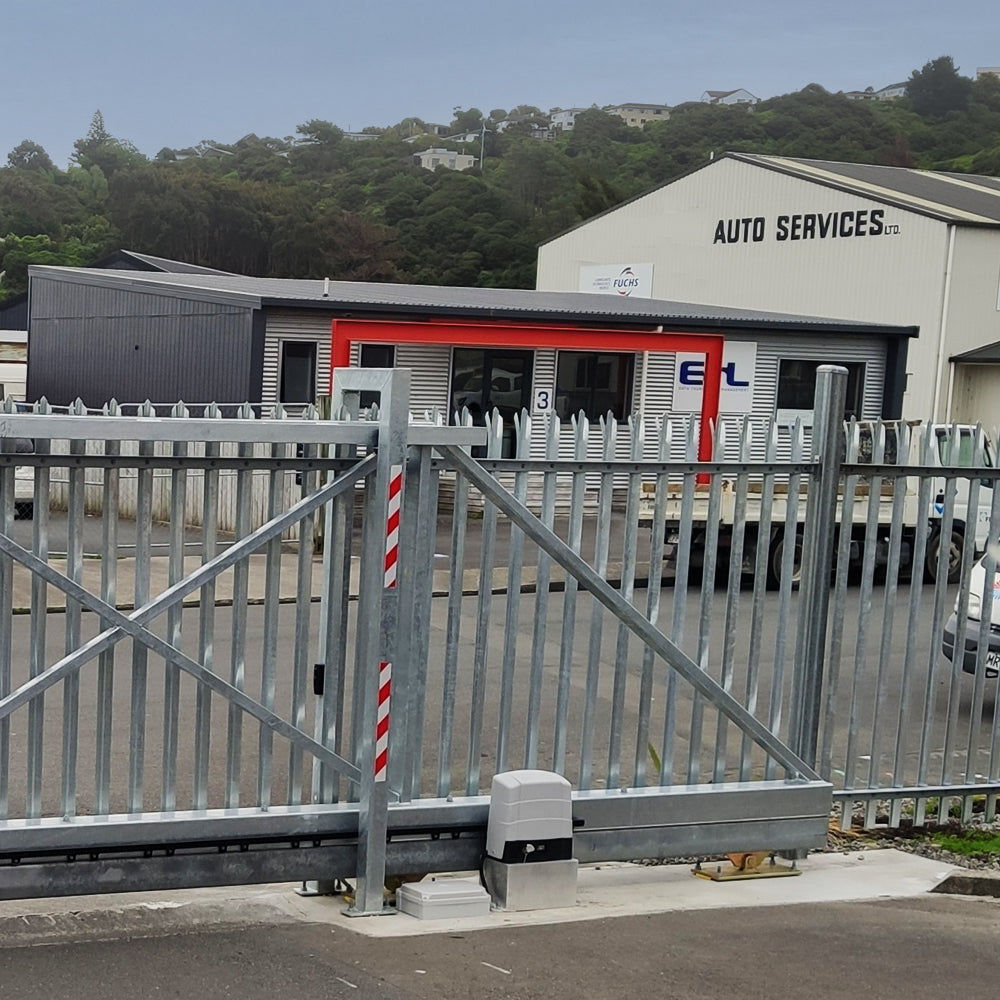

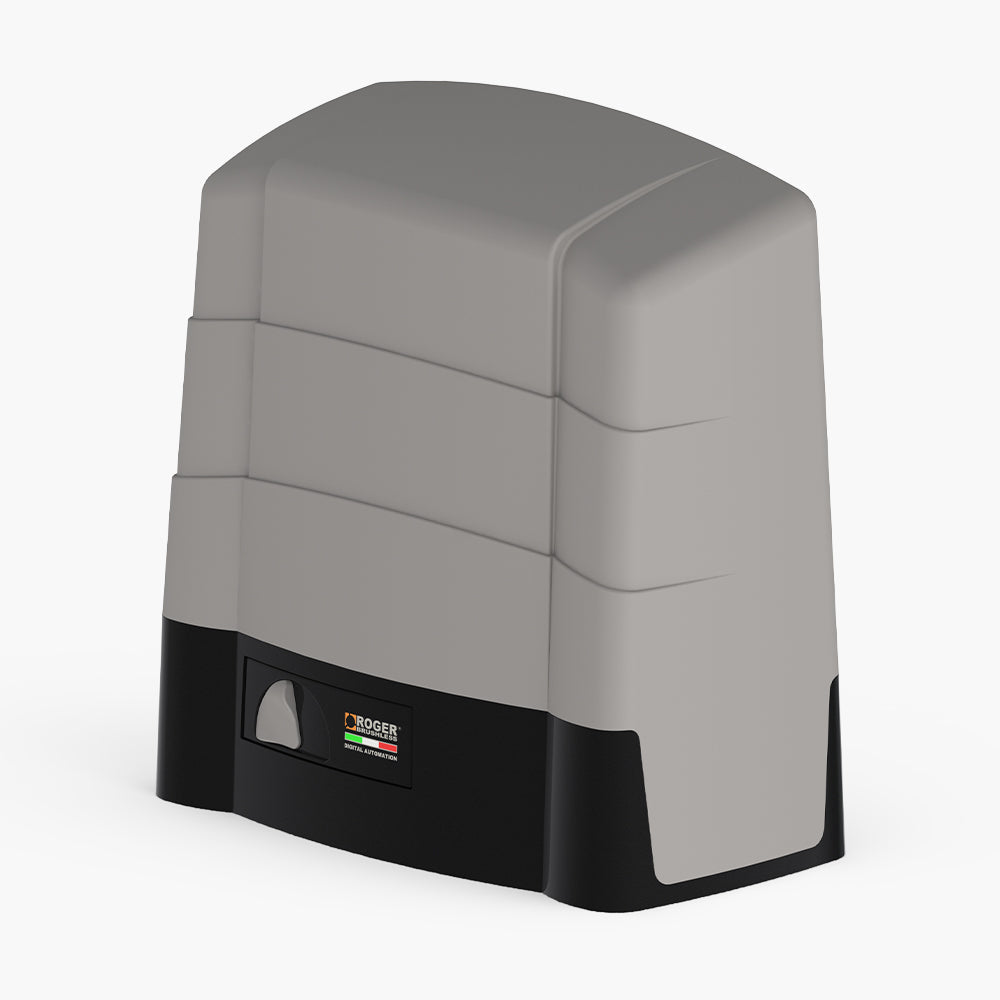

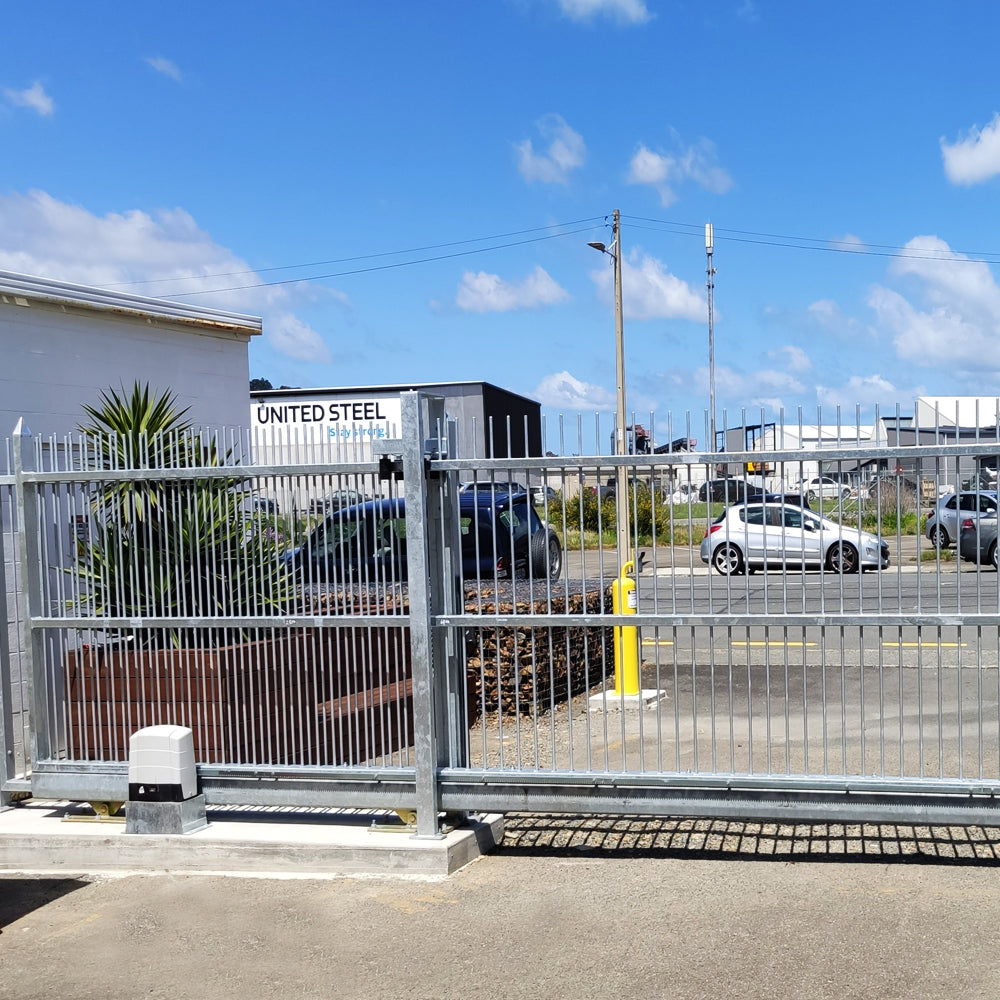

The Grande is a powerful operator capable of moving gates to 1500kg at speeds of 25m/m. It has a compact 36v brushless motor that is capable of 100% duty cycle and has the smoothest torque application in the market. Being low voltage, the operator is inherently safer than high voltage operators and has the additional benefit that there are multiple power options.

Specifications:

• Brushless Operator Made in Italy
• Max Gate Size - up to 1500kg
• Input Power - 230V AC
• Motor Power - 650W, 36V brushless
• Max thrust - 1000N
• Speed - 25m/min
• End Stops - magnetic
• Control Board - B70-1DCHP

Power Options:

• Mains - the most reliable option if it is possible to get 230v out to the gate.
• External Transformer - put a transformer inside the house or garage and run low voltage AC out to the gate using a garden light cable.
• Solar - Roger Automation is very energy efficient and suits solar power. The specification of your panel(s) and batteries depends on your application and we will help you select the right solar solution.
• Read more about power options on our Learning Page.

The Roger Technology range of brushless gate operators offer huge advantages over traditional brushed motors.

• High torque to weight ratio – these low voltage motors can now be applied to applications that were once only served by larger 230v / 415v motors.
• Ultra-Low Power Consumption – Significantly reduced losses due to the motor construction. The omission of brushes and the fact that the motor windings are supported by the motor housing, any heat generated is cooled by conduction resulting in ultra low power consumption and a super intensive duty cycle.
• Longer life, increased reliability and reduced noise – This is achieved due to the elimination of brush or commutator erosion, ionising sparks and the overall reduction of electromagnetic interference.
• Higher speeds – Brushless motors are capable of higher speeds without the loss of torque. Brushed motors develop maximum torque when stationary, linearly decreasing as velocity increases.
• Superior control – Utilising the pulses from the undriven coils within the brushless motor and the technology incorporated in the controller the motor is capable of achieving precise control and positioning. One obvious advantage to this is significantly reduced stresses to the motor and gearbox resulting in the overall longevity, sustainability and reliability of the unit.
