Slide Gate Damper

Made in Germany by Dictator, the damper provides resistance when the gate descends a hill, freewheeling on the ascent. Installing a damper on inclined slide gates is advisable for both motor assistance and safety. In case of a power outage, manually released heavy gates on slopes can become hazardous as they cannot be stopped by hand once in motion. A damper mitigates this risk. Additionally, while the motor can easily push the gate uphill, it struggles to control the gate's descent, which can lead to operational issues. A damper helps manage these forces, keeping them within the motor's operational parameters.

Specifications

• Suits standard gear rack
• Rated to 7Nm of torque (fully arrests a 170kg gate on an 8deg slope)
• Adjustable damping force using the screw on the side of the damper

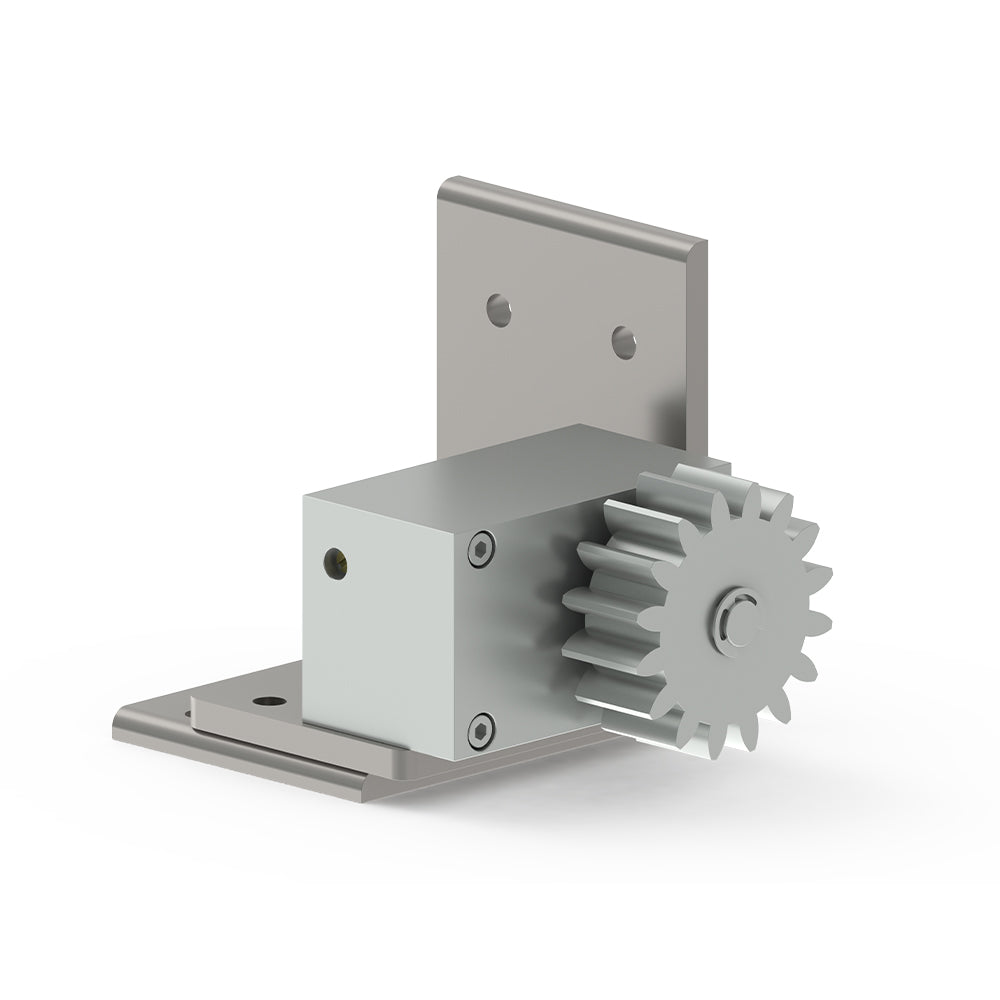

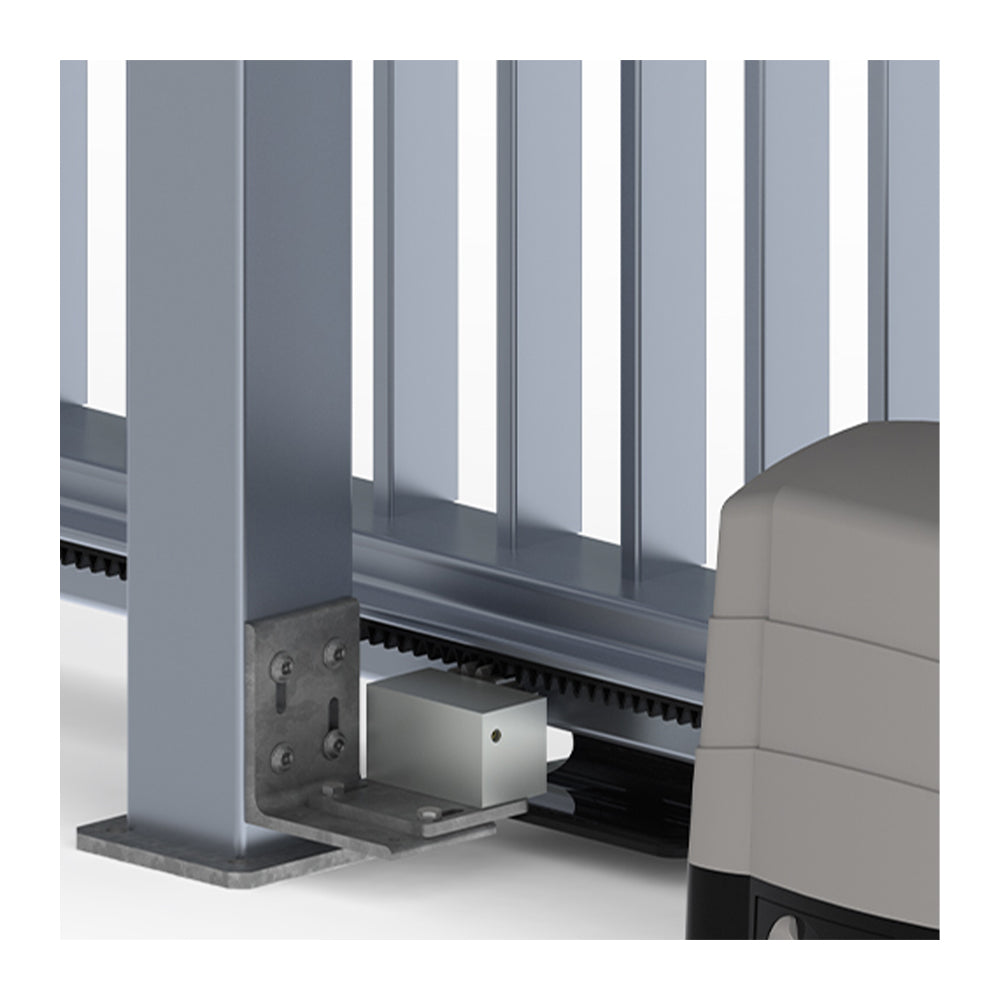

• Easy installation with our custom post-mount bracket
• Reversible

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Automation.

• Download Damper Installation Guide (Available Soon)
