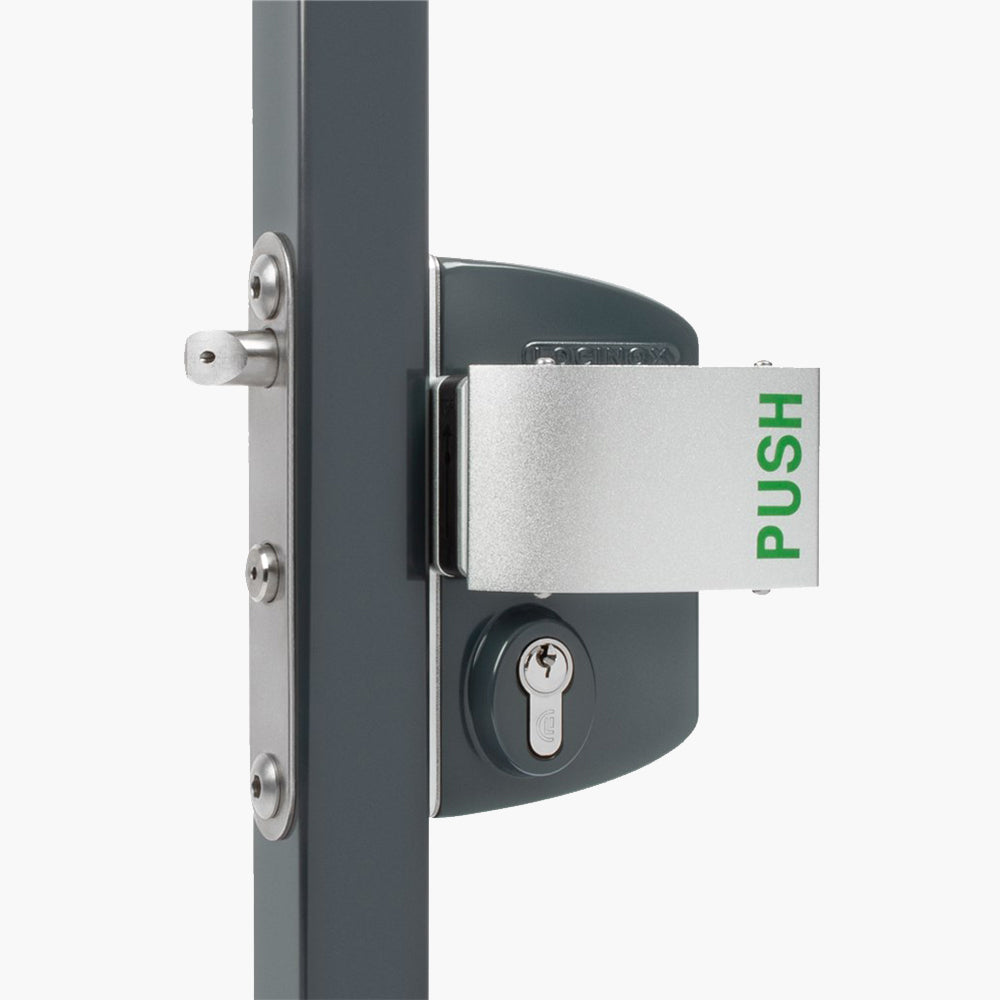

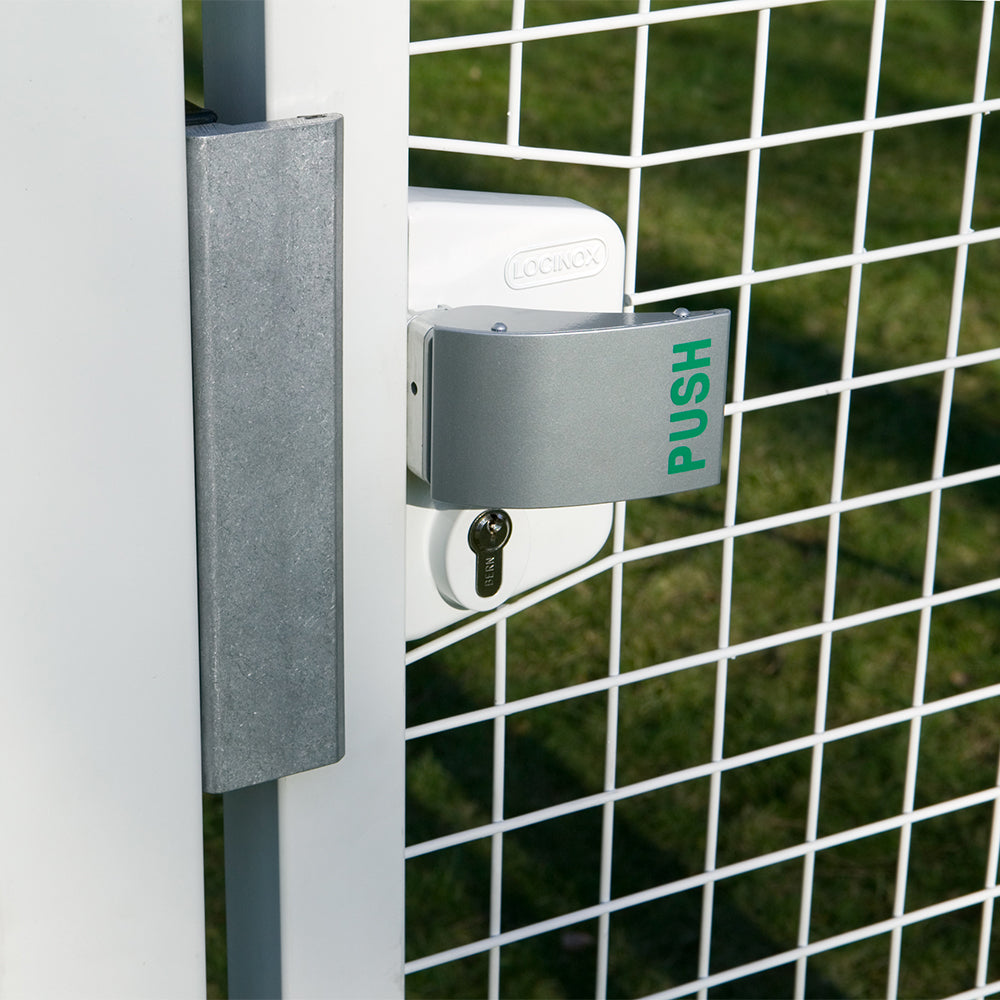

Emergency Push Lock

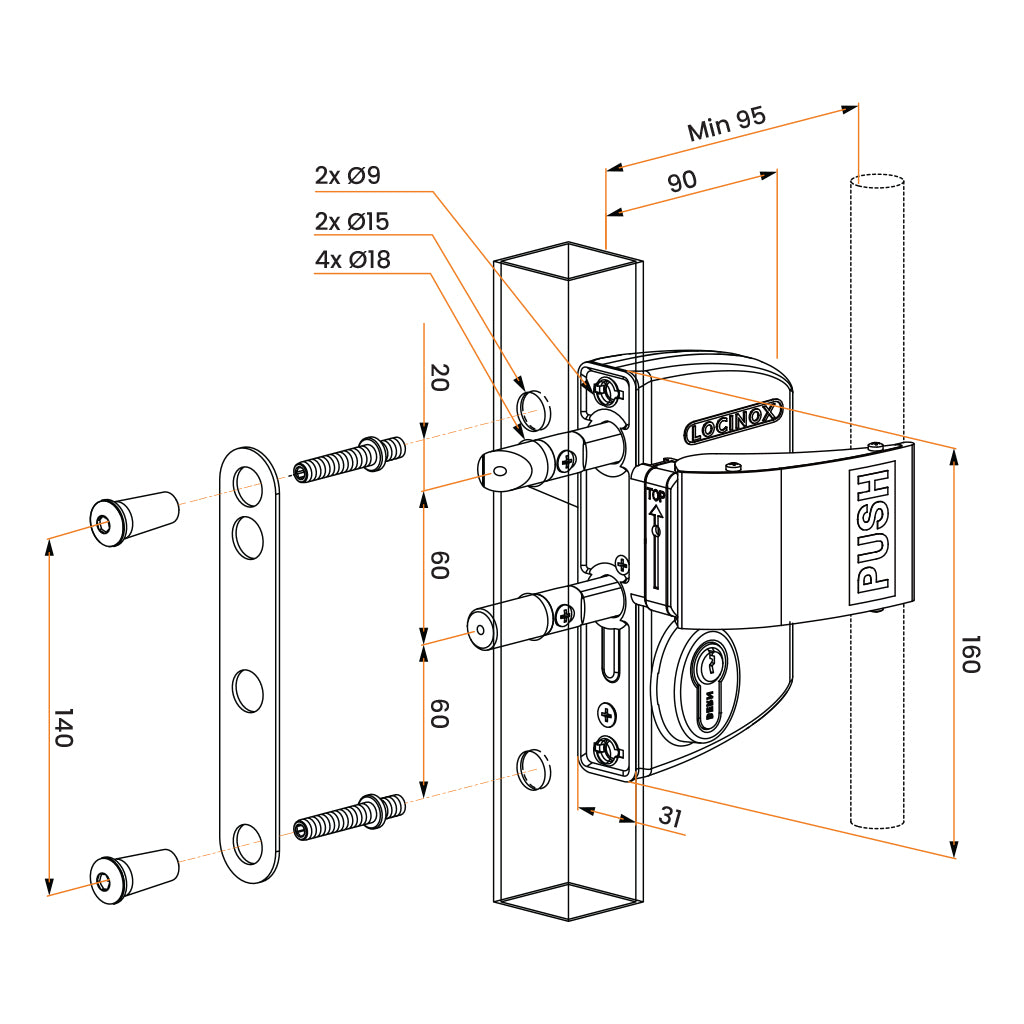

Stainless steel superior anti-panic lock with aluminium housing. EN179 certified configuration possible with LPKQ U2 for 40 & 60 mm gate frames with SAKL keep, 3006A-2 handle and 3012-54-STD- cylinder. Escape or exit from inside is possible at all times by operating the handle. Mechanical access from the outside is always possible by operating the cylinder. The 20 mm continuous adjustability of the bolts allows a perfect latching / locking of the mechanism. A solid stainless steel deadbolt with a 23 mm throw guarantees a secure locking. For a fast and highly precise installation, we recommend using the Drill-Fix drilling jig.

Specifications:

• E-coated lock box withstands 1000 hours of salt spray test
• Easy left or right changing of the self-latching daybolt
• 23 mm throw of the dead bolt, in 1 turn of the key
• Key-operated self-latching bolt
• 4-hole fixing with two hexagon socket head screws
• 60 mm center distance of the bolts
• Continuous adjustment of the daybolt up to 20 mm without dismounting the lock box
• Stainless steel mechanism
• Tested up to 500.000 movements
• EN179 certified configuration available
• Panic function E / Switch function

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing.

• Download Installation Guide
