Insert Lock

Name: Insert Lock
Brand: Locinox
SKU: FORTYLOCK-SET
Price: 210.0 NZD
Availability: InStock

$210.00

Brand:

Locinox

SKU:

FORTYLOCK-SET

Product Type:

Swing Gate Hardware

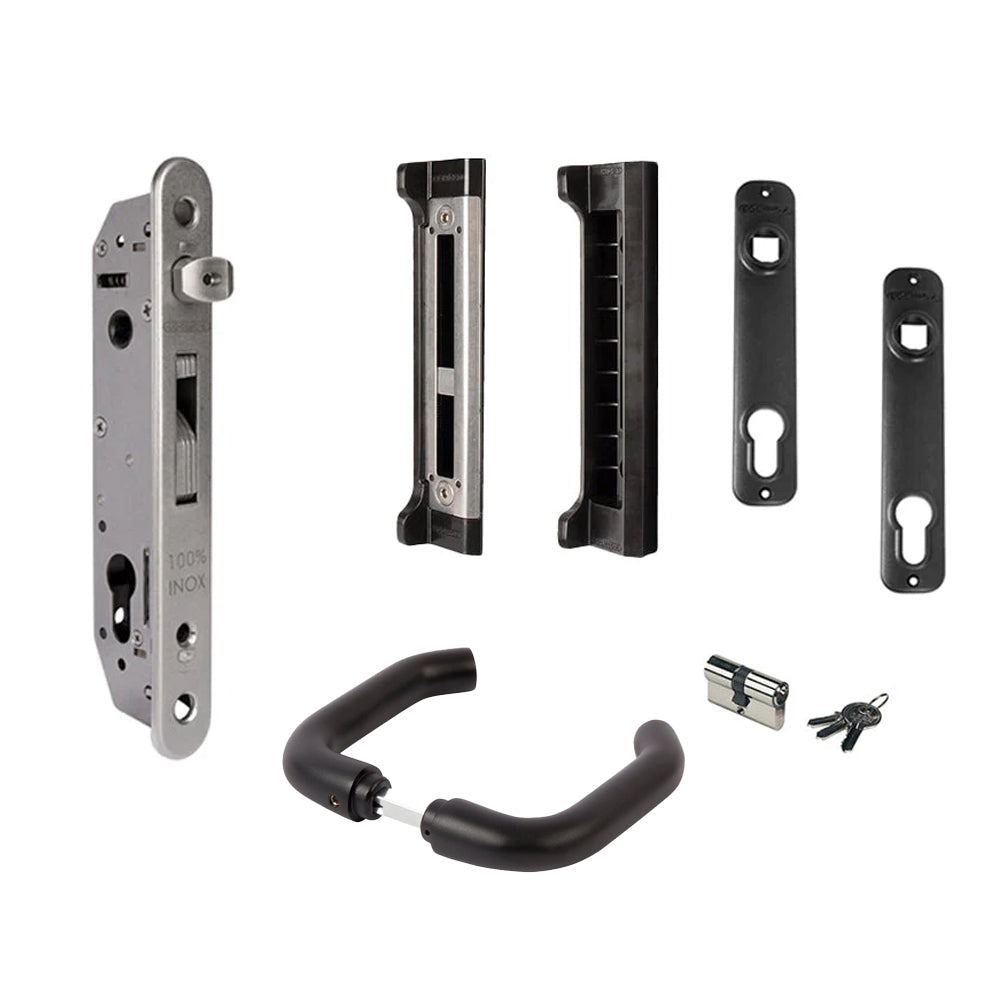

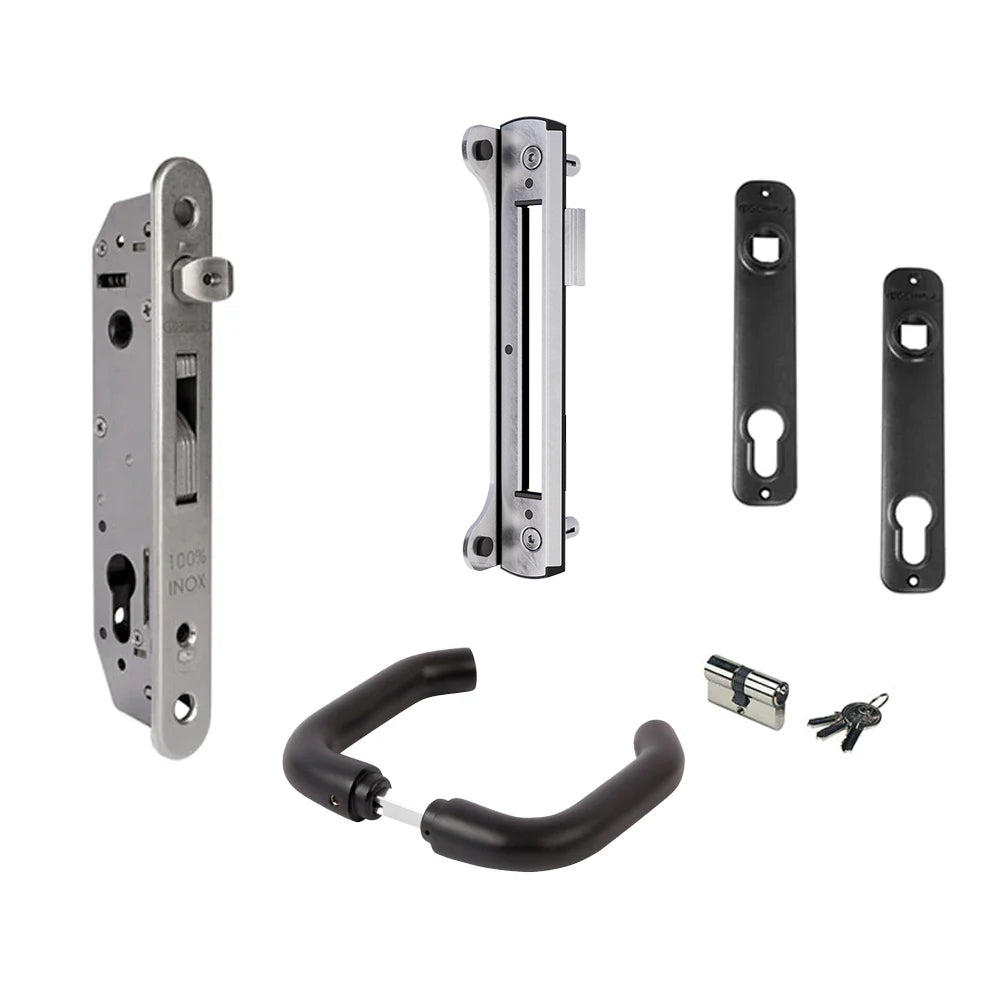

The Insert Lock features stainless-steel body mechanism and comes as a complete kit with everything you need for the installation. Made in Belgium by Locinox.

100% Sealed Stainless Steel Body: Ensures durability and resistance to the elements.
Adjustable Self-Latching Bolt and Hook Lock: Made from stainless steel, it automatically secures the gate.
Matching Keep: Designed to work seamlessly with the bolt and hook, preventing the gate from being pulled apart or forced open.
Versatile Installation: Can be fitted on both steel and aluminium gates.

This lock provides a robust security solution, ensuring a gate remains strongly secured against unauthorised access.

Gate Frame Size:

40 x40mm Frame 50 x50mm Frame

Colour:

Black

Variant

More information

Tech Specifications

Specifications:

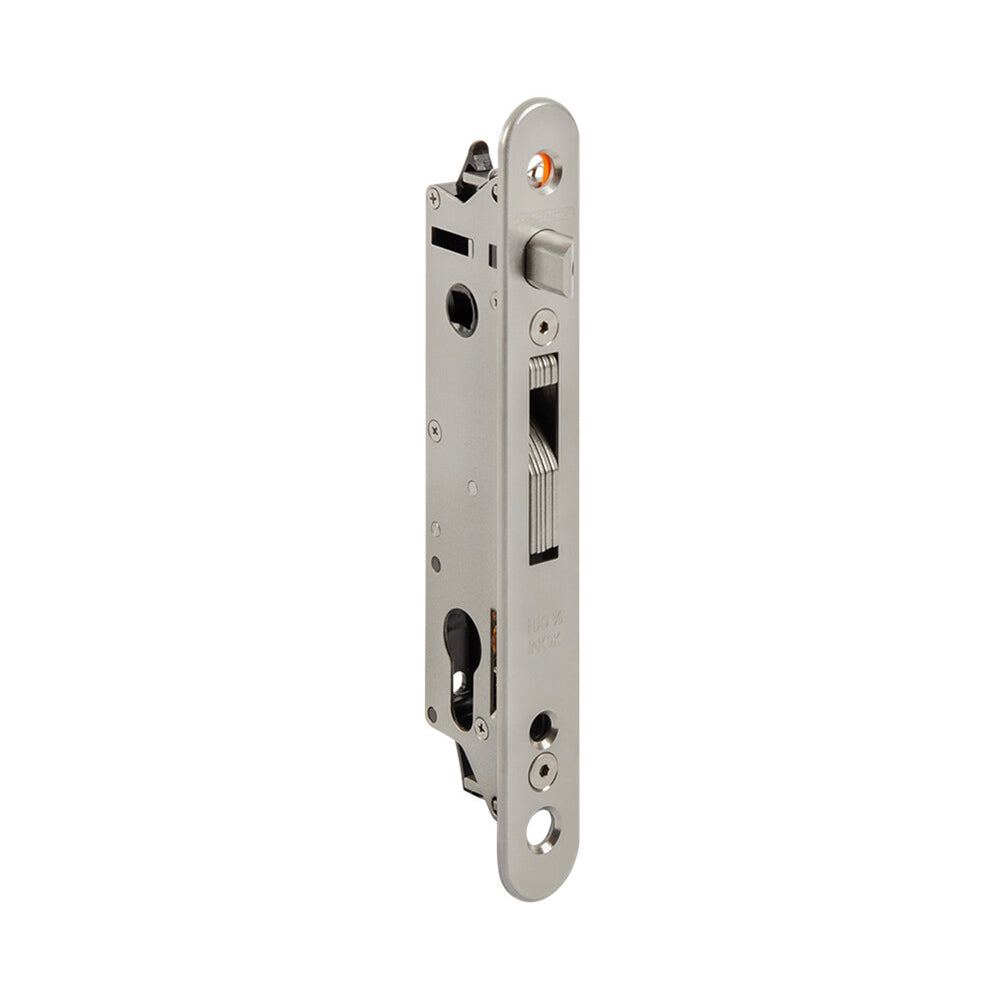

Stainless steel lock mechanism with cover plate against dirt penetration
Mechanism, hook, front plate, latch bolt: stainless steel

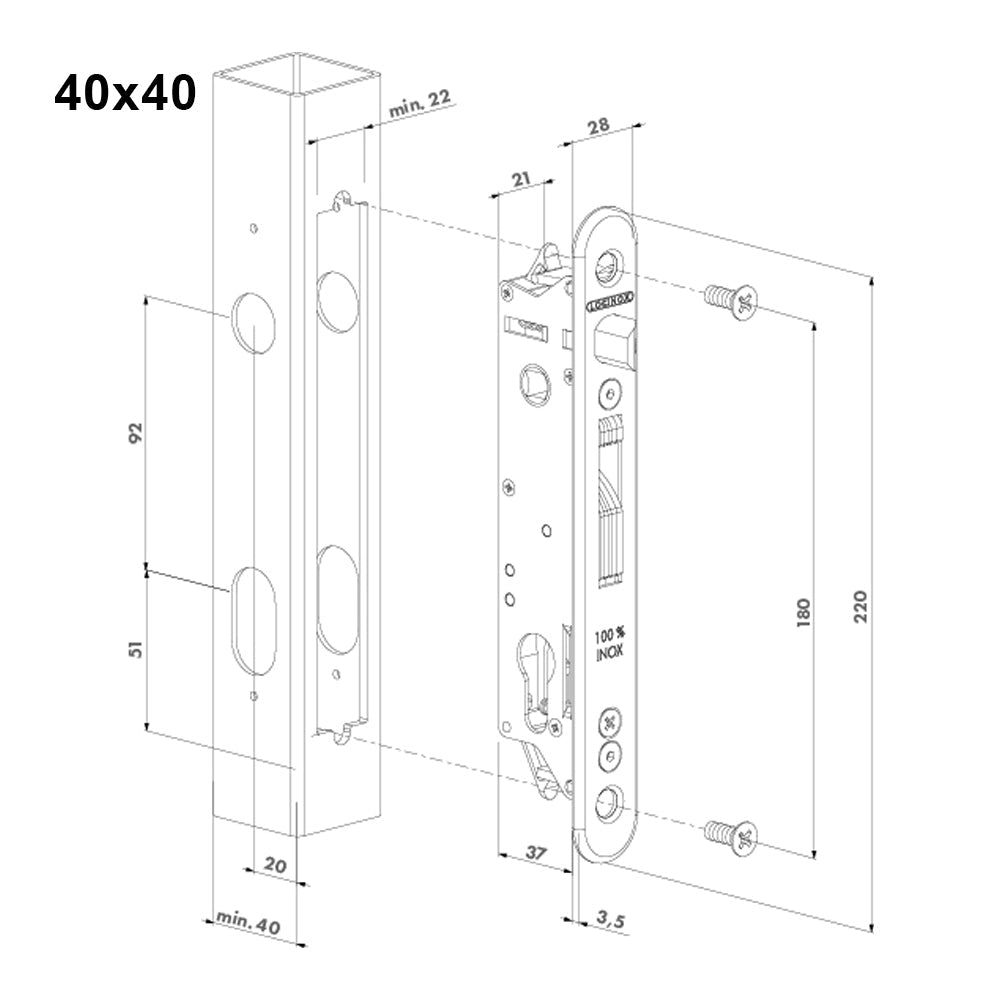

Backset 30 mm, for mounting in profiles of 50 mm depth or more
Continuous adjustment of the bolt up to 10 mm without dismounting the lock box
Key-operated self-latching bolt
Easy left or right changing of the self-latching bolt
Throw of the hook: 21 mm
Center-distance cylinder <=> handles = 92 mm
Compatible with all Euro profile cylinders

Documents

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Locinox Automation.

Download Installation Guide
