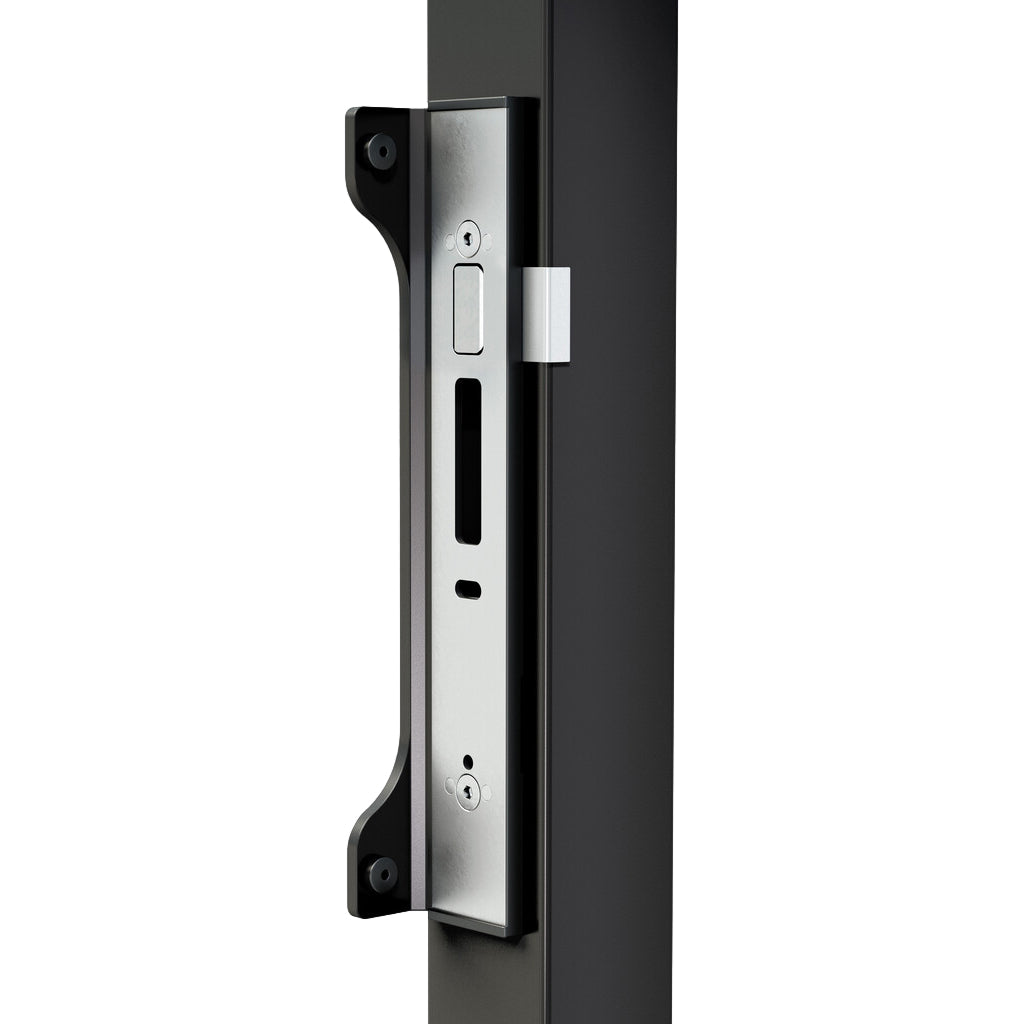

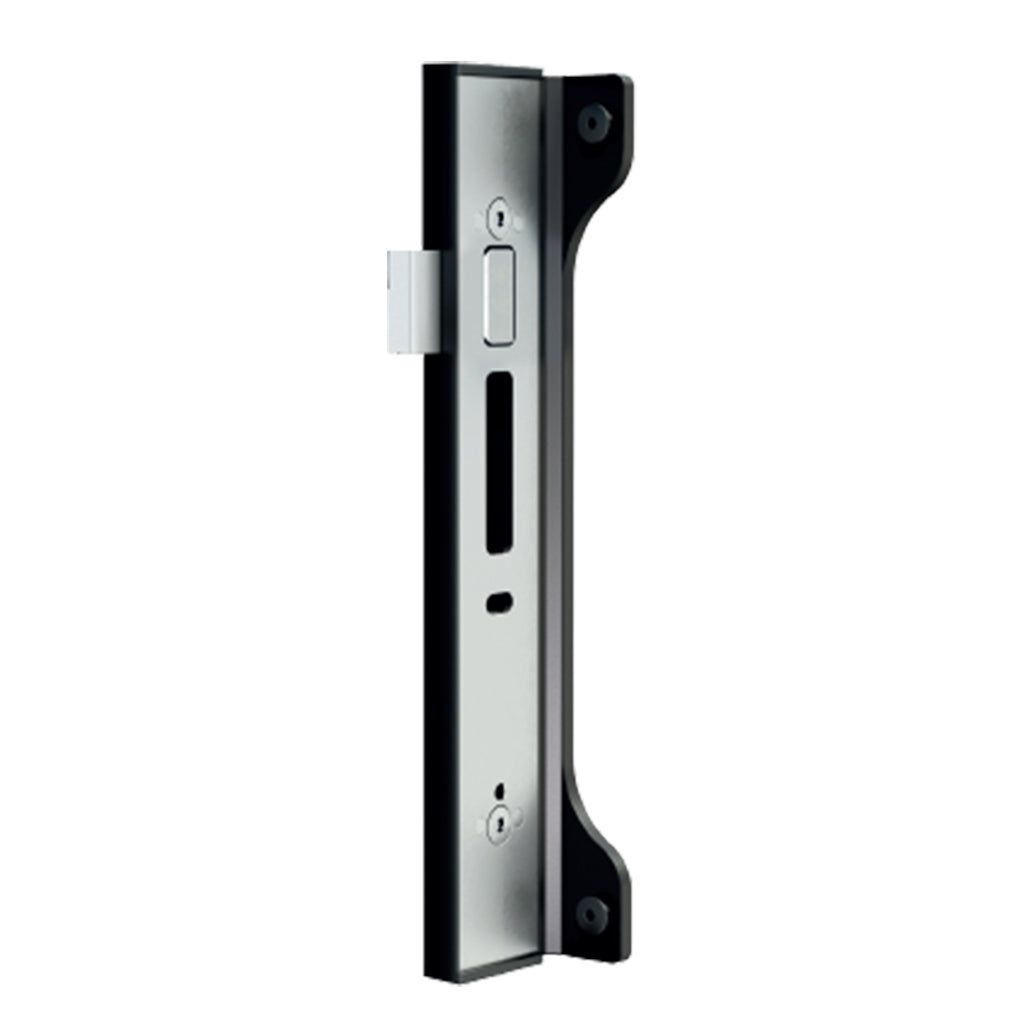

UNILEC Electric Insert Keep – Innovative & Flexible Solution

This innovative electric keep actively pushes the latch bolt (day bolt) outward, enabling flexible positioning within the post without the need to cut out the side of the post. It allows you to maintain a minimal gap between gate and post for a clean, secure fit.

UNILEC fits perfectly into Locinox's universal UNIWING profile and is easily mounted with the integrated CLICK-IT system. It operates on 24V DC and is available with or without a stop plate (adjustable for various gate thicknesses).Extra security comes from its Fail-Close functionality (the keep remains locked/closed when power is lost). Note: As it is fail-closed only, it suits many standard access control setups but may not be suitable for certain multi-dwelling or fire exit applications—those typically require a fail-open alternative like the MODULEC or INTRALEC.

Ideal for electric locking of insert locks (compatible with systems like FORTYLOCK, FIFTYLOCK, and more), the UNILEC delivers smart, discreet, and robust performance with easy left/right reversibility.

Specifications

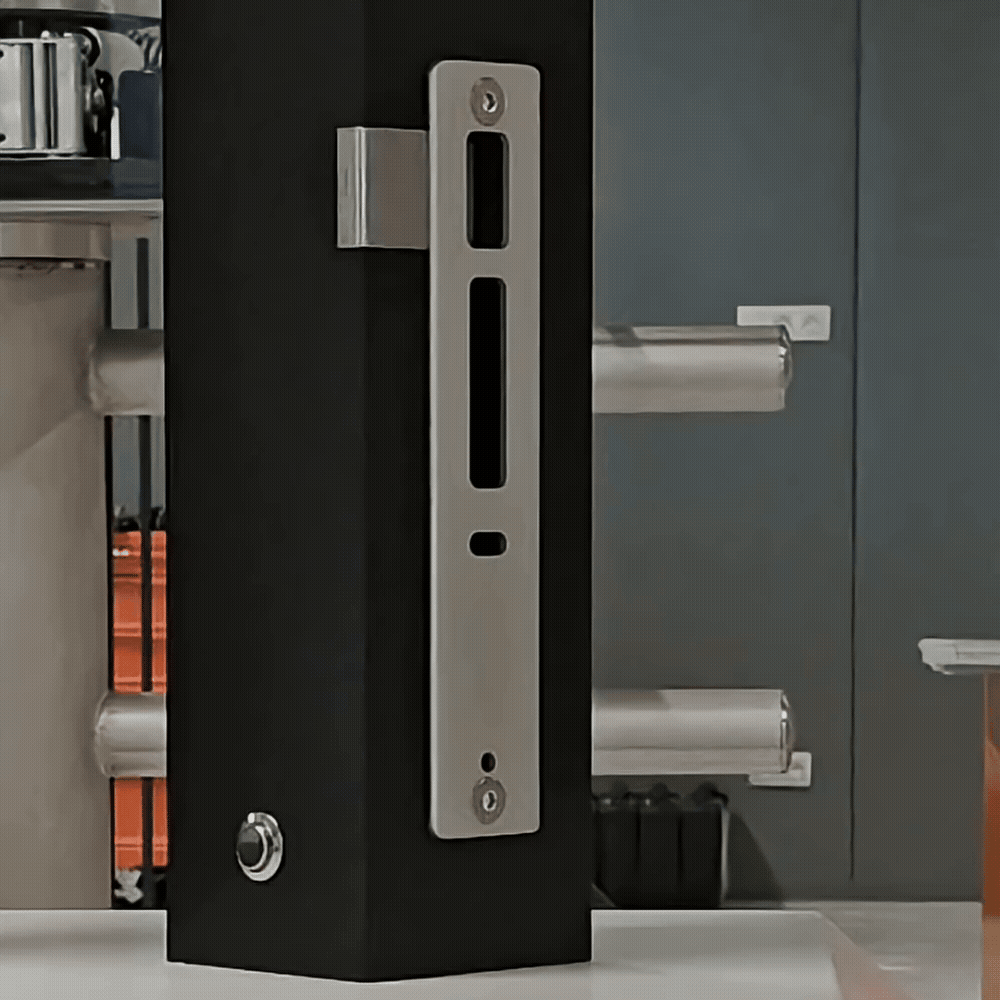

• Pushes day bolt outward to release the Insert Lock

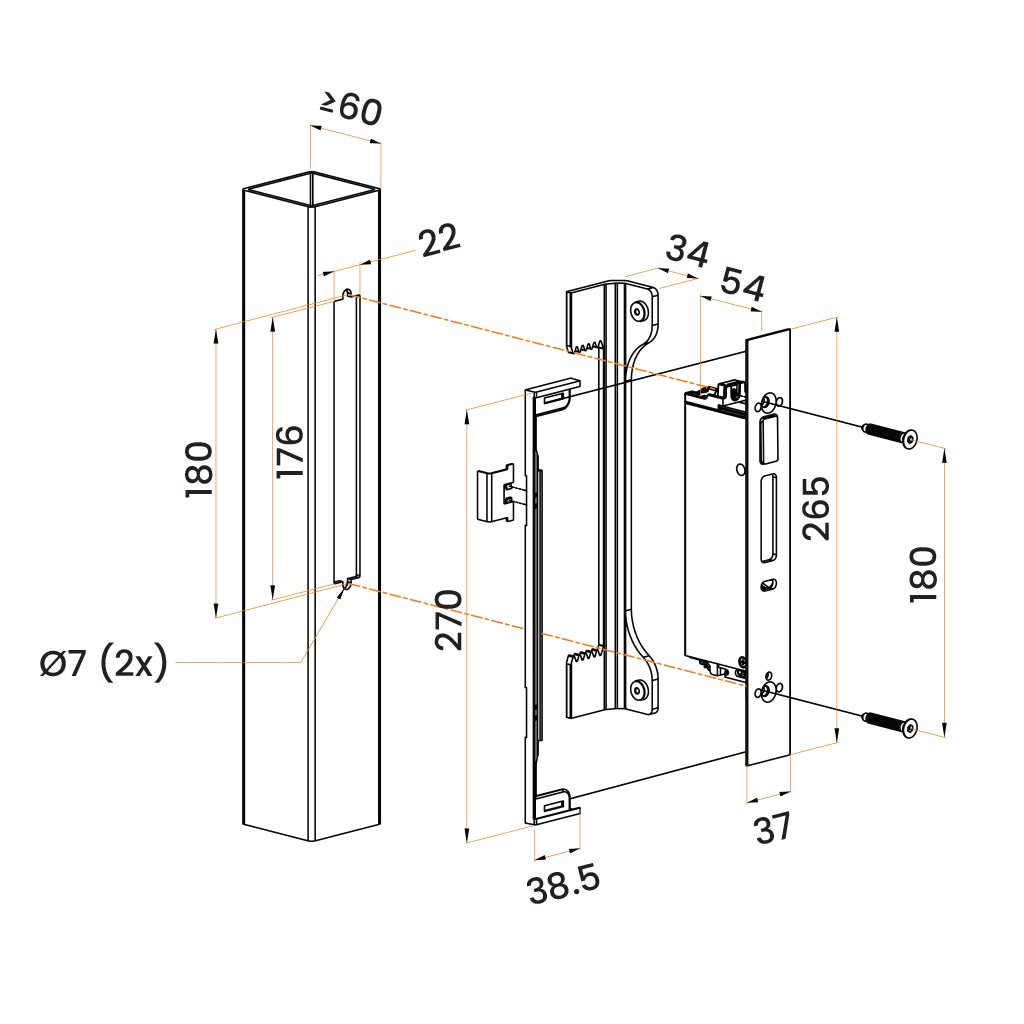

• For posts 60mm+
• Compatible with Fortylock, Fiftylock, Sixtylock pedestrian gate locks
• Suits 40-50 mm gate frames
• 5mm vertical adjustment for gate sag
• Click-It installation system
• Compatible with Locinox universal UNIWIG fit system.
• Easy switch to left or righthand
• IP56
• Voltage: 24 V DC
• Configurable with or without strike plate
• Gate-post clearance:
  • 8-15mm without striker, 12-19mm with striker
• Hold-open function
• Power consumption:
  • Peak: 55W
  • Extended (open) state: 3W
  • Retracted (rest) state: 0W
