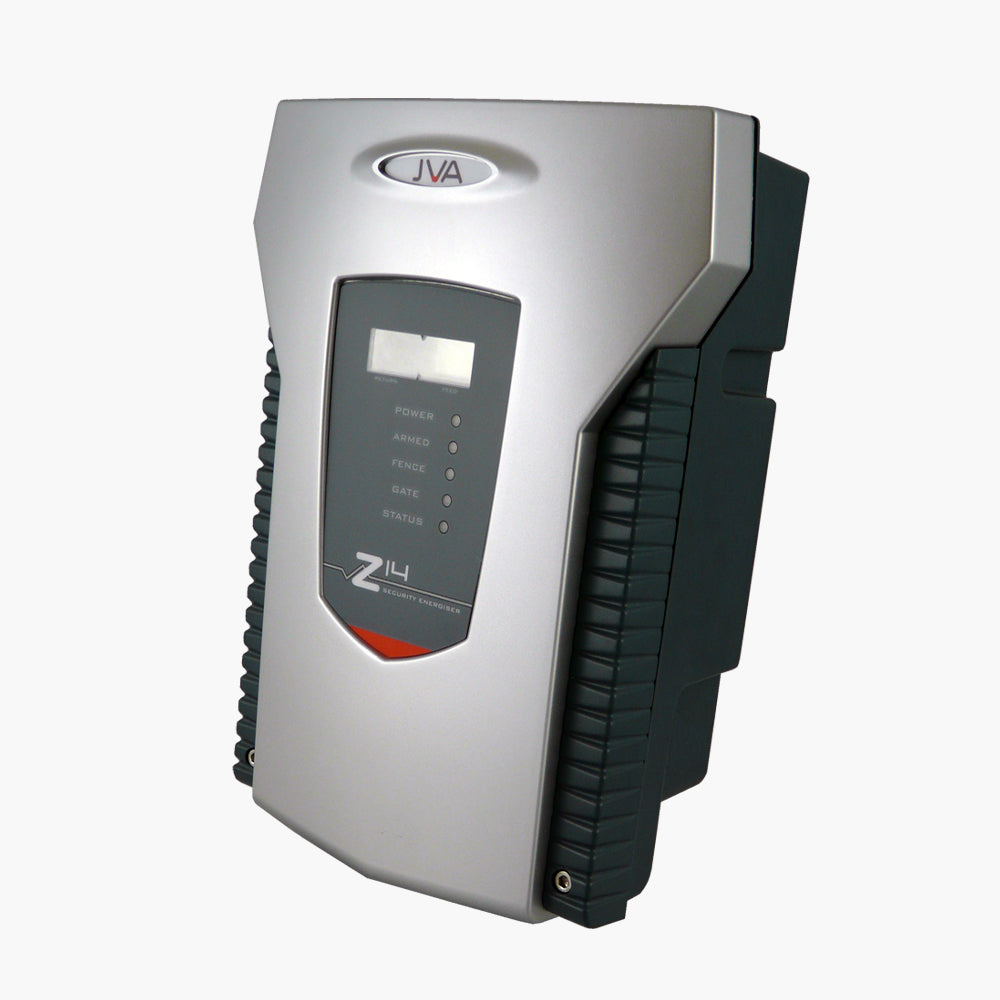

JVA Z14R Electric Security Energiser

The JVA Z14R is a 4-joule, single-zone security electric fence Energizer purpose-built for the control and monitoring of perimeter security electric fences. It can meet all of the requirements from basic residential to fully integrated high-profile installations. The Z14R can be programmed and controlled using the LCD keypad. It can also be networked with other Z Range Energizers to form a pulse-synchronized group for larger sites that require multiple zones.

Specifications

• 4 Joule Energiser Output.
• High and low power modes
• Tested and approved to AS/NZS60335.2.76
• Built-in charger and space for a 12V 7.2aH backup battery
• Supports Bi-Polar or conventional fence wiring
• Alarms on fence short or open circuit
• Control and programming via LCD Keypad
• A large number of programmable options
• Monitor via PC (using Perimeter Patrol software)
• 2 control inputs
• 2 switched 12V DC outputs (Siren and Strobe)
• Three “Form C” Relays with dry or contacts or switched voltage output
• Relays may be assigned to any alarm function
• The infrared tamper beam disables the Energizer if the lid is removed

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Automation.

• Download Z14R Installation Guide
• Download Z14R Product Sheet
