Locinox Cylinder Locks

3012-40-60-STD-VSZ - Asymmetric Europrofile cylinder with three keys: 40-60 mm, keyed alike or keyed to differ.

3012-54-STD-VSZ - Symmetric Europrofile cylinder with three keys: 54 mm, keyed alike or keyed to differ.

3012-60-STD-VSZ - Symmetric Europrofile cylinder with three keys: 60 mm, keyed alike or keyed to differ.

3012-80-STD-VSZ - Symmetric Europrofile cylinder with three keys: 80 mm, keyed alike or keyed to differ.

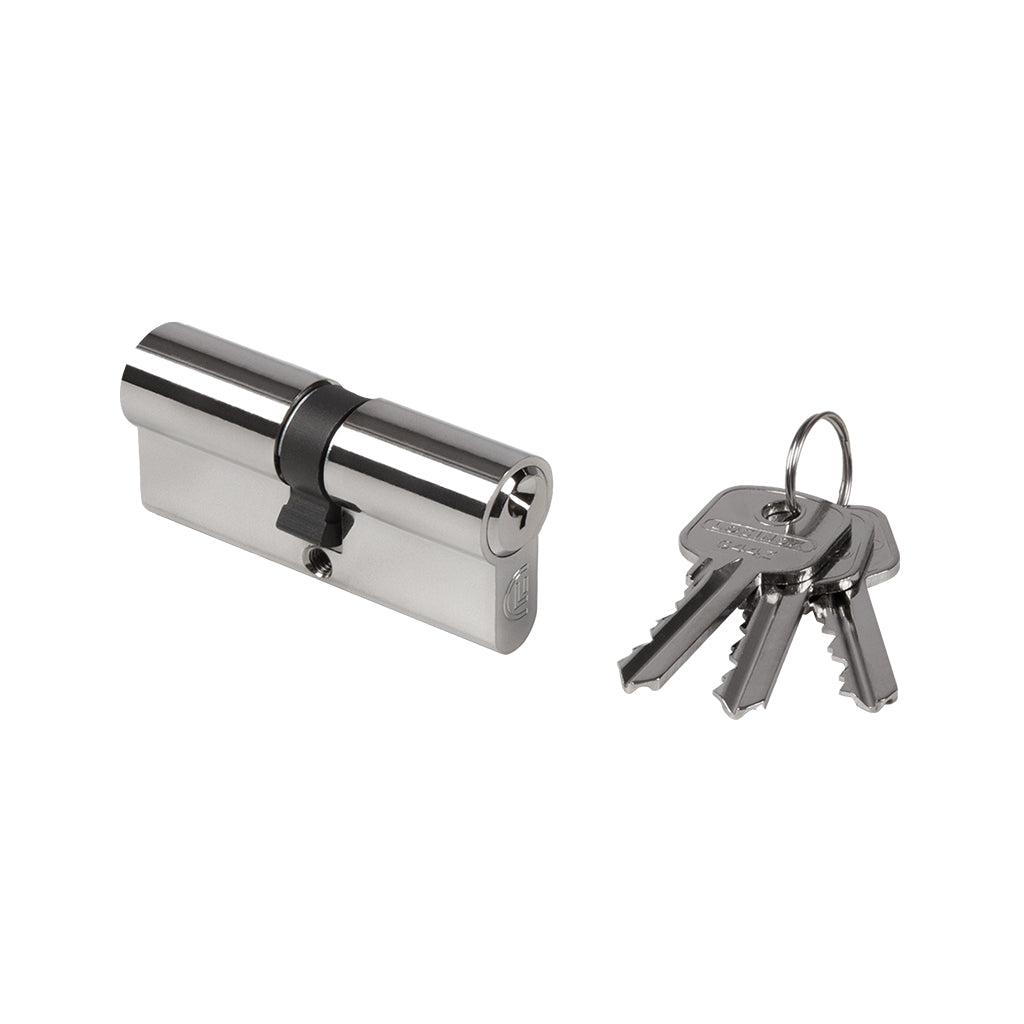

3012-70-STD-VSZ - Symmetric Europrofile cylinder with three keys: 70 mm, keyed alike or keyed to differ.

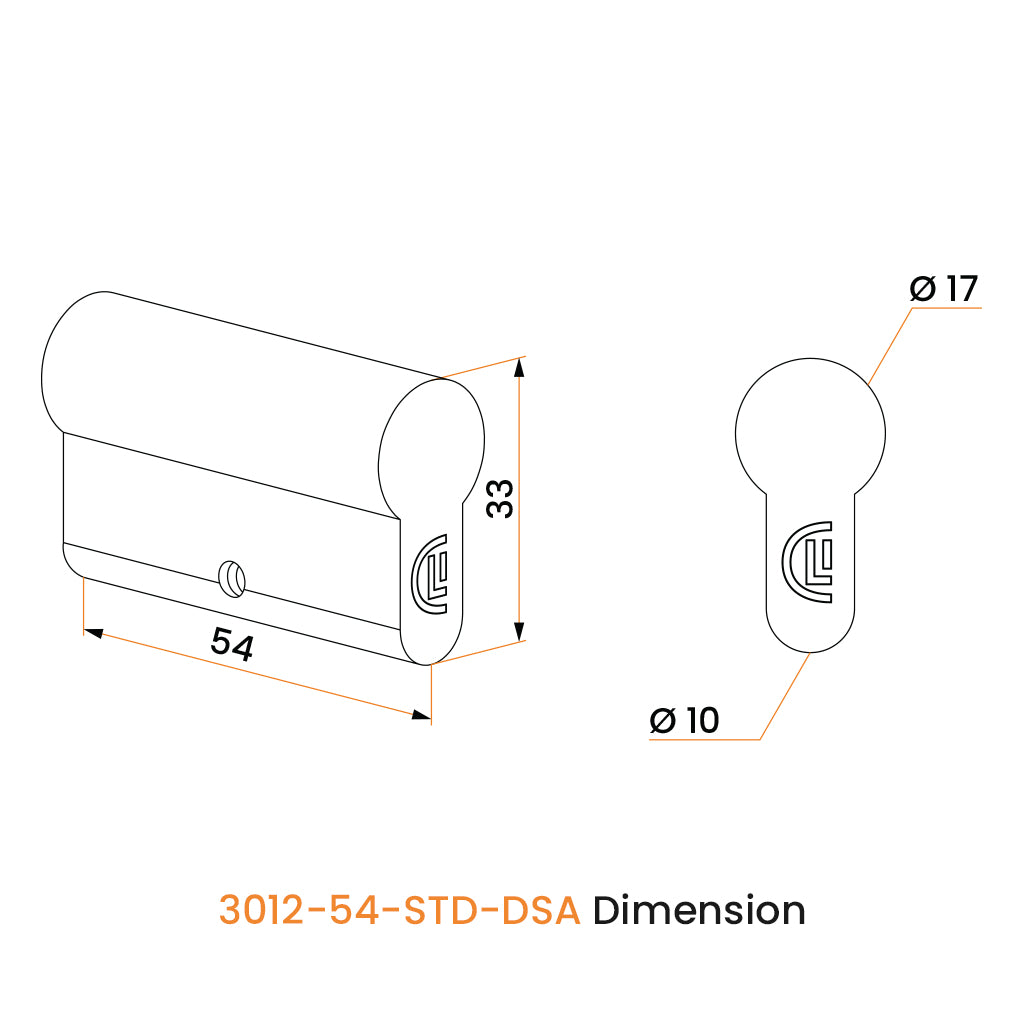

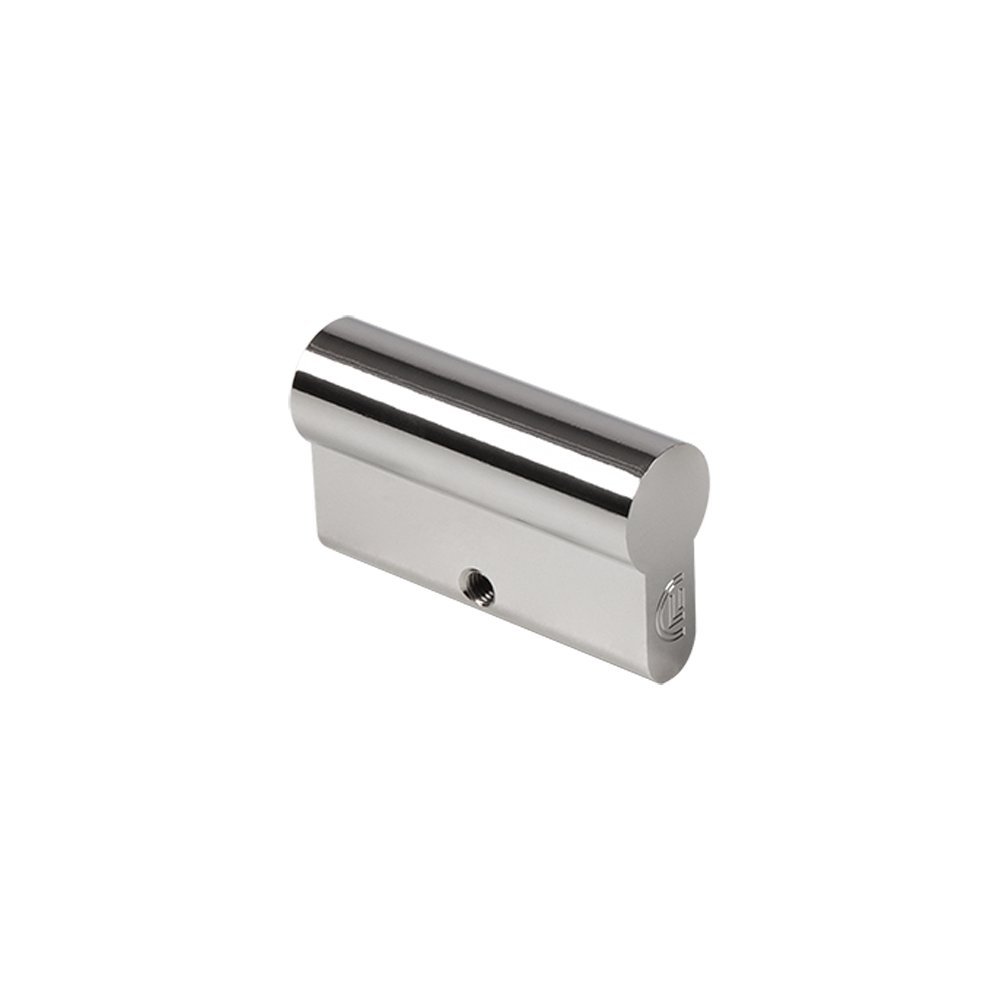

3012-54-STD-DSA - Dummy cylinder Europrofile 54 mm. Prevents the lock from being locked down.

3012-54-STD-DSA Specifications

• Dummy cylinder disables deadbolt locking
• For panic gates in combination with the 3006PUSH and PUSHBAR

3012-40-60-STD-VSZ Specifications

• 40-60 mm Europrofile cylinder with three keys
• GSZ: Only compatible with the 3012-54-STD-GSZ and 3012-37-STD-GSZ
• For VERA

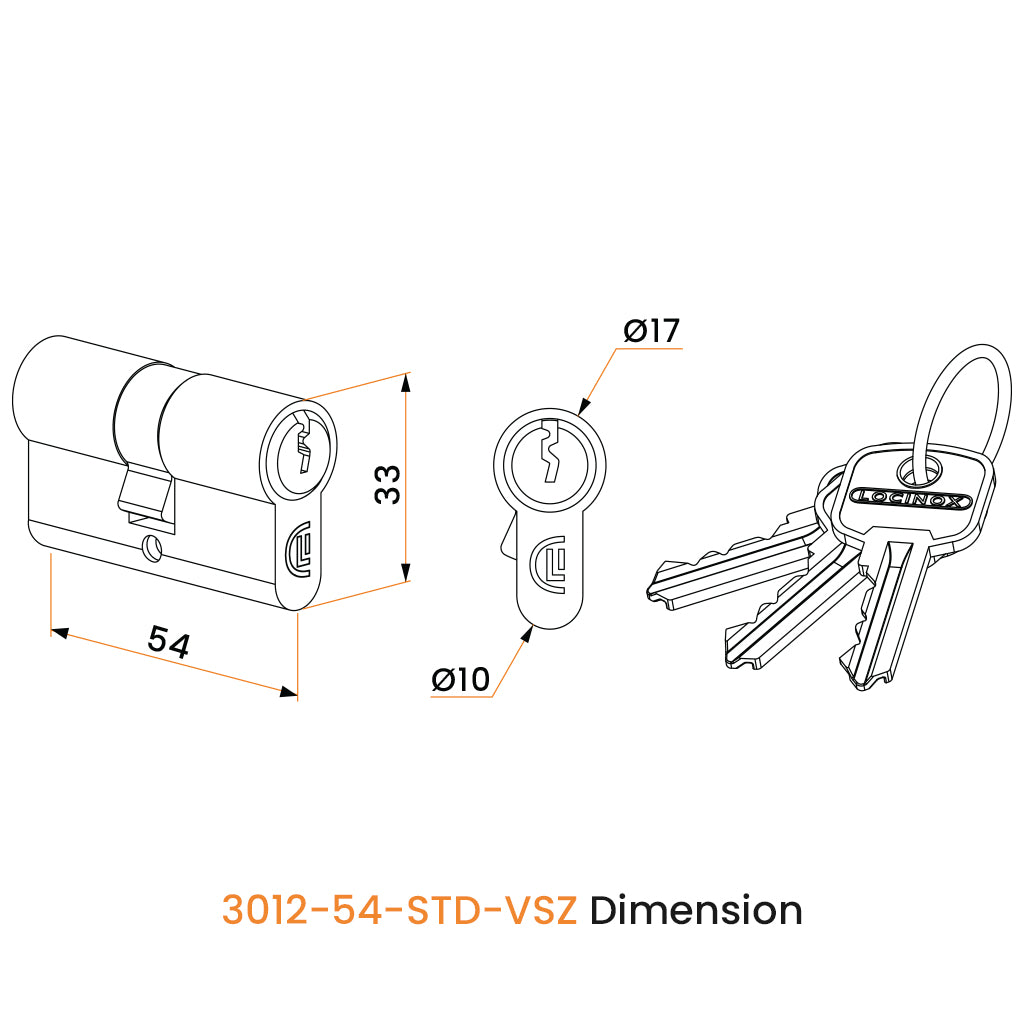

3012-54-STD-VSZ Specifications

• 54 mm Europrofile cylinder with three keys
• VSZ: keyed to differ
• GSZ: keyed alike Z
• GSY: keyed alike Y
• GSX: keyed alike X
• GSZ: Only compatible with the 3012-54-STD-GSZ and 3012-37-STD-GSZ

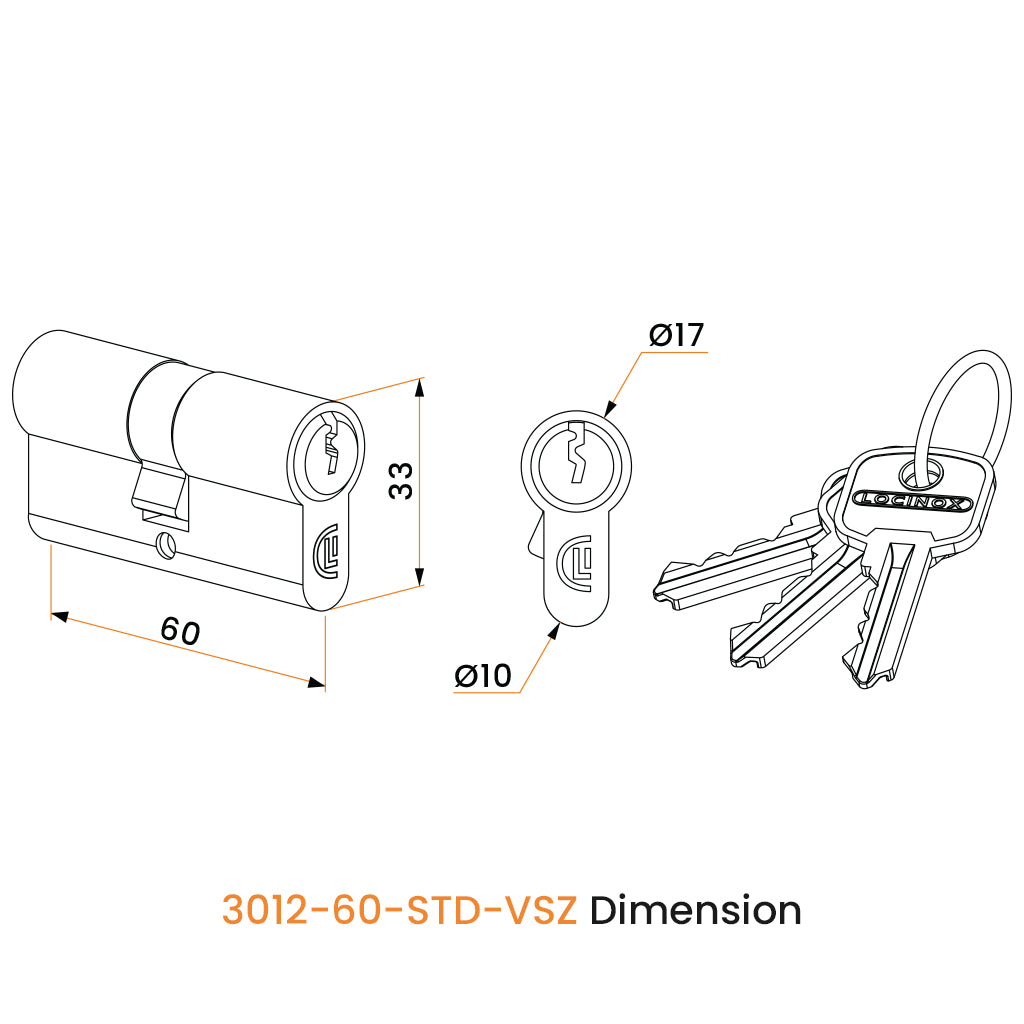

3012-60-STD-VSZ Specifications

• 60 mm Europrofile cylinder with three keys
• GSZ: Only compatible with the 3012-54-STD-GSZ and 3012-37-STD-GSZ

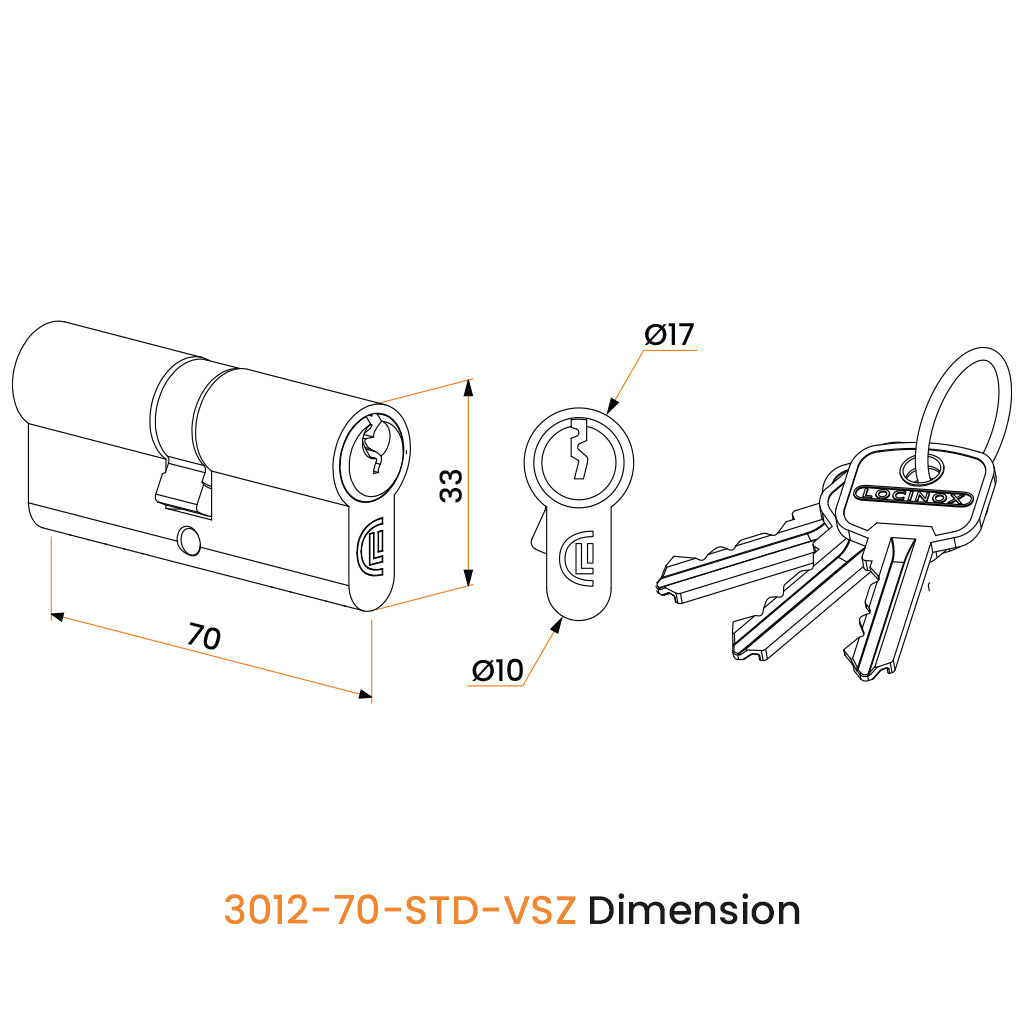

3012-70-STD-VSZ Specifications

• 70 mm Europrofile cylinder with three keys
• GSZ: Only compatible with the 3012-54-STD-GSZ and 3012-37-STD-GSZ

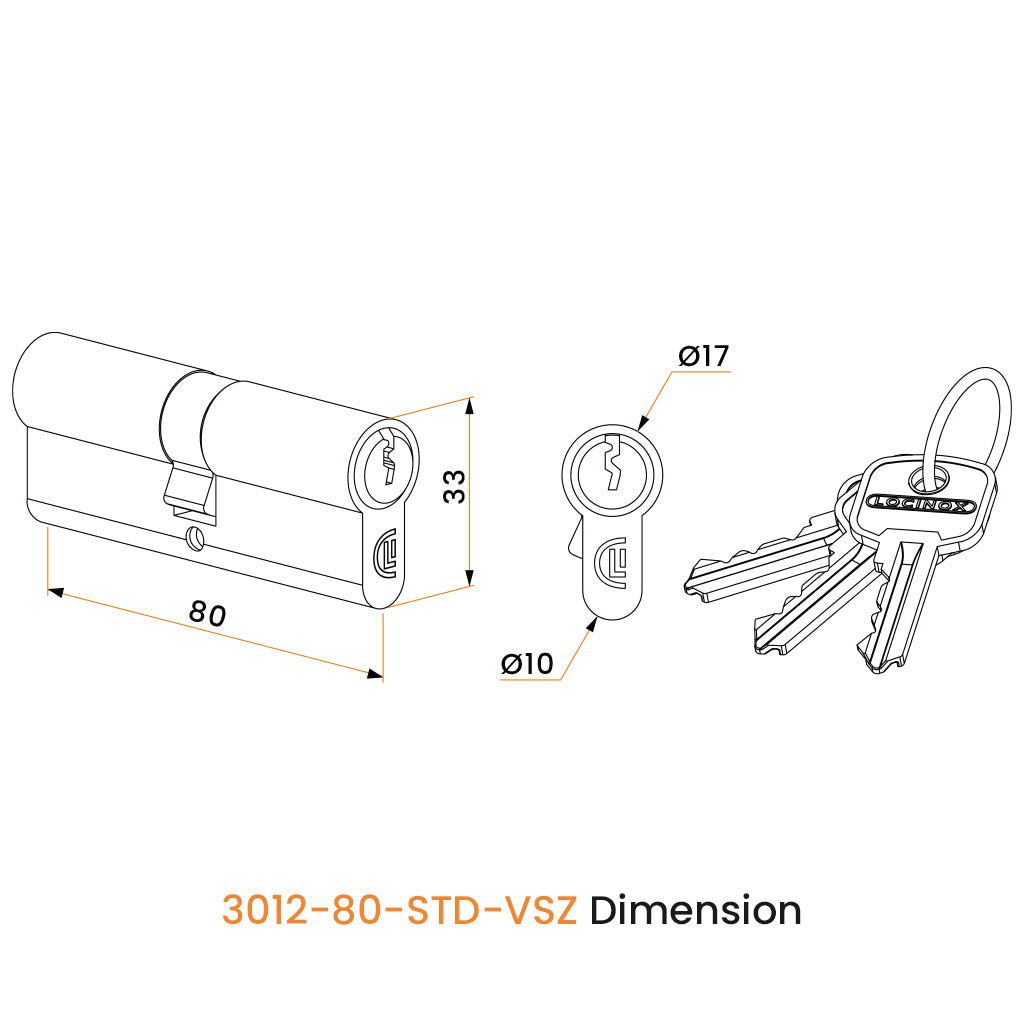

3012-80-STD-VSZ Specifications

• 80 mm Europrofile cylinder with three keys
• GSZ: Only compatible with the 3012-54-STD-GSZ and 3012-37-STD-GSZ
