Compression Insert for Adjustable Socket

Name: Compression Insert for Adjustable Socket
Brand: Lynx
SKU: TI-50X16
Price: 53.0 NZD
Availability: InStock

$53.00

Brand:

Lynx

SKU:

TI-50X16

Product Type:

Swing Gate Hardware

Compression Inserts are welded into the gate frame to give it strength where the hinges are attached. They are designed to be used with a M16 socket hinge (SA16-100).

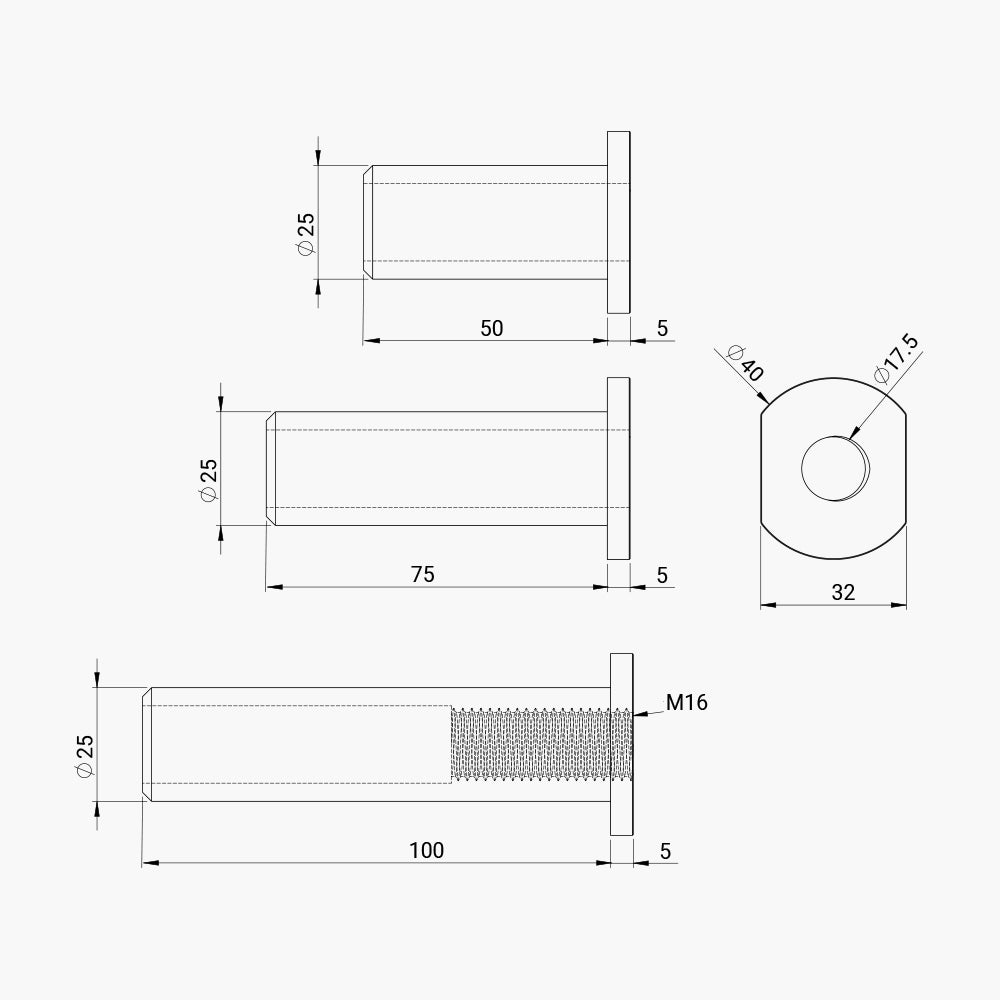

Size:

50mm 75mm 100mm threaded

Variant

More information

Extended Description

Compression Inserts are welded into the gate frame to give it strength where the hinges are attached. They are designed to be used with a M16 socket hinge (SA16-100).

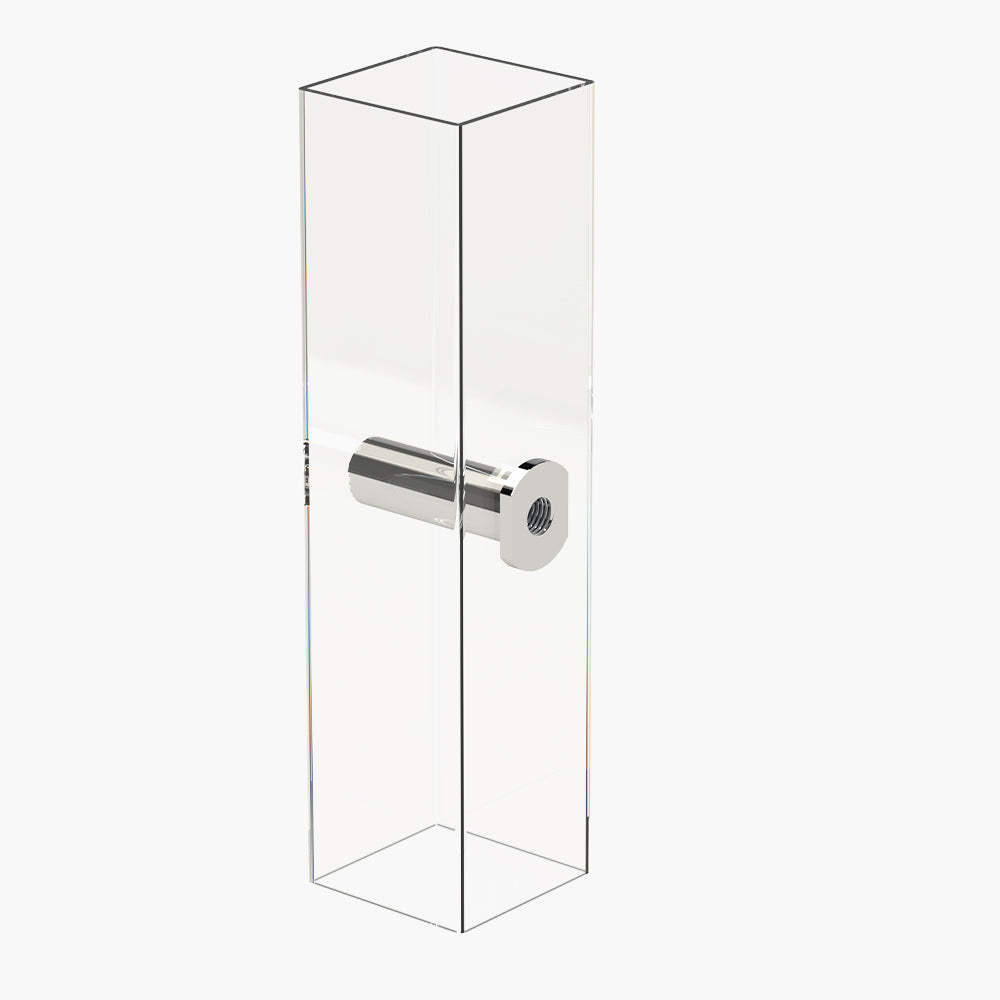

100mm sockets are partially threaded, allowing them to be used where the inside of the gate does not have room for a nut (shown in picture).
50mm and 75mm are clearance for M16.
