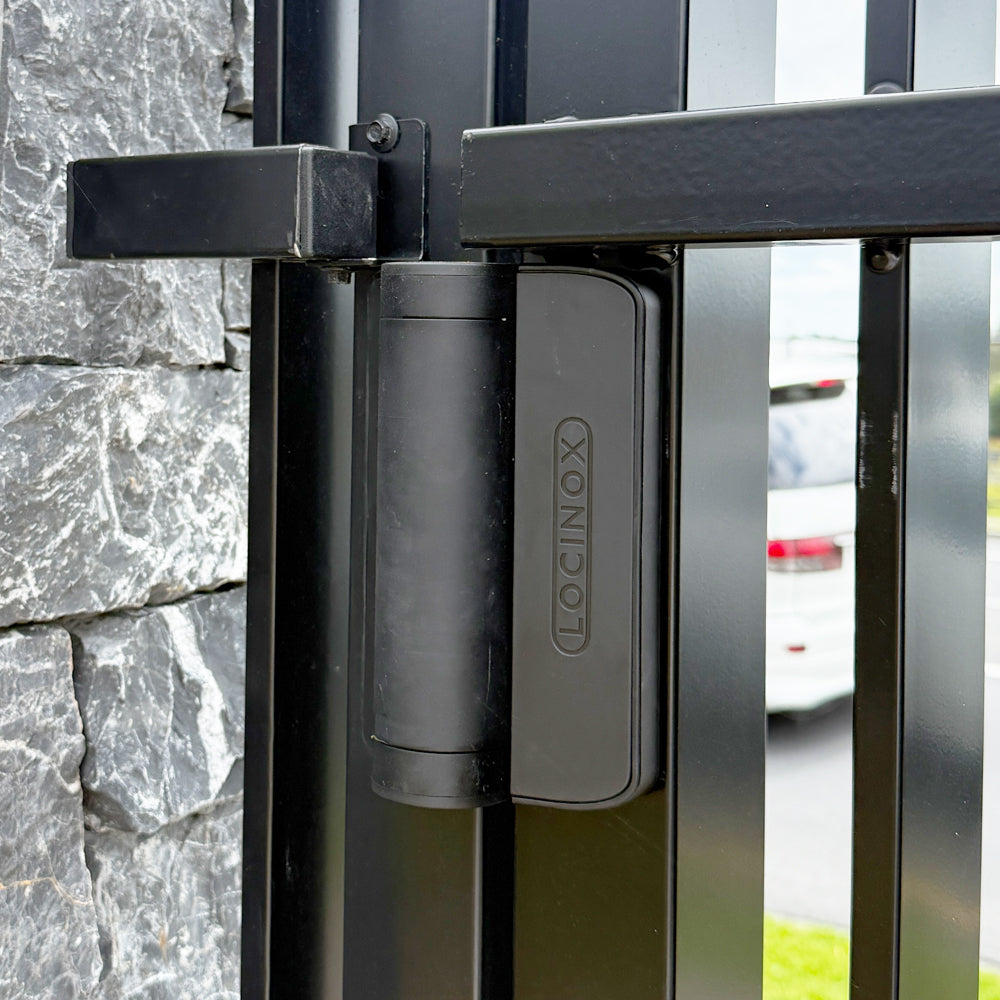

Caracal 180° Self-Closing Hinge

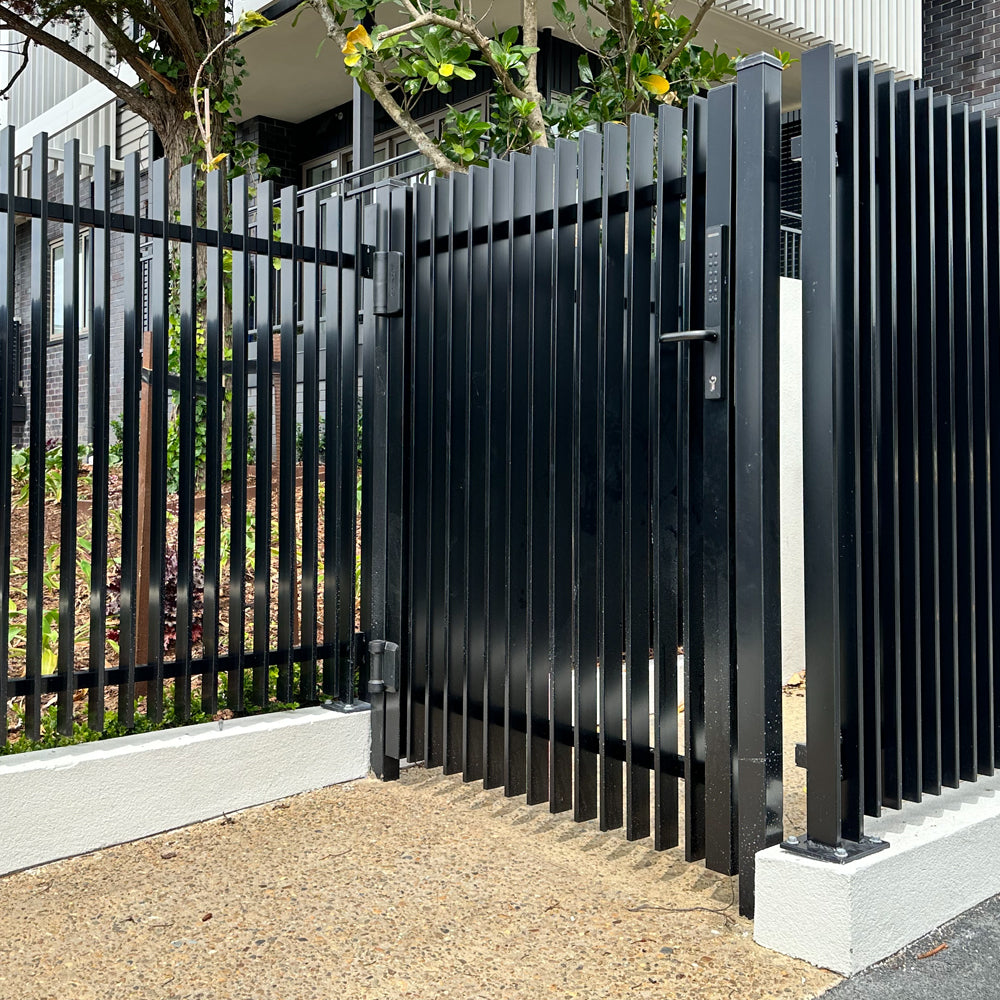

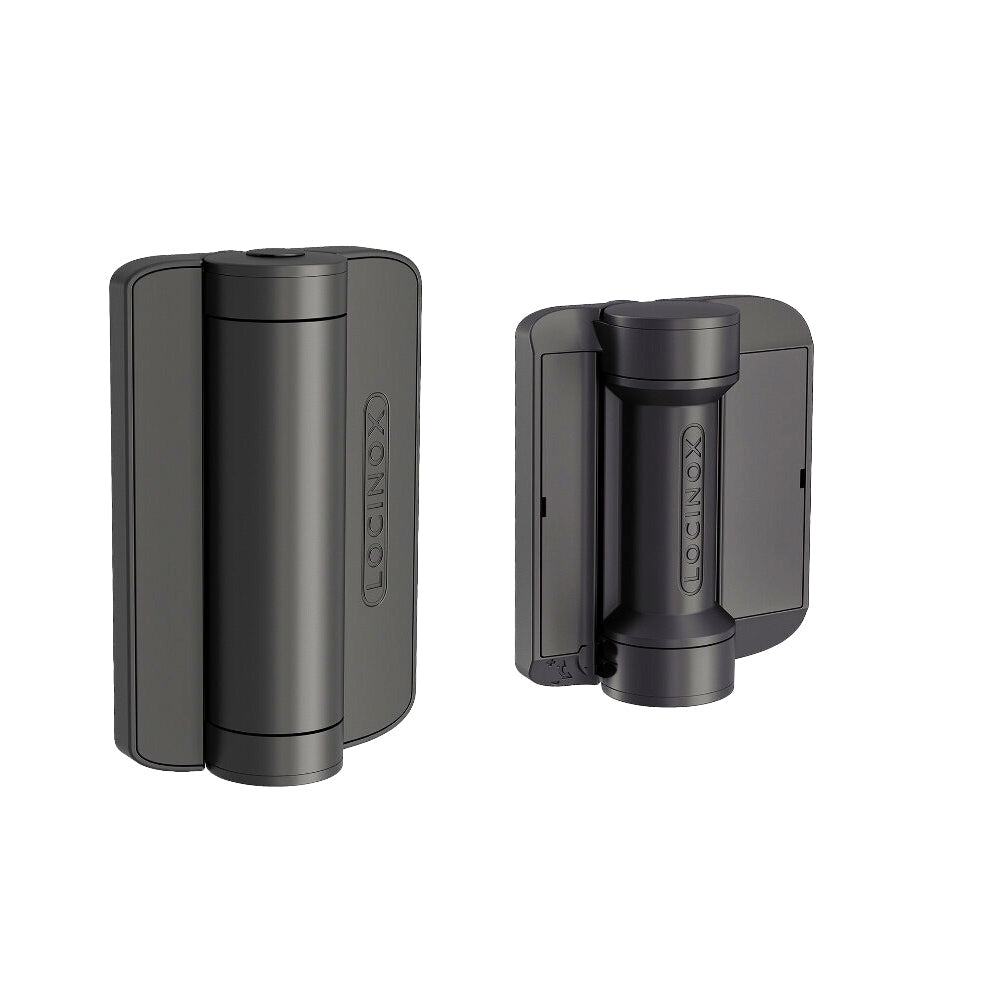

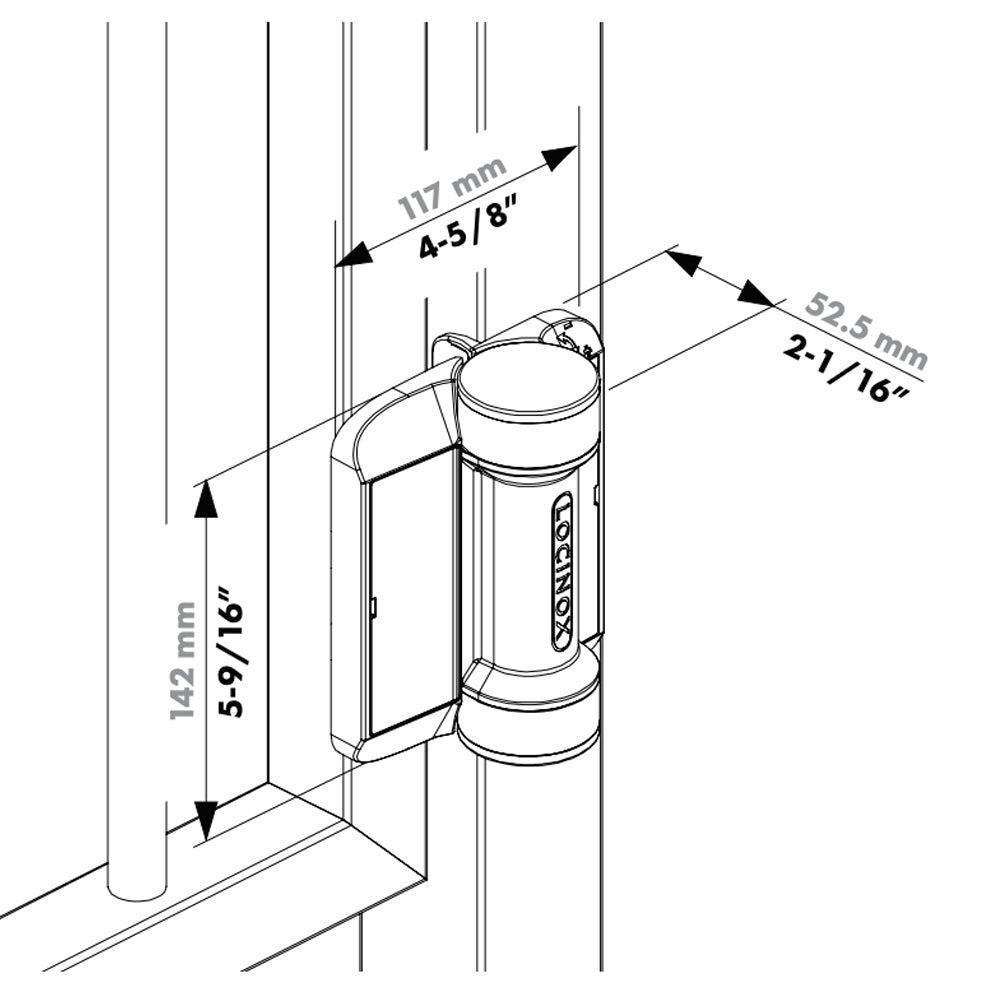

For pedestrian gates of 60kg up to 1100mm wide, this hydraulic hinge is firmly fixed with self-drilling screws - no welding required. Suitable for installation on square and round frames with adapter, Caracal is a perfect fit for swimming pools, playgrounds, parks and garden gates. Supplied together with passive bottom hinge.

Round post adaptor kit available to order separately. Part number: CLB-CARACAL

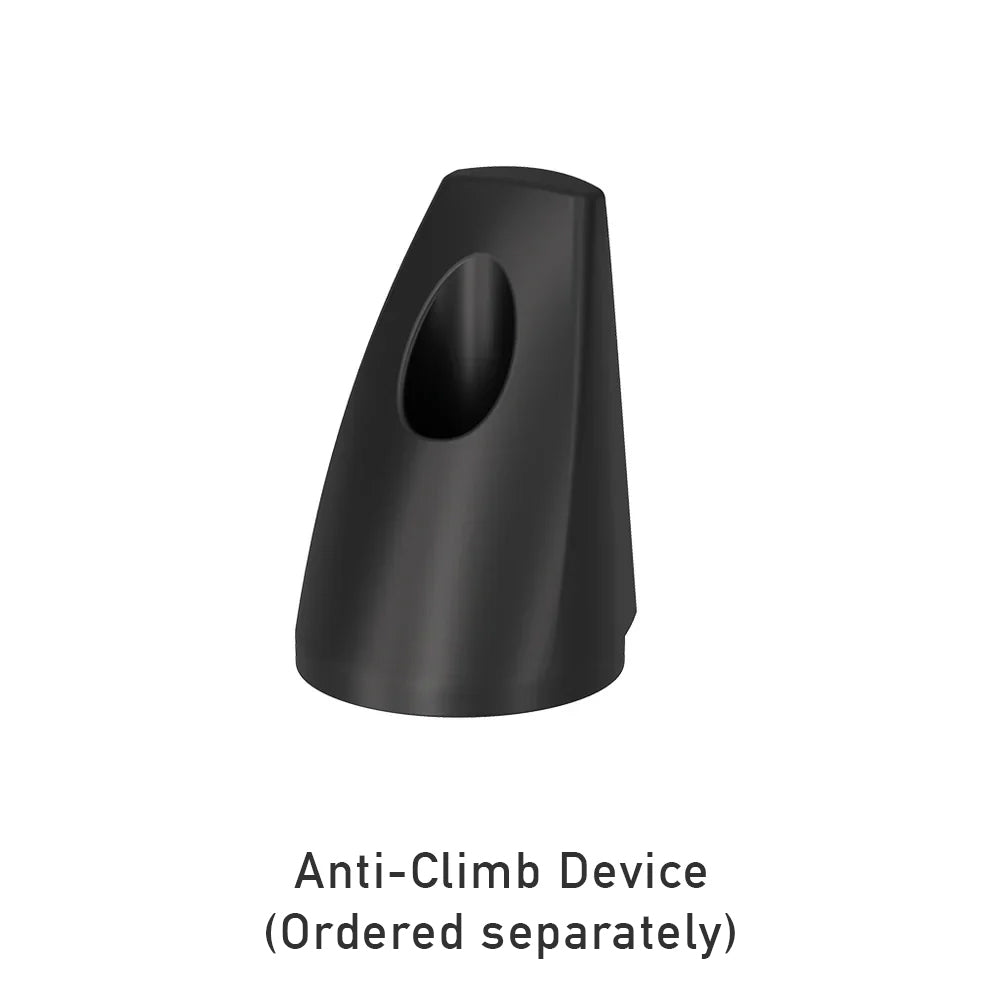

NoStep - Anti-climb device for Caracal spring hinge (order separately, shown on this page).

Installed on top of the bottom hinge to prevent children from using it as a step. Made out of Fiberglass reinforced PA, the NoStep matches perfectly with the Caracal.

CARACAL Specifications:

• Automatic 180° closure with adjustable closing speed and final snap.
• Glassfibre-reinforced PA Housing
• Closing speed unaffected by humidity and temperature changes
• For left and right turning gates
• Fast and easy fixing with self-drilling screws

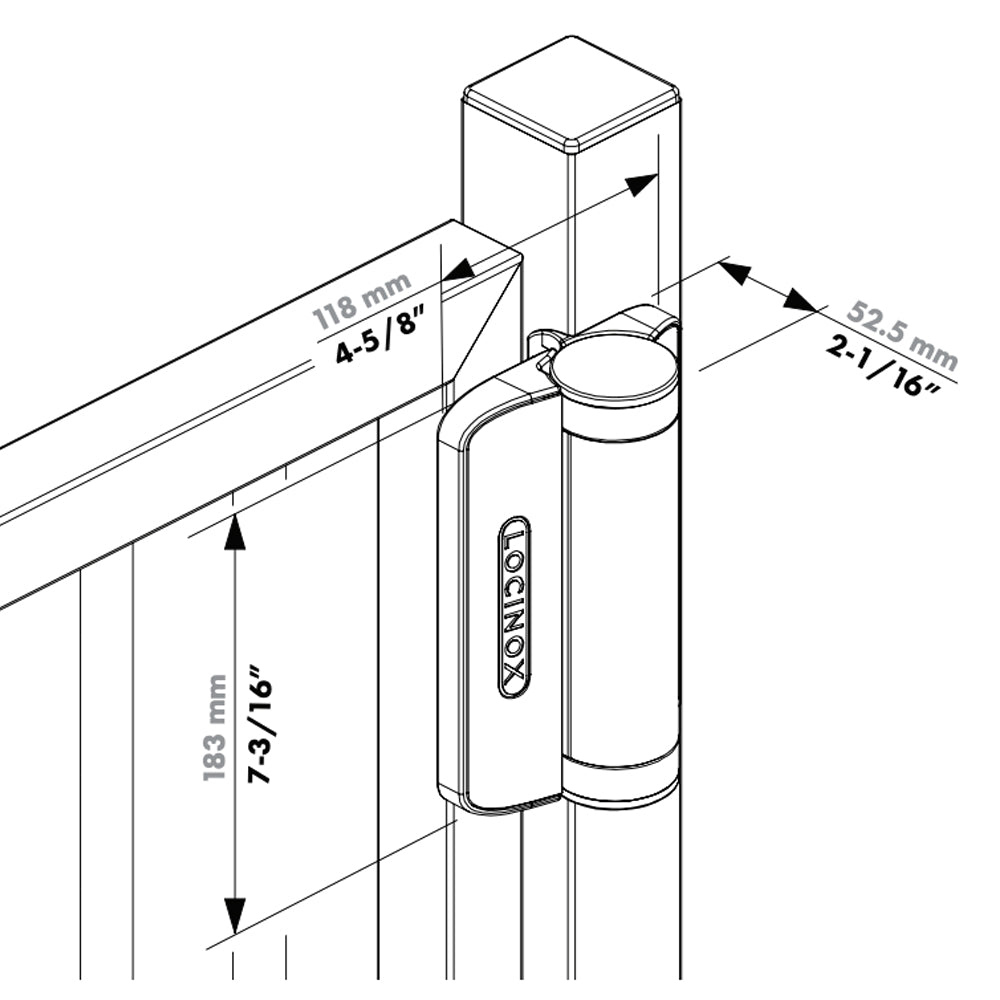

• 20 mm horizontal and vertical adjustability
• Easy to open: Max. 11 Nm
• For installation on round frame: CLB-CARACAL is to be ordered additionally
• For pedestrian gates up to 1100mm wide
• For gates max 60kg

NOSTEP Specifications:

• Made out of Fiberglass reinforced PA
• To be mounted on top of the Serval spring hinge

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Automation.

• Download Installation Guide
• Download Flyer
