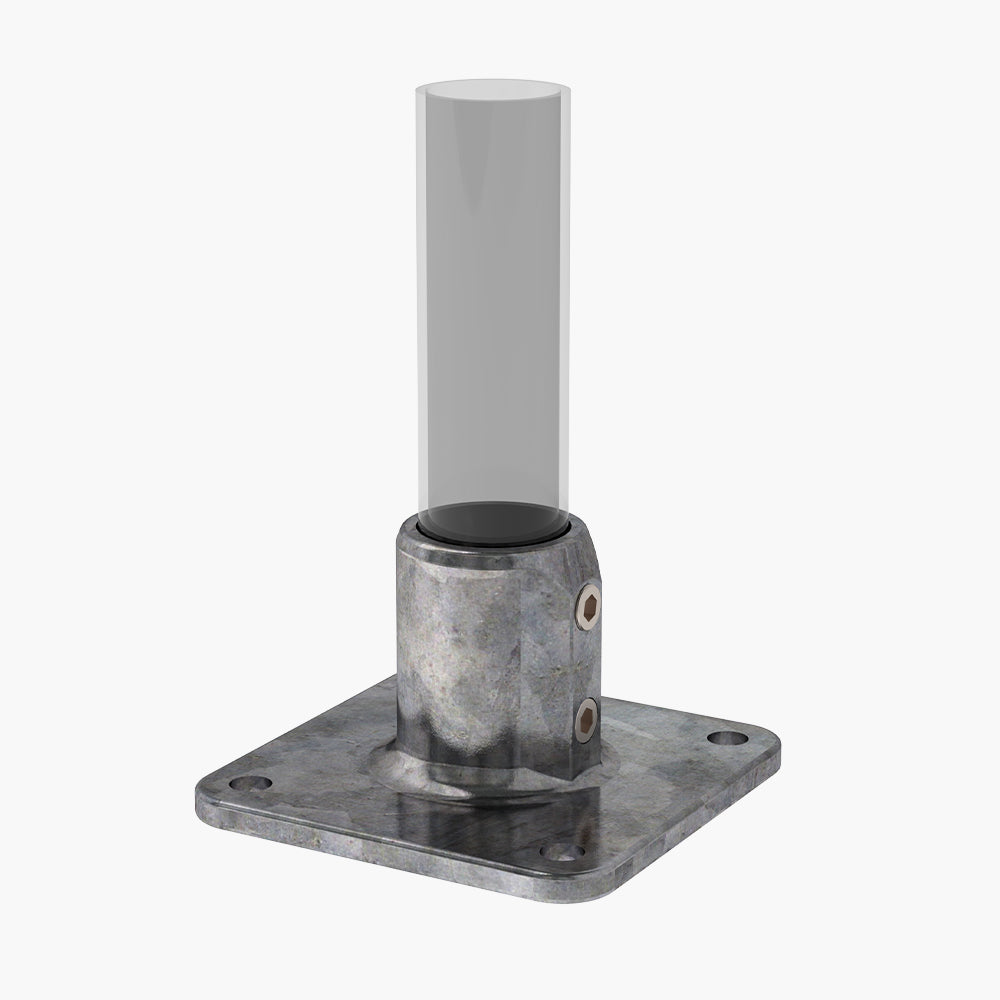

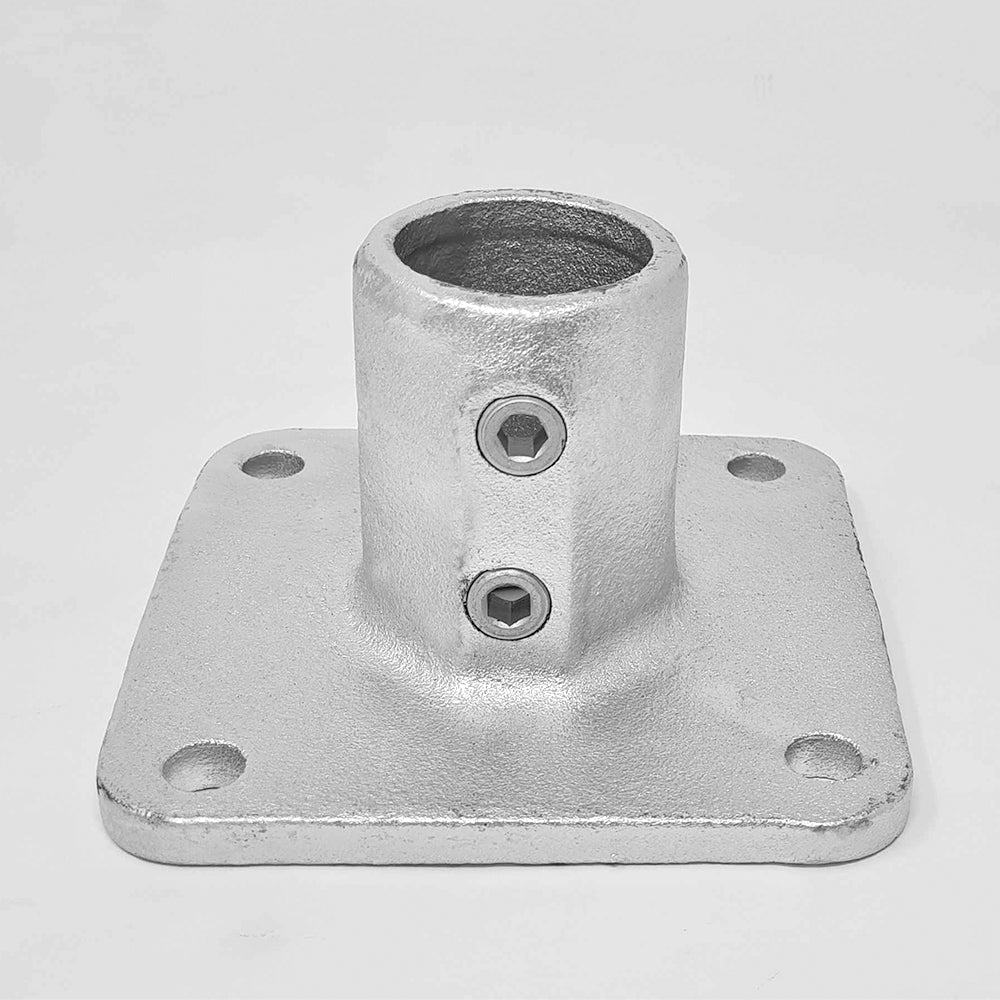

PIpe Clamp 4.12 - Square Base Flange 4 hole

MasterKlamp Pipe Clamp System is engineered for the simple, rapid assembly of tubular structures without the need for welding, bending or threading. The 4 hole base flange is designed to suit balustrade applications. Four fixing points to offer better attachment and rigidity to the post and the short neck allows for a bottom rail to not pass the 100mm requirement from the ground. No matter the complexity of the design, MasterKlamp enables quick, on-site construction.

The modular design of MasterKlamp means you can create all kinds of traditional configurations for things such as handrail, balustrade and guardrail, but the design possibilities are endless. With the popularity of the DIY industrial chic look, these fittings have become immensely popular for shop and cafe fitouts, furniture making and tradeshow displays.

Features:

1. Hot dip galvanised to AS/NZS 2312.2:2004
2. Cast from Malleable Steel
3. Producer Statements for a wide range of handrail and balustrade applications

Applications:

1. Hand Rail and Balustrades
2. Handrails compliant with AS1428.1:2009 and the requirements of the Disability Discrimination Act
3. Pipe + Mesh enclosures
