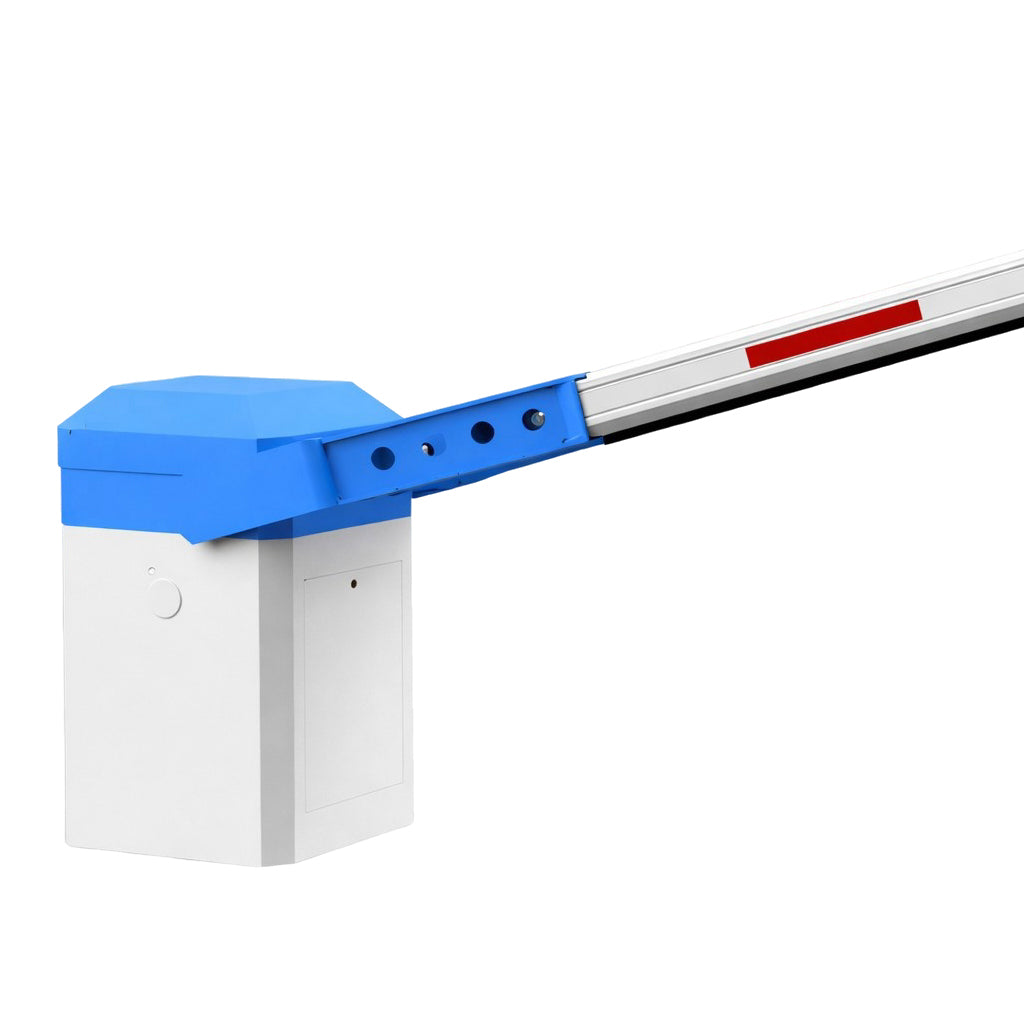

Barrier KOLOSS, wide vehicular access spans

ELKA KOLOSS series barriers are engineered for maximum protection at wide industrial entrances up to 12 meters. Available with folding skirts or folding top-and-bottom skirts, they deliver powerful, reliable access control. Precision electronic speed control and a perfectly synchronized mechanism ensure exceptionally smooth operation while safeguarding the motor and gearbox. A high-efficiency drive system combined with rugged, heavy-duty components guarantees intensive use, extended duty cycles, and long-term performance you can depend on.

Variations

ELKA offers a selection of 2 barrier types of this series with different effective boom lengths and running times, as well as suitable accessories for different applications.

Models / Boom Length / Speed

• KOLOSS 90: Boom length 9,000 mm (effective approx. 9,180mm), running time 9.0s, max 100 cycles/hour
• KOLOSS 120: Boom length 12,000 mm (effective approx. 12,180mm), running time 12.0s, max 75 cycles/hour

Electrical / Environmental

• Duty Cycle: 100% (Intensive Operation)
• Supply: 230V, 50Hz
• Current Consumption: max 10A (230VAC)
• Operating Temperature: -20°C to +50°C
• Protection Rating: IP44


Physical / Construction

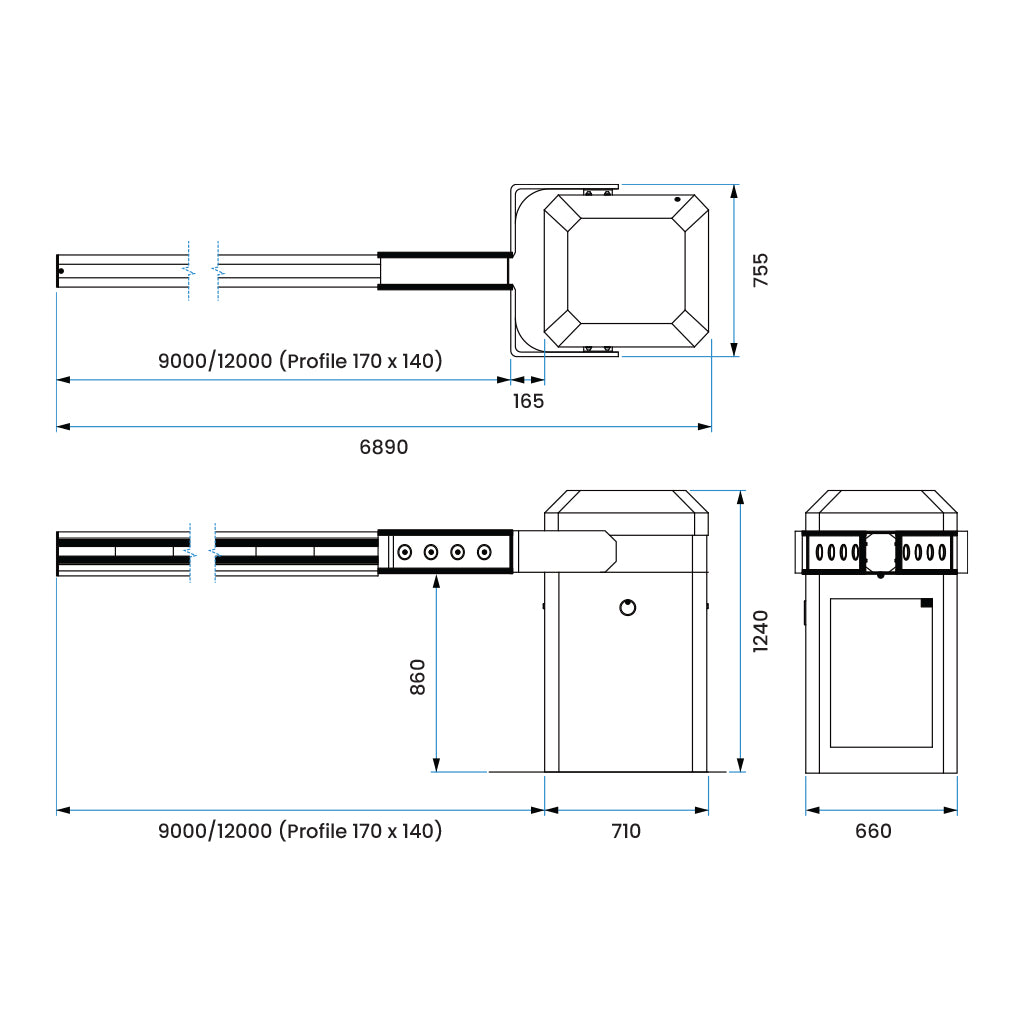

• Housing Dimensions (W/D/H): 660 × 710 × 1,250mm
• Barrier Housing: Aluminium, powder-coated (IP44)
• Boom Material: Aluminium; boom profile 170 × 140mm
• Weight (without boom): Approx. 450kg / 475kg (90/120)
• Boom Weight: Approx. 58 g / 71.5kg (90/120)

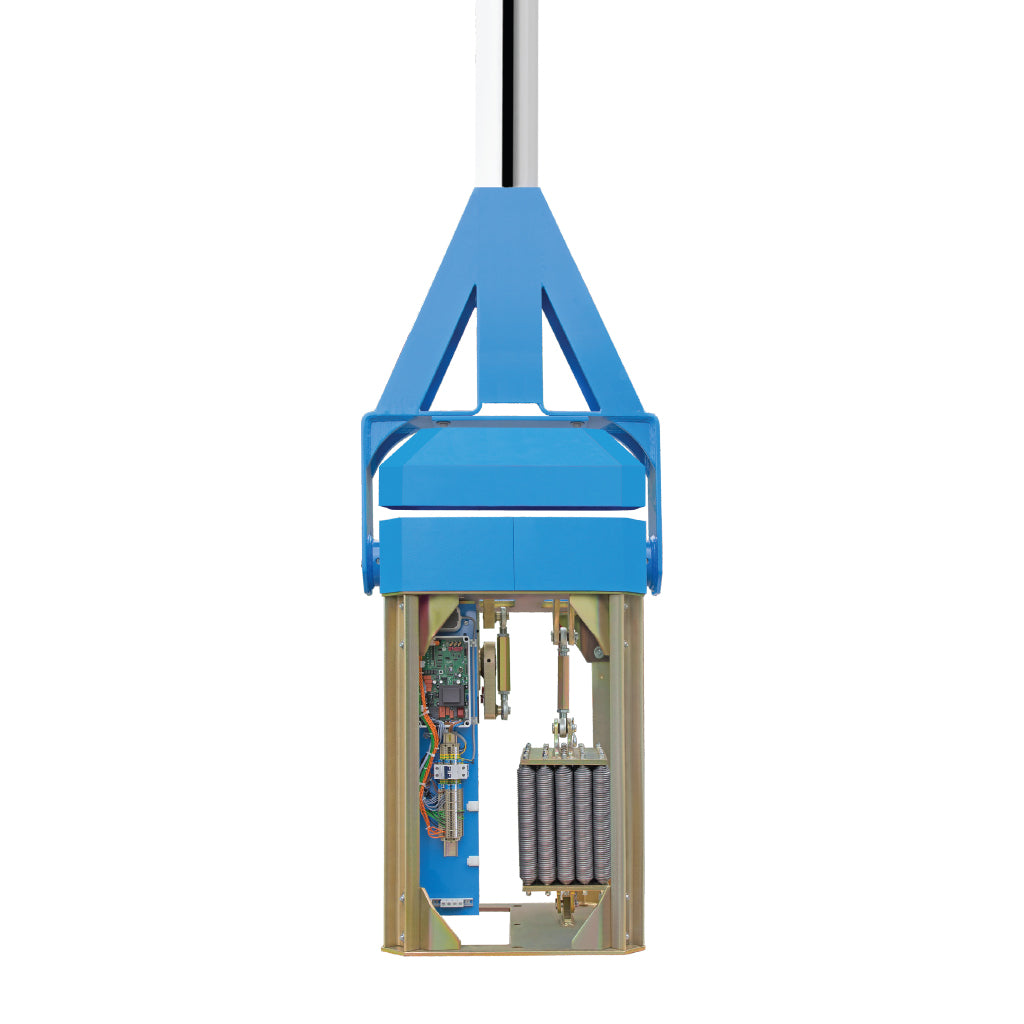

• Spring Assembly: Tension springs rated 100,000 cycles


Control / Safety (standard equipment)

• Controller: MO 64 “Plus” with 4×7-segment display
• Electronic Speed Control: Yes
• Loop Detectors: 3 integrated
• Relays: 6 integrated multifunction relays (e.g., traffic lights, boom LED, etc.)
• Power Reversal: Connectable (obstacle detection)
• Dead Man’s Mode: Yes
• Emergency Release: Fast/simple

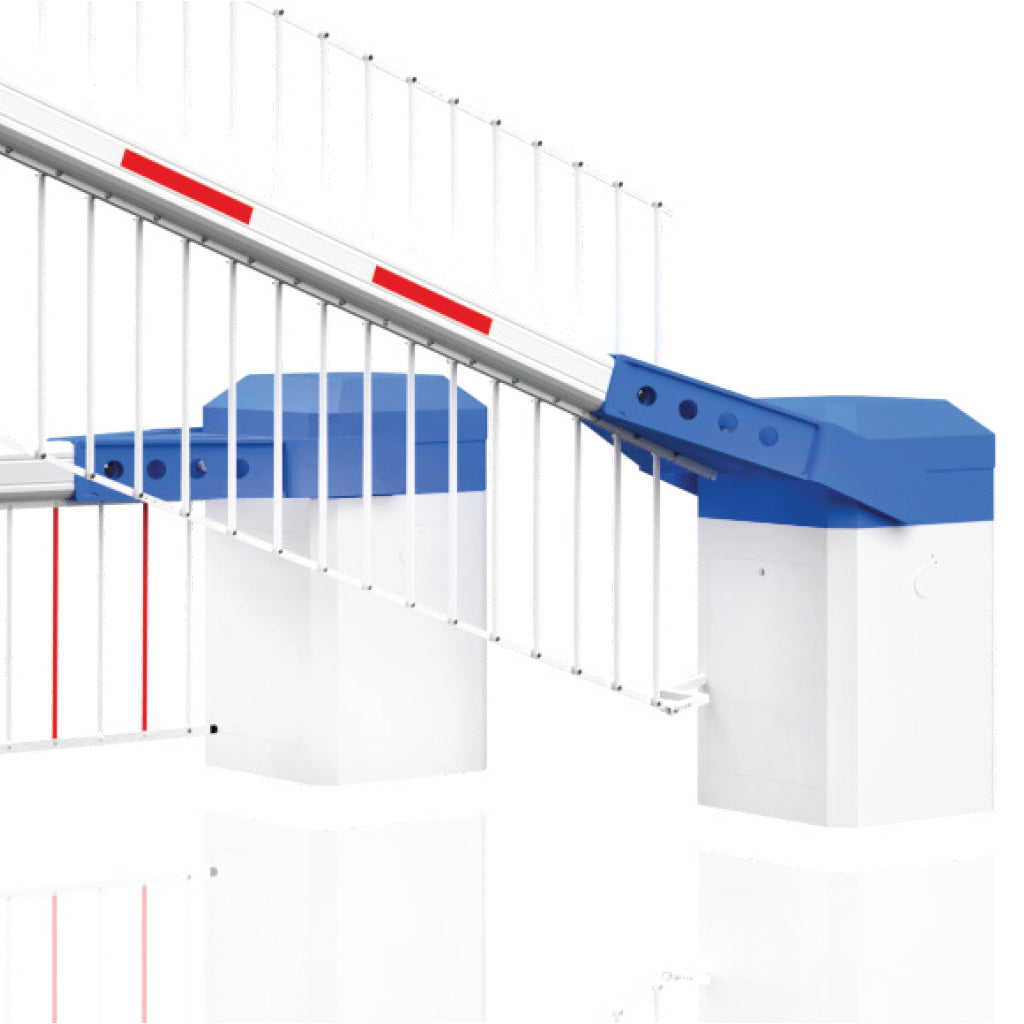

Skirt options (anti-walk-under)

• Folding skirt HG75: 750mm high, red/white, max boom 10,000mm
• Folding top & bottom skirt SG150: 1,500mm high, white, max boom 6,000mm
• Note: Two laser scanners are required when using folding skirts/top-bottom skirts

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Roger Automation.

• Download KOLOSS Barrier Tech Spec
