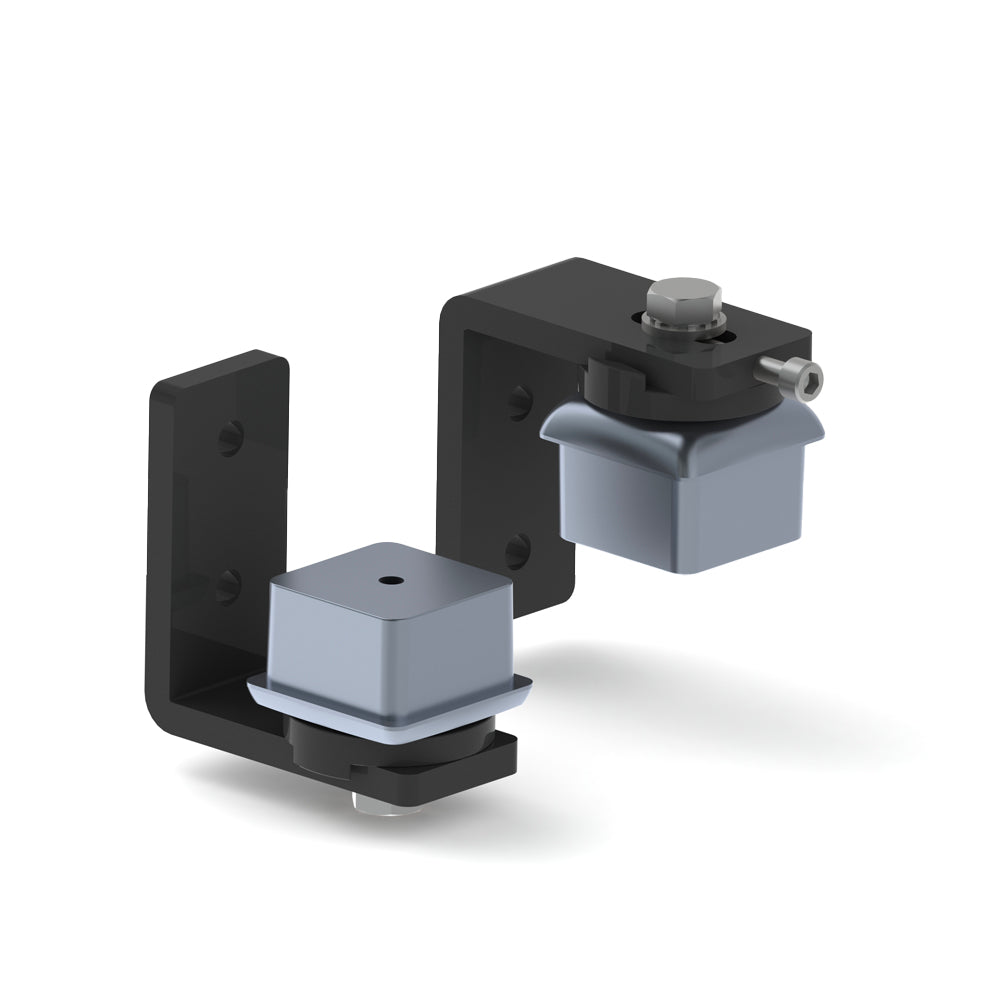

Aluminium Gate Rebate Bearing Hinge
A hinge set consists of; 1 x top hinge and 1 x bottom hinge.

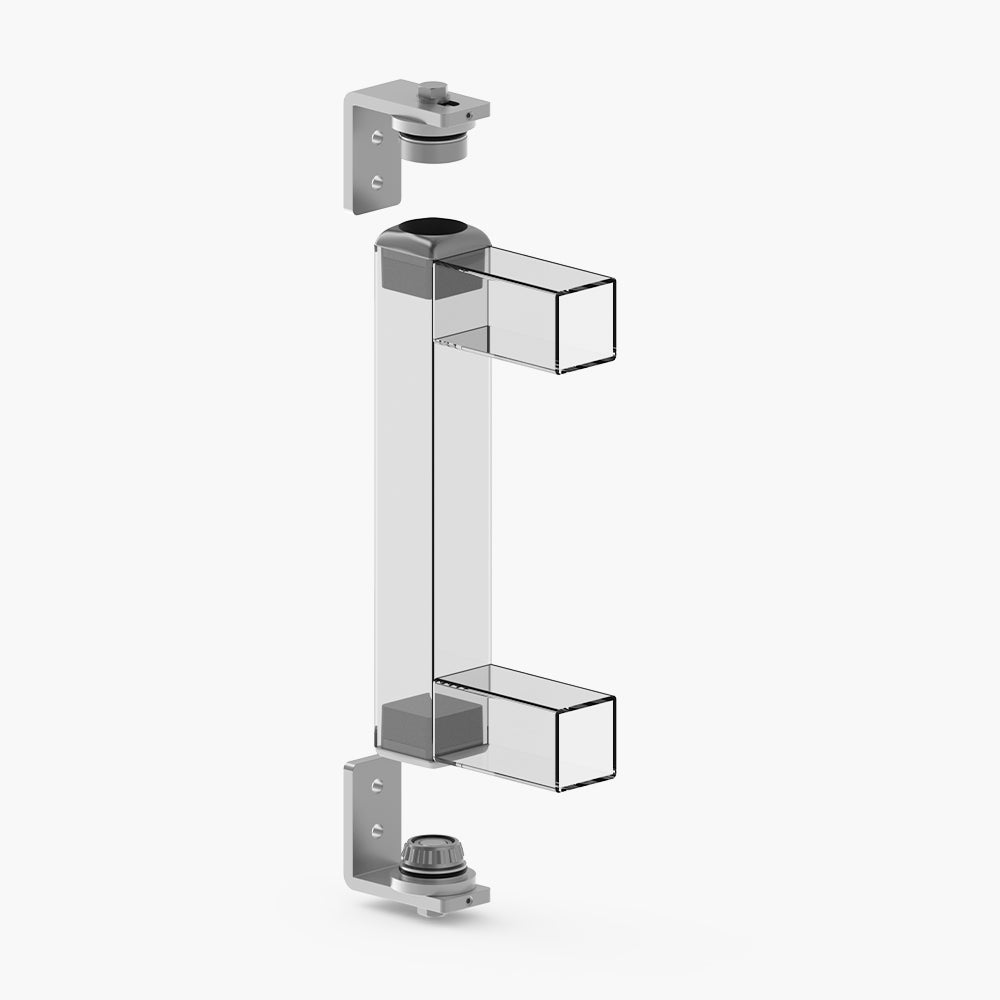

Rebate bearing hinges fit inside the frame of the gate to achieve a clean minimalist finish with very low post to gate gaps. They are the ideal hinge for automated aluminium driveway gates. The bottom hinge features a tapered thrust bearing and the top hinge has a sealed ball bearing.
- Fit insert cup to gate before powder coating
- Suitable for gate leaves up to 150kg (1:1 height to width ratio)
- Uses M8 fixings
- L-bracket can be bolted or welded to gate post
- Detailed install guide on the downloads tab
