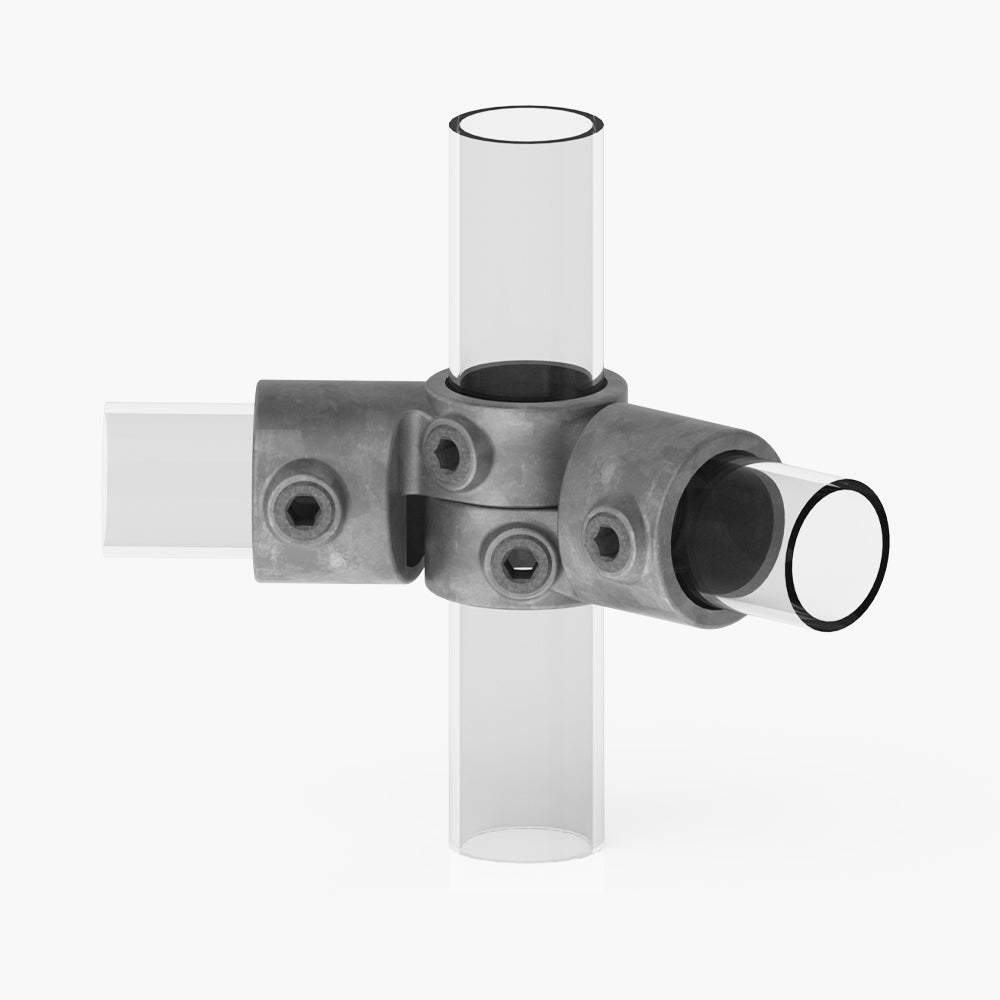

Pipe Clamp 2.10 - Adjustable Swivel Cross

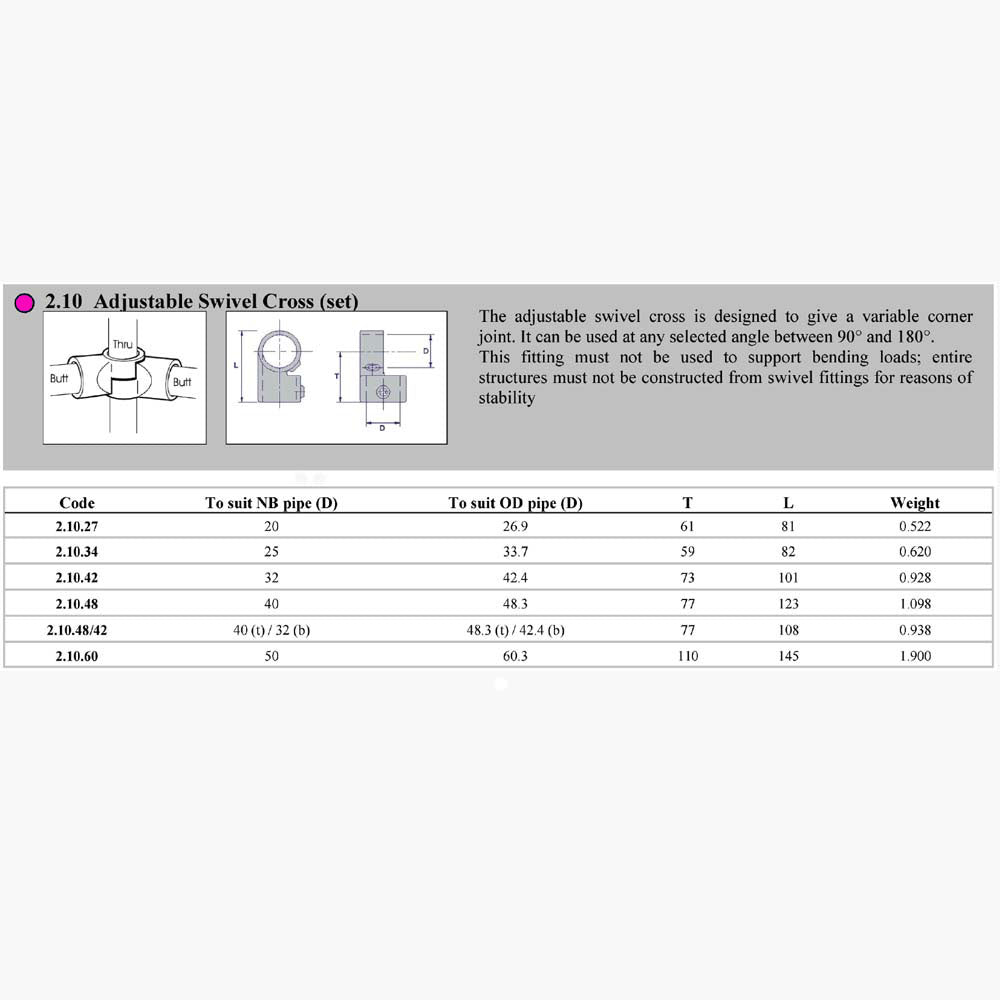

MasterKlamp Pipe Clamp System is engineered for the simple, rapid assembly of tubular structures without the need for welding, bending or threading. The adjustable swivel cross is designed to give a variable corner joint. It can be used at any selected angle between 90° and 180°. This fitting must not be used to support bending loads; entire structures must not be constructed from swivel fittings for reasons of stability. No matter the complexity of the design, MasterKlamp enables quick, on-site construction.

The modular design of MasterKlamp means you can create all kinds of traditional configurations for things such as handrail, balustrade and guardrail, but the design possibilities are endless. With the popularity of the DIY industrial chic look, these fittings have become immensely popular for shop and cafe fitouts, furniture making and tradeshow displays.

Features:

1. Hot dip galvanised to AS/NZS 2312.2:2004
2. Cast from Malleable Steel
3. Producer Statements for a wide range of handrail and balustrade applications

Applications:

1. Hand Rail and Balustrades
2. Handrails compliant with AS1428.1:2009 and the requirements of the Disability Discrimination Act
3. Pipe + Mesh enclosures
