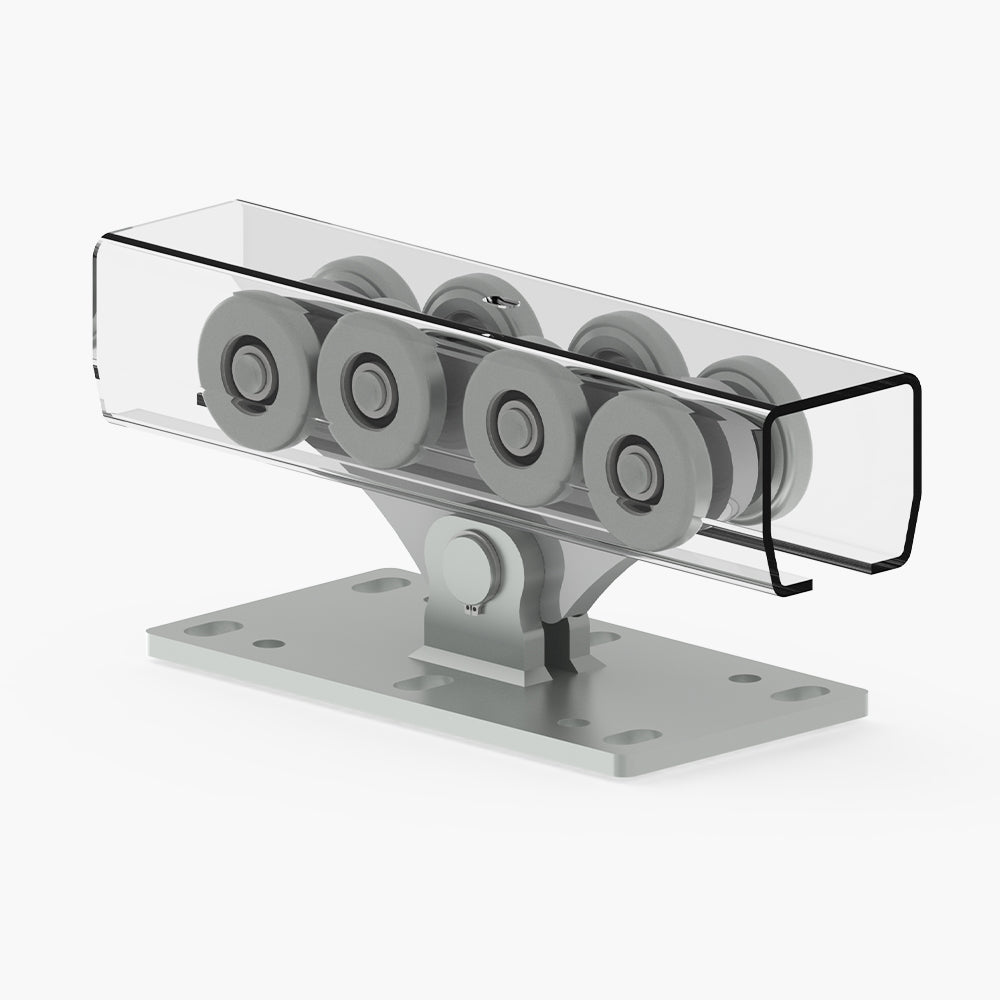

Medium Cantilever Carriage

Steel Cantilever Gate systems are where CAIS made their reputation and the cantilever track production is at the heart of their operation. The medium cantilever system is best for gates of up to 8m and 800kg.

Enhanced design and superior production from the Czech Republic using high quality German steel.

Formed from high quality, heavily galvanized, German steel in an 18 stage process with a slow rolling speed to reduce heat build-up and memory.

• Holes in the top of the track allow it to be easily bolted to an aluminium gate.
• The steel is sourced from leading German company Wumperman. It is galvanised after slitting so that there are no exposed raw steel edges that would otherwise quickly rust.
• The slow rolling process minimizes the tendency for track to spring open where it is cut to length.

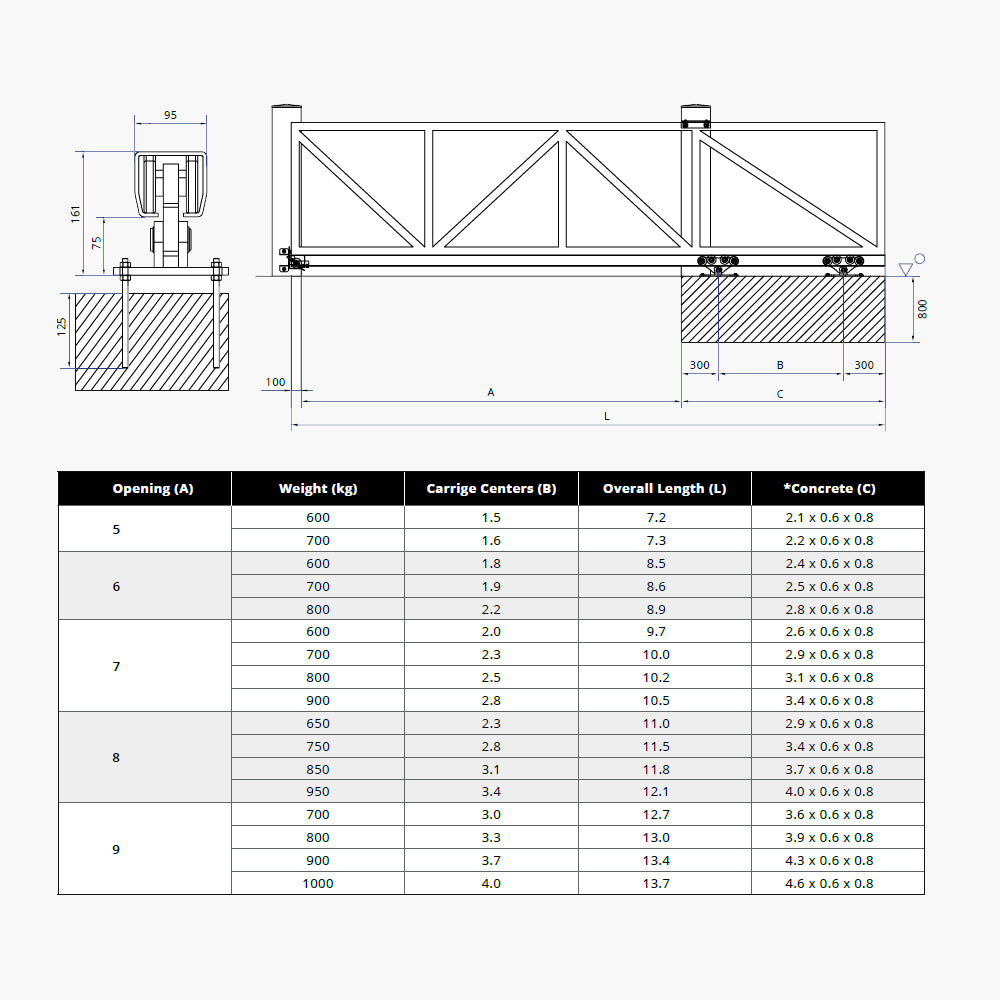

Download Specifications
