e-Loop Transceiver

Name: e-Loop Transceiver
Brand: Microtech Designs
SKU: ETRANS50
Price: 214.2 NZD
Availability: InStock

$214.20

Brand:

Microtech Designs

SKU:

ETRANS50

Product Type:

Automation Accessories

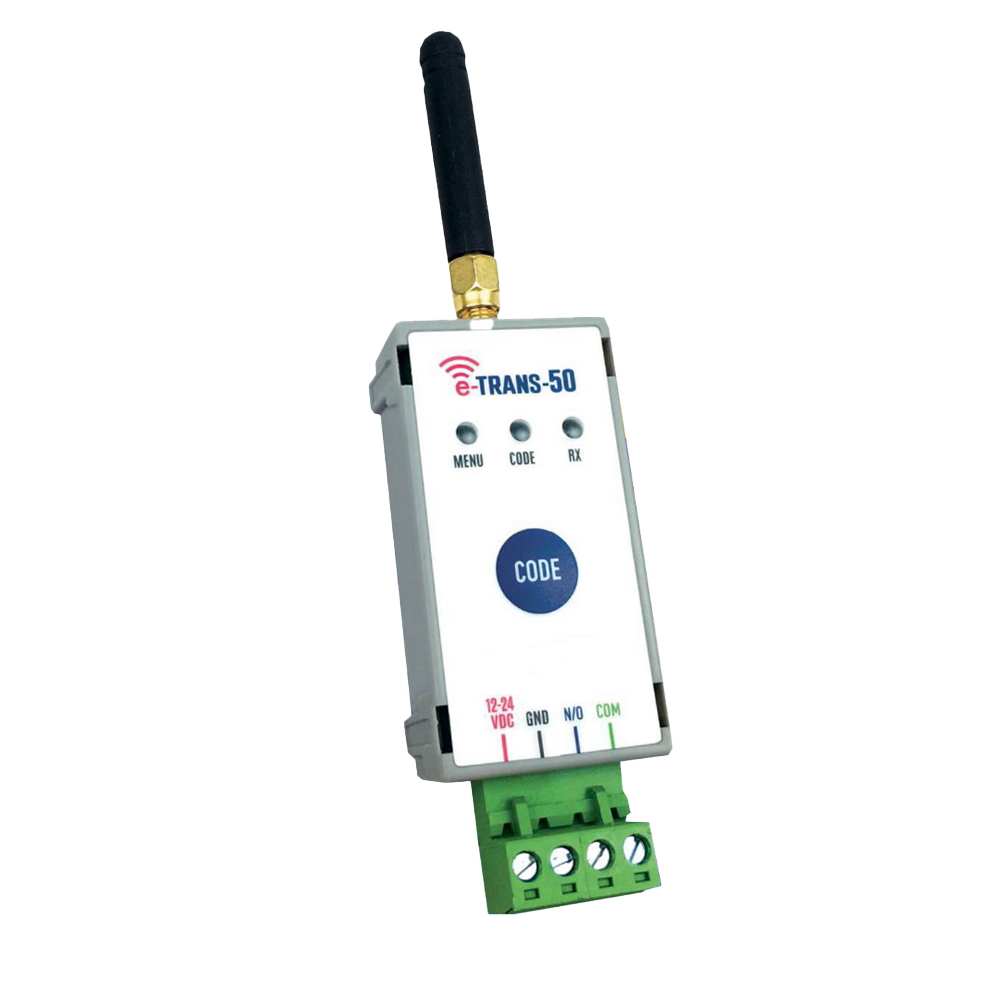

The e-Trans-50 is a single channel transceiver for all e-Loop models. It has a single NO output relay connecting to Open on the controller.

More information

Extended Description

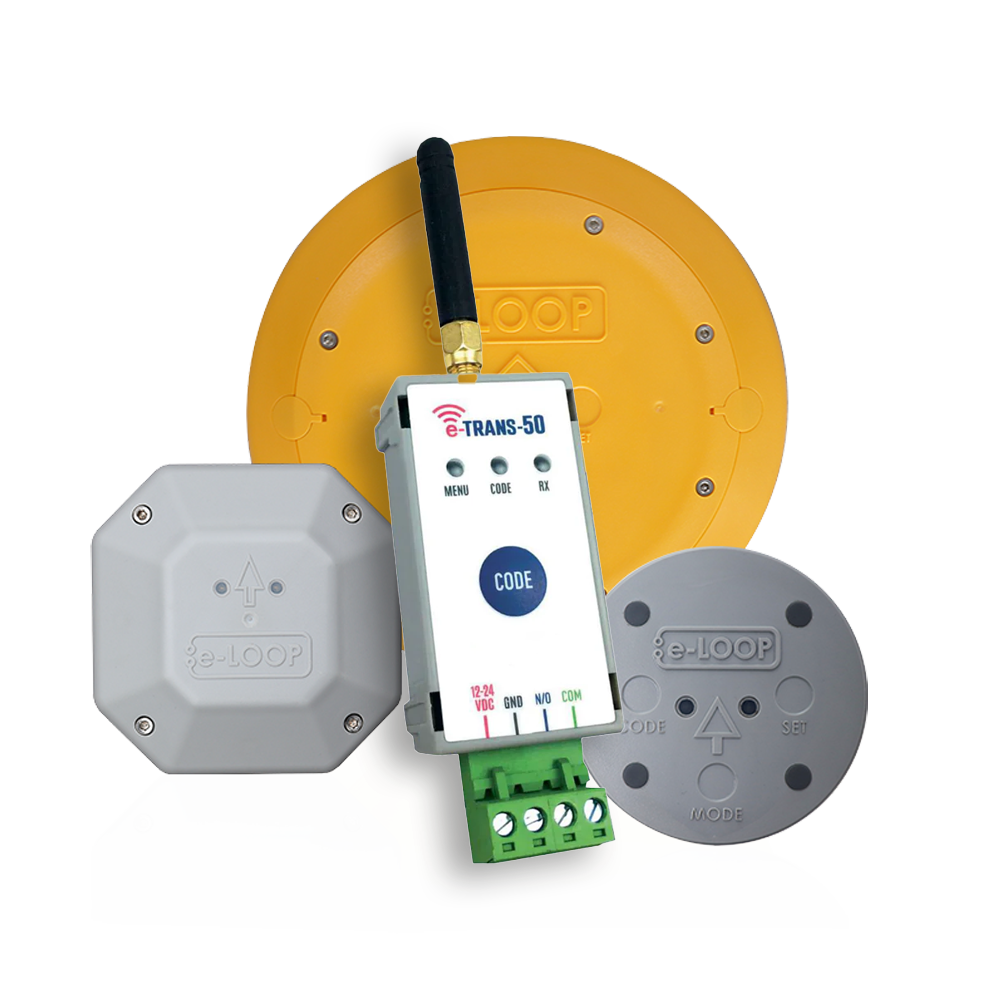

The e-Trans-50 transceiver works with all e-Loop models. It has a single NO output relay connecting to Open on the controller.

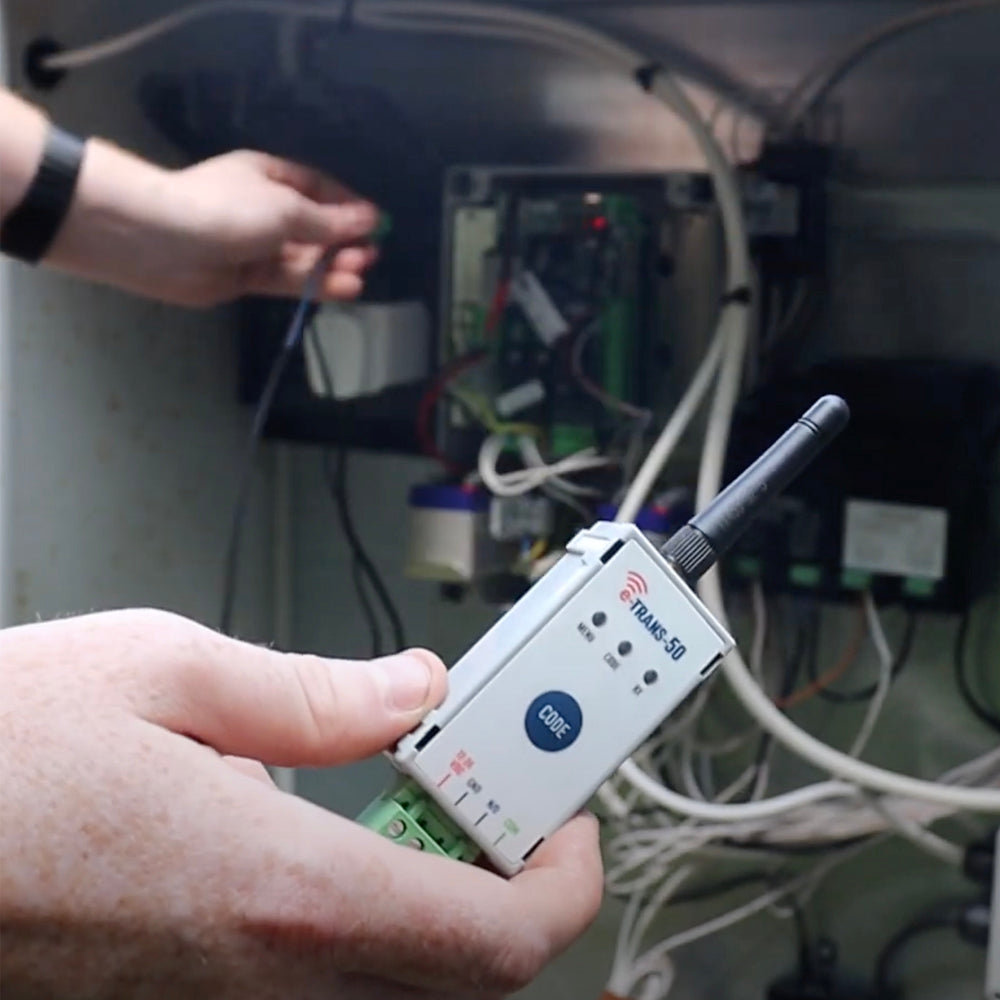

Note: It's recommended e-Trans-50 be mounted in a weatherproof plastic box.

Tech Specifications

Features

Compact design with an exceptional range
SMA connector standard for optional long-range antenna connection
Wide Voltage Range: 10-36V DC
Exceptionally low Current draw: standby 4.5 m/a, active 30 m/a
Frequency: 433.39 MHz
Remote storage: 50 remotes, 2 x Keypads, 2 x Entry Buttons
Relay: 1-amp contact rating, COM and N/O connections x 1 relay
Multiple Modes: Pulse, Latch and Hold

Documents

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing our range.

Download e-Trans50 Installation Guide
